Proscenic Ultenic H8 Smart Warm and Cool Mist Ultrasonic Humidifier User Manual

1. Pengenalan

Thank you for choosing the Proscenic Ultenic H8 Smart Warm and Cool Mist Ultrasonic Humidifier. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your device. Please read it thoroughly before use and retain it for future reference.

The Ultenic H8 humidifier is designed to improve air quality and comfort in your home by providing both warm and cool mist options. It features a large 4.3L water tank, smart app control, and an LED touch screen for convenient operation.

2. Arahan Keselamatan Penting

• Sentiasa letakkan pelembap udara di atas permukaan yang keras, rata dan kalis air, jauh daripada cahaya matahari langsung dan sumber haba.
• Jangan letakkan pelembap udara berhampiran perabot atau peralatan yang sensitif terhadap kelembapan.
• Ensure the power cord is not damaged and is placed safely to prevent tripping hazards.
• Cabut plag pelembap udara sebelum mengisi, membersihkan atau mengalihkannya.
• Jangan rendam unit asas ke dalam air atau cecair lain.
• Jauhkan daripada kanak-kanak dan haiwan peliharaan.
• Gunakan hanya air paip yang bersih dan sejuk. Air suling atau air yang dinyahmineralkan adalah disyorkan untuk mencegah pengumpulan mineral.
• Do not add essential oils directly into the water tank; use the designated aroma box.
• Jangan sekat saluran keluar kabus.
• If the humidifier emits unusual sounds, smells, or smoke, unplug it immediately and contact customer support.

3. Produk Lebihview

Familiarize yourself with the components of your Ultenic H8 humidifier:

• Mist Outlet: Di mana kabus tersebar.
• Tangki Air: 4.3L capacity for water.
• Unit Asas: Contains the ultrasonic transducer and heating element.
• Panel Kawalan/Paparan LED: For manual operation and status display.
• Kotak Aroma: For adding essential oils (do not add directly to water tank).
• Kord Kuasa: Connects to an electrical outlet.
• Kawalan Jauh: Untuk memudahkan operasi dari jauh.

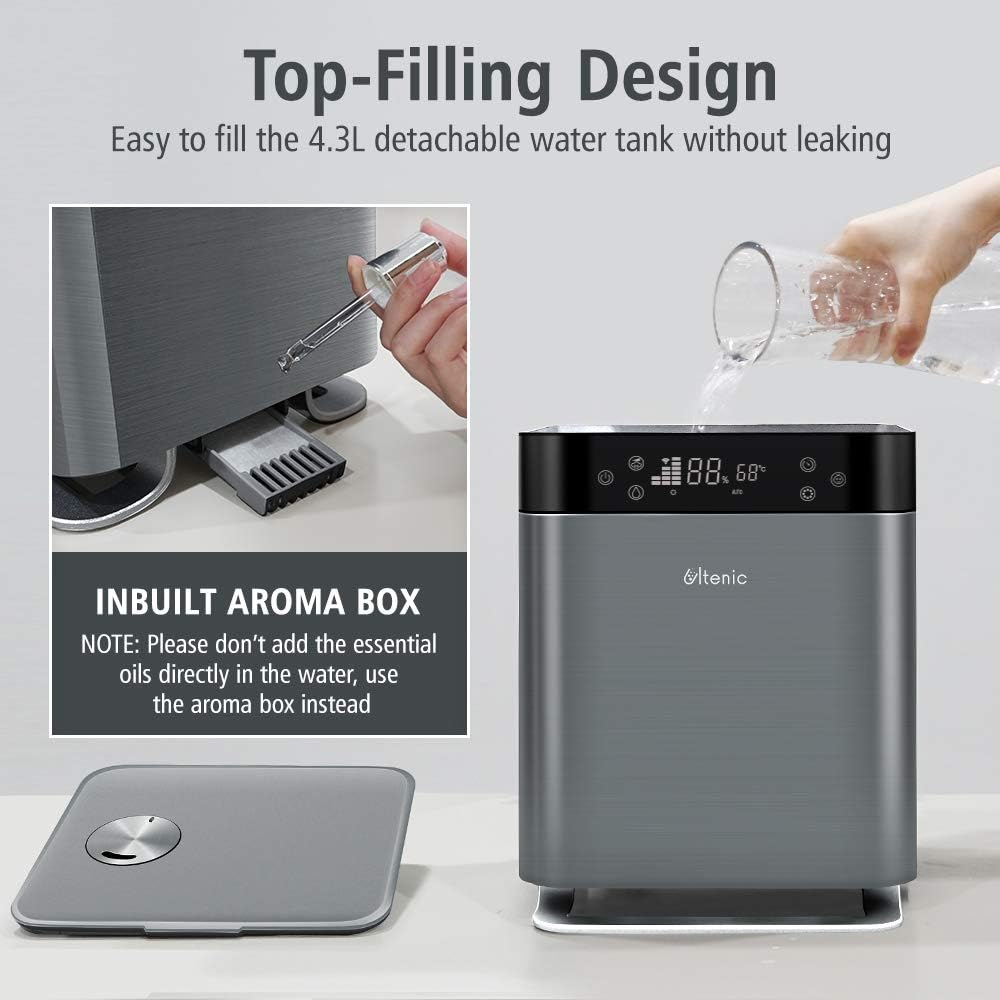

Imej: The Ultenic H8 humidifier showcasing its top-filling design and the integrated aroma box. The image highlights the ease of refilling the 4.3L detachable water tank without leakage and provides a note to use the aroma box for essential oils instead of adding them directly to the water.

4. Persediaan

4.1 Penempatan Awal

1. Unpack the humidifier and all accessories.
2. Place the humidifier on a flat, stable surface at least 6 inches (15 cm) away from walls and other objects.
3. Pastikan kord kuasa mudah dicapai dan tidak terhalang.

4.2 Mengisi Tangki Air

1. Tanggalkan penutup atas pelembap.
2. Fill the 4.3L water tank directly from the top opening with clean, cool tap water. For best results and to prevent mineral buildup, use distilled or demineralized water.
3. Do not fill past the MAX water level indicator.
4. Gantikan penutup atas dengan selamat.

4.3 Sambungan Kuasa

Plug the power cord into a standard electrical outlet. The humidifier will enter standby mode.

5. Arahan Operasi

5.1 Operasi Panel Kawalan

The LED touch screen allows for easy adjustment of settings and displays real-time humidity levels.

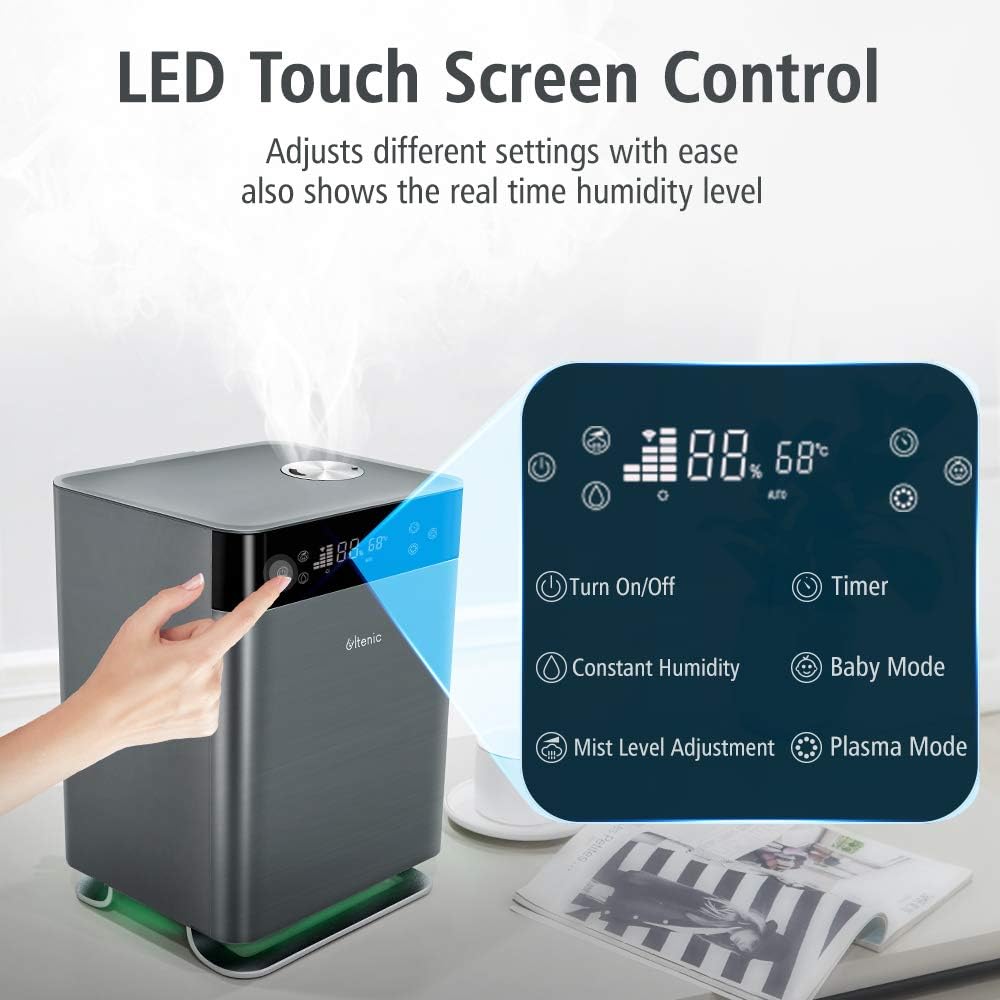

Imej: Close-up of the Ultenic H8 humidifier's LED touch screen control panel. The image illustrates various touch buttons for functions such as Turn On/Off, Timer, Constant Humidity, Baby Mode, Mist Level Adjustment, and Plasma Mode, along with the digital display showing humidity and temperature.

• Butang Kuasa: Tekan untuk menghidupkan/mematikan pelembap udara.
• Pelarasan Tahap Kabus: Cycle through different mist output levels.
• Mod Kelembapan Malar: Set a desired humidity level; the humidifier will automatically adjust output to maintain it.
• Warm Mist/Cool Mist: Select between warm or cool mist output.
• Mod Bayi: Optimized settings for a baby's room.
• Plasma Mode: Activates the plasma function for air purification.
• Cahaya Malam: Turn the integrated night light On/Off.
• Pemasa: Set an operating duration (e.g., 1-12 hours).

5.2 Kawalan APP Pintar

Download the Ultenic app from your smartphone's app store to control your humidifier remotely and access additional features.

Imej: The Ultenic H8 humidifier with a smartphone displaying the smart app interface and an Amazon Echo device. The image highlights features like Alexa & Google Home voice control, Baby Mode, Warm Mist, 3-Levels Mist, Timer, Night Light, and Schedule, all controllable via the app.

1. Muat turun Apl: Cari untuk "Ultenic" in the App Store (iOS) or Google Play Store (Android).
2. Daftar/Log Masuk: Buat akaun atau log masuk jika anda sudah mempunyai akaun.
3. Tambah Peranti: Follow the in-app instructions to add your H8 humidifier. Ensure your phone is connected to a 2.4GHz Wi-Fi network during setup.
4. Ciri Kawalan:
   • Jauh Hidup/Mati
   • Adjust mist levels and modes (Warm/Cool, Baby Mode, Constant Humidity, Plasma)
   • Tetapkan jadual dan pemasa
   • Control night light
   • Monitor indoor temperature and humidity
   • Voice control integration with Alexa and Google Home (requires separate setup within their respective apps).

5.3 Mist Output and Coverage

Imej: The Ultenic H8 humidifier demonstrating its 360° effective coverage, providing continuous mist for rooms up to 50m² (323 ft²). The image visually separates warm mist (balancing heated air in winter) and cool mist (keeping skin hydrated in hot & dry weather) functions.

The H8 humidifier offers 360° effective coverage, suitable for rooms up to 50m² (323 ft²), providing up to 30 hours of continuous mist. Choose between warm mist to balance heated air in winter or cool mist for hydration in hot and dry weather.

6. Penyelenggaraan

Regular cleaning and maintenance are crucial for optimal performance and longevity of your humidifier.

6.1 Penyelenggaraan Harian

• Empty any remaining water from the tank and base unit daily.
• Rinse the water tank and base unit with fresh water.
• Refill with fresh, clean water before each use.

6.2 Pembersihan Mingguan

1. Cabut plag: Sentiasa cabut plag pelembap udara sebelum membersihkannya.
2. Air Kosong: Empty all water from the tank and base unit.
3. Tangki Air Bersih:
   • Keluarkan tangki air.
   • Wipe the inside of the tank with a soft cloth.
   • For mineral buildup, fill the tank with a mixture of 1 teaspoon of white vinegar and 1 gallon of water. Let it stand for 30 minutes, then rinse thoroughly.
4. Unit Pangkalan Bersih:
   • Gently wipe the surface of the ultrasonic transducer (the small disc in the center of the base) with a soft brush or cloth. Do not scrape.
   • Clean the heating element (if applicable) and other internal surfaces with a soft, damp kain.
   • Jangan rendam unit asas dalam air.
5. Bilas dan Keringkan: Rinse all parts thoroughly with clean water and allow them to air dry completely before reassembling.

6.3 Penyimpanan

If the humidifier will not be used for an extended period, clean it thoroughly as described above, ensure all parts are dry, and store it in a cool, dry place.

7. Penyelesaian masalah

8. Spesifikasi

Imej: The Ultenic H8 humidifier operating quietly in a bedroom setting, with a person sleeping peacefully. The image emphasizes its ultra-quiet operation (less than 30dB) and the presence of a night light that can be turned off.

9. Waranti dan Sokongan

Proscenic products are manufactured to the highest quality standards. For detailed warranty information, please refer to the warranty card included with your purchase or visit the official Proscenic webtapak.

If you encounter any issues or have questions regarding your Ultenic H8 humidifier, please contact Proscenic Customer Support for assistance. Contact details can typically be found on the product packaging, warranty card, or the official webtapak.
