Seiko Solar Chronograph Watch SSC221P1 User Manual

1. Pengenalan

Thank you for choosing the Seiko Solar Chronograph Watch SSC221P1. This timepiece combines precise chronograph functionality with solar-powered technology, ensuring reliable performance. This manual provides detailed instructions to help you understand and operate your watch effectively. Please read it thoroughly to ensure proper use and maintenance.

2. Produk Lebihview

The Seiko Solar Chronograph Watch SSC221P1 features a stainless steel case and bracelet, a blue dial, and a solar-powered movement. It includes a chronograph function for measuring elapsed time and is water-resistant up to 100 meters (10 bar).

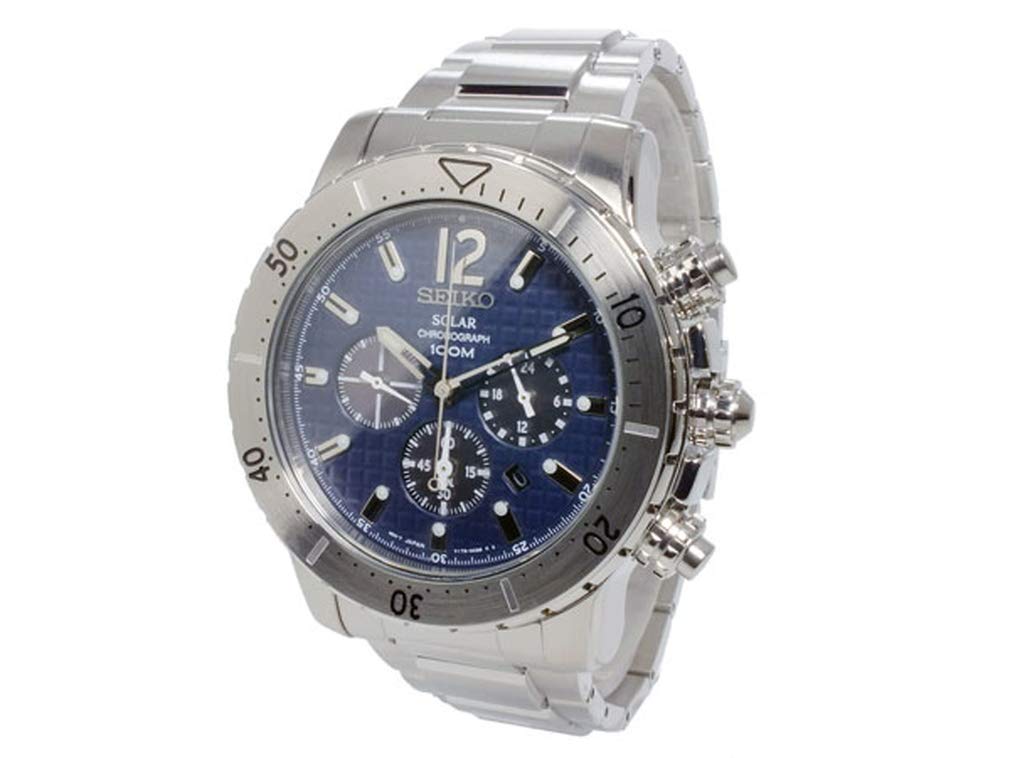

Rajah 2.1: Depan view of the Seiko Solar Chronograph Watch SSC221P1. This image displays the watch face with its blue dial, three subdials, luminous hands, and hour markers. The silver-toned stainless steel case and bracelet are also visible, along with the crown and pushers on the right side of the case. The bezel features minute markings.

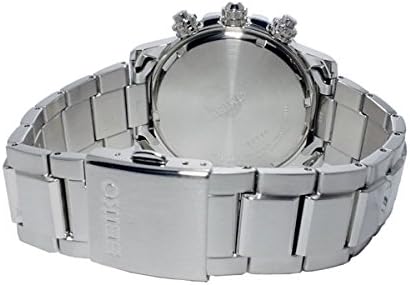

Rajah 2.2: belakang view of the Seiko Solar Chronograph Watch SSC221P1. This image shows the solid stainless steel case back, which is typically engraved with model information and water resistance details. The stainless steel bracelet and its clasp mechanism are also clearly visible.

3. Persediaan

3.1 Pengecasan Awal

Your Seiko Solar watch is powered by light. Before initial use, or if the watch has stopped, expose the dial to bright light (natural sunlight is ideal) for several hours to ensure it is sufficiently charged. Avoid placing the watch in direct sunlight for extended periods in extremely hot environments to prevent damage.

3.2 Menetapkan Masa dan Tarikh

1. Tarik mahkota keluar ke kedudukan klik kedua. Jarum saat akan berhenti.
2. Rotate the crown to set the hour and minute hands. Ensure the AM/PM is correctly set (the date changes around midnight).
3. Tolak mahkota kembali ke kedudukan klik pertama.
4. Rotate the crown to set the date.
5. Tolak mahkota kembali ke kedudukan normal. Jarum saat akan menyambung pergerakan.

3.3 Pelarasan Gelang

The stainless steel bracelet can be adjusted for a comfortable fit. It is recommended to have this adjustment performed by a qualified watch technician or jeweler to prevent damage to the bracelet or watch.

4. Mengendalikan Jam Tangan

4.1 Penjagaan Masa Asas

Once set, the watch will continuously display the current time (hours, minutes, seconds) and date. The solar cell continuously charges the internal battery when exposed to light, ensuring consistent operation.

4.2 Menggunakan Chronograph

Fungsi kronograf membolehkan anda mengukur masa berlalu.

• Mulakan: Press the upper pusher (A) to start the chronograph. The chronograph second hand will begin moving.
• Berhenti: Tekan penolak atas (A) sekali lagi untuk menghentikan kronograf. Masa berlalu akan ditunjukkan oleh jarum kronograf.
• Tetapkan semula: While the chronograph is stopped, press the lower pusher (B) to reset all chronograph hands to their zero positions.
• Masa Pembahagian: (If applicable, refer to specific subdial functions) Some chronographs allow for split time measurement. Consult the detailed movement guide for advanced functions.

4.3 Rintangan Air (100M / 10 Bar)

Your watch is water-resistant up to 100 meters (10 bar). This means it is suitable for everyday use, swimming, and snorkeling. It is bukan sesuai untuk menyelam skuba. Pastikan mahkota ditolak sepenuhnya ke dalam sebelum mendedahkan jam tangan kepada air. Jangan kendalikan mahkota atau penolak semasa jam tangan basah atau tenggelam.

5. Penyelenggaraan

5.1 Membersihkan Jam Tangan Anda

Lap bekas jam tangan dan gelang secara berkala dengan kain lembut dan kering untuk menghilangkan kotoran dan kelembapan. Untuk keluli tahan karat, sedikitamp cloth can be used, followed by a dry cloth. Avoid using chemical cleaners or solvents, as these can damage the watch's finish.

5.2 Syor Pengecasan

To maintain optimal performance, ensure your watch receives regular exposure to light. If stored in darkness for extended periods, the watch may stop. A full charge can last for several months in darkness, but frequent exposure to light is recommended.

5.3 Avoiding Extreme Conditions

Avoid exposing your watch to extreme temperatures (above 60°C / 140°F or below 0°C / 32°F), strong magnetic fields, or severe shocks. These conditions can affect the accuracy and longevity of the watch.

6. Penyelesaian masalah

• Watch has stopped or is running irregularly: The watch may not be sufficiently charged. Expose the dial to bright light for several hours. If the issue persists after adequate charging, the internal battery may need inspection by a service center.
• Chronograph hands do not reset to zero: This can sometimes occur after a strong impact or magnetic exposure. Pull the crown out to the second click position, then press the pushers (A and B) to adjust the chronograph hands back to their zero positions. Refer to the detailed movement guide for specific adjustment procedures if needed.
• Masa tidak tepat: Ensure the watch is fully charged. If the time remains inaccurate, the watch may require servicing.

7. Spesifikasi

8. Waranti dan Sokongan

8.1 Maklumat Waranti

This Seiko watch is covered by a 1-year limited warranty from the date of purchase. The warranty covers manufacturing defects under normal use. It does not cover damage resulting from improper handling, accidents, unauthorized repairs, or normal wear and tear.

8.2 Sokongan Pelanggan

For warranty service, repairs, or technical assistance, please contact your authorized Seiko dealer or a Seiko service center. Please retain your proof of purchase for warranty claims.
