1. Pengenalan dan Lebihview
The Uthfy 32-inch Evaporative Air Cooler is a versatile 3-in-1 unit designed to provide cooling, humidification, and fan functions for your living space. This portable appliance offers powerful airflow, wide coverage, and quiet operation, making it suitable for various rooms including large rooms, offices, bedrooms, garages, or basements. Its energy-efficient design and convenient features ensure a comfortable environment without the high costs or complex installation of traditional air conditioning systems.

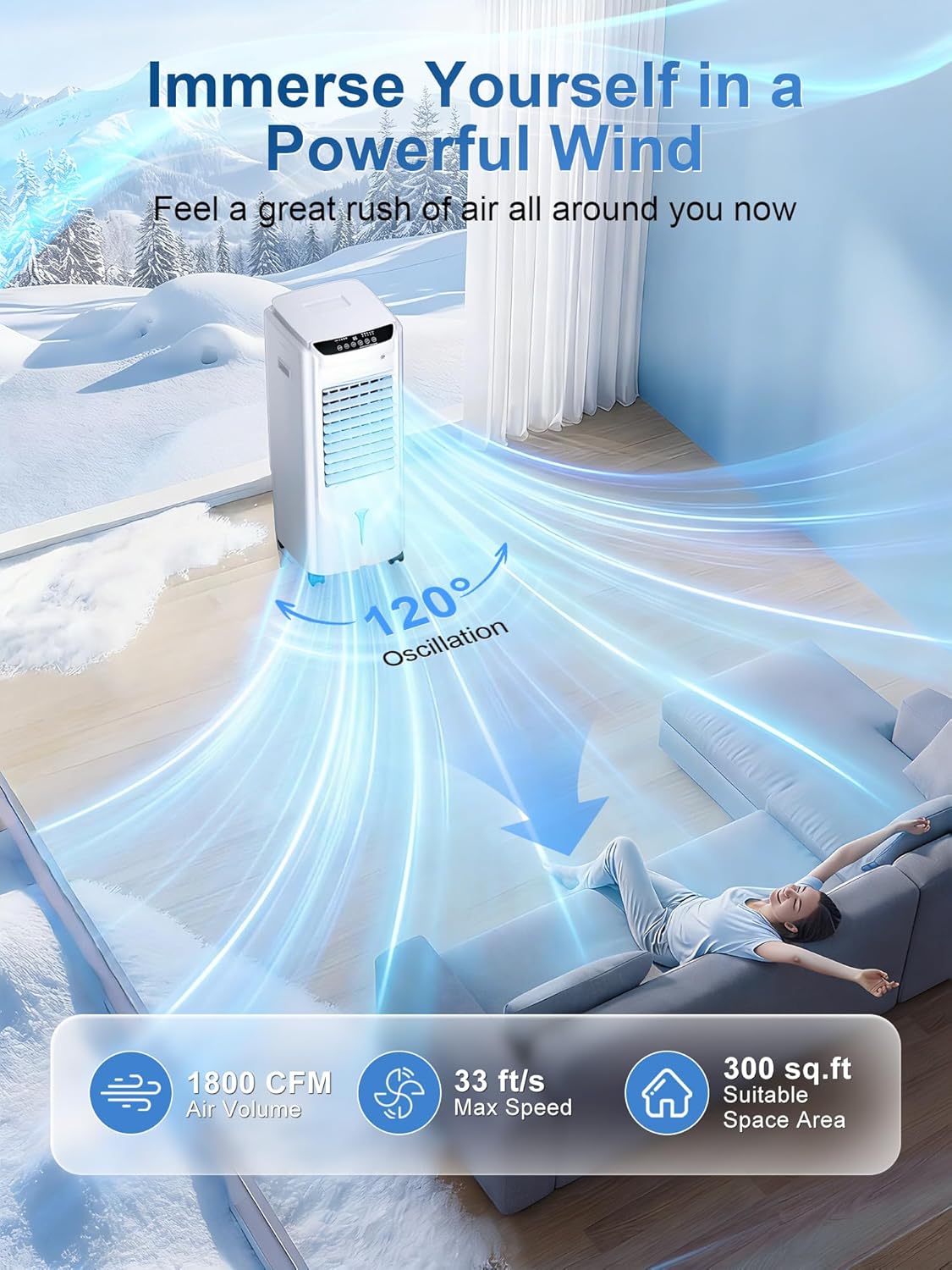

Image: The Uthfy Evaporative Air Cooler in a living room, illustrating its powerful airflow and 120-degree oscillation for wide coverage.
Ciri-ciri Utama:
- Fungsi 3-dalam-1: Air Cooler, Humidifier, and Fan.
- Penyejukan Kuat: 1800 CFM air volume, 33 ft/s max wind speed.
- Liputan Luas: 120° oscillation for even air distribution.
- Tangki Air Besar: 4.2 Gallon capacity for up to 24 hours of continuous operation.
- Penyejukan yang dipertingkatkan: Includes 4 ice packs and a high-absorption cooling pad.
- Pelbagai Mod & Kelajuan: 4 wind modes (Normal, Natural, Cooling, Sleep) and 3 fan speeds (Low, Medium, High).
- Operasi senyap: Operates at a low noise level of 25 dB, ideal for undisturbed sleep or work.
- Kawalan Mudah: Touch control panel and remote control with a 28 ft range.
- Reka Bentuk Mudah Alih: Built-in handles and 360° smooth wheels for easy mobility.
- Pemasa 12 Jam: Programmable auto-off timer for energy saving.
2. Kandungan Pakej
Sila tandai kotak untuk item berikut:
- Uthfy Evaporative Air Cooler Unit
- Alat Kawalan Jauh
- Ice Packs (4 pieces)
- Panduan Pengguna
- Base (requires minor assembly)
- Screws for base assembly

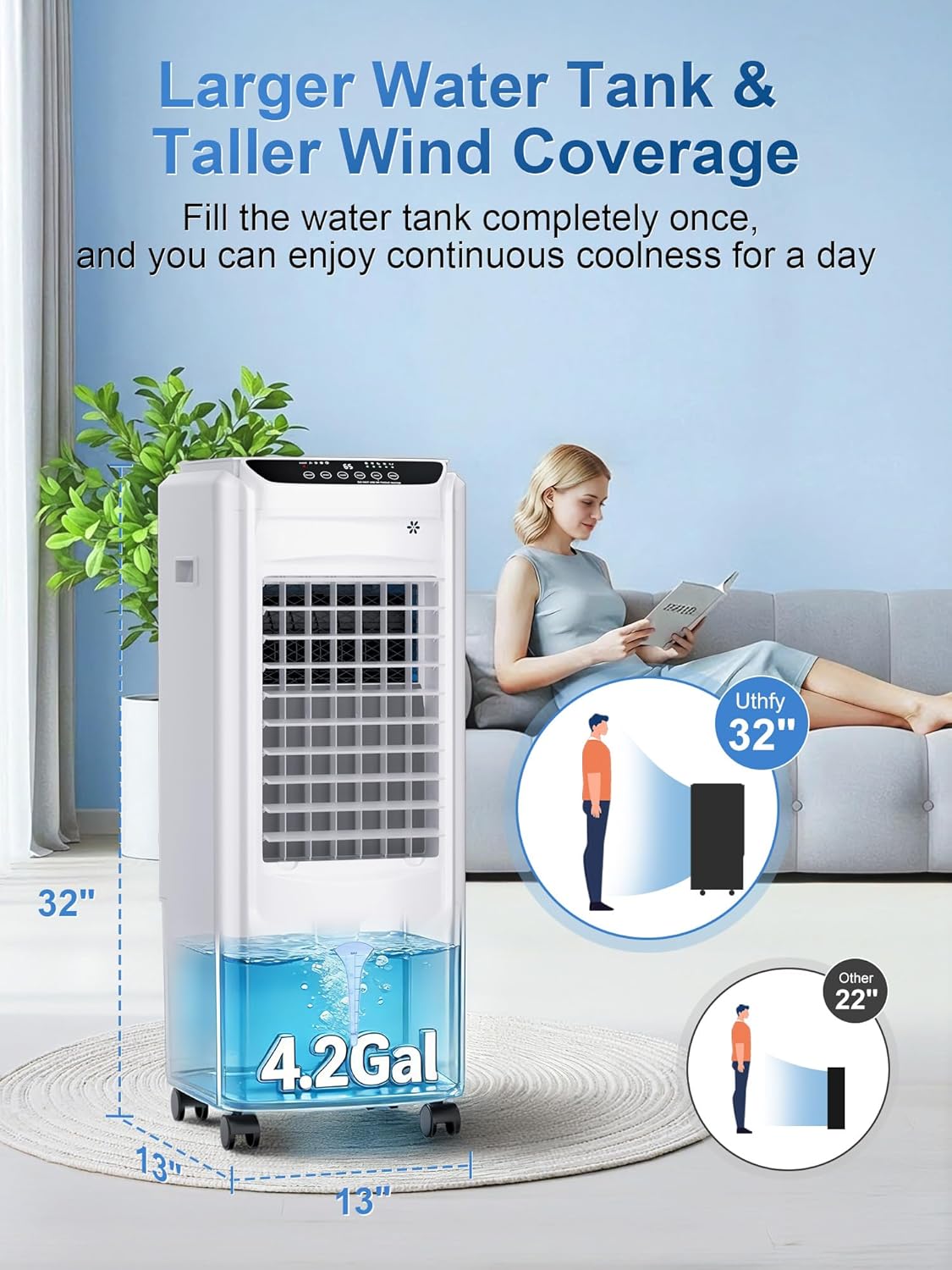

Image: The Uthfy Evaporative Air Cooler highlighting its 4.2-gallon water tank and overall dimensions.
3. Persediaan
3.1 Perhimpunan Pangkalan
- Carefully remove the air cooler unit and all accessories from the packaging.
- Connect the two halves of the base together.
- Align the assembled base with the bottom of the main unit.
- Secure the base to the unit using the provided screws.
- Letakkan unit di permukaan yang rata dan stabil.
3.2 Mengisi Tangki Air
The unit features a 4.2-gallon water tank that can be filled from the top or by pulling out the bottom tank. For optimal cooling, ensure the water level is between the MIN and MAX indicators.
- Open the top lid of the unit.
- Carefully pour clean water into the reservoir until it reaches the MAX line on the visible water level indicator.
- Alternatively, pull out the bottom water tank, fill it, and slide it back into place.
- For enhanced cooling, place the 4 included ice packs (after freezing them) into the top water reservoir.
- Tutup penutup atas dengan selamat.
Image: Close-up of the top water filling port on the Uthfy Evaporative Air Cooler.
3.3 Sambungan Kuasa
Palamkan kord kuasa ke soket elektrik 120V standard.
Video: An unboxing video demonstrating the initial setup and components of the Uthfy Evaporative Air Cooler.
4. Arahan Operasi
The Uthfy Evaporative Air Cooler can be operated using the touch control panel on top of the unit or the included remote control.
Image: The intuitive LED control panel and remote control for the Uthfy Evaporative Air Cooler.
4.1 Hidupkan/Mati Kuasa
- Tekan ke HIDUP/MATI butang pada panel kawalan atau alat kawalan jauh untuk menghidupkan atau mematikan unit.
4.2 Melaraskan Kelajuan Kipas
The unit offers 3 fan speeds:
- Tekan ke LAJU butang berulang kali untuk mengitar kelajuan kipas Rendah, Sederhana dan Tinggi.
4.3 Memilih Mod Pengendalian
Choose from 4 distinct operating modes:
- Tekan ke MODE button repeatedly to select Normal, Natural, Cooling, or Sleep mode.
- Mod Biasa: Memberikan aliran udara yang konsisten.
- Mod Semula Jadi: Simulates natural wind patterns with varying speeds.
- Mod Penyejukan: Activates the evaporative cooling function, using water and ice packs for cooler air.
- Mod tidur: Operates quietly with reduced fan speed and dimmed display for undisturbed rest.

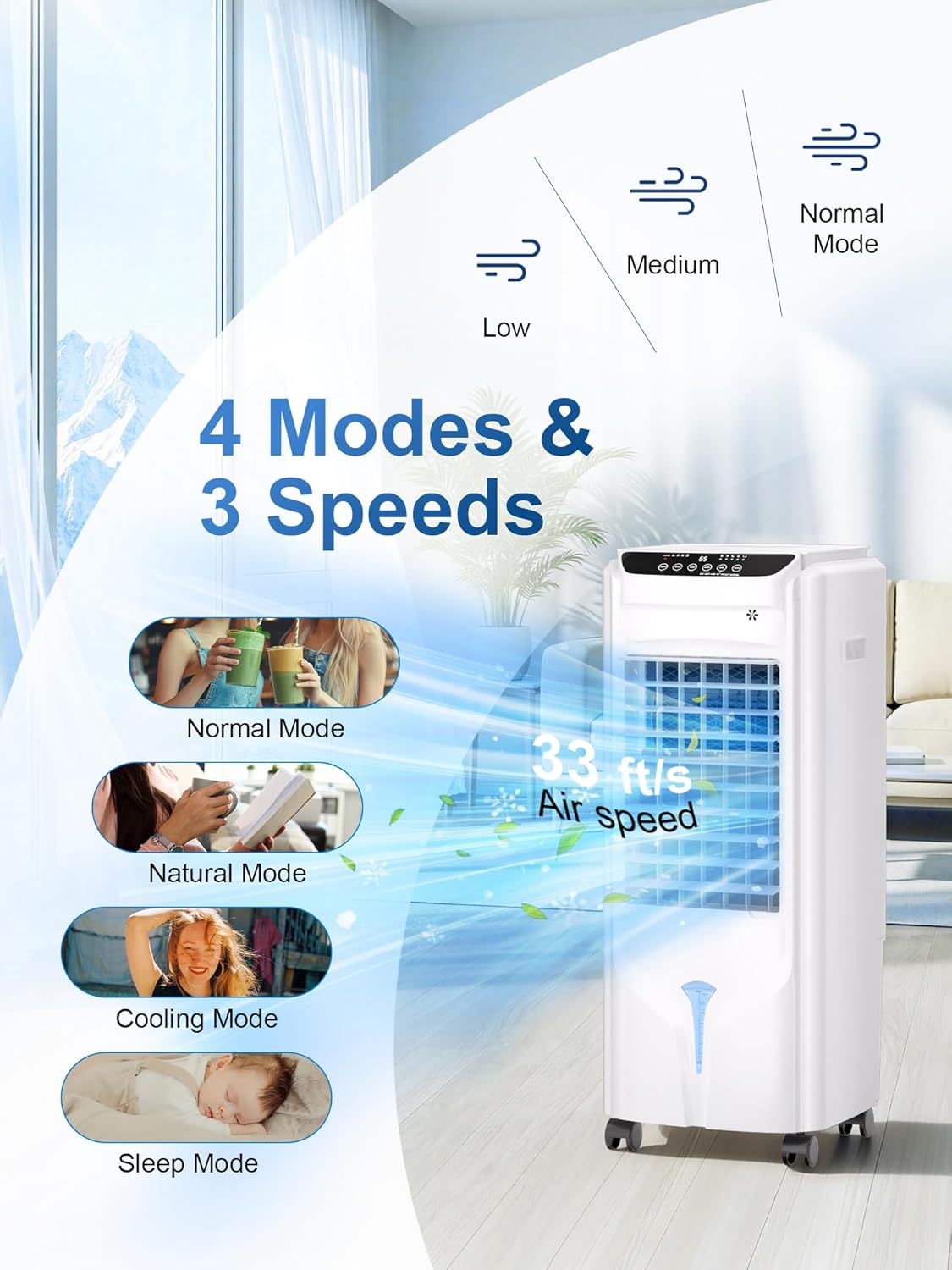

Image: Visual representation of the 4 operating modes and 3 fan speeds available on the Uthfy Evaporative Air Cooler.
4.4 Activating Oscillation (Swing)
- Tekan ke Swing button to activate the 120° oscillation feature, distributing air across a wider area. Press again to stop.
4.5 Menetapkan Pemasa
- Tekan ke PEMASA button repeatedly to set the auto-off timer from 1 to 12 hours. The unit will automatically turn off after the set time.
Video: Tamatview of the Uthfy Evaporative Air Cooler's features and operation.
5. Penyelenggaraan
Regular maintenance ensures optimal performance and longevity of your Uthfy Evaporative Air Cooler.
5.1 Pembersihan Tangki Air
To prevent mold and mildew, clean the water tank regularly, especially if the unit is not used for an extended period.
- Cabut palam unit daripada salur keluar kuasa.
- Locate the drainage port at the bottom rear of the unit.
- Uncap the drainage port to empty any remaining water from the tank.
- Wipe the inside of the tank with a soft cloth and mild detergent, then rinse thoroughly.
- Ensure the tank is completely dry before recapping the drainage port and refilling.
Image: Close-up of the evaporative cooling pad, which should be regularly cleaned.
5.2 Cooling Pad/Filter Cleaning
The cooling pad and filter should be cleaned periodically to maintain efficient airflow and cooling performance.
- Cabut palam unit.
- Gently remove the rear panel to access the cooling pad/filter.
- Rinse the cooling pad/filter under running water to remove dust and debris. For stubborn dirt, use a soft brush.
- Allow the cooling pad/filter to air dry completely before reinserting it into the unit.
- Reattach the rear panel securely.
6. Penyelesaian masalah
If you encounter any issues with your Uthfy Evaporative Air Cooler, please refer to the following common problems and solutions:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Unit tidak dihidupkan | Tiada bekalan kuasa; Butang kuasa tidak ditekan. | Check power cord connection; Ensure outlet is functional; Press ON/OFF button. |
| Tiada udara sejuk / Penyejukan lemah | Water tank empty; Cooling function not activated; Ice packs not used; Cooling pad dirty. | Fill water tank; Activate Cooling Mode; Add frozen ice packs; Clean cooling pad. |
| Aliran udara yang lemah | Low fan speed selected; Air filter/cooling pad dirty. | Increase fan speed; Clean air filter/cooling pad. |
| Bunyi yang tidak biasa | Unit not on a flat surface; Internal obstruction. | Place unit on a stable, flat surface; Check for and remove any obstructions. |
7. Spesifikasi
| Spesifikasi | Nilai |
|---|---|
| Jenama | Uthfy |
| Nama Model | Swamp Cooler (HY-75R-0128) |
| Jenis Pemasangan | Freestanding |
| warna | putih |
| Kapasiti Aliran Udara | 1800 Kaki Kubik Seminit (CFM) |
| Kelajuan Angin Maksimum | 33 kaki/s |
| Jenis Kawalan | Remote, Touch Control Panel |
| Kapasiti Takungan | 4.2 gelen |
| Tahap Kebisingan | 25 Desibel |
| Bilangan Kelajuan | 3 (Rendah, Sederhana, Tinggi) |
| Dimensi Produk | 12.65"D x 12.8"W x 31.1"H |
| Voltage | 120 Volt |
| Oscillation | 120° |
| Pemasa | 1-12 Jam |
| Mod | Normal, Natural, Cooling, Sleep |
| Berat Barang | 15.1 paun |
8. Waranti & Sokongan
8.1 Maklumat Waranti
This Uthfy Evaporative Air Cooler comes with a Waranti Pengeluar 1 Tahun dari tarikh pembelian. Waranti ini melindungi kecacatan pada bahan dan mutu kerja di bawah penggunaan biasa.
8.2 Sokongan Pelanggan
For any questions, technical assistance, or warranty claims, please refer to the contact information provided in your product's user guide or visit the official Uthfy website. You may also contact the retailer where the product was purchased for support.
