Vonets VAR1200-L High Performance Dual Band WiFi Repeater User Manual

1. Pengenalan

This manual provides detailed instructions for the installation, operation, and maintenance of your Vonets VAR1200-L High Performance Dual Band WiFi Repeater. The VAR1200-L is designed to extend your existing wireless network coverage, providing a stable and high-speed internet connection for various applications, including 4K video streaming and long-distance data transmission.

2. Ciri-ciri Produk

• High-Performance Repeater: Engineered for optimal connectivity, delivering a robust wireless signal for seamless 4K video streaming and long-distance transmission in both 2.4G and 5G frequency bands.
• Keserasian Dwi-Jalur: Effectively reduces interference and maximizes bandwidth, ideal for high-speed internet applications and ensuring reliable connections for multiple devices.
• POE Power Support: Equipped with Power over Ethernet (POE) capability, allowing for flexible installation without the need for additional power outlets, simplifying setup and enhancing convenience.
• Padat dan Mudah Dipasang: Designed to be both compact and powerful, this repeater can be effortlessly mounted or placed in various locations, ensuring a clutter-free environment while boosting network coverage.

3. Kandungan Pakej

Upon unpacking your Vonets VAR1200-L Repeater, please verify that all items are present and in good condition. The standard package typically includes:

• Vonets VAR1200-L Repeater Unit
• Power Adapter (if POE injector not used)
• Kabel Ethernet
• Panduan Pemasangan Pantas
• Internal Chip (as specified in product components)

Note: Specific contents may vary. If any items are missing or damaged, please contact customer support.

4. Produk Lebihview

The Vonets VAR1200-L Repeater features a compact design with essential ports and indicators for easy setup and monitoring. Familiarize yourself with the device's physical components before proceeding with installation.

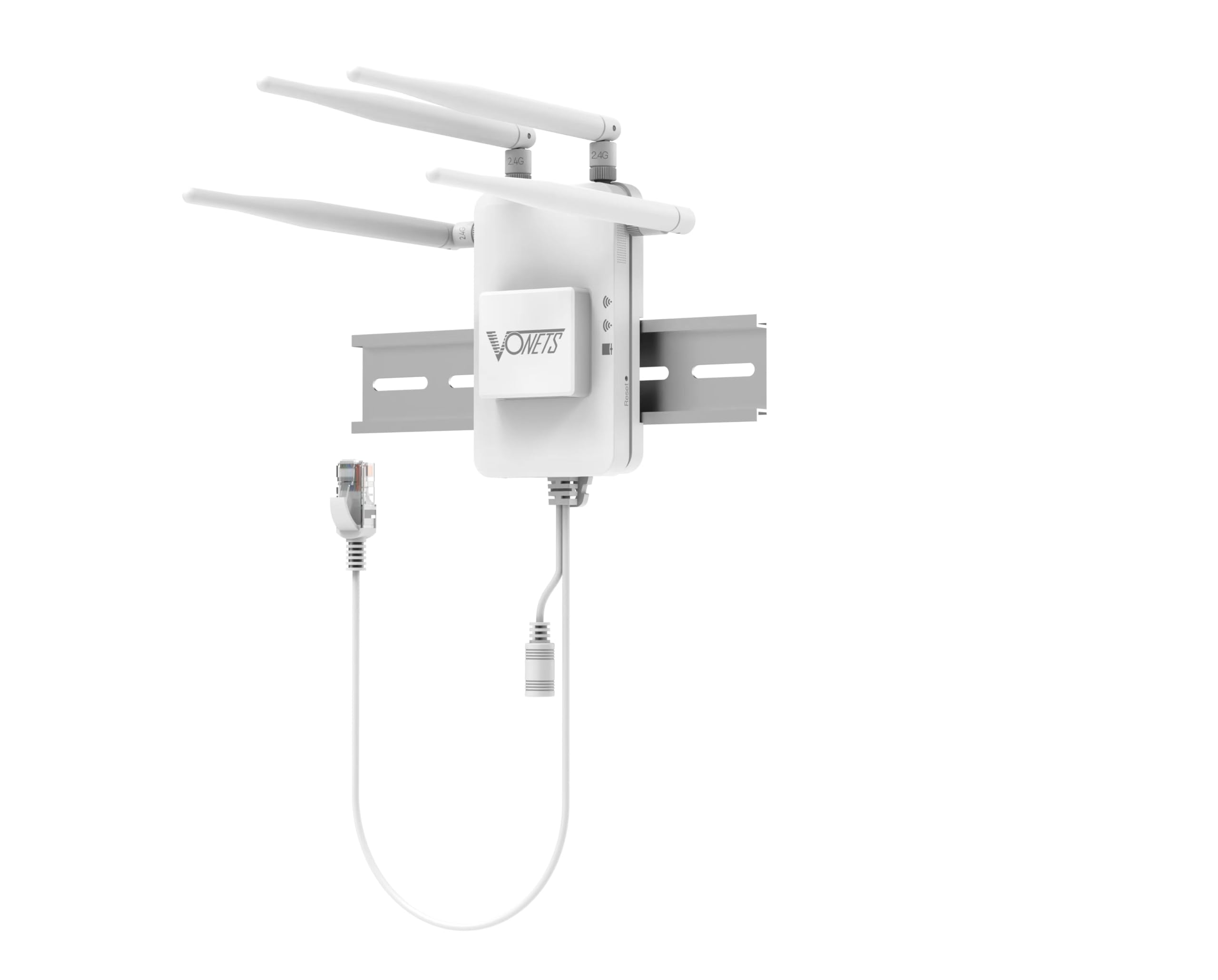

Rajah 1: Depan view of the Vonets VAR1200-L Repeater. This image displays the compact design of the repeater, likely showing LED indicators for power, WiFi signal strength, and network activity, along with the Vonets brand logo.

Komponen biasa termasuk:

• Penunjuk LED: For Power, WLAN (2.4G/5G), LAN, and WPS status.
• Port Ethernet: For connecting to your router or wired devices.
• Butang WPS: For quick and secure setup.
• Butang Tetapkan Semula: Untuk memulihkan tetapan lalai kilang.
• Input Kuasa: For connecting the power adapter or POE injector.

5. Arahan Persediaan

Follow these steps to set up your Vonets VAR1200-L Repeater:

1. Hidupkan kuasa: Connect the repeater to a power outlet using the provided power adapter, or connect it via an Ethernet cable to a POE-enabled switch/injector. Wait for the power LED to stabilize.
2. penempatan: Position the repeater between your main router and the area where you need improved WiFi coverage. Ensure it receives a good signal from your main router.
3. Connection Method (Choose One):
   • WPS Setup (Recommended for quick setup):
     1. Tekan butang WPS pada penghala utama anda.
     2. Within two minutes, press the WPS button on the VAR1200-L Repeater.
     3. Wait for the repeater's WLAN LED to indicate a successful connection (usually solid green or blue).
   • Web Persediaan Penyemak Imbas:
     1. Connect your computer or mobile device to the repeater's default WiFi network (e.g., "Vonets_VAR1200-L"). No password is required initially.
     2. Buka a web pelayar dan masukkan alamat IP lalai (biasanya 192.168.1.253 or vonets.com). Refer to the quick installation guide for the exact address.
     3. Log in with the default username and password (typically "admin" for both).
     4. Follow the on-screen wizard to select your main WiFi network, enter its password, and configure the repeater's network name (SSID) and password.
     5. Save settings and restart the repeater if prompted.
4. Sahkan Sambungan: Once set up, check the repeater's signal strength LEDs. Connect your devices to the repeater's extended WiFi network.

6. Arahan Operasi

After successful setup, the Vonets VAR1200-L Repeater operates automatically to extend your wireless network. Here are some operational considerations:

• Peluasan Rangkaian: The repeater will broadcast an extended WiFi network, typically with a modified SSID (e.g., "YourNetwork_EXT" or the name you configured). Connect your wireless devices to this network for improved coverage.
• Operasi Jalur Dwi: The VAR1200-L supports both 2.4GHz and 5GHz bands. Devices will automatically connect to the optimal band, or you can manually select the preferred band if separate SSIDs are configured.
• Kesambungan Berwayar: Use the Ethernet ports on the repeater to connect wired devices (e.g., smart TVs, gaming consoles, PCs) to your network, providing a stable wired connection in areas with weak WiFi.
• Status Pemantauan: Observe the LED indicators on the repeater to monitor its operational status. A stable WLAN LED indicates a good connection to the main router.

7. Penyelenggaraan

Proper maintenance ensures the longevity and optimal performance of your Vonets VAR1200-L Repeater:

• Jaga kebersihan: Lap peranti dengan kain lembut dan kering secara berkala. Elakkan penggunaan pembersih cecair atau aerosol.
• Pengudaraan: Ensure the repeater is placed in a well-ventilated area, away from direct sunlight, heat sources, and obstructions that could block airflow.
• Kemas kini Firmware: Periodically check the Vonets official weblaman web untuk kemas kini perisian tegar. Mengemas kini perisian tegar boleh meningkatkan prestasi, menambah ciri baharu dan membetulkan pepijat.
• Elakkan Keadaan Melampau: Jangan dedahkan peranti kepada suhu, kelembapan atau persekitaran yang menghakis.
• Kitaran Kuasa: If the device experiences issues, try power cycling it by unplugging it from the power source for 10 seconds and then plugging it back in.

8. Penyelesaian masalah

If you encounter issues with your Vonets VAR1200-L Repeater, refer to the following common problems and solutions:

• Tiada Kuasa:
  • Ensure the power adapter is securely connected to the repeater and a working power outlet.
  • If using POE, verify the POE injector/switch is powered on and the Ethernet cable is correctly connected.
• Tidak Dapat Menyambung ke WiFi Repeater:
  • Verify the repeater is powered on and its WiFi LEDs are active.
  • Ensure you are selecting the correct extended network name (SSID) and entering the correct password.
  • Try restarting the repeater and your device.
• No Internet Access Through Repeater:
  • Periksa sama ada penghala utama anda mempunyai akses internet.
  • Ensure the repeater is successfully connected to your main router (WLAN LED should be stable).
  • Reposition the repeater closer to your main router to improve signal strength.
  • Try reconfiguring the repeater using the web kaedah persediaan pelayar.
• Kelajuan Perlahan:
  • Move the repeater closer to your main router.
  • Ensure there are no major obstructions (thick walls, metal objects) between the repeater and your main router or your devices.
  • Reduce the number of devices connected to the repeater.
  • Semak gangguan daripada peranti elektronik lain.
• Repeater Keeps Disconnecting:
  • Ensure the repeater is within the optimal range of your main router.
  • Check for firmware updates for both the repeater and your main router.
  • Perform a factory reset on the repeater and reconfigure it.
• Tetapan semula kilang: If all else fails, use a paperclip to press and hold the Reset button on the repeater for about 5-10 seconds until the LEDs flash. This will restore the device to its factory default settings, and you will need to reconfigure it.

9. Spesifikasi

10. Waranti dan Sokongan

Your Vonets VAR1200-L Repeater comes with a Waranti 1 tahun dari tarikh pembelian, meliputi kecacatan pembuatan. Sila simpan bukti pembelian anda untuk tuntutan waranti.

For technical assistance, troubleshooting, or warranty inquiries, Vonets offers dedicated customer support. You can typically find support contact information on the official Vonets webtapak atau dalam pembungkusan produk.

Note: The warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or natural disasters.
