Manual Arahan Pembesar Suara Bluetooth Mudah Alih Monster S380

pengenalan

This manual provides detailed instructions for the safe and efficient use of your Monster S380 Portable Bluetooth Speaker. Please read this manual thoroughly before operating the device and retain it for future reference. The Monster S380 delivers 40W stereo sound, features Bluetooth 6.0, offers up to 20 hours of playtime, supports TWS pairing, and is IPX6 waterproof, making it suitable for various environments.

Produk Selesaiview

The Monster S380 Portable Bluetooth Speaker is engineered for a powerful audio experience with versatile features. Below are some key highlights and visual representations of the speaker's capabilities.

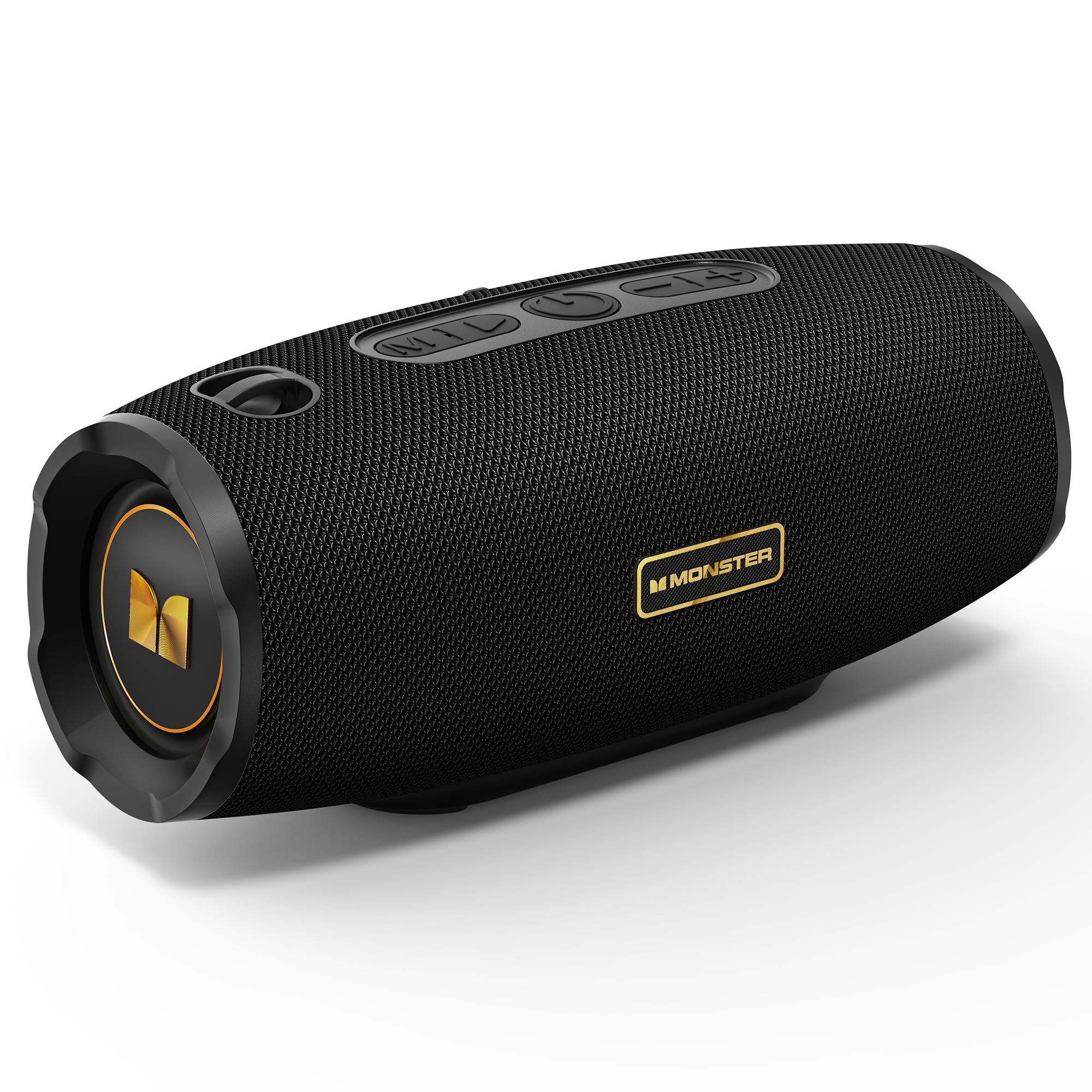

Figure 1: Monster S380 Portable Bluetooth Speaker. This image displays the overall design of the speaker, highlighting its compact and robust build.

Figure 2: Monster S380 Speaker with 40W Pure Monster Sound. This image illustrates the speaker's internal components, emphasizing its 40W audio output for clear and deep bass.

Figure 3: Monster S380 Speaker featuring Bluetooth 6.0 for stable connection. The image highlights the advanced Bluetooth 6.0 technology, ensuring a reliable and fast wireless connection.

Figure 4: Two Monster S380 Speakers demonstrating TWS Pairing. This image shows two speakers connected wirelessly for a synchronized stereo sound experience.

Figure 5: Monster S380 Speaker highlighting 20H Long Playtime. The image emphasizes the extended battery life, allowing for up to 20 hours of music playback.

Figure 6: Monster S380 Speaker showcasing IPX6 Waterproof rating. This image depicts the speaker in a water-resistant environment, demonstrating its IPX6 protection against splashes and rain.

Figure 7: Monster S380 Speaker with Portable Lanyard Design. The image shows the speaker with its integrated lanyard, emphasizing its portability for outdoor activities.

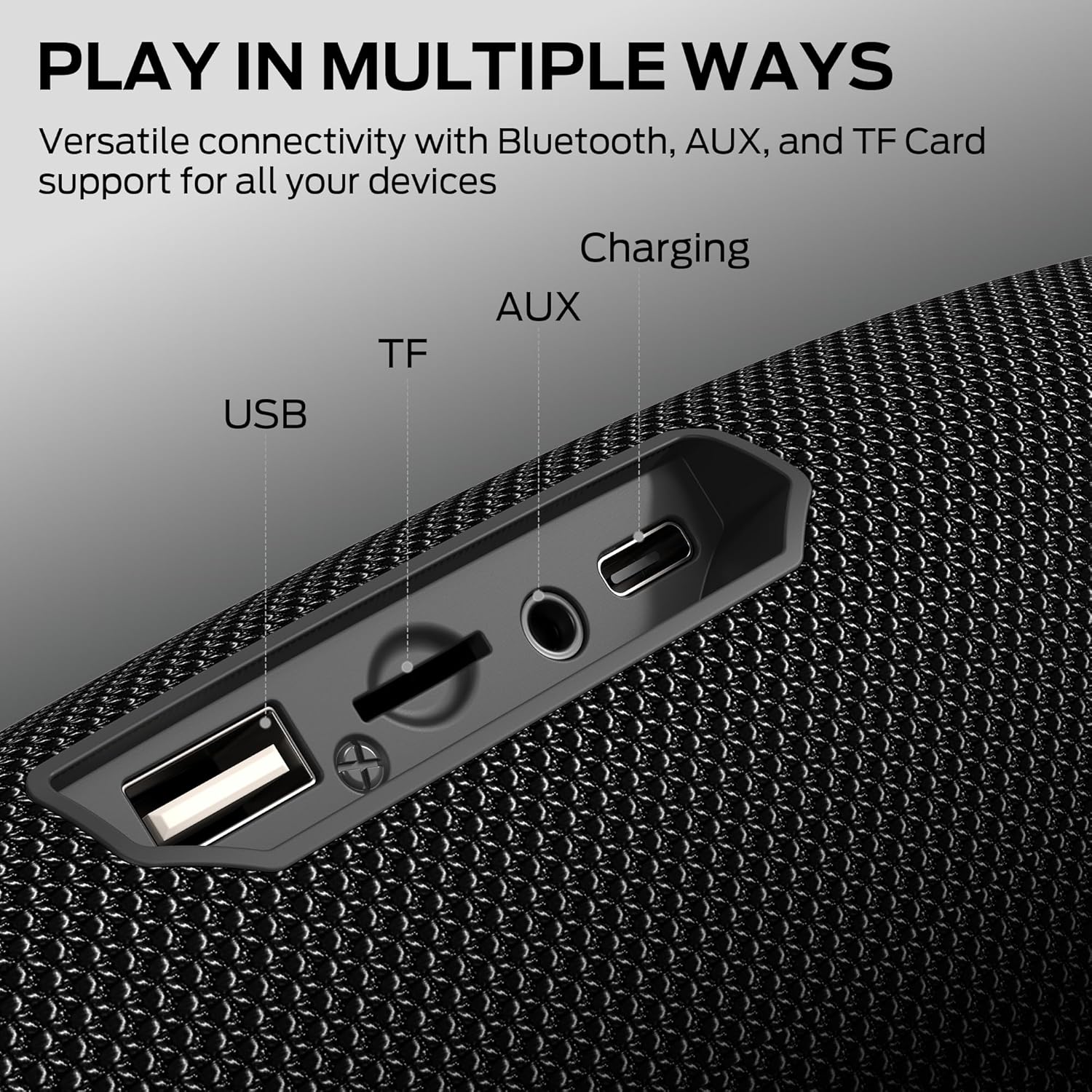

Figure 8: Monster S380 Speaker with multiple connectivity options (USB, TF, AUX, Charging). This image details the various input ports available on the speaker, including USB, TF card, AUX, and charging.

Kandungan Pakej

Pastikan semua item ada semasa menyahkotak:

• Monster S380 Speaker × 1
• Kabel Pengecas USB-C × 1
• AUX-in Cable × 1
• Panduan Mula Pantas × 1
• Portable Rope × 1

Figure 9: Contents of the Monster S380 Speaker box. This image shows all the items included in the product packaging.

Kawalan dan Penunjuk

Familiarize yourself with the speaker's control panel and ports:

Figure 10: Monster S380 Speaker button layout and functions. This image clearly labels each button on the speaker's control panel and its corresponding function.

• Butang Kuasa (⏻): Tekan dan tahan untuk menghidupkan/mematikan kuasa.
• Butang Main/Jeda (▶): Tekan untuk memainkan atau menjeda audio.
• Butang Kelantangan Kurang / Trek Sebelumnya (-): Tekan untuk mengurangkan kelantangan. Tekan dan tahan untuk pergi ke trek sebelumnya.
• Butang Naikkan Kelantangan / Trek Seterusnya (+): Tekan untuk meningkatkan kelantangan. Tekan dan tahan untuk pergi ke trek seterusnya.
• Butang Mod (M): Press to switch between input modes (Bluetooth, AUX, TF Card, USB).
• Lighting Control Button (⚙): Press to cycle through different lighting modes.
• Port Pengecasan USB-C: Untuk mengecas pembesar suara.
• Port AUX-masuk: Untuk sambungan audio berwayar.
• Slot Kad TF: Untuk memainkan muzik terus daripada kad TF.
• Port USB: For playing music directly from a USB drive.

Persediaan

Mengecas Speaker

1. Open the protective rubber flap on the back of the speaker to reveal the charging port.
2. Sambungkan kabel pengecas USB-C yang disediakan ke port USB-C pembesar suara.
3. Sambungkan hujung kabel USB-C yang satu lagi kepada penyesuai kuasa USB yang serasi (tidak disertakan).
4. The charging indicator light will illuminate to show charging status. Once fully charged, the indicator light will change or turn off.

Hidupkan/Mati Kuasa

• To power on, press and hold the Power Button (⏻) for approximately 2-3 seconds until you hear an audible prompt and the indicator lights activate.
• To power off, press and hold the Power Button (⏻) for approximately 2-3 seconds until you hear an audible prompt and the indicator lights turn off.

Berpasangan Bluetooth

1. Ensure the speaker is powered on and in Bluetooth mode. If not, press the Mode Button (M) to switch to Bluetooth mode. The Bluetooth indicator light will flash, indicating it's ready for pairing.
2. Pada peranti mudah alih anda (telefon pintar, tablet, komputer riba), dayakan Bluetooth dan cari peranti yang tersedia.
3. Select "Monster S380" from the list of devices.
4. Once successfully paired, the Bluetooth indicator light on the speaker will stop flashing and remain solid. You will also hear a confirmation tone.

Pasangan Stereo Tanpa Wayar Sejati (TWS)

TWS pairing allows you to connect two Monster S380 speakers for a synchronized, 60W stereo sound experience.

1. Ensure both Monster S380 speakers are powered on and in Bluetooth mode, but not yet connected to any device.
2. On one of the speakers (this will be your primary speaker), press and hold the Play/Pause Button (▶) for 2-3 seconds. The speaker will emit a tone, indicating it's searching for another TWS speaker.
3. The second speaker will automatically connect to the primary speaker. Once connected, both speakers will emit a confirmation tone, and their indicator lights will synchronize.
4. Now, connect your mobile device to the primary speaker via Bluetooth as described in the Bluetooth Pairing section. Audio will play in stereo across both speakers.

Arahan Operasi

Kawalan Main Semula

• Main/Jeda: Press the Play/Pause Button (▶).
• Pelarasan Kelantangan: Press the Volume Up (+) or Volume Down (-) buttons.
• Lagu Seterusnya: Tekan dan tahan butang Naik Kelantangan (+).
• Trek Sebelumnya: Tekan dan tahan butang Turun Kelantangan (-).

Pilihan Kesambungan

The Monster S380 supports multiple audio input methods:

• Bluetooth: Sambungkan secara wayarles ke peranti anda.
• AUX masuk: Use the provided 3.5mm AUX cable to connect to devices without Bluetooth. Press the Mode Button (M) to select AUX mode.
• Kad TF: Masukkan kad TF (MicroSD) dengan audio files ke dalam slot kad TF. Pembesar suara secara automatik akan bertukar kepada mod kad TF dan mula main balik.
• USB: Masukkan pemacu kilat USB dengan audio files ke dalam port USB. Pembesar suara secara automatik akan bertukar kepada mod USB dan mula main balik.

Panggilan Bebas Tangan

When connected to a smartphone via Bluetooth, the built-in microphone allows for hands-free calling:

• Jawab Panggilan: Press the Play/Pause Button (▶).
• Tamatkan Panggilan: Press the Play/Pause Button (▶) again.
• Tolak Panggilan: Press and hold the Play/Pause Button (▶).

Mod Pencahayaan

The speaker features dynamic RGB lighting. Press the Lighting Control Button (⚙) to cycle through various light effects or turn them off.

Penyelenggaraan

Kalis air (IPX6)

The Monster S380 is IPX6 water-resistant, meaning it can withstand strong jets of water. However, it is not designed for submersion. Ensure the rubber flap covering the ports is securely closed before exposing the speaker to water to maintain its water resistance.

Pembersihan

Lap pembesar suara dengan lembut, damp kain. Jangan gunakan pembersih atau pelarut yang melelas, kerana ini boleh merosakkan permukaan.

Penyimpanan

Simpan pembesar suara di tempat yang sejuk dan kering jauh dari cahaya matahari langsung dan suhu yang melampau. Jika menyimpan untuk tempoh yang lama, cas bateri secara berkala untuk mengekalkan jangka hayatnya.

Menyelesaikan masalah

• Tiada Kuasa: Pastikan bateri dicas. Sambungkan pembesar suara ke sumber kuasa menggunakan kabel USB-C.
• Tidak Dapat Berpasangan melalui Bluetooth: Make sure the speaker is in Bluetooth pairing mode (flashing indicator light). Ensure your device's Bluetooth is enabled and within range. Try restarting both the speaker and your device.
• Tiada Bunyi: Check the volume levels on both the speaker and your connected device. Ensure the correct input mode is selected (Bluetooth, AUX, TF Card, USB).
• Kualiti Bunyi Lemah: Gerakkan pembesar suara lebih dekat ke peranti Bluetooth anda untuk mengurangkan gangguan. Pastikan tiada halangan antara pembesar suara dan peranti.
• Kegagalan Berpasangan TWS: Ensure both speakers are not connected to any other Bluetooth device before attempting TWS pairing. Try resetting both speakers and repeating the TWS pairing steps.

Spesifikasi

Waranti dan Sokongan

The Monster S380 Portable Bluetooth Speaker comes with a Waranti Terhad. For detailed warranty information, product support, or service inquiries, please refer to the contact information provided in the Quick Start Guide or visit the official Monster webtapak.
