pengenalan
This manual provides essential instructions for the safe and efficient operation, installation, and maintenance of your Speed Queen SF7007WG Stacked Washer and Gas Dryer Combo. Please read all instructions carefully before using the appliance to ensure proper function and to prevent injury or damage.

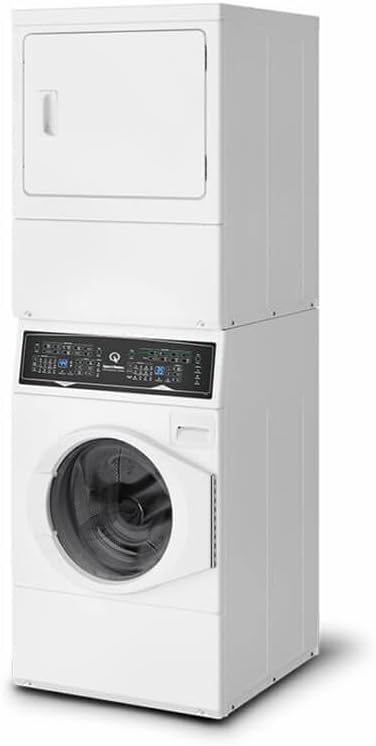

Imej: Depan view of the Speed Queen SF7007WG stacked washer and gas dryer combo, showing the compact, space-saving design with the dryer positioned above the washer.
Arahan Keselamatan Penting
AMARAN: Untuk mengurangkan risiko kebakaran, kejutan elektrik atau kecederaan kepada orang ramai apabila menggunakan perkakas anda, ikut langkah berjaga-jaga asas, termasuk yang berikut:
- Baca semua arahan sebelum menggunakan perkakas.
- Jangan basuh atau keringkan barang yang sebelum ini telah dibersihkan, dibasuh, direndam, atau dicemari dengan petrol, pelarut cucian kering atau bahan mudah terbakar atau letupan lain, kerana ia mengeluarkan wap yang boleh menyala atau meletup.
- Jangan benarkan kanak-kanak bermain di atas atau di dalam perkakas. Pengawasan rapi terhadap kanak-kanak adalah perlu apabila perkakas digunakan berhampiran kanak-kanak.
- Jangan sampai ke dalam perkakas jika tab atau dram bergerak.
- Jangan pasang atau simpan perkakas ini di tempat ia akan terdedah kepada cuaca.
- Jangan tamper dengan kawalan.
- Jangan baiki atau ganti mana-mana bahagian perkakas atau cuba apa-apa servis melainkan disyorkan secara khusus dalam arahan penyelenggaraan pengguna atau dalam arahan pembaikan pengguna yang diterbitkan yang anda fahami dan mempunyai kemahiran untuk melaksanakannya.
- Sentiasa putuskan sambungan perkakas daripada bekalan kuasa sebelum mencuba sebarang servis atau pembersihan.
Persediaan dan Pemasangan
Membongkar
Carefully remove all packaging materials, including any shipping bolts or restraints. Inspect the appliance for any shipping damage. Report any damage immediately to your dealer.
Keperluan Lokasi
Ensure the installation area has proper ventilation, a grounded electrical outlet, and appropriate water and gas connections. The floor must be level and capable of supporting the appliance's weight (approximately 417 pounds).
Meratakan Perkakas
The appliance must be level to operate correctly and prevent excessive vibration. Use a level and adjust the leveling legs located at the bottom corners of the unit. Turn the legs clockwise to raise and counter-clockwise to lower. Ensure all four legs are firmly on the floor.
Sambungan
- Elektrik: Connect the power cord to a grounded electrical outlet. Refer to local codes for specific requirements.
- Air: Connect the hot and cold water inlet hoses to the corresponding valves. Ensure connections are tight to prevent leaks.
- Gas: Gas connection must be performed by a qualified installer in accordance with local codes and ordinances. Ensure all gas connections are leak-tested before use.
- Saliran: Pasangkan hos saliran dengan kukuh pada paip tegak atau tab dobi, pastikan ia diudarakan dengan betul untuk mengelakkan penyedutan.
Arahan Operasi
The Speed Queen SF7007WG features separate control panels for the washer and dryer, located centrally for easy access.
Imej: Terperinci view of the Speed Queen SF7007WG control panel, showing separate sections for washer and dryer cycles, selections, and options with digital displays.
Operasi Pencuci
- Muatkan Dobi: Open the washer door and load items loosely into the drum. Do not overload.
- Tambah Detergen: Dispense appropriate detergent and fabric softener into the designated compartments in the dispenser drawer.
- Pilih Kitaran Basuh: Use the 'Wash Cycles' buttons on the left control panel to choose a cycle (e.g., Heavy Duty, Perm Press, Delicates).
- Adjust Selections/Options: Customize your wash with temperature, spin speed, soil level, and extra options as desired.
- Mulakan Kitaran: Press the 'Start' button to begin the wash cycle. The door will lock, and the cycle status will be displayed.
Operasi Pengering
- Muatkan Dobi: Transfer washed items from the washer to the dryer drum. Do not overload.
- Penapis Lint Bersih: Always clean the lint filter before each drying cycle. The filter is located inside the dryer door opening.
- Select Dry Cycle: Use the 'Dry Cycles' buttons on the right control panel to choose a cycle (e.g., Auto Dry, Timed Dry, Delicates).
- Adjust Selections/Options: Customize your dry with temperature, dryness level, and anti-wrinkle options as desired.
- Mulakan Kitaran: Press the 'Start' button to begin the dry cycle.
Penyelenggaraan
Membersihkan Penapis Lint
The lint filter should be cleaned before or after every load to maintain drying efficiency and prevent fire hazards. Pull the filter out, remove lint, and reinsert.
Membersihkan Laci Dispenser
Periodically remove and clean the detergent and fabric softener dispenser drawer to prevent residue buildup. Rinse with warm water and a soft brush, then replace.
Membersih Bahagian Luar
Lap permukaan luar dengan lembut, damp kain. Jangan gunakan pembersih atau pelarut yang melelas yang boleh merosakkan kemasan.
Washer Drum Cleaning
Run a 'Tub Clean' or 'Self Clean' cycle (if available) periodically, or use a washer cleaner product to prevent odors and residue buildup in the washer drum.
Menyelesaikan masalah
Sebelum membuat panggilan untuk perkhidmatan, semulaview isu dan penyelesaian biasa berikut:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Mesin basuh tidak bermula | Door not closed, power issue, cycle not selected | Ensure door is latched, check power supply, select a cycle and press Start. |
| Dryer not heating | Gas supply off, lint filter clogged, wrong cycle selected | Check gas valve, clean lint filter, select a heat cycle. |
| Getaran / bunyi yang berlebihan | Uneven load, appliance not level, shipping bolts not removed | Redistribute laundry, level the appliance, ensure all shipping bolts are removed. |
| Air bocor | Loose hose connections, clogged drain hose | Tighten water inlet hoses, clear drain hose obstruction. |
Spesifikasi
- Nombor Model: SF7007WG
- Dimensi Produk (H x W x D): 79 x 29 x 33 inci
- Berat Barang: 417 paun
- Pengeluar: Ratu Kelajuan
- Sumber Kuasa: Electric (Washer), Gas (Dryer)
Waranti dan Sokongan Pelanggan
For warranty information, please refer to the warranty card included with your appliance or visit the official Speed Queen website. For technical assistance or service, please contact Speed Queen customer support directly. Have your model number (SF7007WG) and serial number ready when contacting support.
Sokongan Pelanggan: Rujuk dokumentasi pembelian anda atau dokumen pengilang webtapak untuk maklumat hubungan semasa.
