BitFenix AL118 ATX Mid Tower PC Case User Manual

1. Pengenalan

Thank you for choosing the BitFenix AL118 ATX Mid Tower PC Case. This manual provides essential information for the proper installation, operation, and maintenance of your new PC case. Please read this manual thoroughly before beginning installation to ensure correct setup and to prevent any damage to the product or its components. Keep this manual for future reference.

Maklumat Keselamatan

• Sentiasa putuskan sambungan bekalan kuasa daripada soket dinding sebelum memasang atau menanggalkan sebarang komponen.
• Handle components with care to avoid electrostatic discharge (ESD) damage. Consider using an anti-static wrist strap.
• Ensure all cables are properly routed and secured to prevent interference with fans or other moving parts.
• Do not open the power supply unit (PSU) as it contains high voltagkomponen e.
• Keep the case away from direct sunlight, high temperatures, and moisture.

2. Produk Lebihview dan Ciri

The BitFenix AL118 is a high-performance ATX Mid Tower PC case designed for enthusiasts. It features a tempered glass side panel, integrated ARGB lighting, and comes equipped with a 1000W 80+ Gold Gen5 ATX 3.0 power supply unit. The case offers extensive compatibility for various motherboard sizes, GPUs, and cooling solutions.

Ciri-ciri Utama:

• Faktor Bentuk: Menara ATX Mid
• Bekalan Kuasa: Integrated 1000W 80+ Gold Gen5 ATX 3.0 PSU
• Panel sisi: Kaca Terbaja
• Pencahayaan: Addressable RGB (ARGB) elements
• Sokongan Papan Induk: MicroATX, Mini-ITX (ATX implied by case type)
• I/O Depan: 1 x USB 3.2 Type-C, 2 x USB 3.0
• Storage Bays: 2 x 2.5" internal, 1 x 3.5" internal
• Pembersihan GPU: Sehingga 400mm
• Sokongan Penyejukan:
  • Top Radiator: 240mm, 280mm, 360mm
  • Rear Radiator: 1 x 120mm
  • Rear Fan: 1 x 120mm (pre-installed ARGB)
  • Top Fan: 3 x 120mm or 3 x 140mm (support)
  • Side Fan: 3 x 120mm (pre-installed ARGB)

3. Panduan Persediaan

Follow these steps to properly set up your BitFenix AL118 PC case and install your components.

3.1 Membongkar dan Pemeriksaan Awal

1. Keluarkan sarung dengan berhati-hati dari bungkusannya.
2. Inspect the case for any signs of damage during transit. If damaged, contact your retailer immediately.
3. Remove the tempered glass side panel by unscrewing the thumb screws (if present) or releasing the latch mechanism. Place it on a soft, flat surface to prevent scratches.
4. Locate the accessory box inside the case, which contains screws, cable ties, and other mounting hardware.

3.2 Pemasangan Motherboard

1. Ensure the correct standoffs are installed for your motherboard form factor (MicroATX, Mini-ITX). Additional standoffs may be in the accessory box.
2. Pasangkan pelindung I/O ke dalam bukaan belakang bekas.
3. Letakkan papan induk anda dengan berhati-hati pada penyangga, selaraskan lubang skru.
4. Pasangkan papan induk dengan skru yang disediakan. Jangan terlalu ketatkan.

Gambar 3.2.1: Dalaman view of the case, highlighting the motherboard tray and various mounting points for fans and components.

3.3 Pemasangan Kad Grafik (GPU)

1. Remove the necessary expansion slot covers from the rear of the case, corresponding to your GPU's size.
2. Insert your GPU into the appropriate PCIe slot on the motherboard until it clicks into place.
3. Secure the GPU to the case with screws.
4. Connect the required PCIe power cables from the PSU to the GPU.

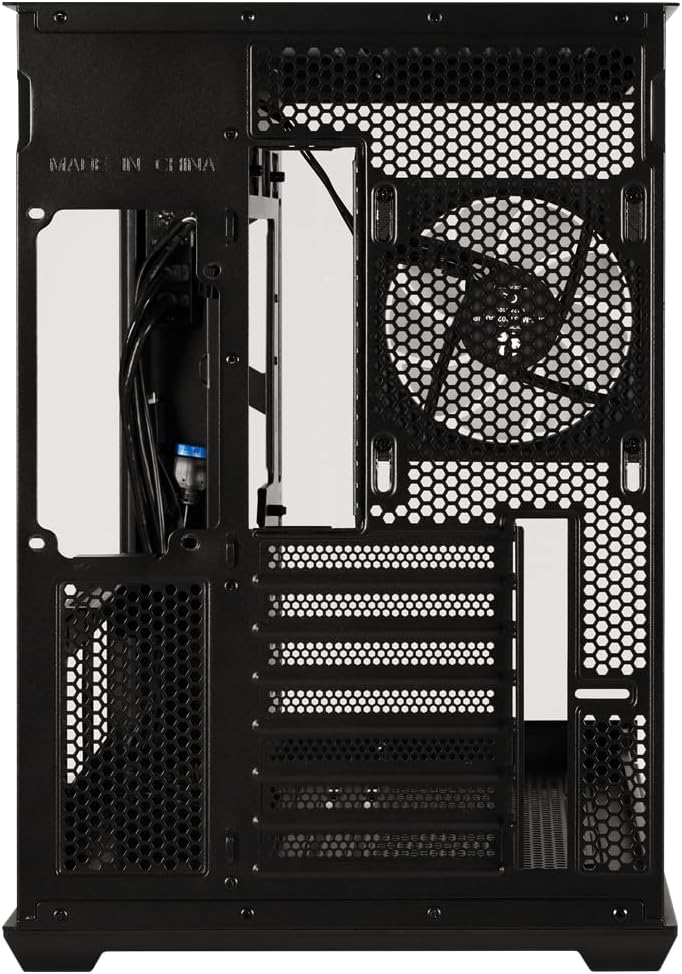

Rajah 3.3.1: Belakang view of the case, showing the expansion slots where graphics cards are mounted and the pre-installed rear fan.

3.4 Storage Drive Installation (2.5" SSD/HDD, 3.5" HDD)

1. Locate the 2.5" drive mounts (2 available) and 3.5" drive bay (1 available). These are typically found behind the motherboard tray or in a dedicated drive cage.
2. For 2.5" drives, secure them to the mounting brackets with screws.
3. For 3.5" drives, slide them into the drive cage and secure with screws or tool-less clips if available.
4. Connect SATA data cables to the motherboard and SATA power cables from the PSU to each drive.

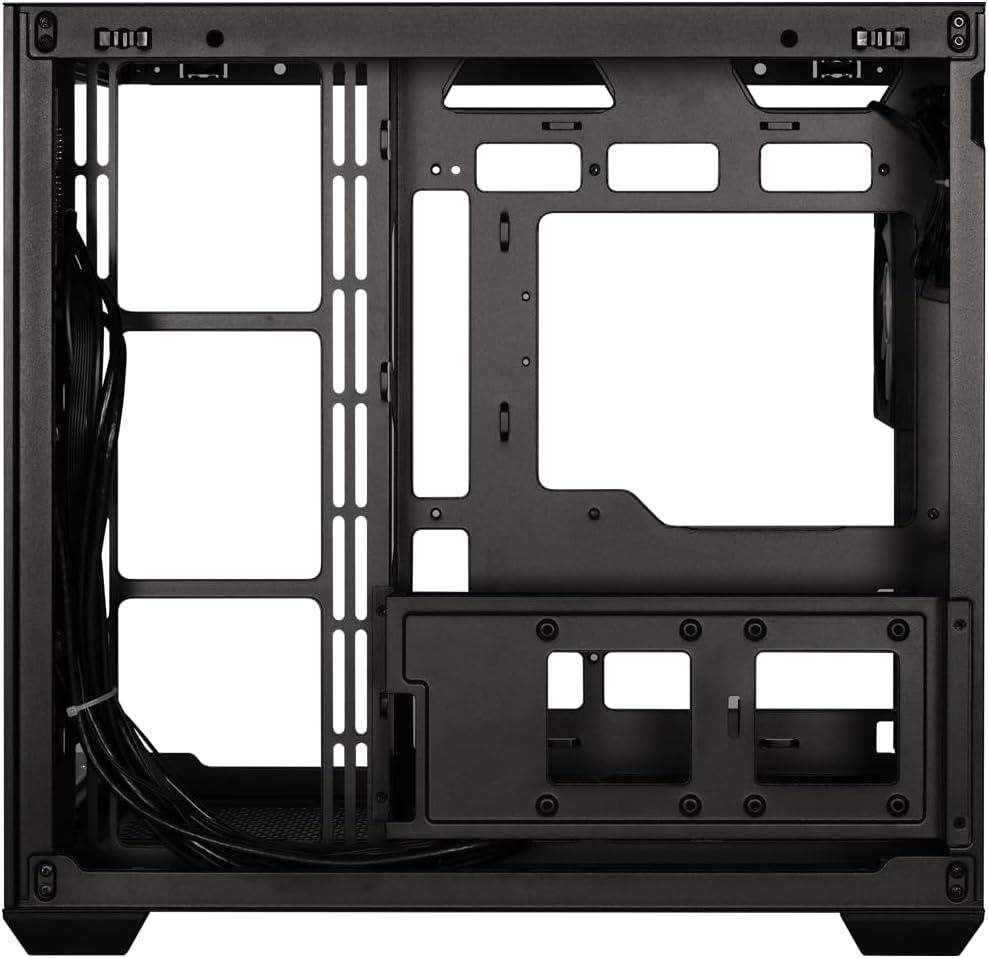

Rajah 3.4.1: View behind the motherboard tray, illustrating the cable management channels and mounting locations for 2.5-inch and 3.5-inch storage drives.

3.5 Power Supply Unit (PSU) Connections

Your BitFenix AL118 case comes with a pre-installed 1000W 80+ Gold Gen5 ATX 3.0 PSU. Ensure all necessary power cables are connected:

• 24-pin ATX Power: Connect to the motherboard.
• 8-pin (4+4) EPS/CPU Power: Connect to the motherboard CPU power header.
• Kuasa PCIe: Connect to your graphics card(s) as required.
• Kuasa SATA: Connect to your storage drives.
• Peripheral/Molex Power: Connect to any other components requiring this type of power.

3.6 Sambungan Panel Hadapan

Connect the front panel cables to the corresponding headers on your motherboard:

• USB 3.2 Jenis-C: Connect the internal USB-C header cable to your motherboard's USB 3.2 Gen2 Type-C header.
• USB 3.0: Connect the internal USB 3.0 header cable to your motherboard's USB 3.0 header.
• Audio HD: Connect to your motherboard's audio header.
• Power SW, Reset SW, HDD LED, Power LED: Connect these small connectors to the front panel header pins on your motherboard according to your motherboard manual.

Gambar 3.6.1: Dalaman view showing the pre-installed ARGB fans and the routing of front panel I/O cables, including USB 3.2 Type-C and USB 3.0 connections.

3.7 Pengurusan Kabel

Utilize the cable routing cutouts and tie-down points behind the motherboard tray to manage cables. Proper cable management improves airflow and aesthetics.

• Route main power cables (24-pin, EPS) through the largest cutouts.
• Use cable ties or Velcro straps (included in accessory box) to bundle and secure cables.
• Ensure no cables obstruct fan blades or airflow paths.

4. Arahan Operasi

4.1 Menghidupkan Sistem Anda

1. Once all components are installed and cables connected, replace the tempered glass side panel.
2. Sambungkan kord kuasa AC ke PSU dan kemudian ke saluran keluar dinding.
3. Flip the power switch on the back of the PSU to the 'ON' position.
4. Press the power button on the front panel of your case.

4.2 Kawalan Pencahayaan ARGB

The BitFenix AL118 features Addressable RGB (ARGB) lighting. The control method depends on how the ARGB components are connected:

• Penyegerakan Papan Induk: If the ARGB cables are connected to a compatible 3-pin 5V ARGB header on your motherboard, you can control the lighting effects using your motherboard's RGB software (e.g., ASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion, ASRock Polychrome Sync).
• Integrated Controller: If the case includes a built-in ARGB controller (often connected to a reset button or dedicated ARGB button), you can cycle through pre-programmed lighting modes by pressing that button. Refer to the specific controller's instructions if applicable.

5. Penyelenggaraan

Penyelenggaraan tetap membantu memastikan prestasi optimum dan jangka hayat komponen PC anda.

• Penapis Habuk: The case is equipped with dust filters (e.g., top, front, bottom). Regularly remove and clean these filters with water and mild soap, or by vacuuming/brushing them. Ensure they are completely dry before re-installing.
• Pembersihan Dalaman: Periodically use compressed air to blow dust out of the case interior, especially from fan blades, heatsinks, and vents. Ensure the system is powered off and unplugged before cleaning.
• Kaca Terbaja: Clean the tempered glass panel with a microfiber cloth and a non-abrasive glass cleaner. Avoid harsh chemicals.

6. Penyelesaian masalah

If you encounter issues with your PC build, refer to the following common troubleshooting steps:

• No Power / System Not Starting:
  • Ensure the PSU power switch is in the 'ON' position.
  • Check that the AC power cord is securely connected to both the PSU and the wall outlet.
  • Verify all PSU cables (24-pin, EPS, PCIe) are firmly connected to the motherboard and components.
  • Confirm the front panel power switch cable is correctly connected to the motherboard header.
• Tiada Output Paparan:
  • Ensure your monitor is connected to the graphics card (GPU) output, not the motherboard's integrated graphics output (unless you are using integrated graphics).
  • Letakkan semula kad grafik dalam slot PCIenya.
  • Check that the GPU's power cables are securely connected.
• Fans Not Spinning / ARGB Not Working:
  • Verify that all fan power cables are connected to the motherboard fan headers or a fan controller.
  • Check ARGB cables are connected to a compatible 3-pin 5V ARGB header on the motherboard or an ARGB controller.
  • If using motherboard software, ensure it is installed and configured correctly.
• Terlalu panas:
  • Ensure all case fans are spinning and oriented correctly for optimal airflow (intake/exhaust).
  • Clean dust filters and case interior as described in the Maintenance section.
  • Sahkan penyejuk CPU dan penyejuk GPU dipasang dan berfungsi dengan betul.

7. Spesifikasi

8. Waranti dan Sokongan

BitFenix products are manufactured to the highest quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official BitFenix website. If you encounter any issues that cannot be resolved using this manual, please contact BitFenix customer support or your retailer for assistance.

Official BitFenix Webtapak: www.bitfenix.com
