KikkaBoo NORDY Evolutive Wooden High Chair Instruction Manual

pengenalan

Thank you for choosing the KikkaBoo NORDY Evolutive Wooden High Chair. This product is designed to provide a safe, comfortable, and adaptable seating solution for your child, growing with them from infancy to childhood. It functions as a high chair for babies and converts into a junior chair for older children. Please read this manual carefully before assembly and use to ensure proper installation, safe operation, and optimal maintenance.

Maklumat Keselamatan

Keselamatan anak anda adalah yang paling utama. Sentiasa ikuti garis panduan ini:

• Had Umur dan Berat: Suitable as a high chair for children who can sit unaided, from approximately 6 months up to 3 years (maximum 15 kg). Converts to a junior chair for children up to 10 years (maximum 35 kg).
• Sistem abah-abah: Always secure your child with the 3-point safety harness when using the high chair. Ensure the harness is correctly adjusted and fastened.
• Kestabilan: Ensure the chair is placed on a flat, stable surface. Do not use the chair if any parts are damaged or missing.
• Penyeliaan: Never leave your child unattended in the high chair or junior chair.
• Safety Bar and Tray: The safety bar and tray are essential for the high chair configuration. Ensure they are securely attached when in use.
• Cegah Jatuh: Do not allow children to climb on the chair. Keep the chair away from edges of tables or counters.
• Sumber Haba: Keep the chair away from open flames, heating elements, and other strong heat sources.
• Perhimpunan: Ensure all components are correctly assembled and tightened before each use. Regularly check for loose screws or worn parts.

Persediaan dan Perhimpunan

The KikkaBoo NORDY high chair requires assembly. An Allen key is included; a screwdriver may also be needed. Follow the step-by-step instructions provided in the packaging. Ensure all parts are present before beginning assembly.

• Buka Pembungkusan Komponen: Carefully remove all parts from the packaging and verify against the parts list in your included manual.
• Pasang Bingkai: Connect the main wooden frame components using the provided screws and Allen key. Ensure all connections are tight and secure.
• Install Seat and Footrest: Slide the seat and footrest into the desired height slots. Do not fully tighten until you have confirmed the correct position for your child's age and size.
• Attach Safety Bar and Tray: For high chair use, attach the safety bar and then the removable tray. Ensure the tray locking mechanism is engaged.
• Abah-abah Selamat: Thread the 3-point safety harness through the designated slots in the seat and backrest.

Image: Baby seated in the KikkaBoo NORDY high chair, demonstrating the adjustable seat and footrest for proper ergonomic positioning.

Image: Detail of the side frame, highlighting the multiple slots for adjusting the seat and footrest height.

Arahan Operasi

Adjusting Seat and Footrest

The KikkaBoo NORDY high chair features 10 adjustable positions for both the seat and footrest to accommodate your child's growth and ensure an ergonomic posture. To adjust:

1. Loosen the screws on the side of the chair that secure the seat or footrest.
2. Carefully slide the seat or footrest to the desired height slot.
3. Ensure both sides are at the same height and securely tighten the screws.

Image: The high chair from the side, illustrating the ten possible height adjustments for the seat and footrest.

Using the Removable Tray

The tray can be easily attached and removed for cleaning or to allow your child to sit directly at the family table.

1. Untuk Dilampirkan: Align the tray with the slots on the safety bar and push it down until it clicks securely into place.
2. Untuk Alih Keluar: Locate the release buttons or levers on the underside or sides of the tray (refer to your specific manual for exact location) and press them while lifting the tray upwards.

Imej: Jarak dekat view of the tray's attachment point and release button.

Using the 3-Point Harness

The 3-point harness ensures your child remains safely seated. Always use the harness when the chair is in high chair mode.

1. Letakkan anak anda di tempat duduk.
2. Bring the waist straps around your child's waist and connect them to the buckle.
3. Adjust the straps to fit snugly but comfortably around your child.

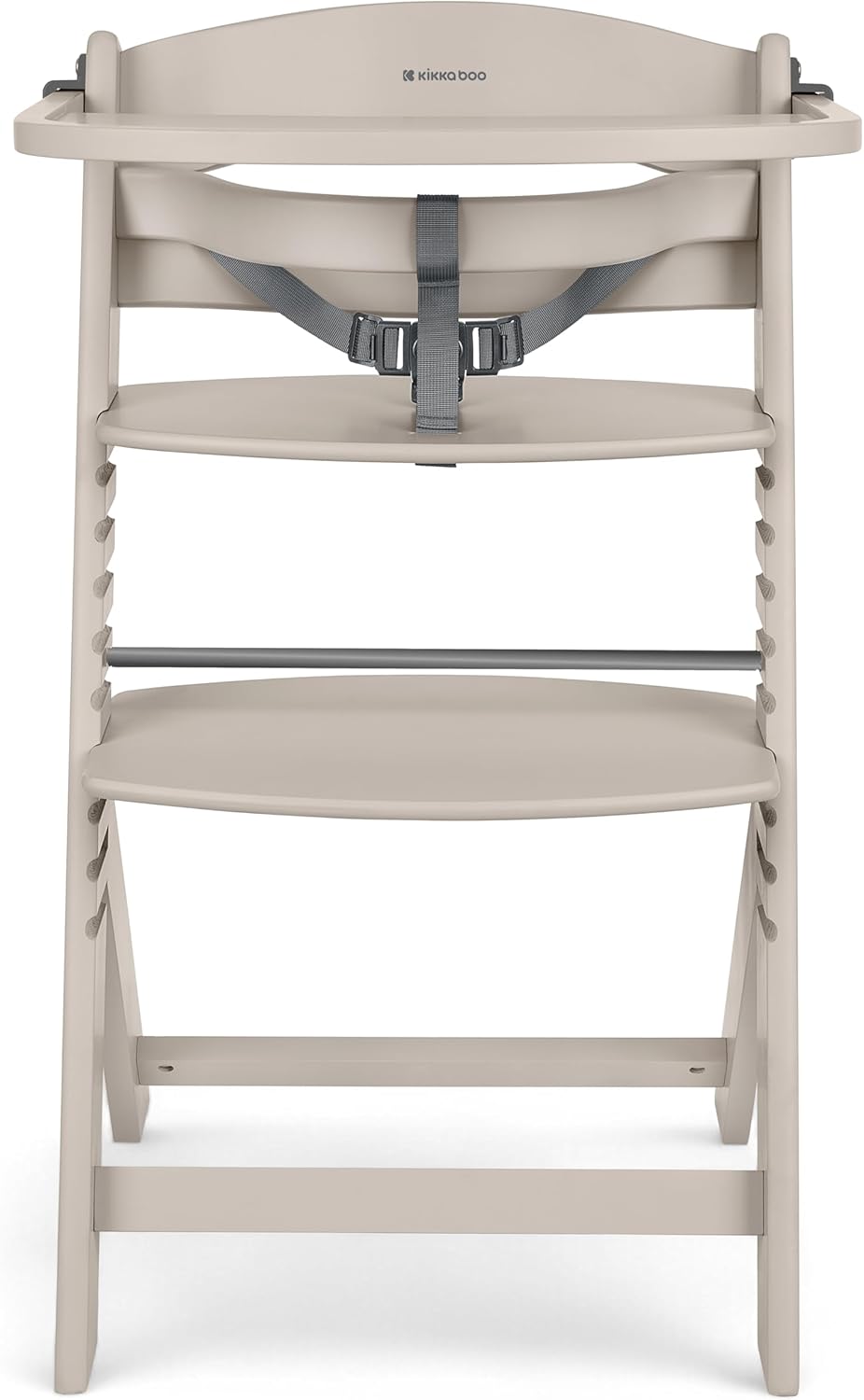

Imej: Depan view of the high chair, clearly showing the 3-point harness system.

Converting to Junior Chair

As your child grows, the NORDY high chair can be converted into a junior chair. This involves removing the safety bar and tray, and adjusting the seat and footrest to appropriate heights for an older child.

1. Remove the tray and safety bar.
2. Adjust the seat and footrest to lower positions suitable for an older child, allowing them to sit comfortably at a standard table. The footrest can serve as a lower seat or be removed entirely if not needed.
3. The 3-point harness can be removed or tucked away if not required for the junior chair configuration.

Image: Visual representation of the chair's three configurations: high chair for baby, intermediate chair for toddler, and junior chair for older child.

Penyelenggaraan

Regular maintenance will prolong the life of your KikkaBoo NORDY high chair.

• Pembersihan: Lap permukaan kayu dengan iklanamp cloth and mild soap. Avoid abrasive cleaners or excessive moisture, which can damage the wood. Dry immediately after cleaning.
• Pembersihan Dulang: The removable tray can be easily wiped clean with a damp kain dan detergen lembut.
• Harness Cleaning: The fabric harness can be spot cleaned with mild soap and water. Allow to air dry completely.
• Pemeriksaan: Periodically check all screws and fasteners to ensure they are tight. Inspect the wood for any cracks or splinters and the harness for any fraying or damage. Replace any damaged parts immediately.
• Storan: Store the chair in a dry place, away from direct sunlight or extreme temperatures, to prevent wood warping or damage.

Menyelesaikan masalah

If you encounter any issues with your KikkaBoo NORDY high chair, please refer to these common solutions:

• Kesukaran memasang: Ensure you are following the assembly instructions precisely. Check that all parts are oriented correctly. Do not overtighten screws until all components are loosely fitted.
• Kerusi goyah: Verify that all screws are fully tightened. Ensure the chair is on a level surface. If the issue persists, disassemble and reassemble, paying close attention to the alignment of the wooden parts.
• Seat/Footrest Not Adjusting: Ensure the screws are sufficiently loosened before attempting to slide the panels. Check that no debris is obstructing the adjustment slots.
• Tray Not Attaching/Detaching: Confirm that the release mechanism is fully engaged or disengaged. Check for any obstructions in the tray's attachment points.

For further assistance, please contact KikkaBoo customer support.

Spesifikasi

Waranti dan Sokongan

For warranty information or customer support, please refer to the documentation included with your purchase or contact KikkaBoo directly through their official webtapak atau peruncit tempat produk dibeli. Simpan bukti pembelian anda untuk sebarang tuntutan jaminan.
