1. Pengenalan
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Corberó CTM755FL 75L Electric Water Heater. This appliance features a dual-tank design, offering rapid heating and high energy efficiency (Class B). Its versatile design allows for both horizontal and vertical installation, making it suitable for various spaces. Please read this manual thoroughly before installation and use, and retain it for future reference.

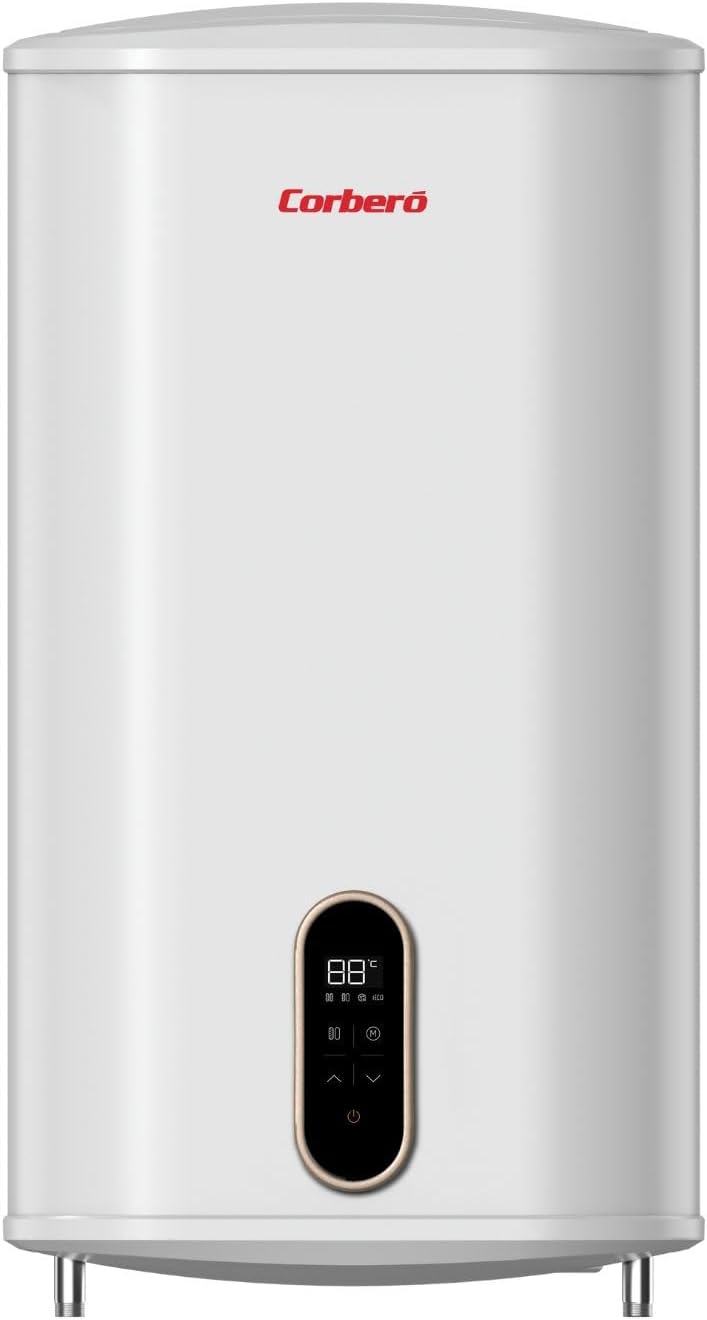

Imej: Depan view of the Corberó CTM755FL Electric Water Heater.
2. Ciri-ciri Utama
- Sistem Tangki Berkembar: Provides more uniform heat distribution and faster water heating with 2000W power, ensuring stable hot water supply.
- Pemasangan Fleksibel: Designed for both horizontal and vertical mounting without compromising performance, offering adaptable placement options.
- Kawalan Luaran: Equipped with a visible thermometer and an adjustable thermostat for easy temperature monitoring and regulation.
- Perlindungan Anti-Kakisan: Features a magnesium anode and an enameled steel tank to reduce internal wear and enhance durability against corrosion and limescale.
- SMART & IECO Technology: Intelligent modes optimize energy consumption by adapting heating patterns to user habits, contributing to its Class B energy efficiency.
- Ciri Keselamatan Lanjutan: Includes automatic disconnection, dry heating protection, fault auto-detection, and high-temperature bacteriostasis for user safety.
- Operasi senyap: Operates at a low noise level of 15 dB, ensuring a peaceful environment.

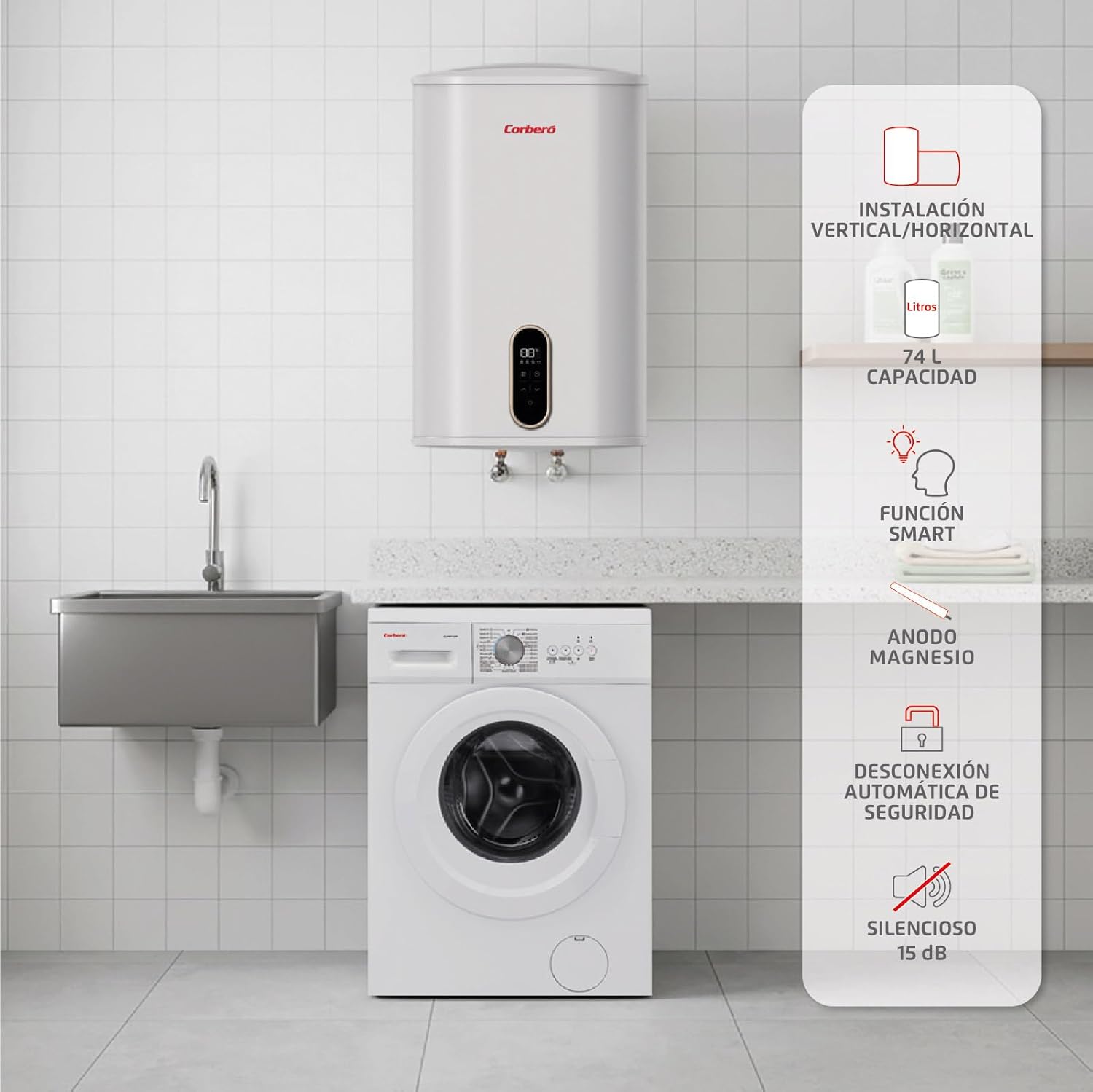

Imej: Selesaiview of key features including installation flexibility, capacity, smart functions, and safety.
3. Persediaan dan Pemasangan
The Corberó CTM755FL electric water heater is designed for flexible installation, supporting both horizontal and vertical orientations. Due to the nature of the appliance and for safety reasons, installation must be performed by a qualified professional in accordance with local regulations and plumbing codes.
3.1. Pemeriksaan Pra-Pemasangan
- Verify that the installation location can support the weight of the water heater when full (approx. 75L water + 35.88kg unit weight).
- Ensure adequate space for maintenance and proper ventilation.
- Confirm that the electrical supply matches the appliance's requirements (2000W).
- Periksa unit untuk sebarang kerosakan yang boleh dilihat sebelum pemasangan.
3.2. Pemasangan dan Sambungan
The unit's compact design allows for integration into various spaces, including kitchen cabinets. Refer to the detailed dimensions below for planning.
Image: Dimensions of the CTM755FL model.

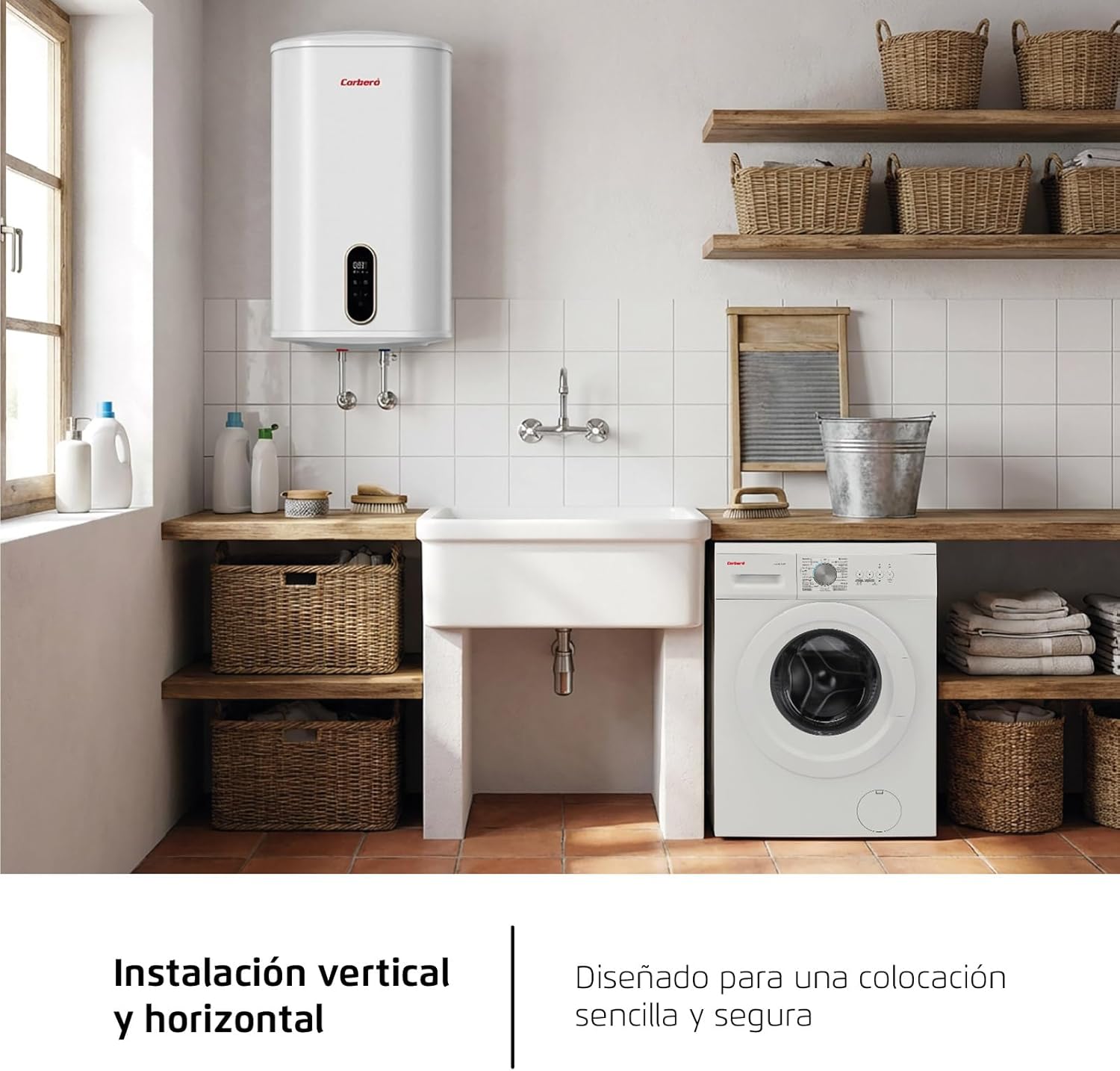

Imej: Cthample of vertical and horizontal installation in a utility room.
Imej: Cthample of vertical installation in a bathroom.
Image: Compact design allowing installation within kitchen cabinetry.
Connect the water inlet and outlet pipes according to the markings on the unit. Ensure all connections are watertight. The electrical connection should be made to a dedicated circuit with appropriate overcurrent protection.
4. Arahan Operasi
Your Corberó CTM755FL water heater is designed for user-friendly operation with intelligent features to optimize performance and energy consumption.
4.1. Permulaan Awal
- Ensure the water heater is completely filled with water before switching on the power. Open a hot water tap to allow air to escape until water flows steadily.
- Sambungkan perkakas kepada bekalan elektrik.
- The external display will show the current water temperature.
4.2. Pelarasan Suhu
Use the external adjustable thermostat to set your desired water temperature. The visible thermometer provides real-time temperature feedback.
Image: Adjustable thermostat for setting water temperature.
4.3. Mod PINTAR
Activate the SMART mode for optimized energy consumption. In this mode, the water heater intelligently learns your usage patterns and adjusts its heating schedule to ensure hot water is available when needed, while minimizing energy waste.
Image: Smart function for adaptive heating and energy saving.
4.4. Anti-Bacterial Function
The water heater can heat water to a high temperature to maintain hygienic conditions and prevent bacterial growth (bacteriostasis). Consult the appliance's control panel or specific instructions for activating this feature.
Image: Anti-bacterial function for hygienic water.
5. Penyelenggaraan
Regular maintenance ensures the longevity and efficient operation of your Corberó CTM755FL water heater.
5.1. Anti-Corrosion System
The unit is equipped with a magnesium anode and an enameled steel tank (sapphire enamel) to protect against corrosion and limescale buildup. The magnesium anode is a sacrificial component that requires periodic inspection and replacement by a qualified technician, typically every 1-2 years depending on water quality.
Image: Magnesium anode for corrosion protection.

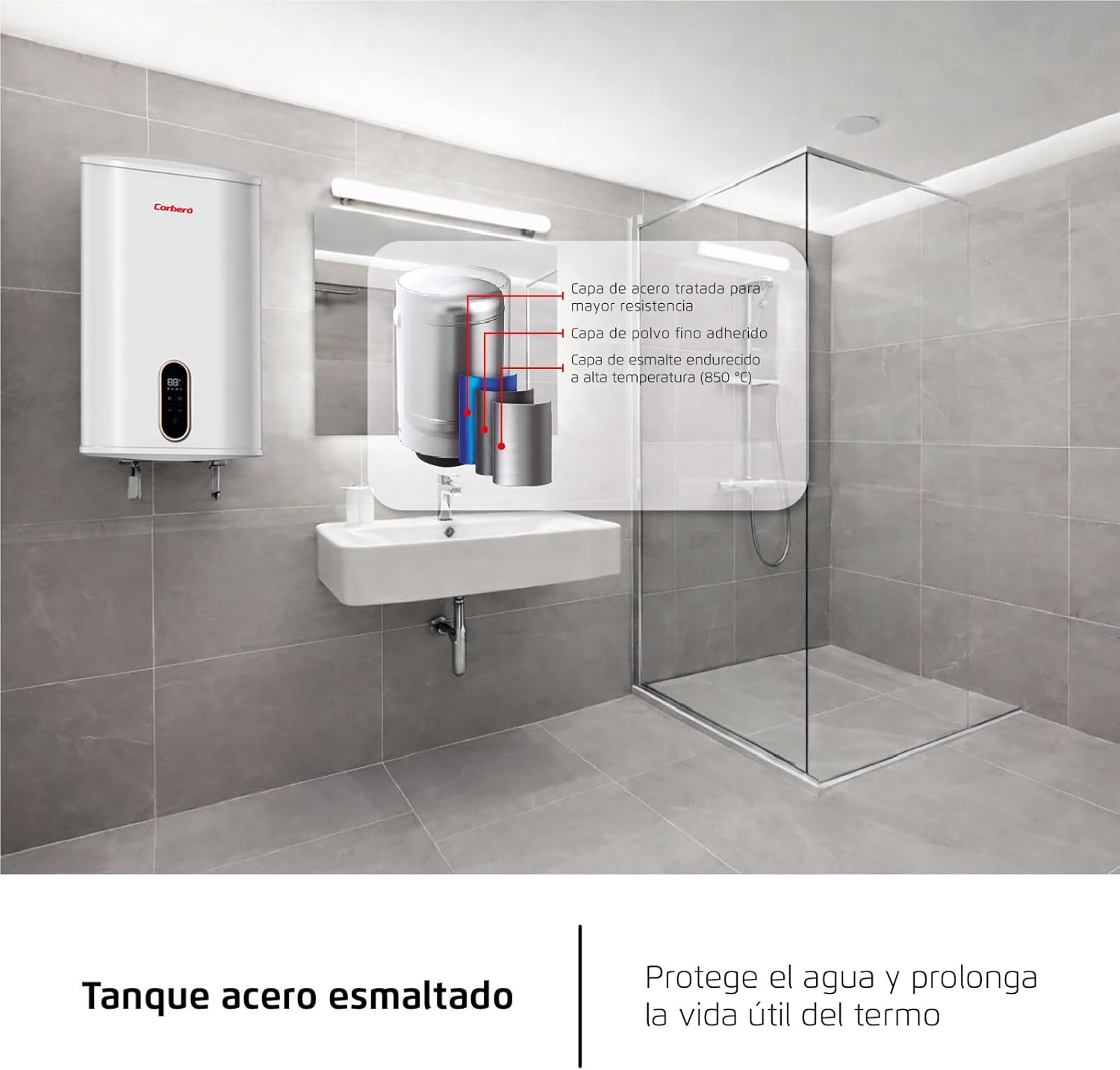

Image: Enameled steel tank construction for durability.
5.2. Pembersihan Am
Bersihkan bahagian luar pemanas air dengan kain lembutamp kain. Jangan gunakan pembersih atau pelarut yang melelas.
5.3. Pemeriksaan Profesional
It is recommended to have the water heater inspected by a qualified technician annually to check for sediment buildup, anode condition, and overall system integrity.
6. Penyelesaian masalah
If you encounter issues with your water heater, refer to the following common problems and solutions. For complex issues, contact qualified technical service.
- Tiada Air Panas: Check power supply, circuit breaker. Ensure the thermostat is set correctly. The unit has automatic disconnection for safety; if it has tripped, it may need resetting by a professional after identifying the cause.
- Air Panas tidak mencukupi: Verify thermostat setting. Consider if usage patterns have changed or if the SMART mode needs to adapt.
- Kebocoran air: Immediately turn off the water supply and electrical power. Contact a qualified plumber.
- Bunyi Luar Biasa: Minor noises during heating are normal. Loud or persistent noises may indicate sediment buildup or other internal issues, requiring professional inspection.
6.1. Safety Disconnection
The water heater is equipped with an automatic safety disconnection system that activates in case of overheating or other detected faults. If this system activates, the unit will shut down. Do not attempt to bypass or reset this system yourself. Contact technical service for diagnosis and repair.
Image: Automatic safety disconnection feature.
7. Spesifikasi
| Ciri | Spesifikasi |
|---|---|
| Jenama | Corberó |
| Nombor Model | CTM755FL |
| Kapasiti | 75 Liters (74 Liters actual) |
| Output Kuasa | 2000 Watt |
| Kelas Kecekapan Tenaga | B |
| Dimensi (W x H x D) | 57 cm (lebar) x 90 cm (tinggi) x 30 cm (dalam) |
| Berat Produk | 35.88 kg |
| Suhu Maksimum | 75 Darjah Celsius |
| Tahap Kebisingan | 15 dB |
| Bahan Tangki | Enameled Steel (Sapphire) |
| Elemen Pemanas | SUS316L Steel Resistance |
| Perlindungan Elektrik | IPX4 |
Image: Energy Efficiency Class B.
8. Waranti
Warranty terms and conditions for the Corberó CTM755FL electric water heater are typically provided with your purchase documentation. Please refer to the warranty card or contact your retailer for specific details regarding coverage, duration, and claims procedures. Retain your proof of purchase for warranty purposes.
9. Sokongan
For technical assistance, service, or inquiries regarding your Corberó CTM755FL electric water heater, please contact Corberó customer service or an authorized technical service center.
You can find more information and contact details by visiting the official Corberó store or webtapak. Visit Corberó Store on Amazon
