Portronics AAA Lithius Type C Rechargeable Batteries User Manual

pengenalan

This manual provides essential information for the safe and efficient use of your Portronics AAA Lithius Type C Rechargeable Batteries. These lithium-ion batteries are designed as a sustainable alternative to disposable batteries, featuring an integrated Type-C charging port for convenience. They offer a stable 1.5V output with a 440mAh capacity (666mWh) and incorporate advanced protection features to ensure longevity and safety.

Persediaan

Before initial use, fully charge the batteries. The Portronics Lithius Cell AAA batteries feature a built-in Type-C charging port, eliminating the need for a separate charger. Simply connect a standard USB Type-C cable to the battery and a compatible power source (e.g., USB wall adapter, computer USB port, car charger).

Image: Charging Made Crystal Clear. This image illustrates the charging process. The blue light on the battery blinks during charging and becomes stable when fully charged. Examples show charging via a multi-port adapter, a laptop, and a car charger.

Penunjuk Pengecasan:

• Blue light blinks: Battery is in charging mode.
• Blue light stable: Battery is fully charged.

Arahan Operasi

Memasukkan Bateri: Ensure correct polarity (+ and -) when inserting the batteries into your device. Refer to your device's manual for specific battery insertion instructions.

mengecas: To charge, connect a USB Type-C cable directly to the battery's charging port. Use a compatible USB power source. Charging time may vary depending on the power source output.

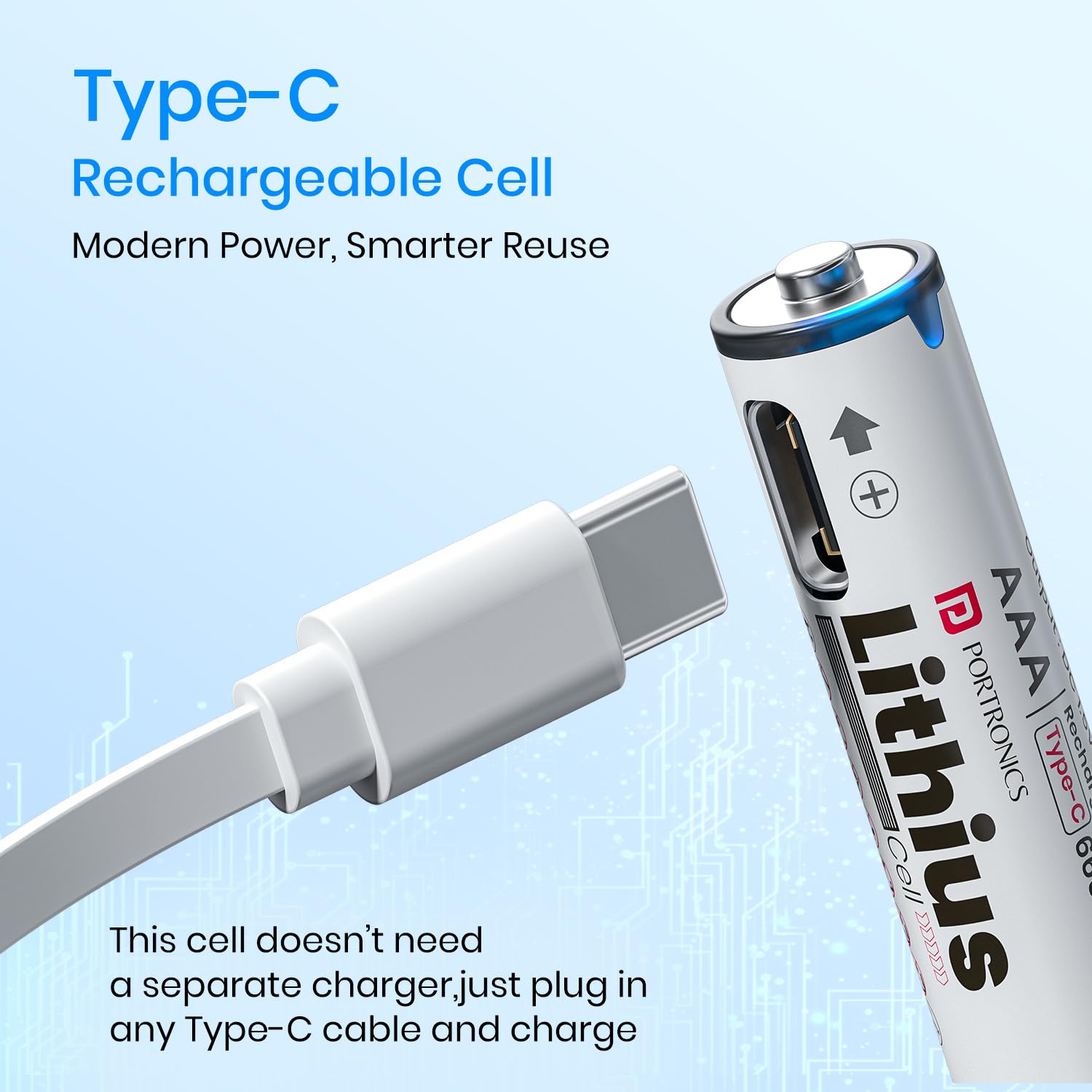

Image: Type-C Rechargeable Cell. This image highlights the integrated Type-C charging port on the battery, demonstrating how a Type-C cable connects directly for charging.

Keserasian: These AAA Lithius batteries are compatible with a wide range of devices that use standard AAA batteries. This includes, but is not limited to, remote controls, wireless mice and keyboards, toys, flashlights, electric toothbrushes, and blood pressure monitors.

Image: Wide Compatibility. This image displays several common devices such as a clock, remote control, toy car, game controller, blood pressure machine, and keyboard, indicating the broad compatibility of the AAA Lithius batteries.

Penyelenggaraan

To ensure optimal performance and longevity of your Portronics Lithius batteries, follow these maintenance guidelines:

• Storan: Simpan bateri di tempat yang sejuk dan kering jauh dari cahaya matahari langsung dan suhu yang melampau.
• Pelepasan Diri Rendah: These batteries feature low self-discharge technology, meaning they retain most of their charge even after long periods of non-use. However, for best results, recharge them periodically if stored for extended durations.
• Penggunaan Biasa: Regular charging and discharging cycles help maintain battery health.
• Pembersihan: Keep battery terminals clean and dry. Use a clean, dry cloth to wipe off any dust or debris.

Image: Low Self-Discharge Long Lasting Power Supply. This graph compares the charge retention of Portronics Lithius batteries against other batteries over a three-year period, demonstrating superior low self-discharge performance.

Image: Charge. Reuse. Repeat. This image emphasizes the sustainable aspect of the batteries, showing recycling symbols and a recycling bin, promoting reuse and waste reduction.

Menyelesaikan masalah

If you encounter issues with your Portronics Lithius batteries, consider the following:

• Bateri Tidak Dicas: Ensure the Type-C cable is securely connected to both the battery and the power source. Verify the power source is active. Try a different Type-C cable or power source.
• Peranti Tidak Dihidupkan: Check if the batteries are inserted with correct polarity. Ensure the batteries are fully charged. Test the batteries in another compatible device to rule out a device issue.
• Prestasi Dikurangkan: Over time, all rechargeable batteries may experience a slight decrease in capacity. Ensure batteries are fully charged before use.

The batteries are equipped with advanced multi-layer protection features to prevent common issues:

Image: Advanced Multi-Layer Protection. This diagram highlights various safety features including Fireproof Shell & Intelligent Protection, Short-Circuit Protection, Surge Protection, Over-Voltage Protection, and Overheating Protection.

Additionally, the batteries feature a leak-proof design for enhanced safety:

Image: Leak Proof Design. This image details the leak-proof construction, including a Short-Circuit Guard, Pressure Relief Valve, Dual-Lock Ring, and Reinforced Steel Shell, designed to withstand pressure without bursting.

Spesifikasi

Maklumat Keselamatan

Your Portronics Lithius batteries are designed with multiple safety features to protect both the batteries and your devices:

• Perlindungan Terlebih Arus: Menghalang kerosakan daripada aliran arus yang berlebihan.
• Perlindungan Lebihan Caj: Safeguards the battery from being discharged too deeply, extending its lifespan.
• Fireproof Shell & Intelligent Protection: Meningkatkan keselamatan terhadap bahaya kebakaran.
• Perlindungan Litar pintas: Secara automatik memotong kuasa sekiranya berlaku litar pintas.
• Perlindungan lonjakan: Protects against sudden voltage lonjakan.
• Lebih-Voltage Perlindungan: Prevents damage from excessive charging voltage.
• Perlindungan Terlalu Panas: Monitors and regulates battery temperature to prevent overheating.
• Injap Pelepasan Tekanan: A safety mechanism to release internal pressure.
• Dual-Lock Ring & Reinforced Steel Shell: Contributes to the leak-proof and durable design.

Amaran:

• Jangan buka, tebuk atau ubah suai bateri.
• Jangan dedahkan kepada air atau suhu yang melampau.
• Jauhkan daripada kanak-kanak.
• Buang bateri mengikut peraturan tempatan.

Waranti dan Sokongan

For warranty information and customer support, please contact Portronics directly. The manufacturer details are provided below:

• Pengeluar: Portronics Digital Pvt. Ltd.
• e-mel: help@portronics.com
• telefon: +91 9555-245-245
• Alamat: Hartanah Tingkat Satu No D 8 Sektor Bawah Tanah Atas 8 Noida Uttar Pradesh 201301, India

Sila simpan bukti pembelian anda untuk tuntutan waranti.
