Silonn Nugget Ice Maker (Model SLIM41T-US) Instruction Manual

1. Produk Lebihview

The Silonn Nugget Ice Maker is a countertop appliance designed to produce soft, chewable nugget ice. It features smart app and voice control, a detachable large water tank, quiet operation, and a self-cleaning function. This machine is ideal for home, kitchen, and party use, providing up to 40 lbs of ice per day.

Ciri-ciri Utama

• Aplikasi Pintar & Kawalan Suara: Control ice making with the intuitive LED display, your voice, or remotely via the SmartBQ App.
• Detachable Large Water Tank: A 3L removable water tank allows for easy filling and cleaning, producing ice for up to 7.5 hours on a single fill.
• Tenang dan Cekap: Produces nugget ice in just 8 minutes, with a daily output of approximately 40 lbs, operating quietly at 40-50 dB.
• Soft, Chewable Ice: Enjoy the satisfying crunch of nugget ice, perfect for cooling drinks and enhancing flavors.
• Status Updates and Self-Cleaning: Clear ring indicators show water levels and ice basket status. Features a self-cleaning function for hassle-free maintenance.

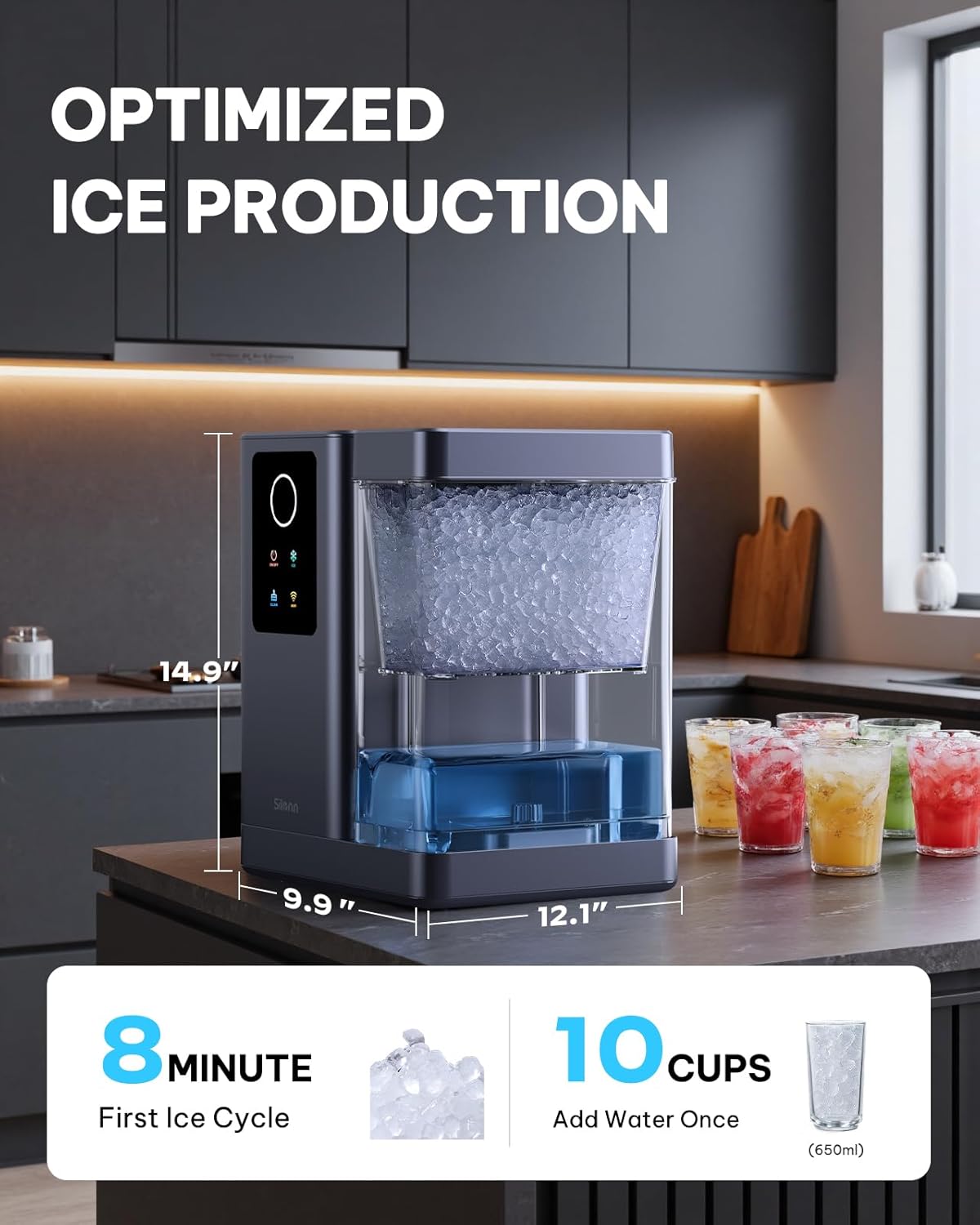

Figure 1: Silonn Nugget Ice Maker with key dimensions and ice production details.

Figure 2: The soft, chewable nugget ice produced by the machine.

2. Arahan Keselamatan

Please read and understand all safety instructions before operating your Silonn Nugget Ice Maker to prevent injury or damage.

• Always place the ice maker on a stable, level surface to ensure proper operation and prevent tipping.
• Jangan rendamkan perkakas, kord kuasa, atau palamkan ke dalam air atau sebarang cecair lain.
• Keep the ice maker out of reach of children and pets. Adult supervision is required when the appliance is in use.
• Unplug the ice maker from the power outlet before cleaning, performing maintenance, or when not in use for extended periods.
• Use only potable (drinkable) water in the water tank.
• Jangan kendalikan perkakas dengan kord atau palam yang rosak, atau jika perkakas tidak berfungsi atau telah rosak dalam apa jua cara.
• Ensure adequate ventilation around the ice maker. Do not block any ventilation openings.

3. Kandungan Pakej

Upon opening your Silonn Nugget Ice Maker package, please verify that all the following items are included:

• Silonn Nugget Ice Maker unit
• Skop Ais
• Bakul Ais
• Manual Pengguna (dokumen ini)

4. Persediaan

Membuka kotak

Carefully remove the ice maker from its packaging. Ensure all protective foam inserts, plastic bags, and adhesive tapes are removed from the unit and its components.

Pembersihan Awal

Before the first use, it is crucial to clean the internal components. Remove the water tank and ice basket, wash them with mild soap and water, and rinse thoroughly. It is also recommended to run a self-cleaning cycle with clean water before making ice for consumption.

Penempatan

Place the ice maker on a flat, stable, and heat-resistant surface. Ensure there is at least 5 inches of space around the unit for proper ventilation. Avoid placing it near direct sunlight, heat sources, or in areas with extreme temperatures.

5. Arahan Operasi

Mengisi Tangki Air

1. Lift the lid of the ice maker.
2. Keluarkan bakul ais.
3. Carefully lift out the transparent water tank.
4. Fill the water tank with potable water up to the 'MAX' fill line indicated on the tank.
5. Letakkan tangki air kembali ke kedudukannya, pastikan ia diletakkan dengan betul.
6. Masukkan semula bakul ais dan tutup penutup.

Figure 3: Detachable water tank being filled with water.

Membuat Ais

1. Ensure the water tank is filled and the unit is plugged into a grounded power outlet.
2. Press the 'ON/OFF' button on the LED display to power on the machine.
3. Press the 'ICE' button (snowflake icon) to start the ice-making cycle. The indicator light will illuminate.
4. The first batch of nugget ice will be ready in approximately 8 minutes. Subsequent batches will be produced continuously.
5. The machine will automatically stop making ice when the ice basket is full or when the water level is low.

Figure 4: Intuitive LED color display for easy control.

Smart App & Voice Control

Your Silonn Nugget Ice Maker can be controlled via the SmartBQ App and voice commands through compatible smart home devices.

1. Download the SmartBQ App from your device's app store.
2. Follow the in-app instructions to connect your ice maker to your home Wi-Fi network.
3. Once connected, you can use the app to start/stop ice production, set schedules, and receive notifications (e.g., ice basket full, low water).
4. For voice control, link the SmartBQ App with your Google Home or Alexa device. Use commands like "Hey Google, make ice" or "Alexa, turn on the ice maker."

Figure 5: Voice-activated control for convenient operation.

Figure 6: SmartBQ App interface for remote control and scheduling.

6. Penyelenggaraan

Fungsi Pembersihan Diri

The self-cleaning function helps maintain the hygiene of your ice maker. It is recommended to run this cycle regularly, especially if you notice any changes in ice quality or taste.

1. Pastikan tangki air diisi dengan air bersih.
2. Press the 'CLEAN' button (bucket icon) on the LED display.
3. The machine will run a cleaning cycle, circulating water through its internal system.
4. Once the cycle is complete, drain the water from the unit as described in the 'Drainage' section.

Figure 7: Visual representation of the powerful self-cleaning mode.

Water Tank and Ice Basket Cleaning

For thorough cleaning, manually wash the detachable water tank and ice basket. Use a soft cloth or sponge with mild dish soap and warm water. Rinse all components thoroughly to remove any soap residue before reassembling.

Saliran

To drain water from the unit, locate the drainage plug at the bottom of the machine. Place a container under the plug, then remove it to allow water to flow out. Reinsert the plug firmly once all water has drained.

7. Penyelesaian masalah

If you encounter any issues with your Silonn Nugget Ice Maker, please refer to the following common troubleshooting steps:

Tiada Pengeluaran Ais

• Semak Paras Air: Ensure the water tank is filled above the minimum level.
• Bekalan Kuasa: Verify the unit is properly plugged in and powered on.
• Bakul Ais: Check if the ice basket is full. The machine will pause production if the basket is full.
• Halangan: Inspect the ice-making mechanism for any blockages.

Ice Basket Full Indicator On, But Basket Not Full

• Halangan Sensor: Ensure the ice level sensor is clean and free from ice buildup or other obstructions.

Isu Sambungan Wi-Fi

• Semakan Rangkaian: Confirm your Wi-Fi network is active and the ice maker is within range.
• Gandingan Apl: Follow the detailed pairing instructions within the SmartBQ App.
• Tetapan Penghala: Ensure your router settings allow new device connections.

If these steps do not resolve the issue, please contact Silonn customer support for further assistance.

8. Spesifikasi

9. Waranti dan Sokongan

Silonn provides a limited warranty for its products. For specific warranty terms, conditions, and duration, please refer to the warranty card included in your original product packaging or visit the official Silonn website. To make a warranty claim or for technical support, please have your purchase receipt and product model number (SLIM41T-US) ready when contacting customer service.

For the most up-to-date support information and contact details, please visit the Silonn official webtapak atau rujuk maklumat hubungan yang diberikan dalam dokumentasi produk anda.
