SUNLU Standard 3D Printer Resin (2KG Grey) Instruction Manual

1. Pengenalan

This manual provides essential instructions for the safe and effective use of SUNLU Standard 3D Printer Resin. This 405nm UV-curing photopolymer resin is designed for LCD, DLP, and SLA 3D printers, offering high compatibility and reliable performance for various printing applications.

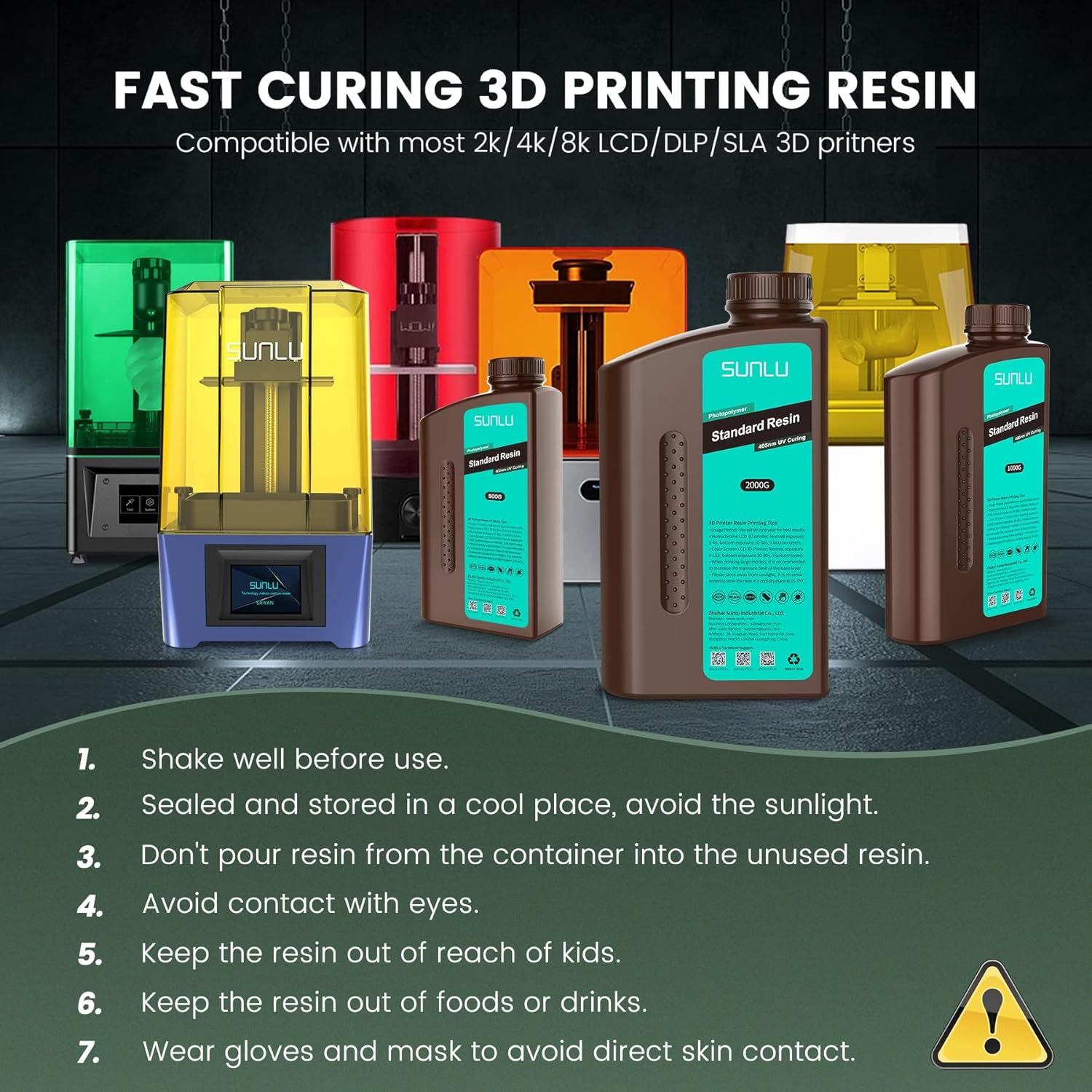

2. Langkah-langkah Keselamatan

Always prioritize safety when handling 3D printer resin. Failure to follow these precautions may result in injury or damage.

• Pakai Alat Pelindung: Sentiasa pakai sarung tangan dan topeng muka untuk mengelakkan sentuhan langsung dengan kulit dan penyedutan asap.
• Perlindungan Mata: Avoid contact with eyes. If resin gets into eyes, flush immediately with plenty of water and seek medical attention.
• Bahaya tertelan: This product is not edible. If swallowed, seek medical attention immediately.
• Jauhkan daripada Jangkauan: Keep the resin out of reach of children and pets.
• Tiada Makanan atau Minuman: Do not store or consume food or drinks near the resin.
• Pengudaraan: Gunakan di kawasan yang berventilasi baik.
• Pelupusan yang betul: Do not pour uncured resin down drains or dispose of it in regular trash. Cure liquid resin under UV light before disposal.

3. Ciri-ciri Produk

• Mudah Digunakan: Strong fluidity, compatible with various printers and printing speeds, suitable for beginners.
• Good Stability: High tolerance to weak acids and greases, ensuring printed works are not easily deformed.
• Easy Post-processing: Hard and smooth surface, easy to color after printing.
• Low Shrinkage: Provides accurate size and shape of printed parts during curing.
• Mudah dibersihkan: Effortless cleaning with isopropyl alcohol or ethanol for a smooth surface finish.
• High Cost-Effectiveness: Good performance and durability at an affordable price.
• Minimal Odor: Light odor during printing, balancing functionality with user comfort.
• Keserasian Tinggi: 365-405nm printing wavelength, compatible with 99% of LCD, DLP, and SLA printers.
• Leak-proof Bottle Design: Patented design and strict packaging to ensure safe delivery.

4. Persediaan

1. Goncangkan Botol: Before each use, shake the resin bottle well for at least 30 seconds to ensure proper mixing of components.
2. Tuangkan Resin: Carefully pour the resin into your 3D printer's resin vat, ensuring not to exceed the maximum fill line.

5. Arahan Operasi

The SUNLU Standard Resin is compatible with 365-405nm UV light sources. Optimal printing results depend on your specific 3D printer model and environmental conditions. Below are general recommended settings:

Parameter Pencetakan yang Disyorkan:

Note: These settings are general guidelines. Always refer to your 3D printer's specific recommendations and perform calibration tests for optimal results.

6. Pasca Pemprosesan

1. Alih Keluar Cetakan: Carefully remove the printed model from the build plate using a scraper.
2. Keluarkan Sokongan: Gently remove any support structures from the model.
3. Clean Model: Wash the printed model thoroughly with 95% isopropyl alcohol or ethanol for approximately 30 seconds to remove uncured resin. For best results, use a dedicated resin washing machine or an ultrasonic cleaner.
4. Dry Model: Allow the model to air dry completely or use compressed air.
5. Post-Cure: Place the cleaned and dried model in a UV curing chamber or under direct sunlight until fully cured. This enhances the model's hardness and durability.

7. Penyimpanan

• Bekas: Store resin in its original, sealed container.
• lokasi: Keep in a cool, dry, and dark place, away from direct sunlight and UV light sources. UV light will cure the photosensitive resin.
• Suhu: Ideal storage temperature is 15-35°C. Lower temperatures may increase resin viscosity.
• Pencemaran: Ensure the container is sealed to prevent dust or moisture from affecting print quality. Do not pour unused resin back into the original container to avoid contamination.
• Jangka hayat: For best results, use within one year of purchase.

8. Penyelesaian masalah

Jika anda menghadapi masalah semasa mencetak, pertimbangkan penyelesaian biasa berikut:

• Failed Prints/Adhesion Issues:
  • Ensure the build plate is properly leveled and clean.
  • Increase bottom layer exposure time.
  • Verify ambient temperature is within the recommended range (20-30°C).
• Poor Detail/Soft Prints:
  • Increase normal exposure time.
  • Ensure adequate post-curing.
• Resin Not Curing:
  • Check if the UV light source is functioning correctly.
  • Confirm the resin's curing wavelength (405nm) matches your printer's UV light.
• Excessive Odor:
  • Ensure proper ventilation in your printing area.
  • Use an air purifier if necessary.

For more specific issues, consult your 3D printer's user manual or contact SUNLU customer support.

9. Spesifikasi

• Bahan: Fast curing standard photopolymer resin
• Panjang Gelombang Pengawetan: 365-405nm
• Kaedah Pembersihan: 95% Ethanol or Isopropanol
• Heat Distortion Temperature: 55 ° C (131 ° F)
• Dimensi Pakej: 10.94 x 7.64 x 2.83 inci
• Berat Barang: 4.4 paun (2KG)
• Pengeluar: SUNLU

10. Waranti dan Sokongan

For any product-related inquiries, technical support, or warranty information, please contact SUNLU directly through their official channels. You can visit the SUNLU Store on Amazon or refer to the contact information provided on the product packaging.
