Shark CleanSense iQ+ Cordless Stick Vacuum Cleaner IW3145JNC User Manual

pengenalan

Terima kasih kerana membeliasing the Shark CleanSense iQ+ Cordless Stick Vacuum Cleaner. This high-performance model, IW3145JNC, is designed to provide efficient and convenient cleaning with its advanced sensing technology and automatic dust collection system. This manual contains important information regarding the assembly, operation, maintenance, and troubleshooting of your new vacuum cleaner. Please read it thoroughly before use and keep it for future reference.

Figure 1: Shark CleanSense iQ+ Cordless Stick Vacuum Cleaner with Auto-Empty Dock.

Arahan Keselamatan Penting

Apabila menggunakan peralatan elektrik, langkah berjaga-jaga keselamatan asas hendaklah sentiasa dipatuhi, termasuk yang berikut:

• Baca semua arahan sebelum menggunakan pembersih vakum anda.
• Jangan gunakan di luar atau di permukaan basah.
• Cabut plag dari soket apabila tidak digunakan dan sebelum diservis.
• Jangan biarkan digunakan sebagai mainan. Perhatian yang rapi diperlukan apabila digunakan oleh atau berhampiran kanak-kanak.
• Gunakan hanya seperti yang diterangkan dalam manual ini. Gunakan hanya lampiran yang disyorkan pengilang.
• Jangan pegang palam atau pembersih vakum dengan tangan yang basah.
• Jangan letakkan sebarang objek ke dalam bukaan. Jangan gunakan dengan mana-mana bukaan yang disekat; jauhkan daripada habuk, serabut, rambut dan apa sahaja yang boleh mengurangkan aliran udara.
• Jauhkan rambut, pakaian longgar, jari dan semua bahagian badan daripada bukaan dan bahagian yang bergerak.
• Gunakan lebih berhati-hati semasa membersihkan di tangga.
• Jangan gunakan untuk mengambil cecair mudah terbakar atau mudah terbakar, seperti petrol, atau gunakan di kawasan yang mungkin terdapat.

Kandungan Pakej

Sahkan bahawa semua komponen disertakan dalam pakej anda:

• Unit Vakum Pegang Tangan Utama
• tongkat
• Hybrid Power Clean Floor Nozzle
• Dok Autokosong
• Kabel Pengecasan
• Multi-Cloth
• Alat Celah
• Berus Debu

Figure 2: All components included with the Shark CleanSense iQ+ vacuum cleaner.

Persediaan

Perhimpunan

1. Masukkan tongkat ke dalam muncung lantai sehingga ia berbunyi klik dengan selamat.
2. Insert the handheld vacuum unit into the top of the wand until it clicks securely.
3. Place the assembled vacuum cleaner onto the auto-empty dock.

Mengecas

Before first use, fully charge the vacuum cleaner. The battery indicator lights on the handheld unit will show charging status.

• Connect the charging cable to the auto-empty dock and plug it into a wall outlet.
• Ensure the vacuum is properly seated on the dock for charging. A full charge takes approximately 4 hours.

Figure 3: The vacuum cleaner is always ready for use when charged on its dock.

Auto-Empty Dock Setup

The auto-empty dock automatically empties the vacuum's dust cup into a larger capacity bin, reducing the frequency of manual emptying.

• Place the auto-empty dock on a flat, stable surface near a power outlet.
• Ensure there is enough space around the dock for the vacuum to be easily placed and removed.

Figure 4: The vacuum cleaner in its auto-empty dock, designed for convenient dust collection.

Arahan Operasi

Menghidupkan/Mematikan dan Membersihkan Mod

Press the power button on the handheld unit to turn the vacuum on or off. Use the mode selection button to switch between cleaning modes:

• Mod Eko: For everyday cleaning and extended run time.
• Mod Rangsangan: Provides maximum suction for tough messes.

Figure 5: The vacuum cleaner operating in Boost mode for intense cleaning and Eco mode for general use.

Smart iQ Pro Sensing Technology

The CleanSense iQ+ features four intelligent sensors that optimize cleaning performance:

Gambar 6: Lebihview of the four smart sensing technologies integrated into the vacuum cleaner.

• Edge Sensor: Detects walls and corners, automatically increasing suction by up to 2.5 times in Eco mode for thorough edge cleaning.

Figure 7: The edge sensor identifies walls and corners, boosting suction for effective cleaning.

• iQ Sensor: Automatically adjusts suction power based on the amount of debris detected. The display changes color to visually indicate the debris level (low, medium, high suction).

Figure 8: The iQ sensor dynamically adjusts suction and provides visual feedback on debris levels.

• Sensor Lantai: Detects the floor type (hard floor or carpet) and automatically adjusts the brush roll speed for optimal cleaning on different surfaces.

Figure 9: The floor sensor automatically adapts brush roll speed for effective cleaning on various floor types.

• Sensor Cahaya: In dark areas, the light sensor automatically brightens the headlights on the floor nozzle to illuminate hidden dust and debris.

Figure 10: The light sensor enhances visibility in dimly lit spaces, revealing hidden dirt.

Hybrid Power Clean Head

The unique Hybrid Power Clean head is designed to prevent hair tangles, making it ideal for homes with pets or long hair. It provides powerful suction for both flooring and carpets.

Figure 11: The Hybrid Power Clean brush roll effectively picks up hair without tangling.

Mod Genggam

For quick clean-ups or reaching tight spaces, the main unit can be easily detached and used as a handheld vacuum. Attach the crevice tool or dusting brush as needed.

Figure 12: Converting the stick vacuum into a convenient handheld unit for versatile cleaning.

Penyelenggaraan

Mengosongkan Dust Cup

The auto-empty dock significantly reduces the need for frequent manual dust cup emptying. The dock's capacity is designed for approximately one month of debris, depending on usage and room conditions.

• When the vacuum is placed on the dock, it will automatically transfer collected debris to the dock's larger bin.
• To manually empty the handheld unit's dust cup, press the release button and empty contents into a trash bin.

Figure 13: Simple manual emptying of the handheld vacuum's dust cup.

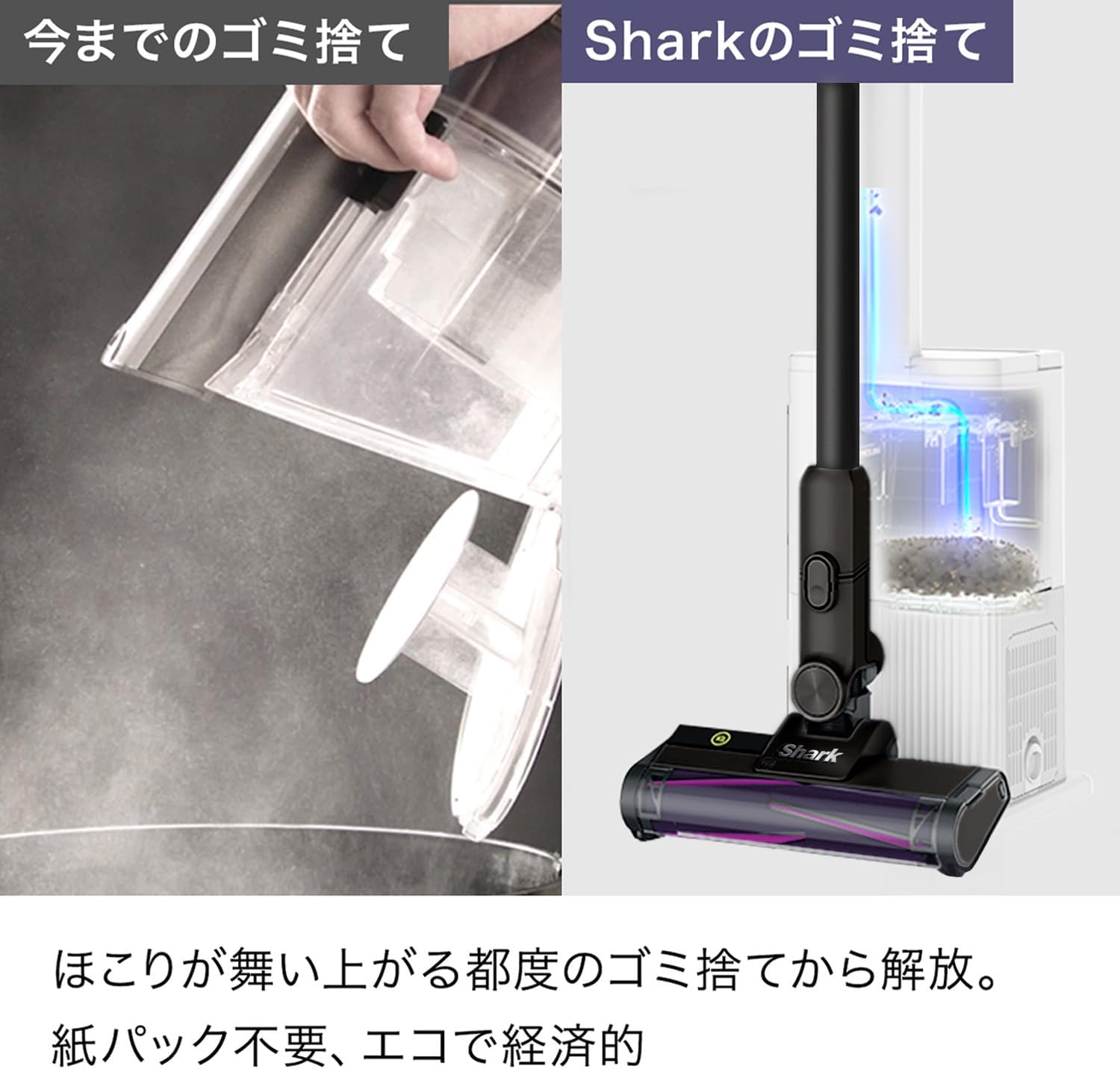

Figure 14: The auto-empty dock provides a cleaner and more convenient way to dispose of collected debris compared to traditional methods.

Cleaning Filters and Brush Roll

Regular cleaning of filters and the brush roll is essential for maintaining optimal suction and performance.

• Dust Cup and Filters: The dust cup and internal filters are washable. Rinse them with cold water and allow them to air dry completely for at least 24 hours before reassembling.
• Gulungan Berus: Remove any hair or debris wrapped around the brush roll. The Hybrid Power Clean brush roll is designed to be anti-tangle, but occasional checks are recommended. The brush roll can also be rinsed with water if necessary.

Figure 15: Washable components, including the brush roll and dust cup, ensure easy maintenance and hygiene.

Menyelesaikan masalah

Spesifikasi

Waranti dan Sokongan

For warranty information and customer support, please refer to the warranty card included in your product packaging or visit the official Shark webtapak. Simpan resit pembelian anda sebagai bukti pembelian untuk sebarang tuntutan waranti.
