Hooke Road Rally Light Bar Front Bumper Guard Installation Manual

1. Produk Lebihview

This Hooke Road Rally Light Bar Front Bumper Guard is designed for 2013-2017 Subaru XV Crosstrek models. It provides front-end reinforcement and features mounting points for auxiliary lighting, enhancing both the vehicle's appearance and functionality.

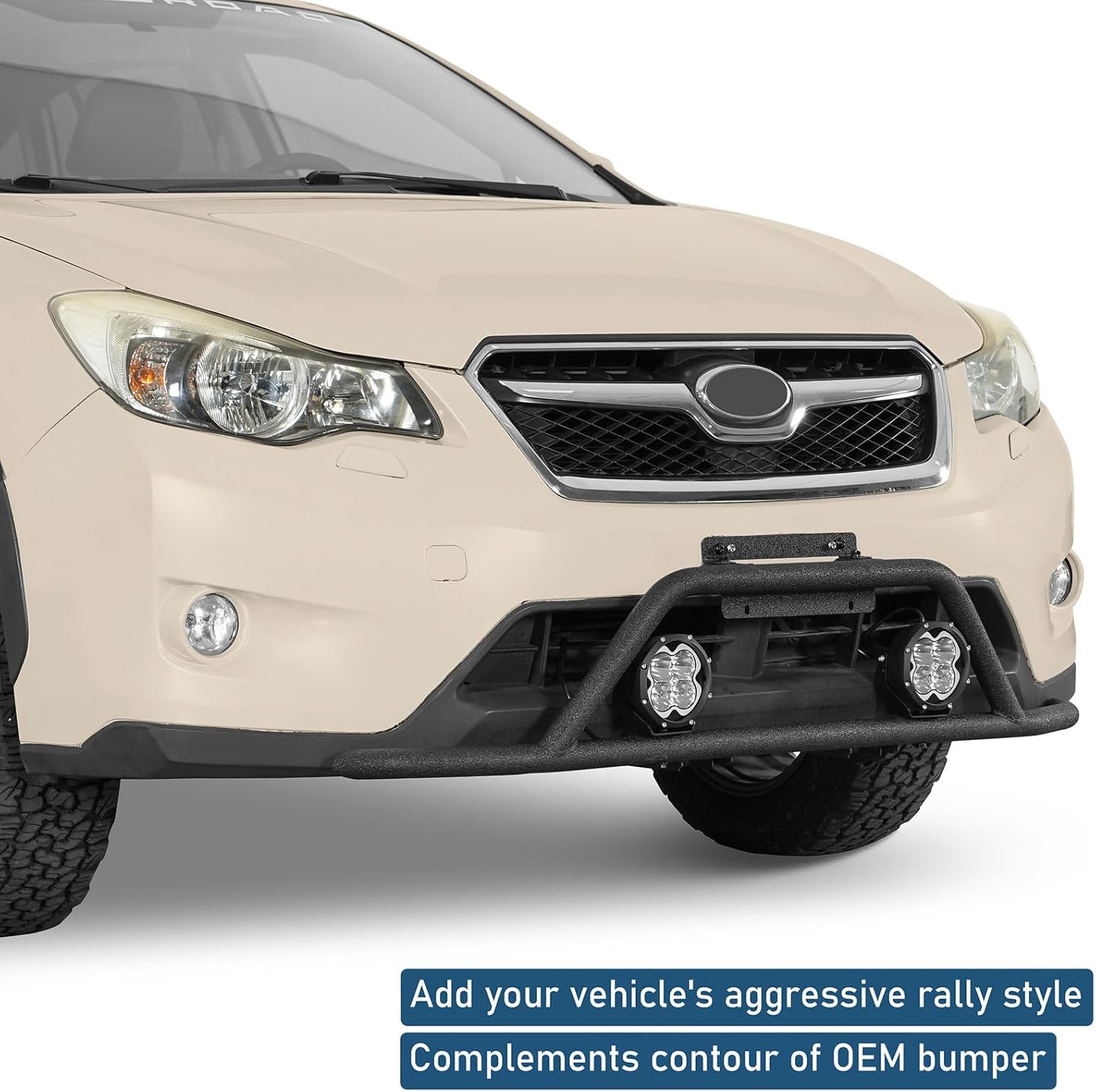

Rajah 1.1: The Hooke Road Rally Light Bar Front Bumper Guard installed on a 2013-2017 Subaru XV Crosstrek, showcasing its integration with the vehicle's front end and the two light mounting holes with auxiliary lights attached.

2. Senarai Bahagian

Pastikan semua komponen ada sebelum memulakan pemasangan:

• Pemasangan Bampar Depan
• Lekapan Plat Lesen
• Kit Perkakasan Pemasangan
• Installation Instruction (this manual)

Rajah 2.1: All included components of the Rally Light Bar kit, laid out for inspection.

3. Persediaan dan Pemasangan

This product is designed for direct bolt-on installation using factory mounting points. No cutting, drilling, or modification is required for the main assembly. A drill is only needed to secure the upper license plate bracket with self-drilling screws.

3.1. Langkah Pemasangan Umum

1. Sediakan Kenderaan: Letakkan kenderaan pada permukaan yang rata dan gunakan brek letak kereta.
2. Buka Pembungkusan Komponen: Keluarkan semua bahagian daripada pembungkusan dengan berhati-hati dan sahkannya dengan senarai bahagian.
3. Position Bumper Guard: Align the main bumper guard assembly with the factory mounting points on the front of your Subaru XV Crosstrek.
4. Secure Main Assembly: Use the provided hardware to bolt the bumper guard securely to the vehicle's frame. Ensure all bolts are tightened to manufacturer specifications.
5. Pasang Kurungan Plat Lesen: Attach the license plate relocation bracket to the designated area on the bumper guard. Use self-drilling screws for the upper portion if necessary, as indicated in the detailed instructions provided with the hardware kit.
6. Mount Auxiliary Lights (Optional): If installing auxiliary lights (sold separately), attach them to the two pre-drilled mounting holes on the bumper guard. Ensure lights do not exceed 2.5 inches deep and 4.9 inches in diameter.
7. Semakan Akhir: Double-check all connections and hardware for tightness and proper alignment.

Rajah 3.1: The Rally Light Bar seamlessly integrated with the vehicle's original bumper, highlighting its precise fit.

4. Operasi dan Ciri

The Hooke Road Rally Light Bar Front Bumper Guard serves multiple functions:

• Front-End Protection: The tubular structure reinforces your vehicle's front end against minor impacts, debris, and road hazards.
• Auxiliary Light Mounting: Features two pre-drilled mounting holes for adding up to two auxiliary lights. These holes are compatible with most lights up to 2.5 inches deep and 4.9 inches in diameter.
• License Plate Relocation: Includes a bracket to relocate your license plate, ensuring it remains visible and street-legal after installation of the light bar.

Rajah 4.1: Terperinci view of the heavy-duty construction, featuring 1.50" x 0.06" steel tubing and 14-gauge (5/64") steel plate for robust protection.

5. Penyelenggaraan

The bumper guard features a dual-layer corrosion-resistant finish, consisting of a textured black powder coating and an inner E-coating. To maintain its appearance and protective qualities:

• Regularly clean the bumper guard with mild soap and water to remove dirt, salt, and other road contaminants.
• Elakkan menggunakan pembersih yang melelas atau bahan kimia keras yang boleh merosakkan kemasan.
• Inspect all mounting hardware periodically for tightness and re-tighten if necessary.

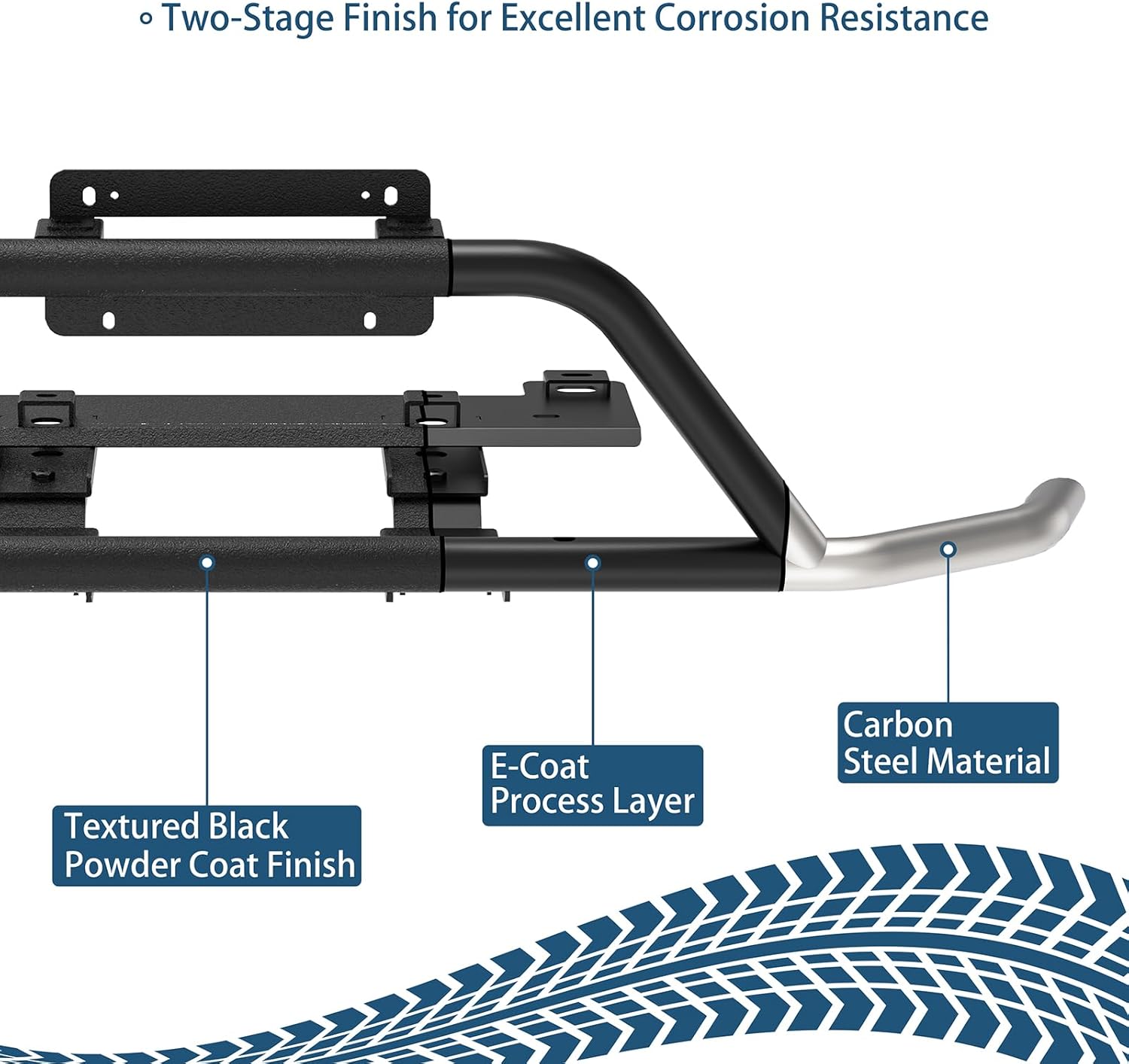

Rajah 5.1: Illustration of the dual-layer protection, including textured black powder coating and an E-coat process layer for enhanced durability and corrosion resistance.

6. Penyelesaian masalah

If you encounter any issues during installation or use, please review the installation steps carefully. For persistent problems or concerns, contact Hooke Road customer support for assistance.

7. Spesifikasi

Rajah 7.1: Key dimensions of the Hooke Road Rally Light Bar Front Bumper Guard.

8. Waranti dan Sokongan

Hooke Road provides a Waranti Pengeluar 2 Tahun from the date of purchase for this product. Additionally, lifetime customer support is available from Hooke Road for any inquiries or assistance you may need.

For warranty claims or support, please contact Hooke Road directly through their official channels.
