1. Produk Lebihview
The ACEMAGIC W1 Mini Gaming PC is a compact and powerful desktop solution designed for multitasking, content creation, and gaming. It features an AMD Ryzen 7 8745HS processor, integrated AMD Radeon 780M graphics, 32GB DDR5 RAM, and a 1TB PCIe 4.0 SSD.
Gambar 1: Lebihview of ACEMAGIC W1 Mini PC features including CPU, RAM, SSD, cooling, size, OS, and display capabilities.
Ciri-ciri Utama:
- Pemproses: AMD Ryzen 7 8745HS (8 teras/16 utas, sehingga 4.9GHz)
- Grafik: Integrated AMD Radeon 780M, supporting 8K resolution and triple display output
- Ingatan: 32GB DDR5 RAM
- Storan: SSD PCIe 4.0 1TB
- Sistem pengendalian: Prapasang Windows 11 Pro
- Ketersambungan: USB4 Type-C, 2.5G LAN, Dual-band WiFi 6, Bluetooth 5.2, HDMI 2.0, DisplayPort 2.0
- Reka bentuk: Compact and space-saving with a low-noise cooling system
2. Panduan Persediaan
Follow these steps for initial setup of your ACEMAGIC W1 Mini PC:
- Sambung ke Kuasa: Plug the power adapter into the DC IN port on the back of the Mini PC, then connect it to a power outlet.
- Sambung ke Paparan: Connect your monitor(s) to the Mini PC using the HDMI, DisplayPort, or USB4 Type-C ports. The device supports up to three displays simultaneously.
- Sambung Peranti: Connect your keyboard, mouse, and other USB devices to the available USB ports (USB3.2 Gen2x2 on front, USB3.2 Gen1x4 on back).
- Hidupkan kuasa: Tekan butang kuasa yang terletak di hadapan Mini PC.
- Persediaan Windows Awal: Follow the on-screen instructions to complete the Windows 11 Pro setup. It is recommended to initially connect to Wi-Fi for faster setup and to avoid potential update delays.

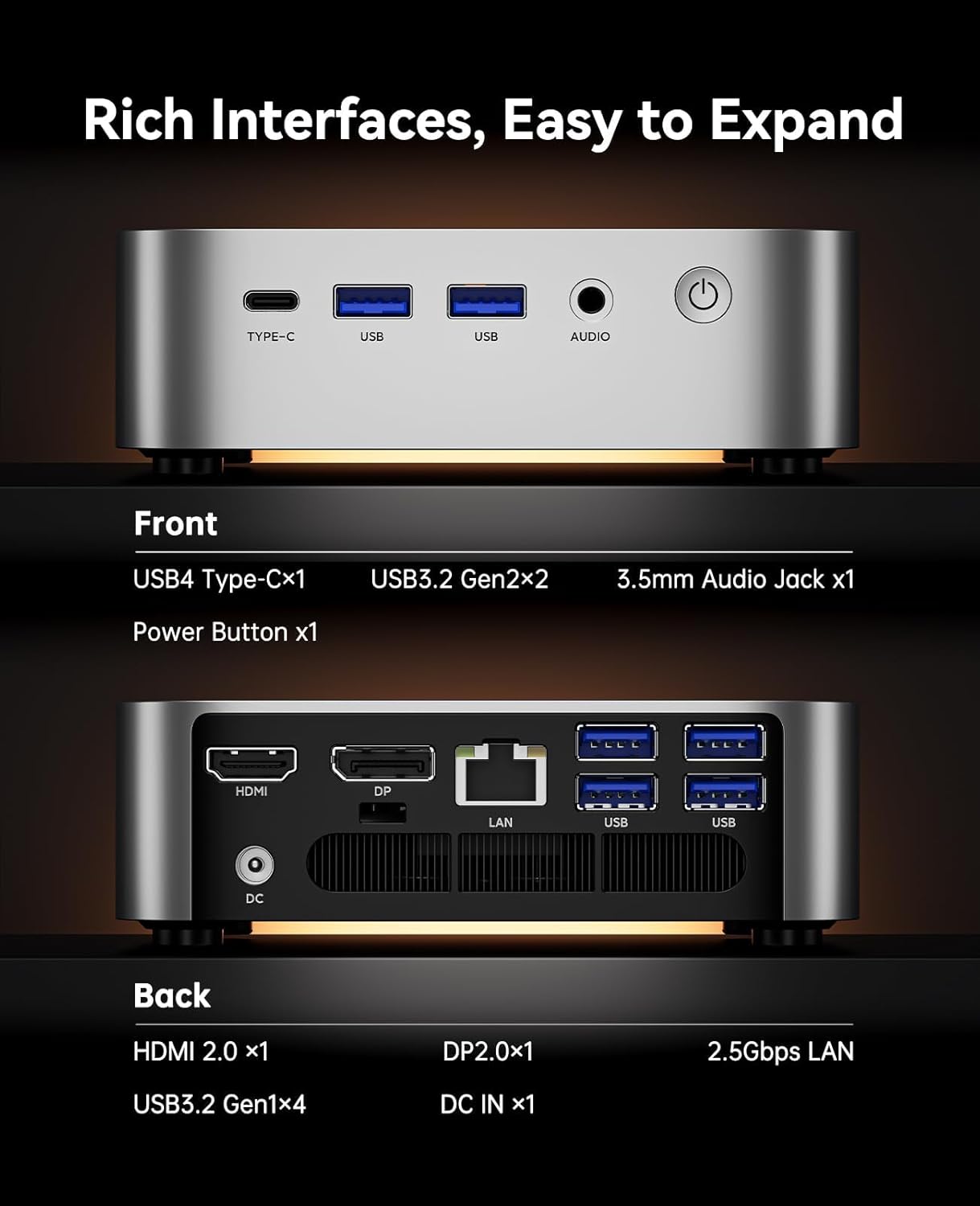

Rajah 2: Terperinci view of the front and back interfaces of the ACEMAGIC W1 Mini PC, including USB, HDMI, DisplayPort, LAN, and power input.
3. Arahan Operasi
Hidupkan/Mati Kuasa:
- Untuk Menghidupkan: Tekan butang kuasa pada panel hadapan.
- Untuk Mematikan: Click the Start menu in Windows, then select Power > Shut down. Alternatively, press and hold the power button for 5 seconds for a forced shutdown (not recommended for regular use).
Ketersambungan:
- wayarles: The Mini PC supports dual-band WiFi 6 and Bluetooth 5.2 for seamless wireless connections to networks and peripherals.
- Rangkaian Berwayar: Use the 2.5G LAN port for high-speed wired internet access.
- Port USB: Utilize the multiple USB ports (USB4 Type-C, USB3.2 Gen2x2, USB3.2 Gen1x4) for connecting external devices such as storage drives, cameras, and other accessories.

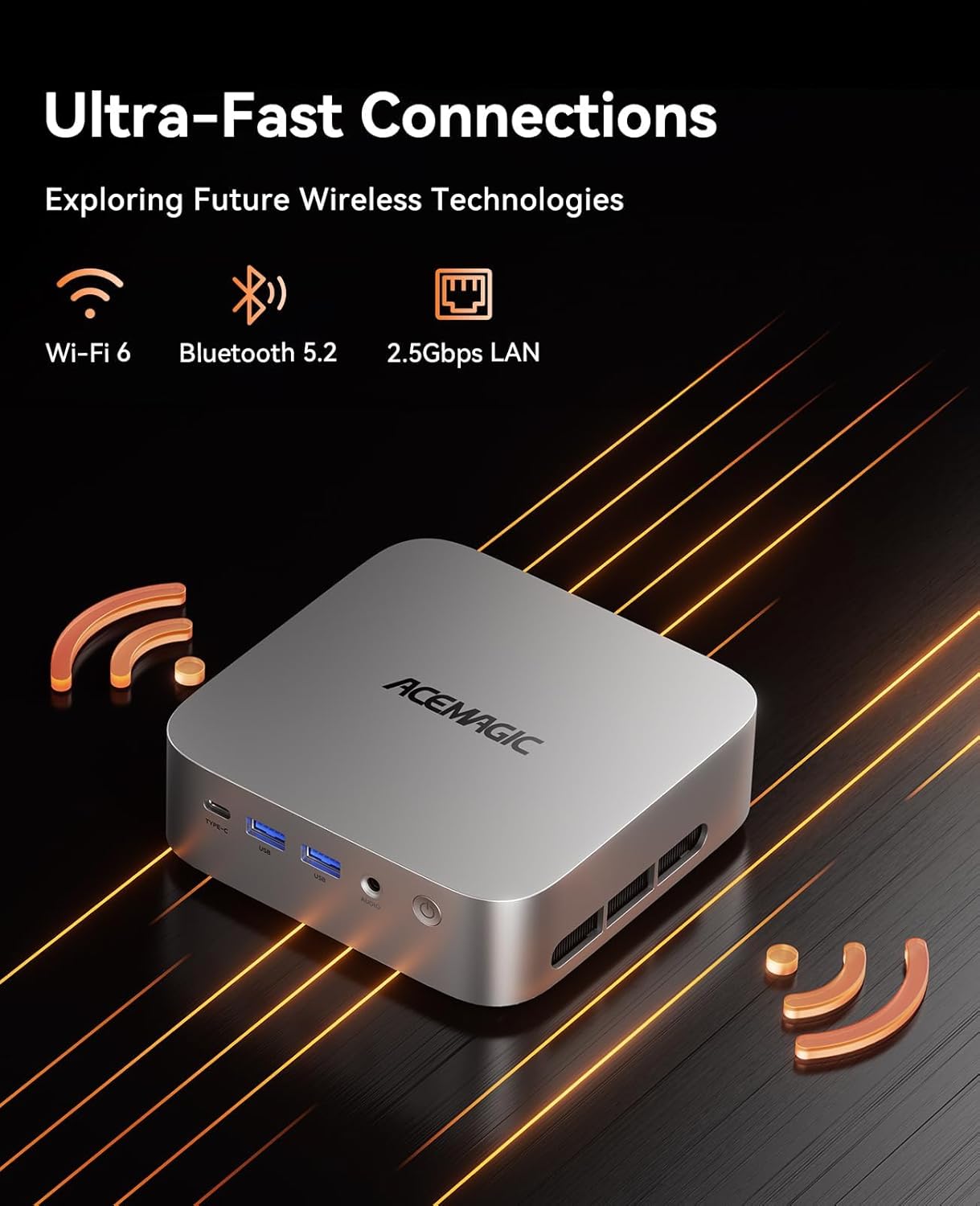

Figure 3: Visual representation of the ultra-fast wireless and wired connectivity options available on the ACEMAGIC W1 Mini PC.
Sokongan Paparan Tiga Kali:
The integrated AMD Radeon 780M graphics allow for a triple-monitor setup, supporting up to 8K resolution. Connect your displays using a combination of the USB4 Type-C, HDMI 2.0, and DisplayPort 2.0 outputs.
Gambar 4: Cthample setup demonstrating the triple-display support of the ACEMAGIC W1 Mini PC, showcasing high-definition visuals across multiple screens.
4. Penyelenggaraan
Sistem Penyejukan:
The ACEMAGIC W1 Mini PC is engineered with a low-noise cooling system to maintain optimal performance and quiet operation. Ensure proper airflow around the device by keeping vents clear of obstructions.
Gambar 5: Dalaman view illustrating the advanced cooling system of the ACEMAGIC W1 Mini PC, featuring a high-speed centrifugal fan, heat dissipation copper pipe, and dual exhaust design.
Perluasan Storan:
The Mini PC is equipped with 2 M.2 2280 slots, allowing for storage expansion up to 4TB. This provides flexibility to increase your storage capacity as needed for games, media, or professional projects.
5. Penyelesaian masalah
- Tiada Paparan: Ensure all display cables (HDMI, DisplayPort, USB4 Type-C) are securely connected to both the Mini PC and the monitor. Verify the monitor is set to the correct input source.
- Tiada Kuasa: Check that the power adapter is correctly connected to the Mini PC and a working power outlet. Try a different outlet if necessary.
- Isu Ketersambungan Rangkaian: For Wi-Fi, ensure the device is within range of your wireless router and the correct password is entered. For wired connections, check the Ethernet cable and router status.
- Prestasi Perlahan: Close unnecessary applications. Check for background processes consuming high resources. Ensure the cooling vents are not obstructed.
- Initial Setup Tip: For faster setup, avoid initial LAN connection. Connecting via Wi-Fi initially can prevent updates from delaying the first boot.
6. Spesifikasi
| Ciri | Perincian |
|---|---|
| Pemproses | AMD Ryzen 7 8745HS (3.8 GHz, up to 4.9GHz) |
| Pemproses bersama Grafik | AMD Radeon 780M |
| RAM | 32 GB DDR5 |
| Pemacu Keras | 1 TB SSD (PCIe 4.0) |
| Resolusi Skrin Maks | 7680x4320 (8K) |
| Sistem Operasi | Windows 11 Pro |
| Jenis Wayarles | 802.11ac (WiFi 6), Bluetooth 5.2 |
| LAN | LAN 2.5G |
| Port USB (Depan) | 1x USB4 Type-C, 2x USB3.2 Gen2 |
| USB Ports (Back) | 4x USB3.2 Gen1 |
| Output Video | 1x HDMI 2.0, 1x DisplayPort 2.0, 1x USB4 Type-C |
| Bicu Audio | Bicu Audio 1x 3.5mm |
| Berat Barang | 2.42 paun |
| Dimensi | 7.09 x 6.69 x 3.94 inci |
Figure 6: Detailed specifications of the AMD Ryzen 7 8745HS processor, including core/thread count, architecture, max boost clock, and TDP.
Rajah 7: Prestasi melebihiview of the AMD Radeon 780M Graphics, highlighting GPU cores, graphics frequency, and a comparison to other integrated graphics solutions.
7. Waranti dan Sokongan
The ACEMAGIC W1 Mini Gaming PC is covered by a complete 12-month assurance. For any questions or support regarding your purchase, please contact ACEMAGIC customer service, available 7 hari seminggu, 24 jam sehari, through Amazon.
All ACEMAGIC mini gaming computers have FCC, ROHS, and CE certifications, ensuring product quality and safety.
