AT&T DLP73190 1-Handset DECT 6.0 Cordless Phone User Manual

pengenalan

This manual provides essential instructions for setting up and operating your AT&T DLP73190 1-Handset DECT 6.0 Bluetooth Cordless Phone. Please read this guide thoroughly to ensure proper use and to take full advantage of its features, including the 5-inch large color display, Smart Call Blocking, and Connect-to-Cell technology.

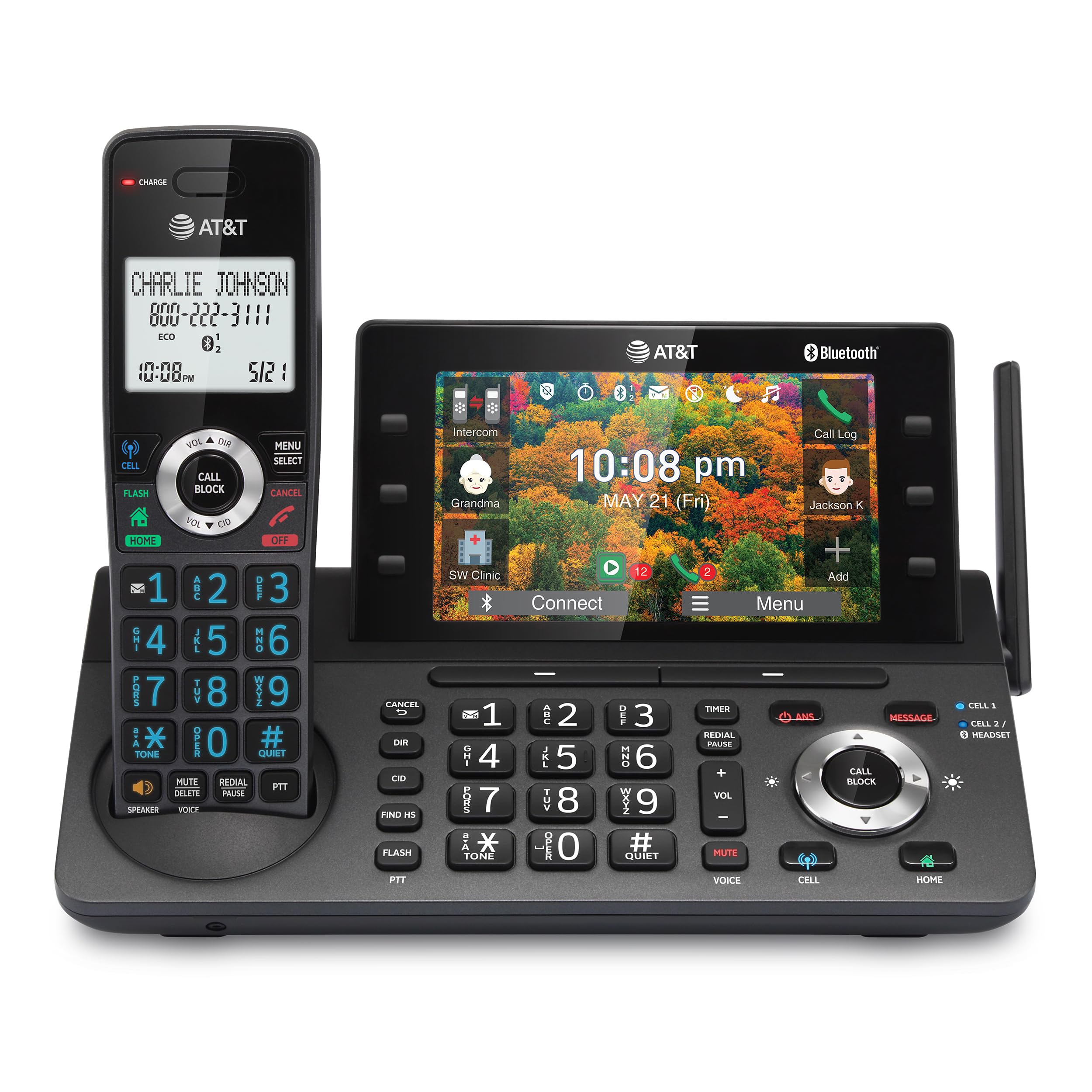

Figure 1: AT&T DLP73190 Cordless Phone System Overview

Persediaan

1. Pengesahan Kandungan Pakej

Pastikan semua komponen ada:

• (1) Main Base Unit
• (1) Cordless Handset
• (1) A/C Adapter
• (1) Rechargeable Ni-MH Battery
• (1) Penutup Bateri
• (1) RJ-11 Telephone Cable
• (1) Wall Mount Bracket for Base
• (1) Panduan Mula Pantas

2. Pemasangan Bateri

1. Locate the battery compartment on the back of the cordless handset.
2. Insert the rechargeable Ni-MH battery, ensuring correct polarity.
3. Gantikan penutup bateri.
4. Place the handset on the base unit to charge for at least 16 hours before initial use.

3. Sambungan Unit Pangkalan

1. Connect the A/C adapter to the base unit and a power outlet.
2. Connect the RJ-11 telephone cable to the base unit and your telephone wall jack (for landline service).
3. For wall mounting, use the provided bracket and follow the instructions in the Quick Start Guide.

4. Connect-to-Cell Setup (Bluetooth Pairing)

The system supports pairing up to two cell phones or one cell phone and one Bluetooth headset.

1. On the base unit's 5-inch color display, navigate to the Bluetooth pairing menu.
2. Enable Bluetooth on your cell phone or headset and set it to discoverable mode.
3. Select your device from the list on the phone's display and follow the on-screen prompts to complete pairing.

Figure 2: Bluetooth Connect-to-Cell Functionality

This feature allows you to make and receive cellular calls using the cordless handset.

Arahan Operasi

1. Membuat dan Menerima Panggilan

• Landline Calls: Tekan ke RUMAH button on the handset or base, then dial the number.
• Cellular Calls: Tekan ke SEL button on the handset or base, then dial the number.
• Menjawab Panggilan: Press any talk key (RUMAH or SEL) on the handset or base.

2. Using the 5-inch Color Base Display

The large color display on the base unit provides easy access to various functions and information.

• Navigasi: Use the soft keys on the side and bottom of the screen to navigate menus and select options.
• Personalized Shortcuts: Assign frequently used features or contacts to shortcuts on the display for quick access.
• Wallpaper Options: Customize the display with lifestyle wallpaper options.

Figure 3: 5-inch Color Base Display with Shortcuts

3. Smart Call Blocker

This feature helps to filter out unwanted calls, including robocalls.

• Penyekatan Automatik: Robocalls are automatically blocked from ringing through.
• Penyekatan Manual: Tekan ke PANGGILAN PANGGILAN button during or after a call to add a number to the block list.
• The system can store up to 1,000 names and numbers in the block list.

4. Sistem Penjawab Digital

The integrated digital answering system can record up to 40 minutes of incoming messages.

• Mengakses Mesej: Use the controls on the base unit or handset to play, skip, or delete messages.
• Akses Jauh: Access your messages remotely by calling your landline number and entering your PIN.

Figure 4: Digital Answering System Interface

5. Fungsi Interkom

Use the intercom feature to communicate between the handset and the base unit, or between multiple handsets if additional handsets are registered.

• Push-To-Talk: Tekan ke PTT button on the handset to initiate an intercom call.

Figure 5: Push-To-Talk Intercom Feature

6. Telefon Bimbit Dupleks Penuh Simulasi

The handset features a speakerphone that allows both parties to speak and be heard simultaneously, enhancing hands-free communication.

Figure 6: Handset Speakerphone in Use

7. Cell Phone Phonebook Download

Download up to 1,200 names and numbers from your paired cell phone to the cordless phone system's directory.

Figure 7: Cell Phone Phonebook Download

Penyelenggaraan

• Pembersihan: Bersihkan permukaan telefon dengan lembut, damp kain. Elakkan menggunakan bahan kimia yang keras atau pembersih yang kasar.
• Penjagaan Bateri: For optimal battery life, ensure the handset is placed on the charger when not in use. Replace the Ni-MH battery when its performance significantly degrades.
• Keadaan Persekitaran: Elakkan mendedahkan telefon kepada suhu yang melampau, cahaya matahari langsung atau kelembapan.

Menyelesaikan masalah

If you encounter issues with your AT&T DLP73190 phone, try the following basic troubleshooting steps:

• Tiada Nada Dail:
  • Pastikan kord talian telefon disambungkan dengan selamat ke unit asas dan bicu dinding.
  • Verify that the A/C adapter is properly connected to the base unit and a working power outlet.
• Telefon bimbit Tidak Mengecas:
  • Check that the handset is correctly seated in the charging cradle.
  • Ensure the charging contacts on both the handset and base are clean.
  • Confirm the A/C adapter is plugged in.
• Poor Call Quality/Range:
  • Gerakkan telefon bimbit lebih dekat ke unit asas.
  • Avoid placing the base unit near large metal objects or other electronic devices that may cause interference.
• Isu Berpasangan Bluetooth:
  • Ensure your cell phone's Bluetooth is enabled and discoverable.
  • Delete previous pairings on both the phone system and your cell phone, then attempt to pair again.
• Sistem Penjawab Tidak Merakam:
  • Periksa sama ada sistem jawapan dihidupkan.
  • Pastikan masa rakaman tersedia mencukupi.

For more detailed troubleshooting or complex issues, please refer to the comprehensive user manual or contact AT&T customer support.

Spesifikasi

Waranti & Sokongan

For warranty information, please refer to the documentation included with your product or visit the official AT&T website. If you require technical assistance or have questions regarding your AT&T DLP73190 cordless phone, please contact AT&T customer support.

Sokongan dalam talian: www.att.com/support/

Sokongan Telefon: Refer to your local AT&T service provider for contact numbers.
