pengenalan
This manual provides detailed instructions for the installation, operation, and maintenance of your LUX Pro PSD111B Non-Programmable Thermostat. This thermostat is designed for use with 1 Heat, 1 Cool systems, offering reliable temperature control for your home.
Imej: Depan view of the Lux Pro PSD111B thermostat, displaying the current temperature and mode on its digital screen, with up/down temperature adjustment buttons and system mode switches on the side.
Persediaan dan Pemasangan
Apa yang ada dalam Kotak?
Image: Contents of the product packaging, including the thermostat unit, mounting screws, wall anchors, and wire labels for organized installation.
- 1 x LUX Pro PSD111B Thermostat
- 2 x Skru Pemasangan
- 2 x Sauh Dinding
- Label Kawat
- Manual Arahan
Pilihan Pemasangan
The PSD111B thermostat can be installed in either a horizontal or vertical orientation to suit your wall space and aesthetic preferences.
Image: Diagram illustrating the thermostat's ability to be mounted horizontally or vertically, highlighting its large backlit display and dual power capability (2 AA batteries or 24 VAC).
Keserasian Sistem
This unit is compatible with most 24-volt gas, oil, or electric heating and air conditioning systems, gas millivolt heating systems, and single-stage heat pumps. It is not compatible with 120-volt heating systems or two-stage pam haba.
Image: A chart detailing system compatibility. It shows the thermostat is compatible with 24V Heat (Gas/Oil/Electric Furnace - Heating only, Single Stage, Heat Pump w/o Auxiliary Heat, 2-wire Hydronic, 750 Millivolt, Gas Fireplaces) and 24V Cool (Cooling only, Single stage cooling). It is not compatible with Heat Pump Multistage, Radiant Ceiling Heat, Electric Baseboards, Heat Pump w/ Auxiliary Heat, Portable space heaters, 3-wire Hydronic, Gas/Oil/Electric Furnace - Multistage, Cool Multistage, or Plug-in air conditioners.
Gambarajah Pendawaian
Refer to the following diagrams for proper wiring connections. Always turn off power to your HVAC system at the circuit breaker before beginning any wiring work.

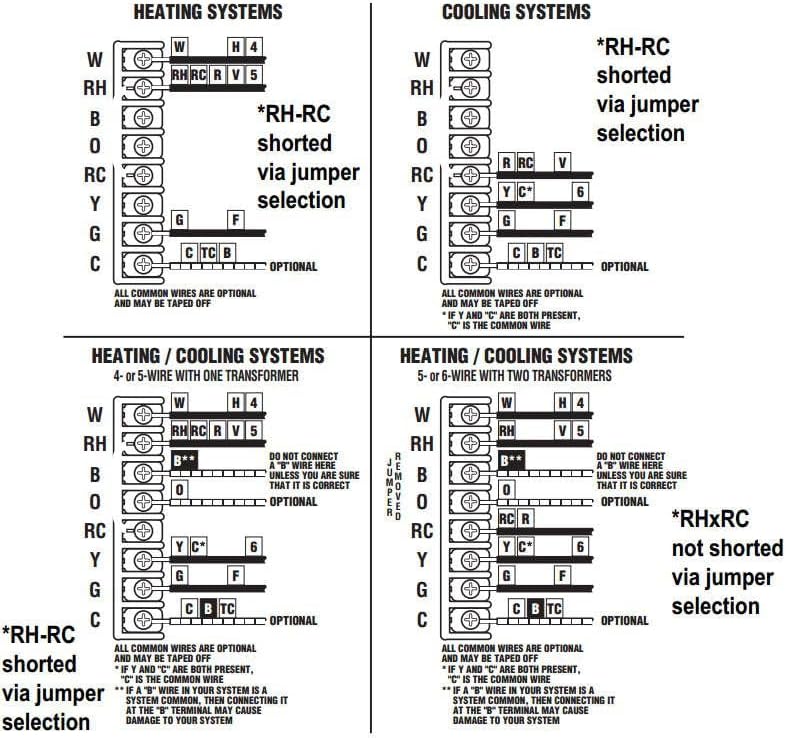

Image: Wiring diagrams for various HVAC configurations, including heating systems, cooling systems, and heating/cooling systems with one transformer. It shows terminal connections for W, RH, B, O, RC, Y, G, C, and jumper selections for RH-RC.
Image: Advanced wiring diagrams for the thermostat, covering typical 2-wire heat hookup, 3-wire heat hookup, 4-wire heating and cooling, 5-wire heating and cooling, and single-stage heat pump configurations. It details connections for gas valves, transformers, and cool compressors.
Penting: Ensure the RH-RC jumper is correctly set based on your system's wiring (shorted for single transformer systems, not shorted for two transformer systems).
Sumber Kuasa
The thermostat operates on 2 AA alkaline batteries (included) or can be powered by a 24-volt AC system. The easy-view backlight requires battery power.
Arahan Operasi
Panel Kawalan Terlaluview
Image: A labeled diagram of the thermostat's control panel, indicating the 'TEMP UP' and 'TEMP DOWN' buttons, the 'MODE' switch (HEAT, OFF, COOL), and the 'FAN MODE' switch (ON, AUTO).
- Butang TEMP ATAS/BAWAH: Laraskan tetapan suhu yang dikehendaki.
- Suis MOD: Select the system operation mode:
- HABA: Mengaktifkan sistem pemanasan.
- MATI: Mematikan kedua-dua sistem pemanasan dan penyejukan.
- KEREN: Mengaktifkan sistem penyejukan.
- FAN MODE Switch: Controls the fan operation:
- ON: Kipas terus berjalan.
- AUTO: Kipas hanya berfungsi apabila sistem pemanasan atau penyejukan aktif.
Paparan Suhu
You can choose to display the temperature in either Fahrenheit (°F) or Celsius (°C). Refer to the internal settings or specific instructions for switching between these units.
Adjustable Temperature Swing (Differential)
The thermostat features a 9-step adjustable temperature swing setting. This allows you to control the temperature differential (the difference between when the system turns on and off) for precise comfort management. A smaller swing results in more frequent, shorter cycles, while a larger swing results in less frequent, longer cycles.
High and Low Temperature Limits
Set adjustable high and low temperature limits to prevent the system from heating or cooling beyond a desired range, ensuring energy efficiency and comfort.
Kelewatan Pemampat
The thermostat includes a 2 or 5-minute compressor delay to protect your cooling system from short cycling. There is also a test mode to temporarily disable this delay for installation or diagnostic purposes.
Penyelenggaraan
Penggantian Bateri
The thermostat requires 2 AA alkaline batteries. When the battery indicator appears on the display, replace both batteries promptly to ensure continuous operation and maintain the backlight function. To replace, carefully remove the thermostat from its wall plate and insert new batteries according to the polarity markings.
Pembersihan
Bersihkan bahagian luar termostat dengan lembut, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the unit.
Menyelesaikan masalah
If you experience issues with your thermostat, review masalah dan penyelesaian biasa berikut:
- No Display or Low Battery Indicator: Replace the 2 AA batteries. Ensure they are inserted with correct polarity.
- Sistem Tidak Bertindak Balas (Pemanasan/Penyejukan):
- Check if the system mode switch is set to HEAT or COOL.
- Verify that the desired temperature is set above (for heat) or below (for cool) the current room temperature.
- Ensure the circuit breaker for your HVAC system is not tripped.
- Confirm proper wiring connections, especially the RH-RC jumper.
- Kipas Tidak Berjalan:
- If the fan switch is set to AUTO, the fan will only run when heating or cooling is active. Set to ON for continuous operation.
- Check fan wiring connections.
- Bacaan Suhu Tidak Tepat: Pastikan termostat tidak terdedah kepada cahaya matahari langsung, draf atau sumber haba yang boleh menjejaskan sensornya.
- Short Cycling (System turns on/off too frequently): Adjust the temperature swing setting to a larger differential.
If problems persist after attempting these solutions, contact LUX customer support or a qualified HVAC technician.
Spesifikasi
| Ciri | Perincian |
|---|---|
| Jenama | LUX |
| Nama Model | PSD111B-010 |
| Dimensi Produk | 1"D x 3.5"W x 4.7"H |
| Jenis Pengawal | Butang Tekan |
| Ciri Khas | Vol. Rendahtage |
| warna | putih |
| Kegunaan Khusus Untuk Produk | Air Conditioner, Heat Pump |
| Jenis Kawalan Suhu | Manual |
| Komponen yang Disertakan | PSD111B-010 Mechanical Non-Programmable Thermostat |
| Sumber Kuasa | AC/DC (2 AA batteries required) |
| Berat Barang | 6.4 Auns |
| Voltage | 24 Volt |
| bahan | plastik |
| bentuk | segi empat tepat |
| Jenis Paparan | LCD |
| Jenis Kawalan | Kawalan Butang |
| Jenis Pemasangan | Lekap di dinding |
| Lampu latar | Yes (Easy-view lampu latar) |
| UPC | 021079031115 |
| Tarikh Mula-mula Tersedia | 5 Mei 2005 |
Image: A hand holding the thermostat, illustrating its physical dimensions, specifically a height of 3.4 inches (8 cm).
Maklumat Waranti
The LUX Pro PSD111B Thermostat comes with a Waranti Terhad 5 Tahun. Please retain your proof of purchase for warranty claims. For specific terms and conditions of the warranty, refer to the documentation included with your product or visit the official LUX webtapak.
Sokongan Pelanggan
For technical assistance, troubleshooting, or further inquiries regarding your LUX Pro PSD111B Thermostat, please visit the official LUX weblaman web atau hubungi jabatan sokongan pelanggan mereka. Maklumat hubungan biasanya boleh didapati di laman web pengilang webtapak atau dalam pembungkusan produk.
Anda juga boleh melawat LUX Store on Amazon untuk lebih banyak maklumat produk dan sumber.
