DUMOS ETL-4824OK-DS Electric Standing Desk User Manual

1. Maklumat Keselamatan

• Pastikan semua sambungan selamat sebelum mengendalikan meja.
• Jauhkan kanak-kanak dan haiwan peliharaan dari meja semasa operasi.
• Do not overload the desk. Refer to specifications for maximum weight capacity.
• Avoid placing liquids directly on the control panel or electrical components.
• If any unusual noise or movement occurs, discontinue use immediately and consult the troubleshooting section.

2. Kandungan Pakej

Sila sahkan bahawa semua komponen hadir sebelum memulakan pemasangan:

• Desktop (Oak, 48x24 inches)
• Kaki Meja (2)
• Palang/Bingkai
• Panel Kawalan dengan Paparan LED
• Motor and Transmission Rod
• Penyesuai Kuasa dan Kabel
• Cable Management Hooks (2)
• Cable Grommets (2)
• Perkakasan Pemasangan (skru, kunci Allen)

3. Arahan Perhimpunan

Follow these steps carefully to assemble your DUMOS Electric Standing Desk. An assembly video is provided below for visual guidance.

Step 1: Prepare the Desk Legs and Frame

Begin by setting the desk legs to the same height. Insert the transmission rod into the hex hole and turn it clockwise until the leg reaches its lowest position. Repeat for the other leg to ensure both are at the same starting height.

Penerangan Imej: Satu overhed view of the DUMOS Electric Standing Desk components, including the two-piece desktop, leg frames, control panel, and various hardware, laid out on a dark surface, ready for assembly.

Step 2: Attach the Desk Legs to the Frame

Secure the desk legs to the main frame using the provided screws and Allen key. Ensure all screws are tightened for stability. Insert the other end of the transmission rod into the slot on the leg, rotating it slightly if needed for proper installation. Secure the transmission rod by tightening the pre-assembled set screw using the small Allen key.

Step 3: Assemble and Attach the Desktop

If your desktop comes in multiple pieces, use the wooden dowels and metal plates to join them securely. Once assembled, carefully place the desktop onto the leg frame. Align the pre-drilled holes and secure the desktop to the frame using the provided screws. Attach the cable management hooks to the underside of the desktop.

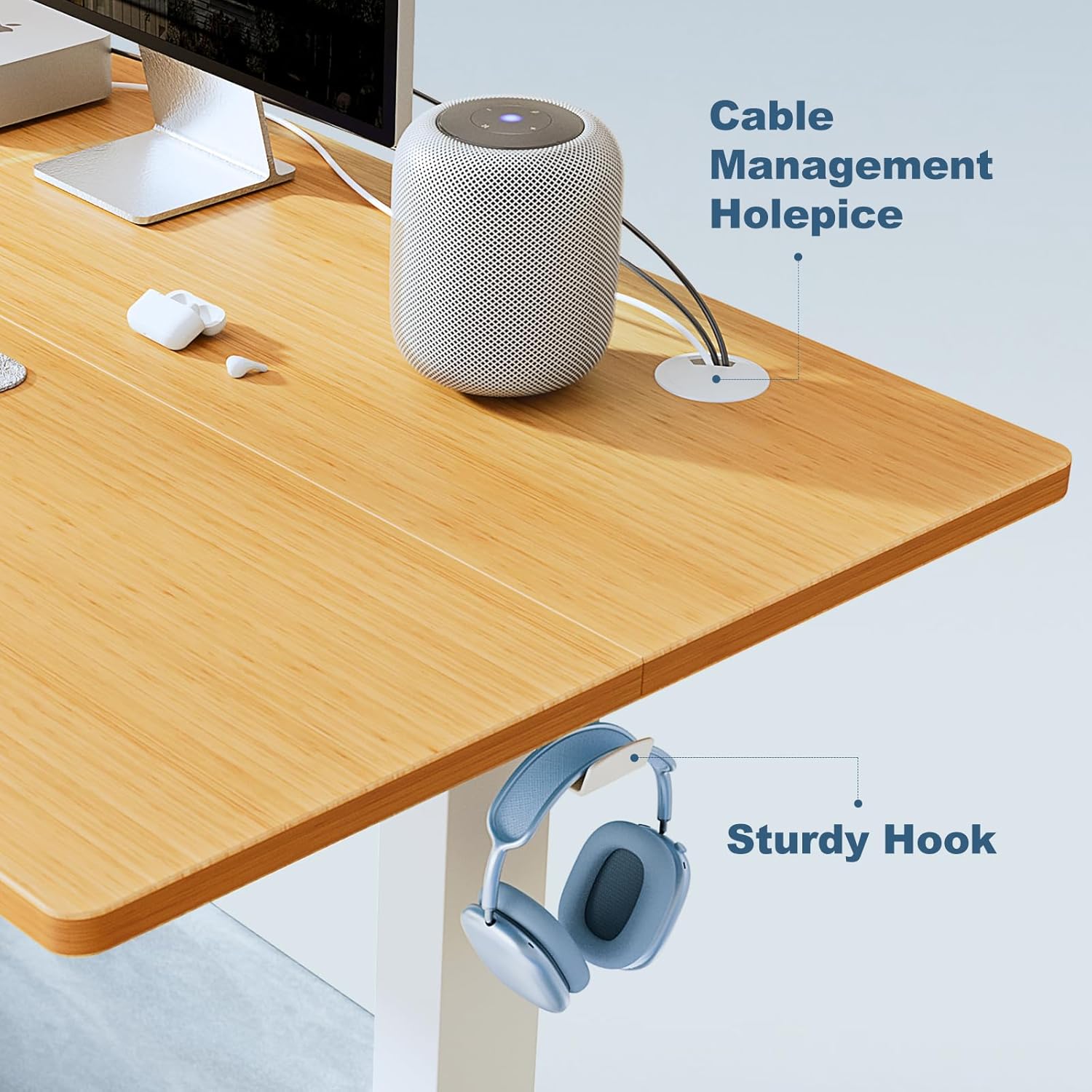

Penerangan Imej: Satu jarak dekat view of the DUMOS Electric Standing Desk desktop, highlighting a cable management hole with a white grommet and a sturdy white hook attached to the underside, designed for organizing cables or hanging headphones.

Langkah 4: Sambungkan Kabel

Connect the motor cable, control panel cable, and power adapter cable to the main control box. Ensure all connections are firm. Use the provided cable ties and clips to manage and secure the cables neatly along the desk frame, preventing them from dangling or getting caught.

Langkah 5: Sentuhan Akhir

Insert the cable grommets into the desktop holes for a clean finish. Plug the power adapter into a wall outlet. Your desk is now ready for initial setup and operation.

4. Arahan Operasi

Your DUMOS Electric Standing Desk features an intuitive LED control panel for easy height adjustment and memory presets.

Penerangan Imej: A close-up of the DUMOS Electric Standing Desk's multi-function control panel, featuring an LED display showing the current height, a 'S' button for saving presets, three numbered memory preset buttons (1, 2, 3), and up/down arrow buttons for manual height adjustment.

4.1. Melaraskan Ketinggian

• Up/Down Buttons (^ / ν): Press and hold the up (^) or down (ν) arrow buttons to manually raise or lower the desk to your desired height. The LED display will show the current height.
• The desk operates smoothly and quietly, allowing for seamless transitions between sitting and standing positions.

4.2. Menetapkan Pratetap Memori

The desk allows you to save up to three preferred heights for quick adjustments.

1. Laraskan meja pada ketinggian yang diingini menggunakan butang atas/bawah.
2. Press the 'S' (Save) button. The LED display will show 'S-'.
3. Within 3 seconds, press one of the numbered memory buttons (1, 2, or 3) to save the current height to that preset. The display will confirm the save.

4.3. Using Memory Presets

To move the desk to a saved height, simply press the corresponding numbered memory button (1, 2, or 3). The desk will automatically adjust to the saved position.

Penerangan Imej: A graphic showing the DUMOS Electric Standing Desk in a home office setting, with an overlay indicating 'Low Noise Operation' and a decibel comparison to talking and a quiet bedroom, emphasizing its quiet motor.

4.4. Ciri Anti-Perlanggaran

The desk is equipped with an auto anti-collision technology. If the desk encounters an obstacle during movement, it will automatically stop and reverse slightly to prevent damage.

Penerangan Imej: A graphic showing a person's legs under the DUMOS Electric Standing Desk, with arrows indicating upward and downward movement, and text highlighting 'Auto Anti-collision Technology' to prevent contact with obstacles.

5. Penyelenggaraan

• Pembersihan: Lap permukaan meja dan bingkai dengan iklanamp cloth. For stubborn marks, use a mild cleaner. Avoid abrasive cleaners or harsh chemicals.
• Komponen Elektrik: Ensure all cables are securely connected and free from damage. Do not attempt to open or repair the motor or control box.
• Pemeriksaan biasa: Periksa semua skru dan bolt secara berkala untuk memastikan ia ketat.

6. Penyelesaian masalah

7. Spesifikasi

8. Waranti dan Sokongan

For warranty information, technical support, or any inquiries regarding your DUMOS Electric Standing Desk, please refer to the warranty card included in your package or contact DUMOS customer service directly. Contact details can typically be found on the manufacturer's official webtapak atau pada pembungkusan produk.
