4DRC V31 RC Plane with Camera User Manual

1. Pengenalan

This manual provides essential information for the safe operation and maintenance of your 4DRC V31 RC Plane with Camera. Please read this manual thoroughly before operating the aircraft to ensure proper function and to avoid damage or injury. Keep this manual for future reference.

Figure 1: 4DRC V31 RC Plane, designed for beginner-friendly operation.

2. Kandungan Pakej

Sahkan bahawa semua item yang disenaraikan di bawah disertakan dalam pakej anda. Jika terdapat sebarang item yang hilang atau rosak, hubungi khidmat pelanggan.

• 4DRC V31 RC Plane
• Pemancar Kawalan Jauh
• Rechargeable Batteries (2 C batteries included)
• Kabel Pengecas USB
• Baling-baling ganti
• Pemutar skru
• Manual Pengguna (dokumen ini)

Note: The charger is included as part of the USB charging cable.

3. Ciri-ciri Produk

• 360° Flip & Aerial Stunts: Perform aerobatic rolls and 360-degree circling.
• Kamera Bersepadu: Advanced WiFi-enabled camera for real-time video streaming and capturing flight moments.
• Color LED Lights: Equipped with bright LED lights for visibility and aesthetic appeal during evening flights.
• Mudah Digunakan: No assembly required. Features one-key takeoff/landing, altitude hold, and three speed options.
• Keselamatan & Ketahanan: Four built-in propellers with protective structure and sturdy EPP material construction for impact resistance.
• Mod Tanpa Kepala: Simplifies control by eliminating the need to adjust the aircraft's position before flight.
• Berlepas/Mendarat Satu Kunci: Memudahkan penerbangan bermula dan berakhir.
• Tahan Ketinggian: Maintains a consistent altitude for stable hovering.
• Tiga Pilihan Kelajuan: Adjustable flight speeds for different skill levels.

4. Persediaan

4.1 Mengecas Bateri

1. Connect the USB charging cable to the aircraft's battery port.
2. Plug the USB end of the cable into a 5V/1A USB power adapter (not included) or a computer's USB port.
3. Lampu penunjuk pada kabel USB akan menyala semasa pengecasan dan padam apabila dicas sepenuhnya.
4. Masa pengecasan adalah sekitar 60-90 minit.

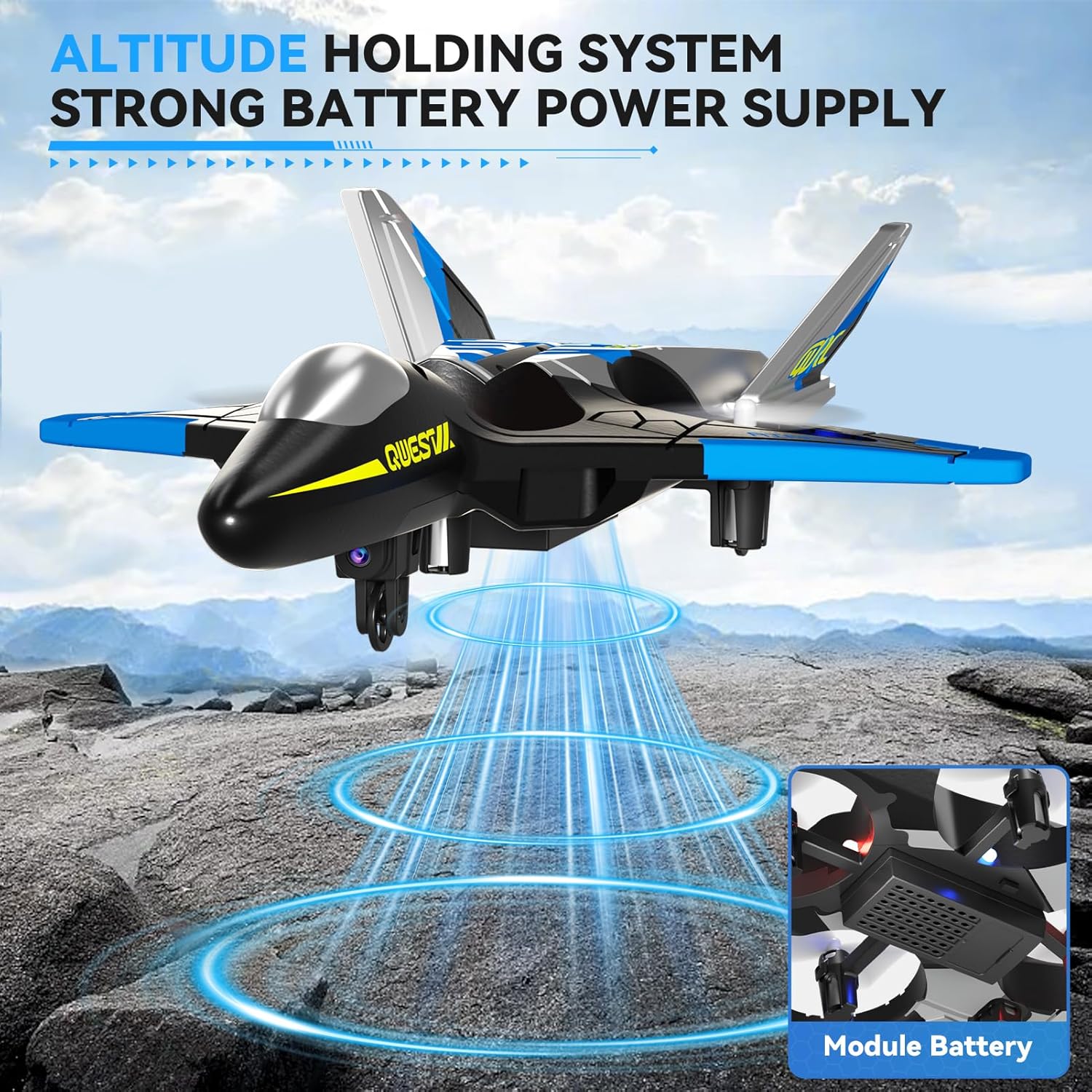

Figure 2: The aircraft features a module battery and a low battery alert system. Two batteries provide approximately 40 minutes of flight time.

4.2 Installing Batteries in the Remote Control

1. Buka petak bateri di belakang alat kawalan jauh.
2. Insert 2 C batteries (included), ensuring correct polarity (+/-).
3. Tutup petak bateri dengan selamat.

4.3 Pairing the Aircraft with the Remote Control

1. Place the aircraft on a flat surface.
2. Turn on the aircraft's power switch. The LED lights on the aircraft will flash.
3. Hidupkan alat kawalan jauh.
4. Push the left joystick (throttle) all the way up, then all the way down. The aircraft's LED lights will stop flashing and remain solid, indicating successful pairing.

5. Arahan Operasi

5.1 Kawalan Asas Penerbangan

• Berlepas: Press the One-Key Takeoff button or push both joysticks outwards and downwards simultaneously to start the propellers, then push the left joystick up to ascend.
• Pendaratan: Press the One-Key Landing button or pull the left joystick down to descend.
• Naik/Turun: Use the left joystick (throttle) up/down.
• Maju/Mundur: Use the right joystick up/down.
• Belok Kiri/Kanan: Use the left joystick left/right.
• Fly Left/Right (Strafe): Use the right joystick left/right.
• Pelarasan Kelajuan: Press the speed button on the remote control to cycle through three speed modes (low, medium, high).

Figure 3: Key flight functions including Headless Mode and One-Click Takeoff/Landing.

5.2 Mod Tanpa Kepala

In Headless Mode, the aircraft's orientation is locked to the remote control's orientation at the time of activation. This means pushing the right joystick forward will always make the aircraft fly away from you, regardless of which way the front of the aircraft is facing.

1. To activate Headless Mode, press the Headless Mode button on the remote control. The aircraft's lights will flash to indicate activation.
2. To exit Headless Mode, press the Headless Mode button again.

5.3 Altitude Hold

The Altitude Hold function allows the aircraft to maintain a stable altitude without constant throttle input. This makes it easier to control and capture stable photos/videos.

Figure 4: The aircraft's Altitude Hold feature for stable flight and One-Click Quick Stop for emergency landings.

6. Camera and FPV Operation

6.1 Menyambung ke Apl

1. Download the "4DRC" app from your smartphone's app store.
2. Hidupkan pesawat.
3. On your smartphone, go to Wi-Fi settings and connect to the Wi-Fi network named "4DRC-V31-XXXX".
4. Open the 4DRC app. You should see the live FPV feed from the aircraft's camera.

Figure 5: Experience real-time FPV transmission directly to your smartphone.

6.2 Mengambil Foto dan Video

Once connected to the app, you can use the on-screen controls to capture photos and record videos.

• Foto: Tap the camera icon in the app to take a photo.
• Video: Tap the video icon to start recording. Tap again to stop.
• Kawalan Gerak Isyarat: The aircraft supports gesture control for taking photos and videos. Refer to the app interface for specific gesture commands.

Figure 6: Utilize gesture control for hands-free photo and video capture.

Figure 7: The camera captures 1080P Full HD aerial images and videos.

7. Mod Penerbangan Khas

7.1 360 ° Balik

To perform a 360° flip:

1. Fly the aircraft to a height of at least 3 meters.
2. Tekan butang Flip 360° pada alat kawalan jauh.
3. Immediately push the right joystick in the desired direction (forward, backward, left, or right) to execute the flip.

Figure 8: The aircraft is capable of performing exciting 3D flips.

7.2 360° Circling

To perform a 360° circling stunt:

1. Ensure the aircraft is flying stably at a sufficient height.
2. Press the One-Click Circling button on the remote control. The aircraft will automatically perform a 360-degree circle.

Figure 9: Execute impressive 360° circle flight stunts with ease.

7.3 Trajectory Flight

Using the app, you can draw a flight path on your smartphone screen, and the aircraft will follow it automatically.

1. Connect your smartphone to the aircraft's Wi-Fi.
2. Open the 4DRC app and enter the flight interface.
3. Tap the Trajectory Flight icon.
4. Draw your desired flight path on the screen. The aircraft will then fly along the specified route.

Figure 10: Utilize Trajectory Flight and Gesture Control for advanced flight maneuvers.

8. Safety and Durability

The 4DRC V31 RC Plane is designed with safety and durability in mind.

• Perlindungan Kipas: Four built-in propellers are protected by the aircraft's frame, reducing the risk of injury from spinning blades.
• Bahan EPP: Constructed from soft yet sturdy EPP material, allowing the aircraft to withstand minor impacts and tumbles.
• Omnidirectional Obstacle Avoidance: The aircraft may feature an omnidirectional obstacle avoidance module to prevent collisions.

9. Penyelenggaraan

• Pembersihan: Wipe the aircraft with a soft, dry cloth after each use. Avoid using water or harsh chemicals.
• Pemeriksaan baling-baling: Regularly check propellers for damage (cracks, bends). Replace damaged propellers immediately using the provided spare parts.
• Penjagaan Bateri:
  • Jangan cas berlebihan atau terlalu nyahcas bateri.
  • Simpan bateri di tempat yang sejuk dan kering jauh dari cahaya matahari langsung.
  • If not used for an extended period, charge the battery to about 50% before storing.
• Storan: Store the aircraft and remote control in a dry, cool environment, away from extreme temperatures and direct sunlight.

10. Penyelesaian masalah

11. Spesifikasi

• Nama Model: 4D-V31-BLUE-WIFI (V31 Series)
• Jenama: 4DRC
• Jenis Bahan: Plastic (EPP Foam)
• Dimensi Item: 8 x 3 x 11 inci
• Jenis Bateri: Litium-Ion
• Bilangan Bateri: 2 bateri C (termasuk)
• Komponen yang Disertakan: Pengecas (kabel USB)
• Julat Umur: Kid Adults (Manufacturer Minimum Age: 96 months)
• Ciri-ciri tambahan: RC plane, RC plane with camera, remote control airplane, 360° Flip, Headless Mode, One-Key Takeoff/Landing, Altitude Hold, Three Speed Options, Color LED Light.

12. Waranti dan Sokongan

For warranty information and customer support, please refer to the contact details provided on the product packaging or visit the official 4DRC webtapak. Simpan resit pembelian anda sebagai bukti pembelian.

Pengeluar: 4DRC
