Dyness 12V 100Ah Bluetooth LiFePO4 Battery User Manual

1. Pengenalan

This manual provides essential information for the safe and efficient use of your Dyness 12V 100Ah Bluetooth LiFePO4 Battery. This deep cycle lithium battery is designed for various applications including RV camping, home solar systems, and off-grid power solutions. Please read this manual thoroughly before installation and operation.

Image 1.1: Dyness 12V 100Ah Bluetooth LiFePO4 Battery

2. Maklumat Keselamatan

WARNING: RISK OF FIRE, EXPLOSION, or BURN.

• Jangan pintaskan terminal bateri.
• Do not immerse the battery in water or expose it to excessive heat.
• Jangan buka, hancurkan atau tebuk bateri.
• Use only compatible LiFePO4 chargers.
• Ensure proper ventilation during charging and discharging.
• Jauhkan daripada kanak-kanak.

Always wear appropriate personal protective equipment (PPE) when handling batteries.

3. Produk Lebihview

3.1 Ciri-ciri Utama

• Real-Time Monitoring via Bluetooth 5.0: Memantau voltage, current, capacity, and system performance via the "Dyness" app within 10 meters.
• Jangka hayat yang panjang: 4000+ deep cycles with A+ Grade LiFePO4 cells, offering up to 10 years of service life.
• Integrated 100A BMS: Provides comprehensive protection against overcharging, over-discharging, over-current, overheating, and short circuits. Includes low-temperature cut-off protection.
• Expandable Energy Storage: Can be expanded up to 4S4P with 16 batteries, forming a 51.2V 400Ah power system (Max. 20.48kWh).
• Ringan dan Padat: Significantly lighter and smaller than traditional lead-acid batteries.

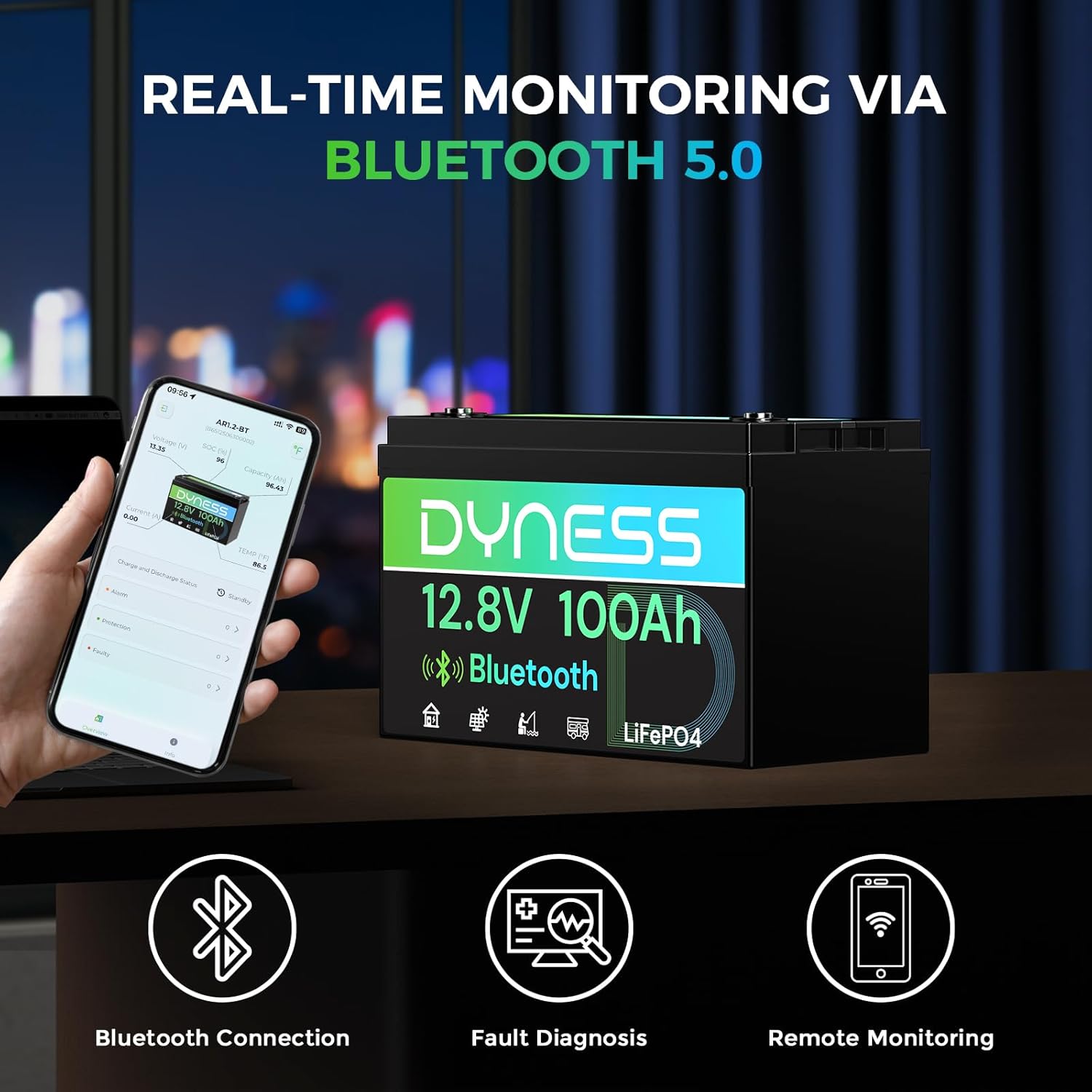

Image 3.1: Real-time monitoring via Bluetooth 5.0

Image 3.2: Dyness Intelligent 100A BMS with 20+ protections

Image 3.3: Long-lasting A+ Grade Cells for durability

3.2 Apa yang ada di dalam Kotak

• 1 x Dyness 12V 100Ah Bluetooth LiFePO4 Battery (Model AR1.2-BT)
• M8 Terminal Bolts
• Manual Pengguna

3.3 Video Produk Selesaiview

Video 3.1: Dyness 12V 100Ah Group 31 Bluetooth Lithium Battery overview, demonstrating unboxing, M8 terminals, user manual, Bluetooth app connection, dimensions, waterproof test, and portability.

4. Persediaan

4.1 Pemasangan

1. Membongkar: Carefully remove the battery from its packaging. Inspect for any damage.
2. Sambungan Terminal: Connect your cables to the M8 terminals. Ensure connections are tight and secure to prevent arcing and overheating. The M8 terminals are standard for easy installation.
3. Sambungan Siri dan Selari: The Dyness 12.8V 100Ah battery can be connected in series (up to 4S) and parallel (up to 4P) for a maximum system of 51.2V 400Ah (20.48kWh). Consult the detailed wiring diagrams in the included user manual for specific configurations.
4. Pemasangan: Secure the battery in a well-ventilated area, away from direct sunlight, heat sources, and flammable materials.

Image 4.1: Battery dimensions (12.99"W x 6.77"D x 8.43"H) and M8 terminal details.

4.2 Pengecasan Awal

It is recommended to fully charge the battery before its first use. Use a LiFePO4-specific charger. For optimal battery health, recharge at 0.2C (20A for a 100Ah battery).

5. Arahan Operasi

5.1 Bluetooth App Monitoring

The Dyness battery features Bluetooth 5.0 for real-time monitoring. Download the "Dyness" app from your smartphone's app store. Once installed, open the app and connect to your battery. The app allows you to monitor:

• Voltage (V)
• Semasa (A)
• State of Charge (SOC %)
• Kapasiti (Ah)
• Suhu (°F/°C)
• Charge and Discharge State
• Alarm and Protection Status

Ensure your device is within 10 meters of the battery for a stable Bluetooth connection.

Image 5.1: Dyness App interface for monitoring battery status.

5.2 Low-Temperature Protection

The integrated Battery Management System (BMS) includes low-temperature protection:

• Charging automatically disconnects when the battery temperature drops below 32°F (0°C).
• Charging resumes when the temperature rises to 41°F (5°C).
• Power output automatically cuts off at -4°F (-20°C) to prevent cell damage.

Image 5.2: Battery operating in cold conditions with low-temperature protection.

6. Penyelenggaraan

• Pemeriksaan Berkala: Periodically check battery terminals for corrosion or loose connections. Clean as necessary.
• Storan: If storing the battery for an extended period, ensure it is charged to approximately 50% State of Charge (SOC) and stored in a cool, dry place.
• mengecas: Always use a charger specifically designed for LiFePO4 batteries. Avoid overcharging or deep discharging to prolong battery life.
• Pembersihan: Keep the battery casing clean and free of dust and debris. Use a dry cloth for cleaning.

7. Penyelesaian masalah

If you encounter issues with your Dyness LiFePO4 battery, consider the following:

• Bateri Tidak Dicas: Verify charger compatibility and connection. Check the battery temperature; charging is disabled below 32°F (0°C).
• Tiada Output Kuasa: Check all cable connections for tightness. Ensure the battery is sufficiently charged. The BMS may have activated a protection mode (e.g., low temperature, over-discharge). Refer to the Dyness app for protection status.
• Isu Sambungan Bluetooth: Ensure your smartphone is within 10 meters of the battery. Restart the app and try reconnecting.
• Kelakuan Luar Biasa: If the battery exhibits unusual heat, smell, or sound, immediately disconnect it from all loads and charging sources and contact Dyness customer support.

For further assistance, utilize the diagnostic tools and help center within the Dyness app or contact customer support.

8. Spesifikasi

9. Waranti dan Sokongan

Dyness provides professional technical support and online customer service with fast response within 24 hours. If you have any product-related issues or questions, do not hesitate to contact the Dyness support team directly.

This product may be eligible for additional protection plans. Please refer to your purchase documentation for details on available warranty and service options.
