Manual Arahan Kerusi Roda Boleh Lipat Ringan VOCIC U31

1. Pengenalan

This manual provides essential instructions for the safe and effective use, assembly, maintenance, and troubleshooting of your VOCIC U31 Lightweight Foldable Wheelchair. Please read this manual thoroughly before initial use and retain it for future reference. Proper understanding and adherence to these instructions are crucial for user safety and product longevity.

The VOCIC U31 wheelchair is designed for adults, featuring a lightweight carbon steel frame, a double-brake system, flip-back armrests, and removable swing-away footrests. It supports both self-propelled and assisted modes of operation.

2. Komponen Produk

Before assembly, ensure all components are present and undamaged. The instruction manual is located in a small pocket behind the backrest.

• Wheelchair Body (main frame with seat and backrest)
• Foot Pedals (2 units)
• Leggings (2 units)
• Manual Arahan
• Tools (if included for minor adjustments)

Rajah 2.1: Berakhirview of the VOCIC U31 wheelchair components, including the main body, foot pedals, and leggings.

3. Persediaan dan Pemasangan

Follow these steps to correctly set up your VOCIC U31 wheelchair:

1. Membuka Lipatan Kerusi Roda: Place the folded wheelchair on a flat surface. Use both hands to grasp the sides of the handrail and expand the wheelchair outwards to its maximum state. Then, firmly press the seat down until it is fully open and stable.
2. Pelarasan Sandaran: Fold the backrest upwards until it locks into position.
3. Retrieve Manual: Locate and remove the instruction manual from the small storage pocket behind the backrest.
4. Pasang Pedal Kaki: Attach the foot pedals to the designated slots on the front frame of the wheelchair. Ensure they click securely into place.
5. Install Leggings: Secure the leggings to the lower part of the wheelchair frame, ensuring they are properly aligned and fastened.

Rajah 3.2: The VOCIC U31 wheelchair fully assembled and ready for use.

4. Arahan Operasi

The VOCIC U31 wheelchair offers both self-propelled and assisted modes for user convenience.

4.1. Sistem Brek

The wheelchair is equipped with a double-brake design for enhanced safety:

• Handle Brakes: Located on the push handles, these brakes are primarily for the assistant to control speed and stop the wheelchair. Squeeze the levers to engage.
• Handbrakes (Manual Emergency Braking): Positioned near the user's seat, these brakes allow the user to lock the wheels for stability when stationary or for emergency stops. Push the levers down to lock the wheels.

Rajah 4.1: Illustration of the dual brake system, showing both the handle brake for assistants and the handbrake for the user.

4.2. Armrests and Footrests

• Flip-Back Armrests: The armrests can be flipped back to facilitate easier transfers into and out of the wheelchair.
• Removable Swing-Away Footrests: The footrests can be swung away or completely removed to provide more space for transfers or to reduce the wheelchair's length for storage.

Rajah 4.2: The flip-back armrests allow for convenient side transfers.

4.3. Self-Propelled and Assisted Modes

• Mod Kendiri: Users can propel themselves by gripping the wave-shaped hand rims on the large rear wheels.
• Assisted Mode: An assistant can push the wheelchair using the handles, utilizing the handle brakes for control.

4.4. Ciri-ciri Keselamatan

• Tali pinggang keledar: Always use the integrated seat belt for added security during transit.
• Leggings: The leggings provide protection against friction or collision for the user's legs.
• Tilt Assist: A small lever near the rear wheels allows an assistant to tilt the wheelchair slightly to navigate curbs or small obstacles more easily.

5. Lipatan dan Penyimpanan

The VOCIC U31 wheelchair features a quick-fold design for convenient transport and storage.

1. Fold the Backrest: First, release the backrest lock and fold the backrest downwards.
2. Collapse the Seat: Grasp both sides of the seat cushion and pull it upwards forcefully. The wheelchair frame will begin to collapse inwards.
3. Secure the Fold: Continue to pull the seat upwards until the wheelchair is fully folded into a compact state. Ensure all parts are securely tucked in.

The compact folded size (approximately 11.8" x 29.9") allows for easy storage in most car trunks or small spaces.

Rajah 5.1: The wheelchair's quick-fold design allows for easy placement into a car trunk for transport.

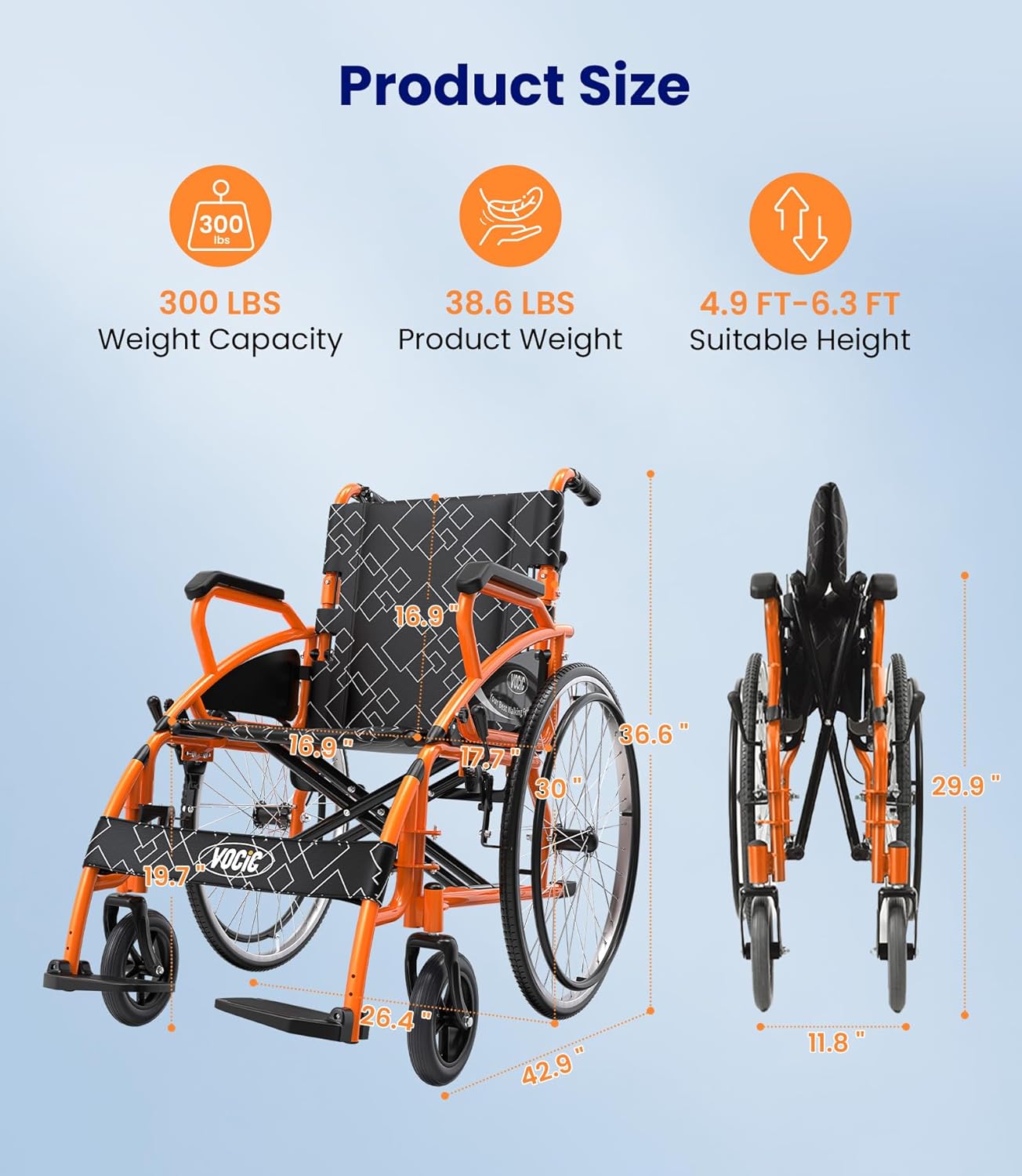

Rajah 5.2: Detailed dimensions of the wheelchair, including its compact folded size.

6. Penyelenggaraan dan Penjagaan

Regular maintenance ensures the safety and extends the lifespan of your wheelchair.

• Pembersihan: Lap bingkai dan tempat duduk dengan iklanamp cloth and mild soap. Avoid harsh chemicals. Ensure the wheelchair is dry before storage.
• Pemeriksaan Brek: Regularly check the functionality of both handle brakes and handbrakes. Ensure they engage firmly and hold the wheels securely. Adjust if necessary according to the instructions in the full manual.
• Pemeriksaan Tayar: Inspect the tires for wear and tear. The puncture-resistant tires are designed for durability, but regular checks are recommended. Ensure the 360° swivel front wheels move freely.
• Bingkai dan Pengikat: Periodically check all bolts, screws, and fasteners to ensure they are tight. Inspect the carbon steel frame for any signs of damage or stress.
• Penjagaan Kusyen: The breathable rebound cushion can be spot cleaned. Refer to the fabric care label for specific instructions.

7. Penyelesaian masalah

This section addresses common issues you might encounter with your wheelchair.

8. Spesifikasi Teknikal

Key technical details for the VOCIC U31 Wheelchair:

Rajah 8.1: The robust double X-frame constructed from carbon steel, designed for stability and durability.

9. Waranti dan Sokongan

For warranty information, product support, or to inquire about replacement parts, please refer to the contact details provided with your purchase documentation or visit the official VOCIC webtapak. Simpan resit pembelian anda sebagai bukti pembelian untuk tuntutan waranti.
