Doohoeek Bluetooth Keyboard Case User Manual

1. Pengenalan

Thank you for choosing the Doohoeek Bluetooth Keyboard Case. This manual provides detailed instructions for setting up, operating, and maintaining your keyboard case. Please read this manual carefully before use to ensure optimal performance and longevity of your device.

2. Kandungan Pakej

• 1 x Doohoeek Bluetooth Keyboard with Case
• 1 x Kabel Pengecasan USB-C
• 1 x Manual Pengguna

3. Keserasian

Sarung papan kekunci ini serasi dengan model Samsung Galaxy Tab berikut:

• Samsung Galaxy Tab S10 Lite 10.9 inch 2025 (Models: SM-X400/SM-X406B)
• Samsung Galaxy Tab S10 FE 10.9 inch 2025 (Models: SM-X520/X526B/X528U)
• Samsung Galaxy Tab S9 FE 5G 10.9 inch (Models: SM-X510/X516B/X518U)
• Samsung Galaxy Tab S9 11 inch 2023 (Models: SM-X710/X716B/X718U)

Please verify your tablet's model number under "Settings" > "About tablet" before use.

Image: The keyboard case shown with a compatible tablet, illustrating the fit and design. This image highlights the compatibility with various Samsung Galaxy Tab models.

4. Persediaan

4.1 Mengecas Papan Kekunci

Before first use, fully charge the keyboard. Connect the provided USB-C charging cable to the keyboard's charging port and a power source. The LCD display will indicate charging status.

Image: A close-up of the keyboard showing the USB-C charging port and the scissor-structure keys. The image also illustrates the precise cutouts of the case.

4.2 Berpasangan Bluetooth

1. Pastikan papan kekunci dicas.
2. Hidupkan papan kekunci.
3. Tekan dan tahan butang Fn + C keys simultaneously for 1 second to enter pairing mode. The Bluetooth indicator on the LCD display will flash.
4. Pada Samsung Galaxy Tab anda, pergi ke tetapan > Peranti yang disambungkan > Bluetooth dan hidupkan Bluetooth.
5. Select "Wireless Keyboard" from the list of available devices.
6. Once paired, the Bluetooth indicator on the keyboard's LCD display will stop flashing and remain solid.

Image: A visual representation of the keyboard's LCD display showing "Pairing... Wireless Keyboard" and a flashing Bluetooth icon, indicating the device is in pairing mode.

4.3 Pemasangan Tablet

Place your Samsung Galaxy Tab into the protective case. Ensure the tablet is securely seated and that all cutouts for the camera, speakers, and ports align correctly with the case openings.

5. Arahan Operasi

5.1 LCD Status Display

The integrated LCD screen provides real-time status updates for your keyboard. It displays:

• Tahap bateri
• Caps Lock status
• Status sambungan Bluetooth
• Other relevant indicators

This feature eliminates guesswork regarding your keyboard's operational status.

5.2 7-Color Backlighting

The keyboard features 7-color rainbow backlighting with 3 adjustable brightness levels for comfortable typing in various lighting conditions, including low-light environments.

Imej: Dua views of the keyboard showcasing the 7-color rainbow backlighting in action, highlighting the illuminated keys.

5.3 Precision Trackpad

The integrated precision trackpad supports multi-touch gestures and includes palm rejection technology to prevent accidental touches during typing. Use the trackpad for navigation and interaction with your tablet.

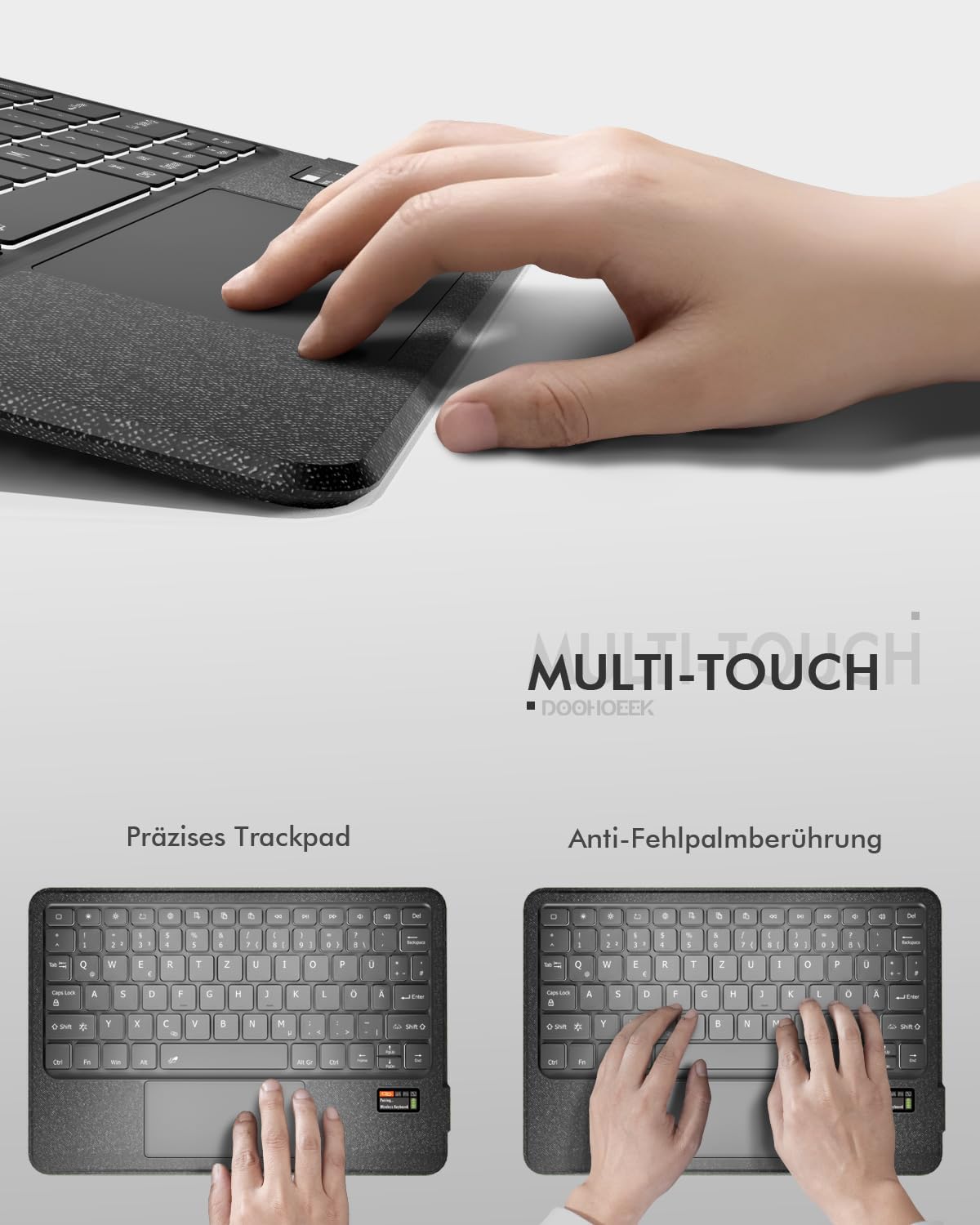

Image: A hand demonstrating the use of the precision trackpad on the keyboard. Another image shows a hand resting on the keyboard, illustrating the palm rejection feature.

5.4 Removable Keyboard and Adjustable Stand

The keyboard is magnetically attached to the case, allowing for easy removal when not needed. The PU leather case features a 150° fully adjustable stand, providing multiple viewing angles for your tablet.

Image: The keyboard detached from the case, and the case supporting a tablet at an adjustable angle, demonstrating the removable keyboard and flexible stand features.

5.5 Scissor-Structure Keys

The keyboard utilizes a quiet scissor-structure key mechanism, designed to provide a comfortable and responsive typing experience, ideal for office or library environments.

6. Penyelenggaraan

• Pastikan papan kekunci dan bekasnya bersih dengan mengelapnya dengan kain lembut dan kering.
• Elakkan mendedahkan peranti kepada suhu yang melampau, cahaya matahari langsung atau cecair.
• Jangan gunakan bahan kimia atau pembersih kasar.
• Store the keyboard in a dry place when not in use.

7. Penyelesaian masalah

7.1 Papan Kekunci Tidak Bersambung

• Pastikan papan kekunci dihidupkan dan dicas sepenuhnya.
• Pastikan Bluetooth didayakan pada tablet anda.
• Re-enter pairing mode on the keyboard (Fn + C) and re-scan for devices on your tablet.
• If previously paired, try forgetting the device on your tablet's Bluetooth settings and re-pairing.

7.2 Kunci Tidak Bertindak Balas

• Check the battery level on the LCD display and recharge if necessary.
• Pastikan papan kekunci disambungkan dengan betul melalui Bluetooth.
• Mulakan semula papan kekunci dan tablet anda.

7.3 Trackpad Not Working

• Pastikan papan kekunci disambungkan.
• Check if the trackpad is enabled (some tablets or apps might have settings to disable external trackpads).
• Clean the trackpad surface to remove any dirt or debris.

8. Spesifikasi

9. Waranti dan Sokongan

This product comes with a 2-year warranty. For any questions or issues during use, please contact us through Amazon's messaging service. Our support team will assist you promptly.
