SOOPYK LYCZ629BBK Water Cooler Dispenser with Ice Maker User Manual

Maklumat Keselamatan Penting

Please read all instructions carefully before using this appliance to prevent injury or damage.

• Always place the dispenser on a level, stable surface.
• Ensure the dispenser is plugged into a grounded electrical outlet. Do not use extension cords.
• Jauhkan dispenser daripada cahaya matahari langsung dan sumber haba.
• Do not operate the dispenser without a water bottle installed.
• Keselamatan Air Panas: The hot water dispenser features a child safety lock. Always engage the child safety lock when not in use, especially in households with children. To dispense hot water, press the Child Lock button first, then press the hot water button.
• Jangan rendam dispenser, kord atau palam dalam air atau cecair lain.
• Cabut plag dispenser sebelum membersihkan atau melakukan sebarang penyelenggaraan.
• Perkakas ini tidak dimaksudkan untuk digunakan oleh orang yang kurang keupayaan fizikal, deria, atau mental, atau kurang pengalaman dan pengetahuan, melainkan mereka telah diberi pengawasan atau arahan mengenai penggunaan perkakas oleh orang yang bertanggungjawab untuk keselamatan mereka.

Produk Selesaiview

The SOOPYK LYCZ629BBK is a versatile bottom-load water cooler dispenser that provides hot, cold, and room temperature water, along with a built-in ice maker. It features a self-cleaning function, touch screen controls, and a child safety lock for hot water dispensing.

Imej: Depan view of the SOOPYK water cooler dispenser, showing the control panel and dispensing area.

Ciri-ciri Utama:

• Tiga Tetapan Suhu: Dispenses hot, cold, and room temperature water.
• Integrated Ice Maker: Produces bullet-shaped ice, with a daily capacity of 22 lbs and storage for 0.88 lbs. Note: The unit does not keep ice frozen long-term.
• Fungsi Pembersihan Diri: Activated by holding the ice-making button for 3 seconds, utilizing a UV lamp for sanitation.
• Bottom-Loading Design: Accommodates 3 and 5-gallon water bottles, eliminating heavy lifting and spills.
• Kawalan Skrin Sentuh: Intuitive interface with indicator lights for operational status.
• Kunci Keselamatan Kanak-kanak: Prevents accidental hot water dispensing.
• Mod ECO: Energy-saving feature that stops water heating at night.
• Empty Bottle Alert: Indicator light signals when the water bottle needs replacement.
• Ciri lampu malam: Illuminates the dispensing area for visibility in low light.

Arahan Persediaan

1. Membongkar dan Meletakkan

• Keluarkan semua bahan pembungkusan dengan berhati-hati.
• Place the dispenser on a firm, level surface. Ensure there is at least 4 inches of clearance from the wall for proper ventilation.
• Elakkan meletakkan unit di bawah cahaya matahari langsung atau berhampiran peralatan penjana haba.

Image: Diagram showing the dimensions of the water cooler dispenser (16.5"D x 12.2"W x 40.7"H).

2. Water Bottle Installation (Bottom-Load)

1. Open the lower cabinet door of the dispenser.
2. Remove the cap from a new 3 or 5-gallon water bottle.
3. Insert the probe from the dispenser into the opening of the water bottle.
4. Slide the water bottle into the cabinet and close the door securely.

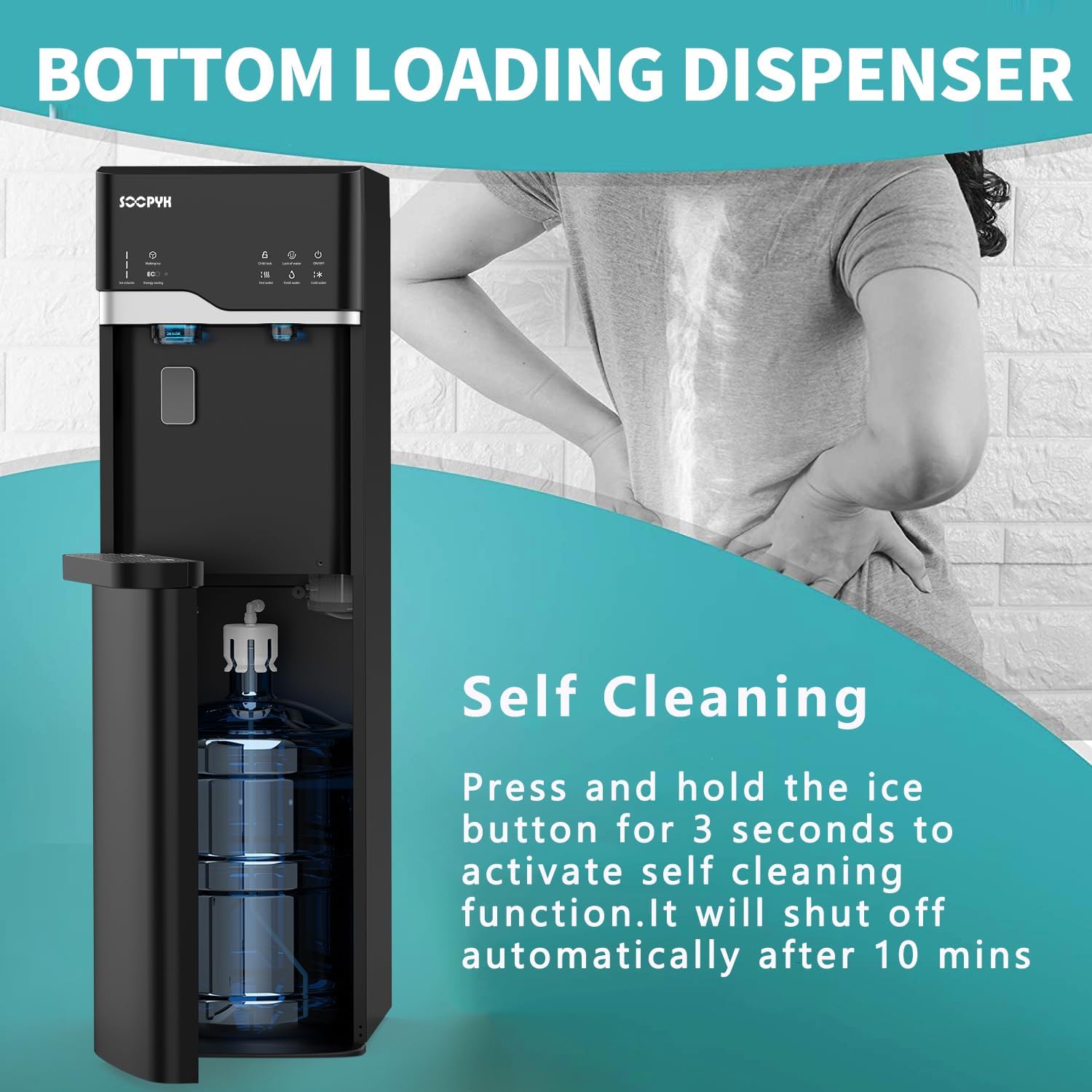

Image: Illustration of the bottom-loading mechanism with a water bottle being inserted into the lower cabinet.

3. Initial Flushing

Before first use, it is recommended to flush the system to remove any dust or manufacturing residue.

• Pasangkan dispenser ke soket elektrik yang dibumikan.
• Allow the unit to sit for at least 5 minutes to allow water to fill the internal tanks.
• Dispense and discard at least 2-3 cups of water from each spigot (hot, cold, room temperature) until water flows smoothly.

Arahan Operasi

1. Panel Kawalan Selesaiview

The dispenser features a touch screen control panel with various indicators and buttons.

Image: Close-up of the touch screen control panel showing icons for hot water, cold water, fresh water, child lock, lack of water, ON/OFF, making ice, ECO mode, and ice volume.

• Butang HIDUP/MATI: Menghidupkan atau mematikan unit.
• Hot Water Indicator: Illuminates when hot water is ready.
• Cold Water Indicator: Illuminates when cold water is ready.
• Penunjuk Ais: Illuminates when ice is being produced.
• Kunci Kanak-kanak: Button to activate/deactivate the hot water safety lock.
• Mod ECO: Button to toggle energy-saving mode.
• Empty Bottle Alert: Indicator light for low water bottle level.

2. Mendispens Air

• Air Sejuk: Place your cup under the cold water spigot and press the cold water button on the touch screen.
• Air Suhu Bilik: Place your cup under the room temperature water spigot and press the fresh water button on the touch screen.
• Hot Water (with Child Safety Lock):
  1. Place your cup under the hot water spigot.
  2. Pertama, tekan butang Kunci Kanak-kanak butang pada skrin sentuh.
  3. Then, press the hot water button to dispense.

3. Ice Making Function

The dispenser can produce bullet-shaped ice. The ice indicator will illuminate when ice is being made.

• Ensure the water bottle is full and the unit is powered on.
• The ice maker will automatically begin producing ice.
• Ice production takes approximately 7 minutes per cycle, yielding 9 pieces of ice. The daily capacity is 22 lbs.
• The internal storage can hold up to 0.88 lbs of ice.
• Important: This unit does not function as a freezer and will not keep ice frozen for extended periods. Ice will melt if not used.

Image: Graphic illustrating fast ice-making (7 minutes), 9 pieces per cycle, and 22 lbs daily capacity.

4. Mod ECO

To conserve energy, especially at night, activate the ECO mode.

• Tekan ke ECO button on the touch screen to turn on ECO mode. The unit will stop heating water.
• To turn off ECO mode, press and hold the ECO butang selama 3 saat.

5. Nightlight Feature

The nightlight feature automatically illuminates the dispensing area when water or ice is being dispensed, providing visibility in low-light conditions.

Image: The water cooler dispenser in a dimly lit room, with the dispensing area illuminated by a blue nightlight.

Penyelenggaraan

1. Fungsi Pembersihan Diri

The dispenser is equipped with a UV-infused self-cleaning system to maintain water quality.

• Untuk mengaktifkan, tekan dan tahan butang Pembuatan Ais butang selama 3 saat.
• The ice indicator will blink, and the power light will remain on during the cleaning cycle.
• The self-cleaning cycle will automatically shut off after 10 minutes.
• UV lamp in the cold water tank will continue to work as long as the machine is plugged in.

Image: Diagram showing the internal UV lamp and its effect on reducing contaminants in water.

Imej: Dalaman view of the dispenser, highlighting the location of the UV lamp in the cold water tank.

2. Pembersihan Luaran

• Cabut plag dispenser daripada salur keluar kuasa.
• Lap permukaan luar dengan lembut, damp kain. Jangan gunakan pembersih atau pelarut yang melelas.
• Clean the drip tray regularly by removing it, emptying any water, washing with mild soap, rinsing, and drying thoroughly before reinserting.

3. Water Bottle Replacement

The "Empty Bottle Alert" indicator will light up when the water bottle needs to be replaced.

• Buka pintu kabinet bawah.
• Carefully remove the empty water bottle and the probe.
• Install a new 3 or 5-gallon water bottle as described in the Setup section.

Menyelesaikan masalah

Spesifikasi

Waranti dan Sokongan

For warranty information or technical support, please refer to the documentation included with your purchase or contact SOOPYK customer service directly.

Please have your model number (LYCZ629BBK) and purchase date available when contacting support.

Pengeluar: SOOPYK
