1. Pengenalan
This manual provides detailed instructions for the VILTROX 14mm f4.0 FE Autofocus Prime Wide Angle Lens, designed for Sony E-Mount full-frame cameras. Please read this manual thoroughly before using the lens to ensure proper operation and to maximize its performance. The VILTROX 14mm f4.0 FE lens is a compact and lightweight ultra-wide-angle lens featuring a 112° field of view, advanced optical design, and fast autofocus. It is ideal for landscapes, architecture, astrophotography, and vlogging.
2. Produk Lebihview
2.1 Apa yang ada di dalam Kotak
- Lensa
- Lens Caps (Front and Rear)
- Kantung Lensa
- Tudung Lensa
2.2 Komponen Kanta
The VILTROX 14mm f4.0 FE lens shown with its lotus-shaped lens hood, designed to reduce flare and protect the front element.

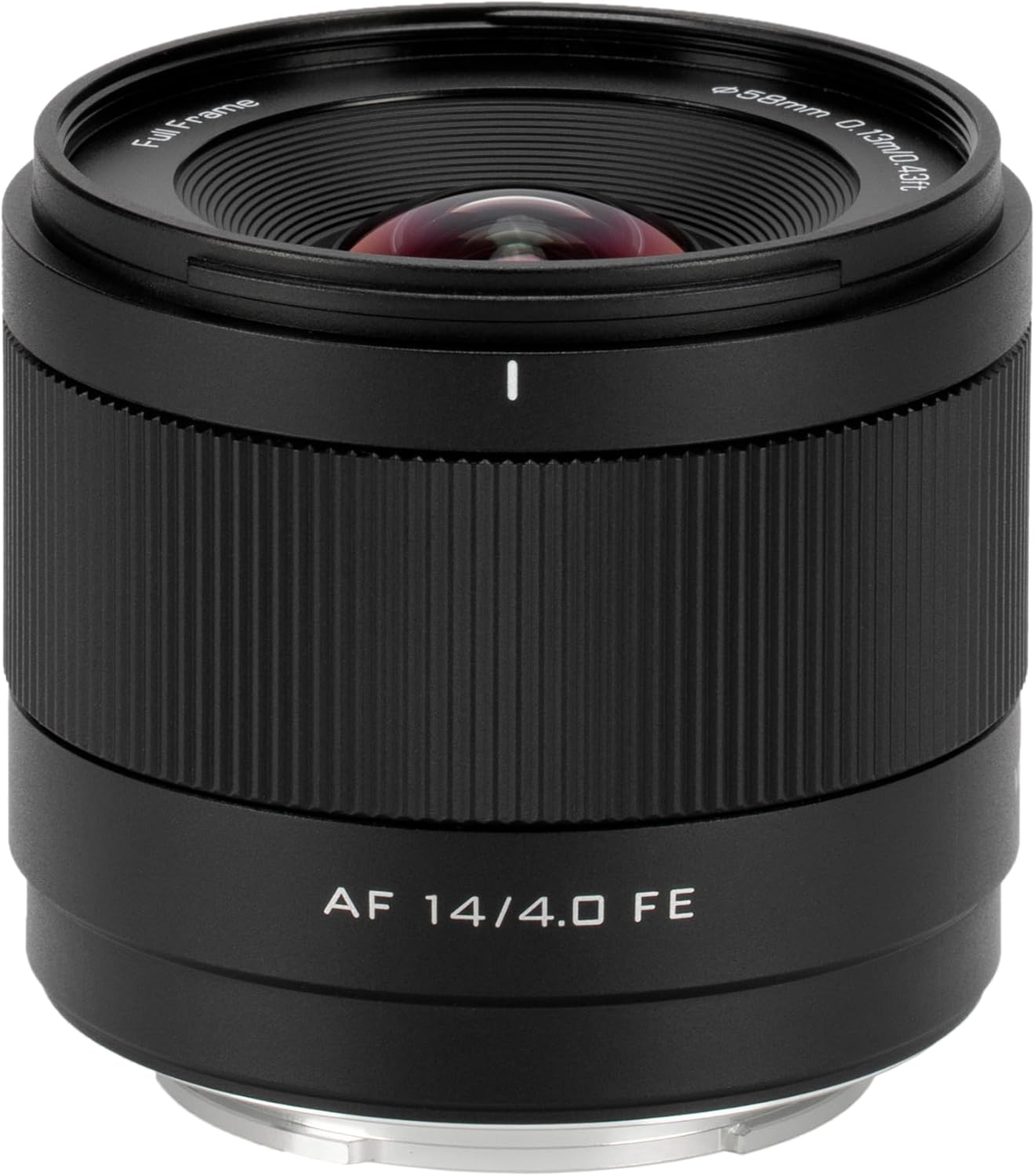

The front of the VILTROX 14mm f4.0 FE lens, highlighting the 58mm filter thread and the front optical element.
The rear of the VILTROX 14mm f4.0 FE lens, featuring the metal E-mount for Sony cameras and the integrated USB-C port for firmware updates.
The complete package contents: the VILTROX 14mm f4.0 FE lens, front and rear lens caps, a protective lens pouch, and the lens hood.
3. Persediaan
3.1 Memasang Lensa
- Tanggalkan penutup lensa belakang dan penutup badan kamera.
- Align the red dot on the lens with the red dot on your Sony E-mount camera body.
- Insert the lens into the camera mount and rotate it clockwise until it clicks into place.
3.2 Menanggalkan Kanta
- While holding down the lens release button on your camera body, rotate the lens counter-clockwise.
- Once unlocked, carefully remove the lens from the camera body.
- Pasang penutup kanta hadapan dan belakang untuk melindungi elemen kanta.
The VILTROX 14mm f4.0 FE lens securely attached to a Sony a7C II camera body, illustrating its compact profile apabila dipasang.
4. Mengendalikan Lensa
4.1 Autofocus (AF)
The lens is equipped with an STM motor for fast, accurate, and quiet autofocus performance, suitable for both photography and video recording. Ensure your camera's focus mode is set to AF (Autofocus) for automatic focusing.
4.2 Manual Focus (MF)
To use manual focus, switch your camera's focus mode to MF (Manual Focus). The focus ring on the lens provides smooth and precise control for manual adjustments.
4.3 Kawalan Apertur
This lens features a fixed maximum aperture of f/4.0. Aperture control is managed through your camera body's settings.
4.4 Kemas Kini Perisian Tegar
The integrated USB-C port allows for easy firmware updates to ensure optimal performance and compatibility with future camera models. Visit the VILTROX official weblaman web untuk perisian tegar dan arahan terkini.
4.5 Video Produk
Video: 14mm F4.0 FE The Pocket-Sized Street Photography Powerhouse. This video demonstrates the VILTROX AF 14mm F4.0 FE lens in use, highlighting its features and image quality for street photography.
Video: AF 14mm F4.0 FE Lens of Inspiration Always Ready to Shoot. This video showcases the VILTROX AF 14mm F4.0 FE lens, demonstrating its compact size, autofocus capabilities, and the wide-angle perspective it offers for various shooting scenarios.
Video: AF 14mm F4.0 Air FE Full-Frame Compact Ultra-Wide Angle! A detailed video review of the VILTROX AF 14mm F4.0 Air FE lens, focusing on its ultra-wide angle performance, compact design, and suitability for full-frame cameras.
Video: AF 14mm F4.0 Air FE Full-Frame Ultra-Wide Sample Images. This video presents a collection of sample images captured with the VILTROX AF 14mm F4.0 Air FE lens, showcasing its image quality and wide-angle capabilities.
Video: AF 14mm F4.0 Air FE Ultra-Wide Angle Lens Flash Portrait. A video demonstrating the use of the VILTROX AF 14mm F4.0 Air FE ultra-wide angle lens for flash portrait photography, highlighting its unique perspective.
5. Penyelenggaraan
5.1 Membersihkan Lensa
Use a soft, lint-free microfiber cloth to gently wipe dust and smudges from the lens elements. For stubborn marks, apply a small amount of specialized lens cleaning solution to the cloth (not directly to the lens) and wipe carefully. Avoid touching the glass directly with your fingers. Clean the lens body with a dry, soft cloth.
5.2 Penyimpanan
When not in use, always attach both the front and rear lens caps to protect the optical elements. Store the lens in a dry, dust-free environment, preferably in the provided lens pouch, away from direct sunlight and extreme temperatures.
6. Penyelesaian masalah
6.1 Isu Autofokus
- Slow or Inaccurate AF: Ensure the lens elements are clean and there is sufficient light in the scene. Check your camera's focus mode and area settings. Update the lens firmware if a newer version is available.
- AF Not Working: Verify the lens is securely mounted to the camera. Check camera settings to ensure AF is enabled. Restart the camera.
6.2 Kebimbangan Kualiti Imej
- Soft Images: Confirm proper focus. Ensure the lens is securely attached and not loose. Check for dust or smudges on the lens elements.
- Distortion or Vignetting: Minor distortion or vignetting may be present at extreme wide angles. These can often be corrected using lens profiles in post-processing software.
7. Spesifikasi
| Ciri | Perincian |
|---|---|
| Jenama | VILTROX |
| Model | 14/4.0 FE |
| Panjang Fokus | 14mm |
| Apertur Maksimum | f/4.0 |
| Jenis Kanta | Sudut Lebar |
| Pemasangan yang Serasi | Sony FE |
| Reka Bentuk Optik | 12 elements in 9 groups (2 HR, 4 ED, 2 ASPH elements) |
| Jarak Fokus Minimum | 0.13m (13cm) |
| Bidang View | 112° |
| Motor Fokus Automatik | STM |
| Saiz Benang Penapis | 58mm |
| Dimensi Produk | 2.22 x 2.56 x 2.56 inci |
| Berat Barang | 13.4 auns |
7.1 Optical Design Diagram
Sebuah meletup view illustrating the advanced optical design of the VILTROX 14mm f4.0 FE lens, detailing the placement of its 12 elements in 9 groups, which include High Refractive (HR), Extra-low Dispersion (ED), and Aspherical (ASPH) elements for optimal image quality.
7.2 Carta MTF
The MTF chart provides a technical representation of the VILTROX 14mm f4.0 FE lens's optical performance, showing its sharpness and contrast characteristics from the center to the edges of the frame at f/4 and f/8.
8. Waranti dan Sokongan
This VILTROX lens comes with a standard manufacturer's warranty. For specific warranty terms, product registration, and technical support, please visit the official VILTROX website or contact your local distributor. You can find more information at the VILTROX Official Store.
