KikkaBoo i-Moove 2 i-SIZE Car Seat Instruction Manual

1. Pengenalan

Thank you for choosing the KikkaBoo i-Moove 2 i-SIZE car seat. This manual provides essential information for the correct installation, use, and maintenance of your car seat. Please read it thoroughly before first use and keep it in a safe place for future reference. This car seat is designed to provide safety and comfort for children from 40 to 150 cm in height (approximately from birth up to 12 years).

Imej 1.1: Selesaiview of the KikkaBoo i-Moove 2 i-SIZE car seat, showcasing reka bentuk dan ciri-cirinya.

2. Maklumat Keselamatan

The KikkaBoo i-Moove 2 i-SIZE car seat complies with the latest i-Size standard (UN Regulation No. R129/04), ensuring high safety performance. Adherence to these guidelines is crucial for your child's safety.

• Kegunaan Menghadap Belakang: Mandatory for children from 40 to 105 cm.
• Forward-Facing Use: Permitted for children from 76 to 150 cm.
• Always ensure the car seat is correctly installed using the ISOFIX system and Top Tether strap.
• The integrated SPS (Side Impact Protection System) provides enhanced protection in the event of a side collision.
• Jangan sekali-kali meninggalkan anak anda tanpa pengawasan di tempat duduk kereta.
• Do not modify the car seat or use accessories not approved by the manufacturer.
• Replace the car seat after any accident, even if no visible damage is apparent.

Image 2.1: Visual confirmation of the car seat being crash test approved according to UN Regulation No. R129/04 by ATS San Marino, highlighting its i-Size compliance.

Image 2.2: Illustration of key safety features including Side Impact Protection, secure harness, and the flexibility of Forward-Facing (FWF) and Rear-Facing (RWF) positions.

3. Komponen Selesaiview

Familiarize yourself with the main components of your KikkaBoo i-Moove 2 i-SIZE car seat:

• Pangkalan: The foundation of the car seat, housing the ISOFIX connectors and rotation mechanism.
• ISOFIX Connectors: Extendable arms for secure attachment to your vehicle's ISOFIX anchor points.
• Top Tether Strap: An additional anchor strap for enhanced stability, especially in forward-facing mode.
• Tempat letak kepala: Adjustable to 24 levels to accommodate your child's growth.
• Abah-abah 5 Mata: Secures your child within the seat, with soft shoulder and buckle pads.
• Recline Lever: Adjusts the seat's recline angle (4 forward, 1 backward).
• Mekanisme Putaran: Allows 360-degree rotation for easy child placement and direction changes.
• SPS (Side Impact Protection System): Integrated elements for side collision protection.
• Full Body Pillow: Provides extra comfort and support for infants.

4. Persediaan dan Pemasangan

4.1. ISOFIX and Top Tether Installation

Ensure your vehicle is equipped with ISOFIX anchor points and a Top Tether anchor point before installation.

1. Panjangkan Penyambung ISOFIX: Press the ISOFIX release buttons (usually red) on the car seat base and extend the ISOFIX connectors fully.
2. Lampirkan pada Kenderaan: Align the ISOFIX connectors with your vehicle's ISOFIX anchor points and push firmly until you hear an audible 'click' and the indicators turn green.
3. Push Seat Firmly: Push the car seat firmly against the vehicle's backrest to ensure a tight fit.
4. Connect Top Tether: Pull out the Top Tether strap from the back of the car seat. Attach the hook to your vehicle's designated Top Tether anchor point.
5. Tighten Top Tether: Pull the loose end of the Top Tether strap until it is taut, removing any slack. The indicator on the Top Tether should show it is correctly tensioned.
6. Sahkan Pemasangan: Gently tug on the car seat to ensure it is securely installed and does not move excessively.

Imej 4.1: Terperinci view of the ISOFIX connectors and Top Tether strap, illustrating the secure installation points for the car seat in a vehicle.

4.2. 360° Rotation Function

The 360° rotation feature allows for easy placement and removal of your child, as well as switching between rear-facing and forward-facing positions.

1. Aktifkan Putaran: Locate the rotation lever or button on the base of the car seat. Press or lift it to unlock the rotation mechanism.
2. Putar Tempat Duduk: Gently rotate the car seat to the desired position (e.g., facing the car door for child placement, or to rear-facing/forward-facing).
3. Kedudukan Kunci: Ensure the seat clicks firmly into place in the chosen position. Verify it is locked before driving.

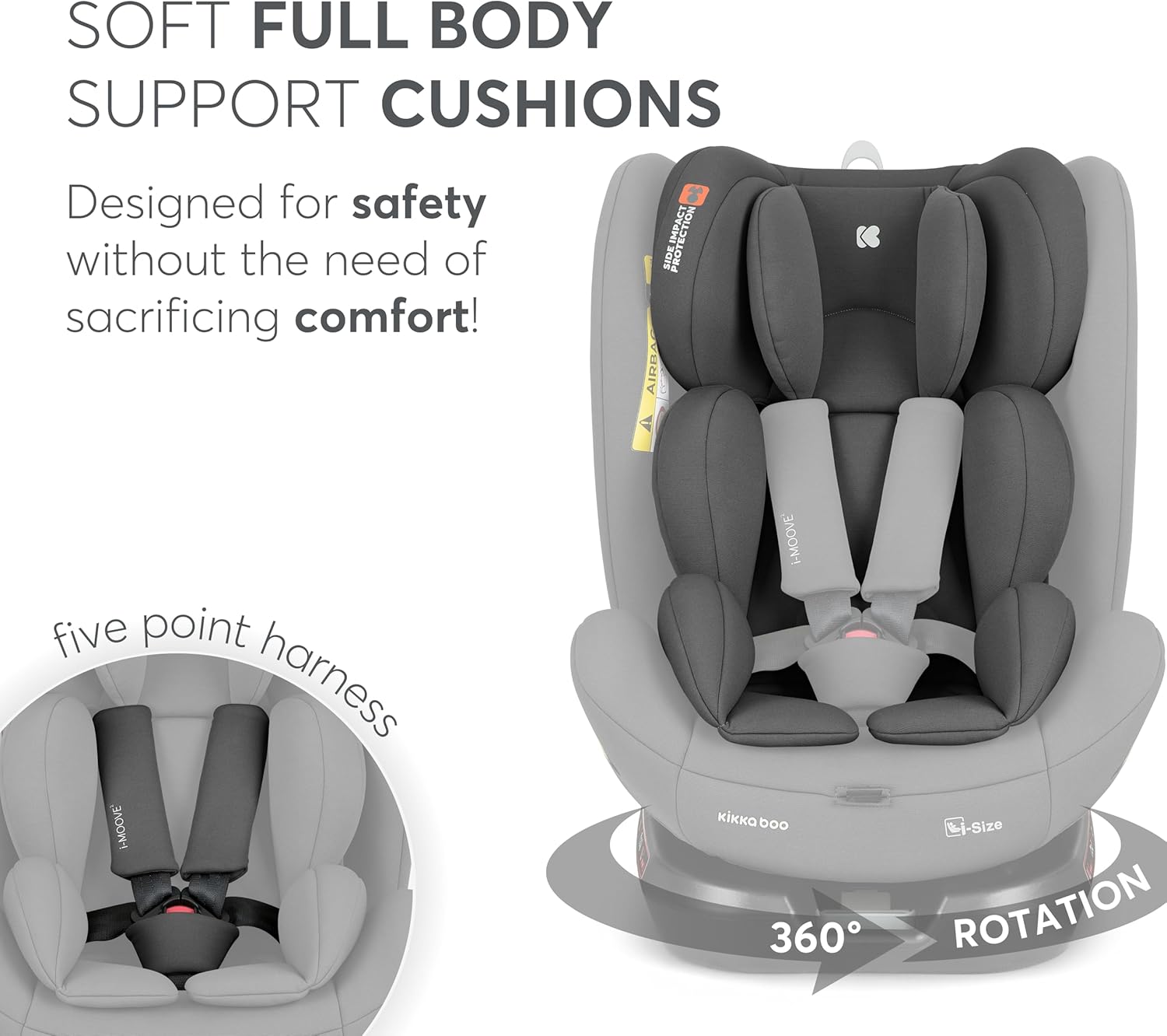

Image 4.2: Depiction of the 360-degree rotation feature, showing how the seat can be turned for easy access and direction changes.

5. Arahan Operasi

5.1. Child Placement and Harness Adjustment

Properly securing your child is vital for their safety.

1. Abah-abah Terbuka: Tekan butang merah pada gesper abah-abah untuk melepaskan tali abah-abah.
2. Tempat Anak: Place your child in the car seat. For infants (40-60 cm), use the soft full body pillow for optimal support.
3. Kencangkan Abah-abah: Bring the two buckle tongues together and insert them into the buckle until you hear a 'click'.
4. Ketatkan tali pinggang: Pull the harness adjustment strap (usually located at the front of the seat) to tighten the harness. Ensure the straps are snug against your child's body, with no more than two fingers fitting between the strap and the child's collarbone.
5. Tali Periksa: Ensure the shoulder straps are at or just below your child's shoulders for rear-facing, and at or just above for forward-facing.

5.2. Headrest and Reclining Adjustment

Adjust the headrest and recline position for your child's comfort and safety as they grow.

1. Pelarasan sandaran kepala: Locate the headrest adjustment lever (usually at the top of the headrest). Squeeze the lever and slide the headrest up or down to one of the 24 available positions. Ensure it is adjusted so the shoulder straps are at the correct height for your child.
2. Reclining Adjustment: Locate the recline lever (usually at the front or side of the base). Press or lift the lever and adjust the seat to one of the 4 forward-facing or 1 rear-facing recline positions. Release the lever to lock the position.

Image 5.1: Visual representation of the five reclining positions (4 forward-facing and 1 rear-facing) available for the car seat.

Image 5.2: Illustrates how the car seat grows with the child through its adjustable headrest and reclining system.

6. Penyelenggaraan dan Pembersihan

Penyelenggaraan berkala memastikan jangka hayat dan kebersihan tempat duduk kereta anda.

• Tudung Fabrik: The fabric covers are washable. Refer to the care label on the cover for specific washing instructions (typically machine wash on a gentle cycle with mild detergent).
• Bahagian plastik: Lap bahagian plastik dengan iklanamp kain dan sabun lembut. Jangan gunakan pembersih atau pelarut yang melelas.
• Sistem abah-abah: Bersihkan tali abah-abah dengan iklanamp cloth. Do not machine wash or tumble dry the harness straps, as this can weaken the material.
• Storan: Apabila tidak digunakan, simpan kerusi kereta di tempat yang sejuk dan kering jauh dari cahaya matahari langsung.

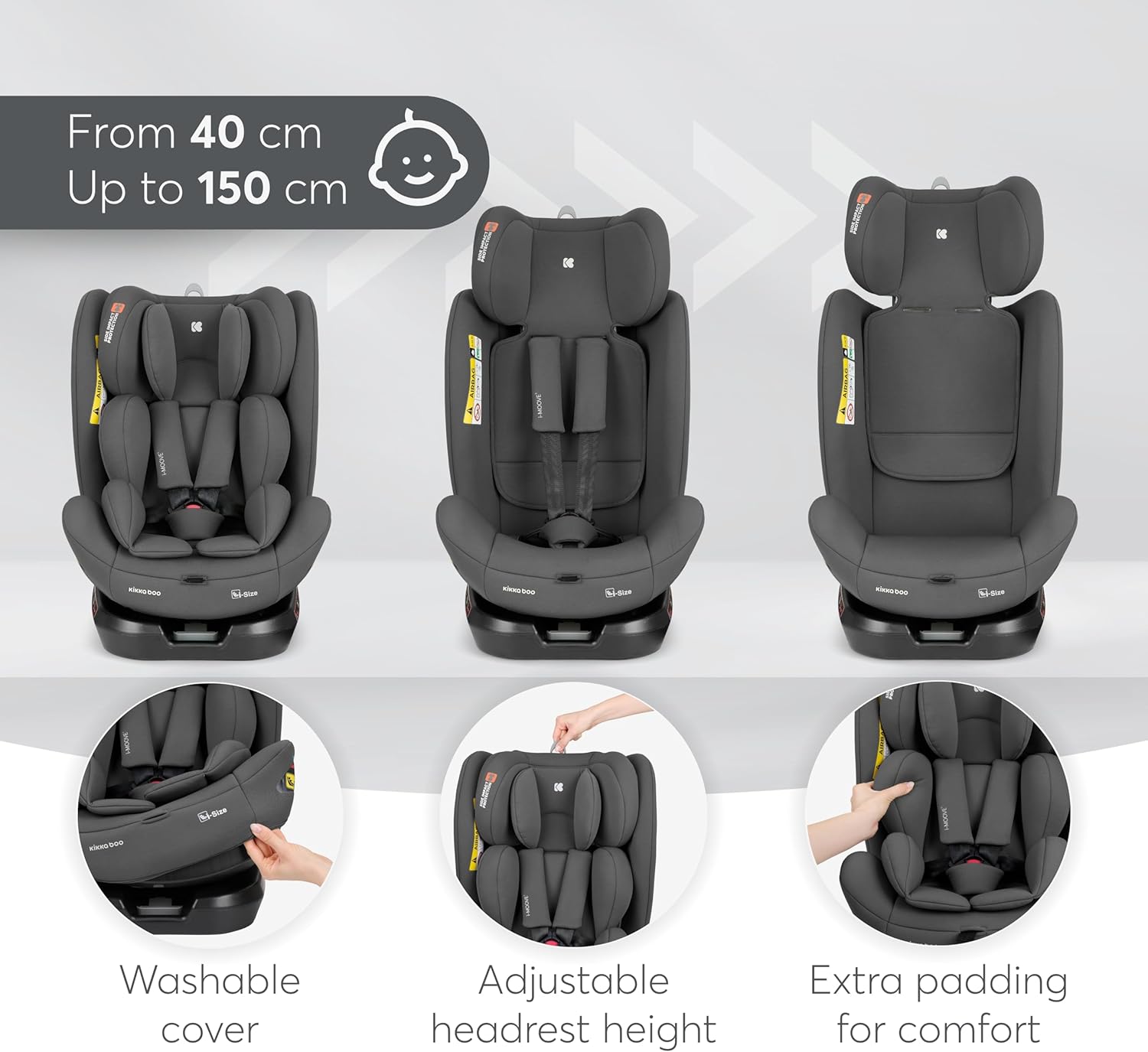

Image 6.1: Highlights features such as the washable cover, adjustable headrest height, and extra padding for comfort, relevant for maintenance.

7. Penyelesaian masalah

If you encounter any issues with your KikkaBoo i-Moove 2 i-SIZE car seat, please refer to the following common solutions:

• Kesukaran Berputar: Ensure the car seat is not under tension from the vehicle's seatbelt (if applicable) and that the rotation lever is fully engaged. The seat must be in an upright position to rotate freely.
• Abah-abah Tidak Mengetatkan: Check that the harness straps are not twisted or obstructed. Ensure the harness adjustment strap is pulled firmly and smoothly.
• ISOFIX Indicators Not Green: Re-engage the ISOFIX connectors firmly into the vehicle's anchor points until both indicators turn green. Ensure no fabric or debris is obstructing the connection.
• Top Tether Not Tight: Ensure the Top Tether strap is correctly routed and pulled taut. Check that the anchor point in the vehicle is clear.

If problems persist, consult your retailer or the manufacturer's customer support.

8. Spesifikasi

9. Waranti dan Sokongan

For warranty information and customer support, please refer to the documentation provided at the time of purchase or contact your retailer. You may also visit the official KikkaBoo weblaman web untuk bantuan lanjut dan butiran perhubungan.
