VECYS LYCZ629 Bottom Loading Water Dispenser with Ice Maker

1. Arahan Keselamatan Penting

Sila baca semua arahan dengan teliti sebelum menggunakan perkakas. Simpan manual ini untuk rujukan masa hadapan.

• Pastikan unit diletakkan di atas permukaan yang rata dan stabil.
• Jangan kendalikan unit dengan kord kuasa atau palam yang rosak.
• Jauhkan perkakas daripada cahaya matahari langsung dan sumber haba.
• Jangan rendam perkakas, kord, atau palam ke dalam air atau cecair lain.
• Awasi kanak-kanak untuk memastikan mereka tidak bermain dengan perkakas.
• The hot water dispenser features a child safety lock. Always engage this lock when not in use.
• Only use bottled water with the dispenser.

2. Produk Lebihview

The VECYS LYCZ629 is a versatile bottom-loading water dispenser that provides hot, cold, and room temperature water, along with an integrated ice maker. It is designed for ease of use and convenience.

Rajah 1: Depan view of the VECYS LYCZ629 water dispenser.

Ciri-ciri Utama:

• 3-in-1 Dispensing: Delivers hot, cold, and room temperature water.
• Integrated Ice Maker: Menghasilkan ketulan ais berbentuk peluru.
• Bottom Loading Design: Simplifies water bottle replacement (compatible with 3-5 gallon bottles).
• Kunci Keselamatan Kanak-kanak: Prevents accidental hot water dispensing.
• Fungsi Membersihkan Diri: Facilitates easy maintenance.
• Paparan led: Indicates operational status and settings.

3. Persediaan dan Pemasangan

3.1 Membongkar

1. Keluarkan perkakas dari bungkusannya dengan berhati-hati.
2. Keluarkan semua bahan pembungkusan, termasuk sebarang pita atau label.
3. Periksa unit untuk sebarang kerosakan. Jika rosak, jangan kendalikan dan hubungi khidmat pelanggan.

3.2 Penempatan

Choose a suitable location for your water dispenser:

• Place the unit on a hard, level surface capable of supporting its weight when full.
• Ensure adequate ventilation around the unit. Maintain at least 4 inches (10 cm) of space from walls.
• Elakkan cahaya matahari langsung atau berdekatan dengan peralatan penjana haba.
• The unit dimensions are approximately 17.7"D x 14.4"W x 44.1"H.

Figure 2: Recommended placement and dimensions for the water dispenser.

3.3 Pemasangan Botol Air

1. Open the lower cabinet door of the dispenser.
2. Remove the cap from a new 3 or 5-gallon water bottle.
3. Insert the probe assembly into the water bottle. Ensure the probe is fully submerged.
4. Slide the water bottle into the lower cabinet.
5. Close the cabinet door. The internal pump will begin drawing water into the reservoirs.

Figure 3: Illustration of bottom-loading water bottle installation.

3.4 Initial Cleaning and Power Connection

1. Before first use, perform a self-clean cycle (refer to Section 5.1).
2. Palamkan kord kuasa ke salur keluar elektrik yang dibumikan.
3. Allow the unit to sit for at least 15 minutes before dispensing water to allow the water to cool/heat.

4. Arahan Operasi

The control panel features touch-sensitive buttons and LED indicators for various functions.

Figure 4: Close-up of the LED display and control panel.

4.1 Water Dispensing (Hot, Cold, Room Temperature)

The unit features a single nozzle for all water temperatures.

1. Place your cup or container on the drip tray beneath the dispensing nozzle.
2. For Cold Water: Tekan ke Air Sejuk button. Press again to stop dispensing.
3. Untuk Air Suhu Bilik: Tekan ke Air Tawar button. Press again to stop dispensing.
4. Untuk Air Panas: Pertama, tekan butang Kunci Kanak-kanak button to unlock. Then, press the Air Panas button. Press again to stop dispensing. The child lock will re-engage automatically after a short period of inactivity.

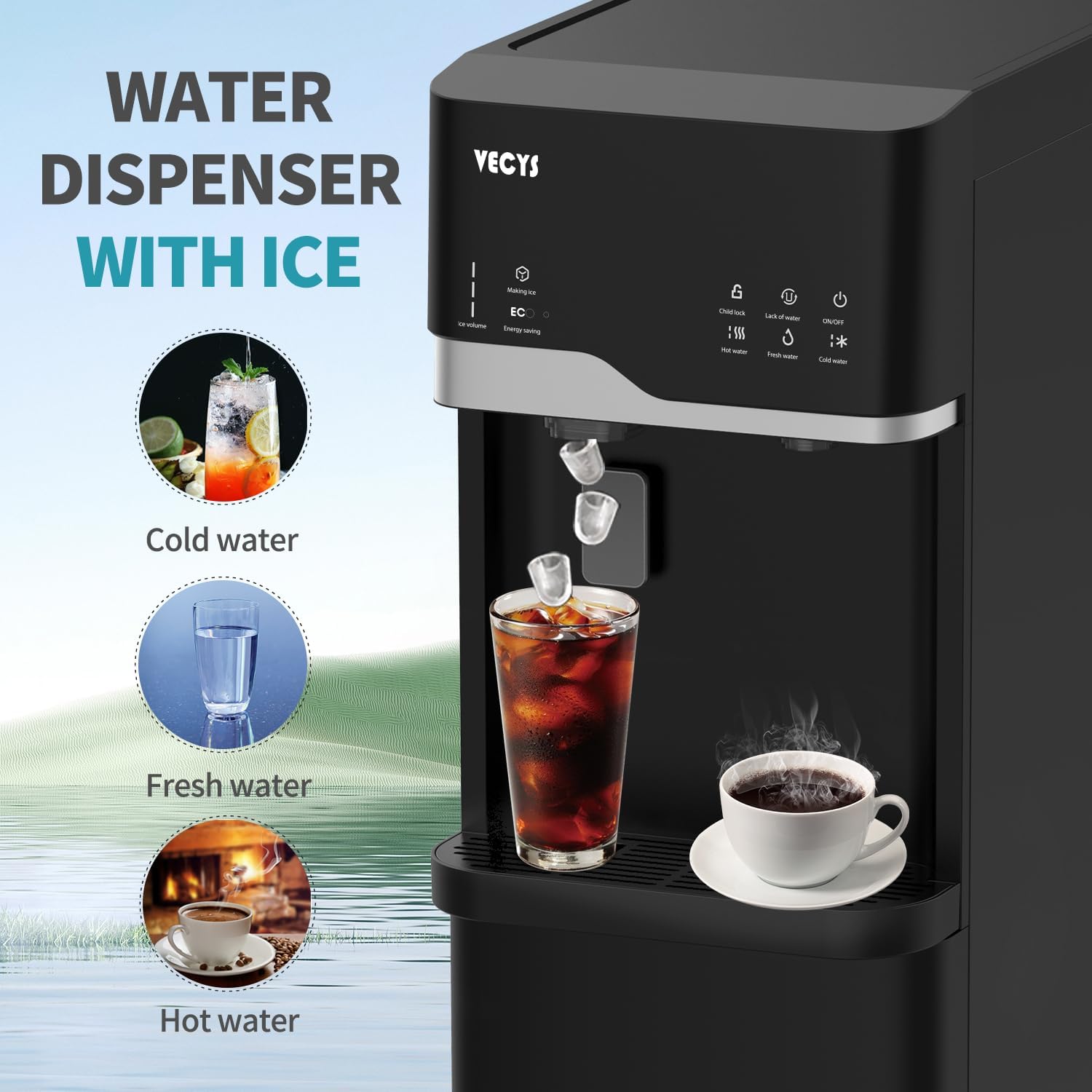

Figure 5: Dispensing various water temperatures.

Figure 6: Child safety lock feature for hot water.

4.2 Membuat Ais

The integrated ice maker produces bullet-shaped ice cubes.

1. Ensure the unit is powered on and has sufficient water in the bottle.
2. The Membuat Ais indicator on the LED display will illuminate when ice production is active.
3. Ice production typically takes 6-8 minutes per cycle.
4. To dispense ice, place your cup under the ice chute and press the ice dispensing lever/button.

Figure 7: Ice making capabilities and bullet-shaped ice.

5. Penyelenggaraan

5.1 Fungsi Pembersihan Kendiri

The self-clean function helps maintain the hygiene of the water tanks and lines.

1. Ensure a full water bottle is installed.
2. Refer to the control panel for the specific self-clean activation procedure (usually a dedicated button or a combination of buttons).
3. Follow the on-screen indicators or manual instructions for the duration of the cycle.
4. After the cycle, dispense and discard a few cups of water from each tap to flush the system.

5.2 Drip Tray Cleaning

The removable drip tray should be cleaned regularly to prevent water overflow and maintain hygiene.

1. Gently pull the drip tray forward to remove it from the unit.
2. Empty any collected water.
3. Wash the drip tray with mild soap and warm water. Rinse thoroughly.
4. Dry completely before reinserting into the dispenser.

Figure 8: Drip tray for easy cleaning.

5.3 Pembersihan Luaran

Lap permukaan luar dispenser dengan kain lembutamp kain. Elakkan pembersih atau pelarut yang melelas.

6. Penyelesaian masalah

7. Spesifikasi

8. Waranti dan Sokongan

For warranty information and customer support, please contact VECYS directly. Details regarding your product's warranty period and terms can typically be found on the manufacturer's weblaman web atau dengan menghubungi bahagian khidmat pelanggan mereka.

When contacting support, please have your model number (LYCZ629) and purchase date available.
