pengenalan
This manual provides essential information for the installation, operation, and maintenance of your Bosch Serie 6 SPS6EMI21E freestanding smart dishwasher. Please read these instructions carefully before using the appliance for the first time to ensure safe and efficient operation.

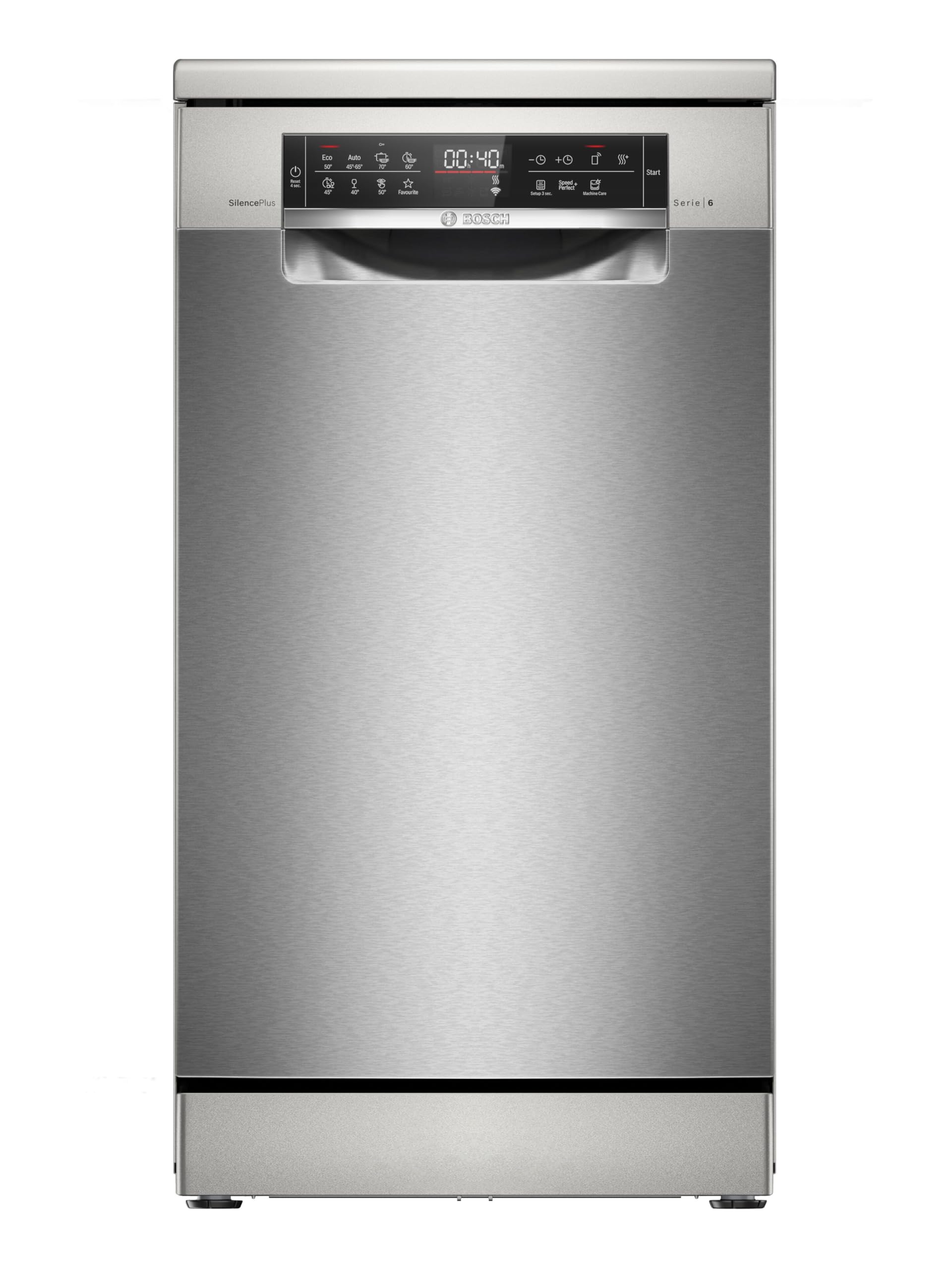

Image: The Bosch Serie 6 SPS6EMI21E dishwasher, a slimline model with a stainless steel finish, positioned next to kitchen cabinets and a sink.
Persediaan dan Pemasangan
Your Bosch SPS6EMI21E dishwasher is designed for freestanding installation and can also be mounted. Proper installation is crucial for optimal performance and safety.
Dimensi dan Peletakan
- Dimensi Produk (Dalam x Lebar x Tinggi): 45 cm x 60 cm x 84.5 cm
- Ensure adequate space for ventilation and access to water and power connections.
Sambungan
The dishwasher requires a power supply, a water inlet hose, and a drain hose. The necessary components are included with your appliance.
- Komponen yang Disertakan: Power cable, cutlery basket, user manual, water inlet hose, drain hose.
Image: A technical diagram illustrating the dishwasher's dimensions in millimeters and the recommended lengths for the power cable, water inlet hose, and drain hose connections. Values in parentheses indicate lengths with extensions.
Image: The rear of the dishwasher, displaying the neatly routed water inlet and drain hoses, along with the power cable connection point at the bottom.
Arahan Operasi
The Bosch SPS6EMI21E dishwasher features intuitive button controls and smart connectivity for ease of use.
Control Panel and Programs
The control panel allows you to select from various wash programs and special functions.
Imej: A terperinci view of the dishwasher's front control panel, featuring buttons for different wash programs like Eco, Auto, Intensive, and Express, along with a digital timer display.
- Jenis Kawalan: Butang Tekan
- Program Tersedia: Intensive, Favorite, Eco, Glasses 40°, Express 60°, Auto 45-65°C, Silent 50°, Express 45°.
- Fungsi Khas: 4 additional functions to customize your wash cycle.
Smart Features (Home Connect)
Manage your dishwasher remotely and personalize settings using the Home Connect app.
- Kawalan Jauh: Start, stop, and monitor wash cycles from your smartphone or tablet.
- Penyesuaian Program: Adjust existing programs or download new ones to suit your specific needs.
Drying and Efficiency
- Automatic Door Opening: The door opens automatically at the end of the wash cycle for perfect drying results and energy savings.
- EcoSilence Drive Motor: This brushless motor reduces noise levels to 44 dB and optimizes energy and water consumption.
Image: The dishwasher with its door partially open, showing the illuminated control panel and the upper and lower racks ready for loading.
Memuatkan Pinggan
The dishwasher is designed to accommodate 10 place settings with flexible loading options.
Customizable Baskets
- Foldable Grids: Both upper and lower baskets feature fully foldable grids to create space for larger items.
- Removable Glass Support: Securely wash delicate glassware with the dedicated removable support.
Image: The lower basket of the dishwasher, demonstrating how plates and a cooking pot can be efficiently arranged using the adjustable tines.
Image: The upper basket of the dishwasher, showing an arrangement of various glasses and cups, utilizing the removable glass support for stability.
Third Cutlery Basket
A dedicated third basket provides convenient and efficient cleaning for cutlery.
Image: The top-level third basket designed specifically for cutlery, showing spoons, forks, and knives neatly laid out for thorough cleaning.
Penyelenggaraan
Penyelenggaraan tetap memastikan jangka hayat dan prestasi optimum mesin basuh pinggan mangkuk anda.
Membersihkan Bahagian Dalaman
Periodically clean the interior of the dishwasher, including the spray arms and filter system, to prevent blockages and ensure effective washing.
Image: A close-up of the dishwasher's interior base, highlighting the removable filter system and the rotating lower spray arm, both essential for cleaning performance.
Sistem penapis
The filter system should be checked and cleaned regularly to remove food particles and debris. Refer to the full user manual for detailed instructions on how to remove and clean the filters.
Menyelesaikan masalah
If you encounter any issues with your dishwasher, please refer to the comprehensive troubleshooting section in the full user manual. Common issues often relate to loading, detergent usage, or filter cleanliness.
For persistent problems, contact Bosch customer support or a qualified service technician.
Spesifikasi
| Ciri | Spesifikasi |
|---|---|
| Jenama | Bosch |
| Nama Model | SPS6EMI21E |
| Jenis Pemasangan | Freestanding with mounting possibility |
| Dimensi Produk (DxWxH) | 45P x 60p x 84.5T cm |
| Kapasiti | 10 Tetapan Tempat |
| Jenis Kawalan | Butang |
| Tahap Kebisingan | 44 Desibel |
| warna | Keluli Tahan Karat |
| Kelas Kecekapan Tenaga | B |
| Penggunaan Tenaga (setiap 100 kitaran) | 51 kWj |
| Penggunaan Air (setiap kitaran) | 8.7 Liter |
| Tempoh Program Eko | 3:55 jam |
| Ciri Khas | Easy loading, Home Connect app compatibility |
Energy Label and Product Information Sheet
Image: The official EU Energy Label for the Bosch SPS6EMI21E, indicating its energy efficiency class B, energy consumption, water consumption, program duration, and noise level.
Image: The product information sheet, providing a table of detailed technical parameters and compliance information for the Bosch SPS6EMI21E dishwasher, as per EU regulations.
For more detailed product information, including the official product information sheet and EPREL database entry, please visit: EPREL Database (QR/2261663)
Maklumat tambahan boleh didapati di alamat pembekal web pautan: www.bosch-home.com/energylabel
Waranti dan Sokongan
Your Bosch SPS6EMI21E dishwasher comes with a manufacturer's warranty.
- Tempoh Waranti: 24 bulan dari tarikh penerimaan.
Untuk bantuan teknikal, alat ganti atau untuk mendaftarkan produk anda, sila lawati laman web rasmi Bosch website or contact their customer service department. You can also find support and additional features through the Home Connect app.
