VECYS FY605 Bottleless Water Dispenser User Manual

Maklumat Keselamatan Penting

Please read all instructions carefully before operating the appliance. Retain this manual for future reference.

• Keselamatan Elektrik: Ensure the dispenser is connected to a grounded electrical outlet. Do not use extension cords. Disconnect power before cleaning or servicing.
• Sambungan Air: Connect the dispenser only to a potable cold water supply. Ensure all connections are secure to prevent leaks.
• Keselamatan Air Panas: The hot water function dispenses water at high temperatures. Exercise caution to prevent burns. A child safety lock is integrated for hot water dispensing.
• penempatan: Place the dispenser on a flat, stable surface away from direct sunlight and heat sources. Allow adequate clearance around the unit for ventilation.
• Kanak-kanak: Supervise children near the dispenser, especially when hot water is being dispensed.

Produk Selesaiview

The VECYS FY605 is a bottleless water dispenser designed to provide instant access to hot, cold, and room temperature filtered water. It connects directly to your water line, eliminating the need for heavy water bottles. The integrated 4-stage filtration system ensures clean and great-tasting water.

Imej: Depan view of the VECYS FY605 water dispenser with the lower compartment door open, revealing the internal filtration cartridges.

Ciri-ciri Utama:

• Bottleless Design: Connects directly to your water supply.
• 4-Stage Sistem Penapisan: Includes PP, two CTO carbon block, and UF ultrafiltration filters.
• Tiga Tetapan Suhu: Dispenses hot, cold, and room temperature water.
• Kunci Keselamatan Kanak-kanak: Prevents accidental hot water dispensing.
• Fungsi Pembersihan Diri: Maintains internal hygiene.

Image: A detailed diagram illustrating the four stages of the filtration system, showing how water passes through PP, CTO, and UF filters to remove impurities.

Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej:

• VECYS FY605 Bottleless Water Dispenser
• 1x PP Filter (Pre-installed or separate)
• 2x CTO Carbon Block Filters (Pre-installed or separate)
• 1x UF Ultrafiltration Membrane (Pre-installed or separate)
• 16.4ft PE Water Tube
• Plumber's Tape
• Stainless Steel 3-way 1/4-inch Ball Valve
• Manual Pengguna (dokumen ini)

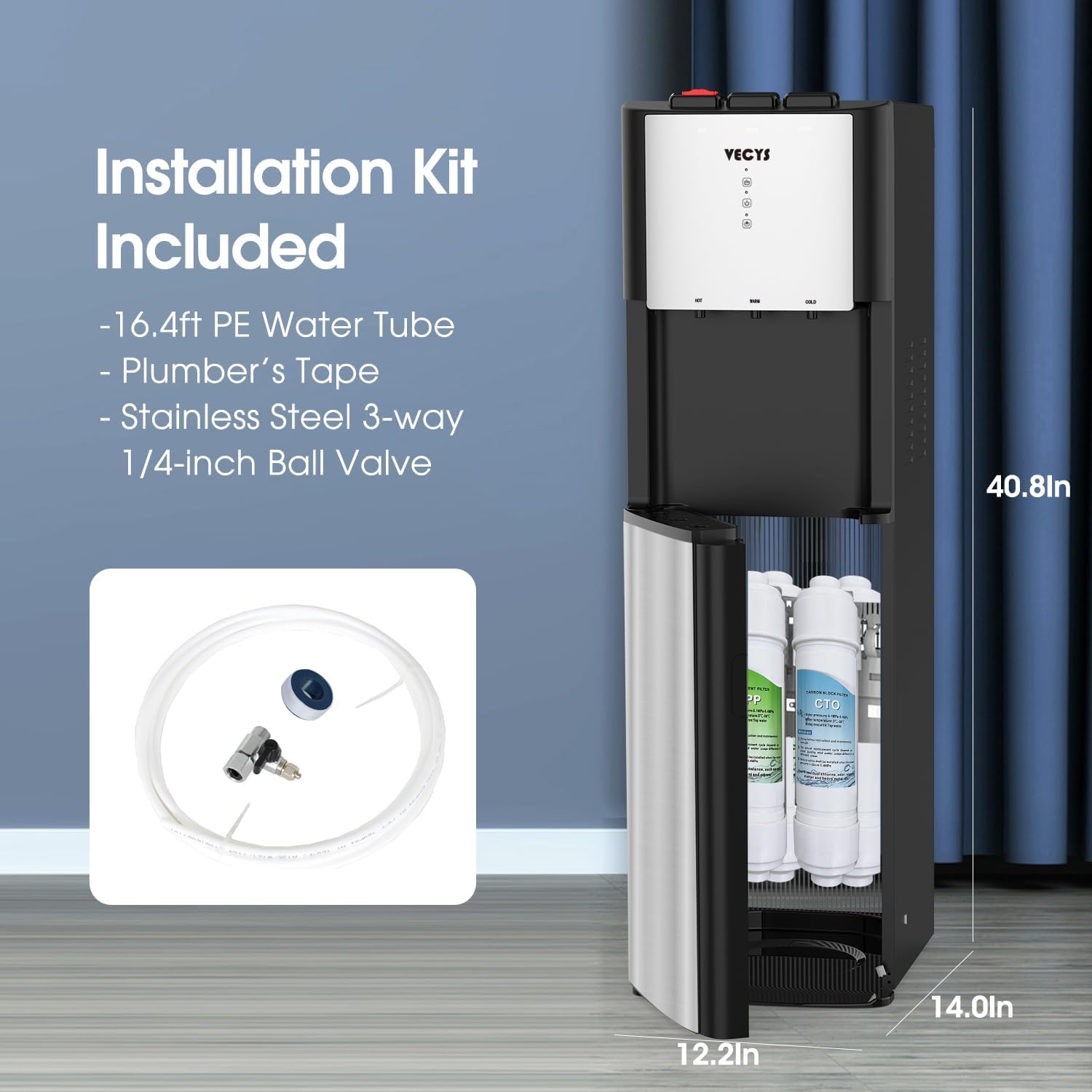

Imej: Dari dekat view of the included installation kit, featuring the PE water tube, plumber's tape, and a stainless steel 3-way 1/4-inch ball valve.

Persediaan dan Pemasangan

Follow these steps for proper installation of your VECYS FY605 water dispenser.

1. Membongkar dan Meletakkan:

1. Keluarkan semua bahan pembungkusan dengan berhati-hati.
2. Place the dispenser on a level, sturdy surface. Ensure there is at least 4 inches of clearance from walls for proper ventilation.

2. Sambungan Talian Air:

1. Matikan bekalan air sejuk ke sinki anda.
2. Locate the cold water line under your sink.
3. Install the provided 3-way 1/4-inch ball valve onto the cold water line. Use plumber's tape on threaded connections to prevent leaks.
4. Connect one end of the 16.4ft PE water tube to the ball valve.
5. Route the PE water tube to the back of the water dispenser. Connect the other end of the tube to the water inlet port on the dispenser. Ensure all connections are tight.
6. Slowly turn on the cold water supply and check for any leaks.

Image: The VECYS water dispenser shown in a home setting, with a visible water line connecting it to a tap, demonstrating its bottleless operation.

3. Initial Flushing:

1. Before plugging in the unit, open the cold water faucet on the dispenser and let water flow for 3-5 minutes to flush the filters and lines.
2. Close the cold water faucet.

4. Sambungan Kuasa:

1. Palamkan kord kuasa ke salur keluar elektrik yang dibumikan.
2. Allow the dispenser to sit for at least 30 minutes before dispensing hot or cold water to allow the internal tanks to fill and temperatures to stabilize.

Arahan Operasi

Your VECYS FY605 dispenser offers three water temperature options.

Mendispens Air:

1. Place a cup or container under the desired water faucet (Hot, Room, or Cold).
2. For Cold or Room Temperature Water: Press and hold the corresponding button until the desired amount of water is dispensed.
3. Untuk Air Panas: First, slide the child safety lock button (usually red) to unlock, then press and hold the hot water button. Release the button when the desired amount of hot water is dispensed. The child safety lock will automatically reset.

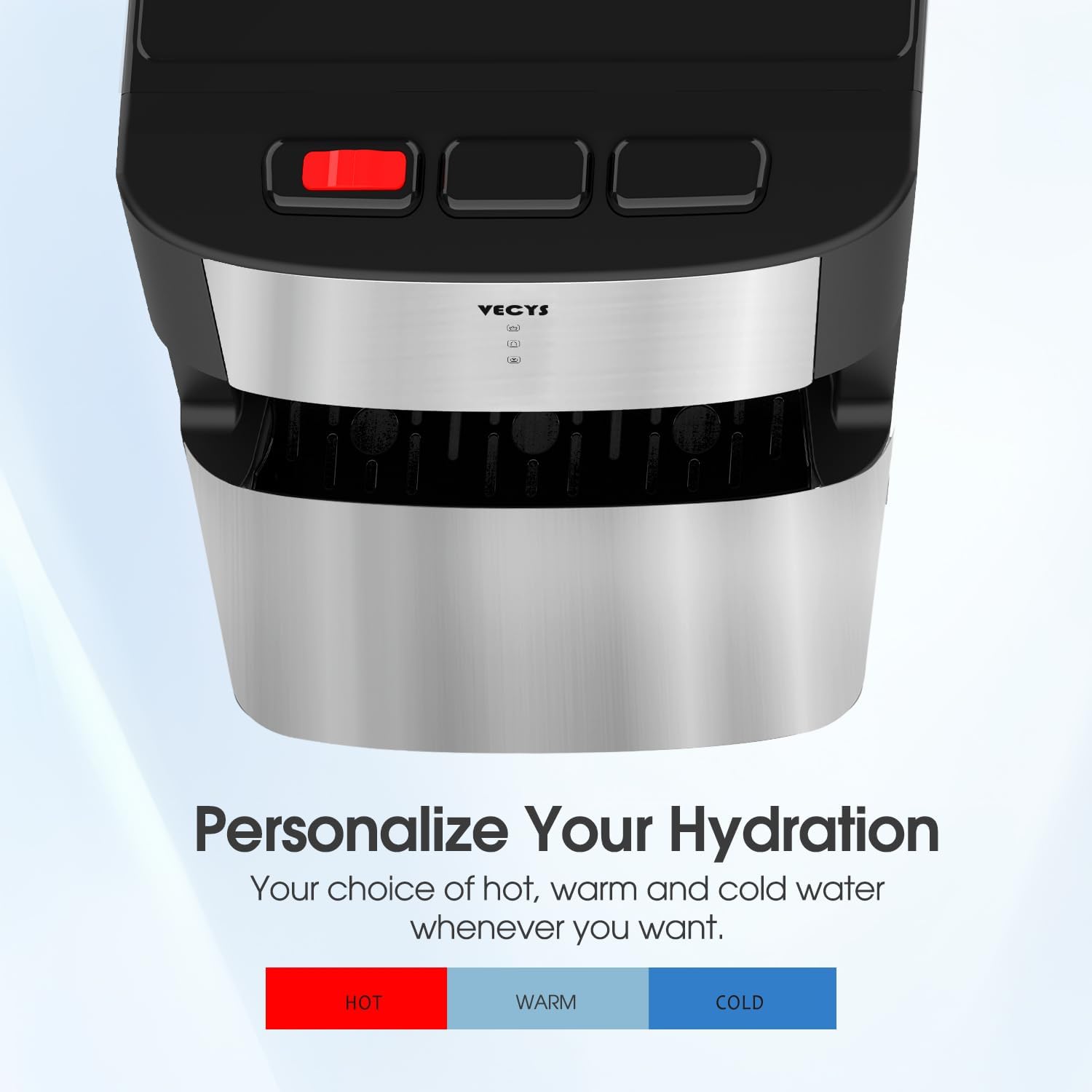

Imej: Dari dekat view of the dispenser's top panel, showing the distinct buttons for hot, warm (room temperature), and cold water dispensing.

Kunci Keselamatan Kanak-kanak:

The hot water faucet is equipped with a child safety lock to prevent accidental burns. To dispense hot water, you must first engage the safety mechanism, typically by sliding a red button, before pressing the hot water dispense button. This is a two-step process for enhanced safety.

Imej: A terperinci view of the red child safety lock button located above the hot water dispenser, indicating its position and function.

Fungsi Pembersihan Diri:

The dispenser features a self-cleaning function to maintain internal hygiene. Refer to the specific instructions in your physical manual for activating this cycle. Typically, it involves pressing and holding a designated button for a few seconds.

Penyelenggaraan

Filter Replacement Guidelines:

4-stage filtration system is designed to filter up to 2,000 gallons or last up to 12 months, whichever comes first. However, actual replacement intervals may vary based on local water quality and usage frequency.

• If you notice reduced water flow or changes in taste, replace the filters sooner.
• Use only genuine VECYS replacement filters to ensure optimal performance.
• Refer to the detailed instructions in your physical manual for the filter replacement procedure. This typically involves turning off the water supply, releasing pressure, twisting out old filters, and twisting in new ones.

Membersihkan Dispenser:

• Luaran: Lap permukaan luar dengan lembut, damp kain. Jangan gunakan pembersih atau pelarut yang melelas.
• Dulang Drip: Regularly remove and empty the drip tray. Wash it with mild soap and water, then rinse and dry thoroughly before replacing.
• Gegelung pemeluwap: Periodically clean the condenser coils at the back of the unit with a brush or vacuum cleaner to ensure efficient operation. Disconnect power before cleaning.

Menyelesaikan masalah

Sebelum menghubungi khidmat pelanggan, silaview isu dan penyelesaian biasa berikut:

Spesifikasi

Waranti dan Sokongan

VECYS products are manufactured to high-quality standards. For warranty information, technical support, or to purchase genuine replacement parts and filters, please refer to the contact information provided with your product packaging or visit the official VECYS webtapak.

Always use genuine VECYS replacement filters to ensure optimal performance and to maintain your product warranty.
