Manual Pengguna Vivi Electric Tricycle T01

1. Pengenalan

Welcome to the user manual for your new Vivi Electric Tricycle T01. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your electric tricycle. Please read this manual thoroughly before your first ride to ensure proper usage and to maximize the lifespan of your product.

The Vivi Electric Tricycle T01 is designed for adults, offering a stable and comfortable riding experience with its three-wheel design, powerful motor, and long-lasting battery. Its folding capability enhances portability and storage convenience.

2. Maklumat Keselamatan

Keselamatan anda adalah yang utama. Sentiasa patuhi garis panduan keselamatan berikut:

• Sentiasa pakai topi keledar yang memenuhi piawaian keselamatan.
• Patuhi semua undang-undang dan peraturan lalu lintas tempatan.
• Perform a pre-ride inspection before each use, checking brakes, tires, battery, and lights.
• Jangan menunggang di bawah pengaruh alkohol atau dadah.
• Adjust your speed to suit road conditions, weather, and your riding ability.
• Berhati-hati dengan persekitaran anda dan pengguna jalan raya yang lain.
• Ensure the tricycle is properly folded and secured if transporting.
• The battery system is SGS certified to UL2849/UL2271, meeting high safety requirements.

3. Ciri-ciri Produk

The Vivi Electric Tricycle T01, shown here in black, features a robust frame, front and rear baskets, and a comfortable seat, designed for adult riders seeking stability and convenience.

3.1 Powerful Motor

Equipped with a 500W motor (750W peak), providing a maximum torque of 75 N.M. This powerful rear-drive motor allows for speeds up to 15.5 MPH and supports climbing slopes up to 25 degrees.

3.2 Removable Battery System

The tricycle features a 48V/499.2Wh removable lithium-ion battery. It supports fast charging in 4-5 hours and provides an estimated range of 40-55 miles in pedal-assist mode. The battery system is SGS certified to UL2849/UL2271 and has an IP65 waterproof rating.

3.3 Triple Suspension System

For enhanced comfort, the tricycle incorporates a triple suspension system, including seat cushion shock absorption, seat rod shock absorption, and a wide, thick cushion.

3.4 Speed Differential Mechanism

The integrated speed differential mechanism ensures smoother turns and improved stability, contributing to a safer and more comfortable riding experience by reducing tire wear and stress compared to traditional designs.

3.5 Ample Ruang Storan

The tricycle is equipped with both a front basket and a large rear cargo basket, providing ample space for carrying personal items, groceries, or other necessities.

3.6 Folding Design

The foldable frame significantly reduces the space required for storage and transport, making it convenient for users with limited space.

3.7 Dual Disc Brakes

Equipped with mechanical dual disc braking system, allowing for effective and instant stopping in various conditions, enhancing rider safety.

3.8 Dual Lighting System

A comprehensive lighting system with both a headlight and taillight is included to improve visibility and safety during night riding or in low-light conditions.

3.9 Fat Tires

The 2.6-inch fat tires provide enhanced shock absorption and riding stability across various terrains, contributing to a smoother ride and higher load capacity.

3.10 Parking Lever

A thoughtful parking lever design is included to secure the tricycle when stationary, preventing unintended movement.

3.11 Five Working Modes

The tricycle offers five distinct working modes to suit various riding preferences and scenarios: Throttle Mode, Pedal Assist Mode, Normal Bike Mode, Cruise Control Mode, and 2 Km/h Walking Assist Mode.

3.12 UL Certification

All Vivi e-bikes, including this model, have passed the UL 2849 standard and obtained certification from SGS, ensuring high safety requirements for electric mobility devices. You can verify the certificate of compliance di sini.

4. Persediaan (Perhimpunan)

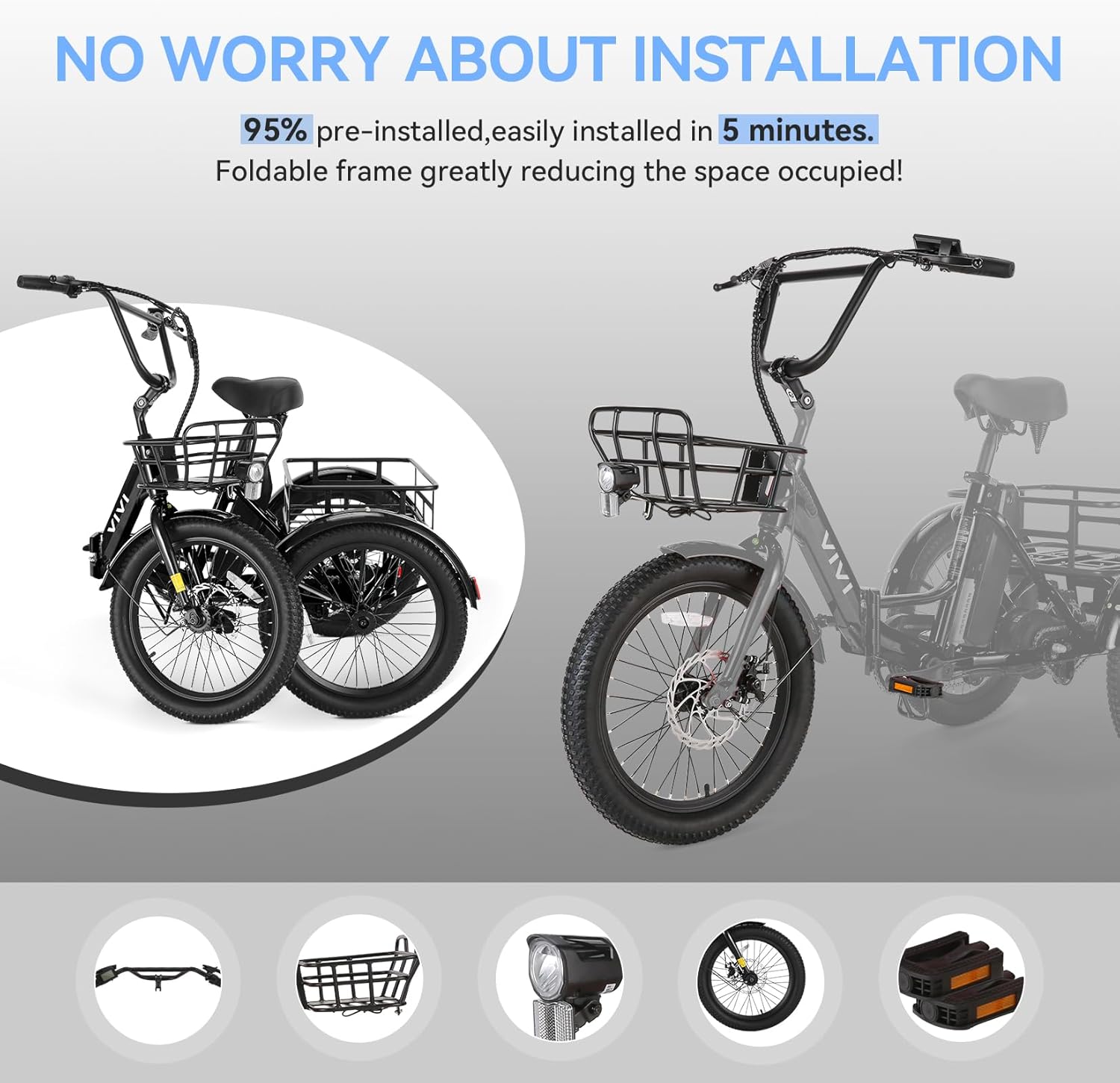

The Vivi Electric Tricycle T01 arrives 95% pre-assembled, significantly simplifying the setup process. Most users can complete the assembly within an hour or two.

Alat yang Diperlukan: A basic tool kit is included with your purchase. You may also need a wrench and Allen keys for specific adjustments.

Langkah Perhimpunan:

1. Keluarkan semua komponen dari pembungkusan dengan berhati-hati.
2. Unfold the main frame and secure the locking mechanism.
3. Attach the handlebars, ensuring all cables are properly routed and secured.
4. Install the front wheel and secure the front fender.
5. Attach the front basket to the designated mounting points.
6. Install the seat post and seat, adjusting to a comfortable height.
7. Connect the headlight and taillight, ensuring proper wiring.
8. Perform a final check of all bolts and quick releases to ensure they are tightened and secured.

For detailed visual instructions, please refer to the assembly video guide provided by Vivi (if available).

5. Arahan Operasi

Familiarize yourself with the controls and operating modes before your first ride.

5.1 Hidupkan/Mati Kuasa

• To power on the tricycle, press and hold the power button on the display panel.
• Untuk mematikan kuasa, tekan dan tahan butang kuasa sekali lagi sehingga paparan dimatikan.

5.2 Mod Kerja

The Vivi Electric Tricycle T01 offers five distinct riding modes:

• Mod Pendikit: Provides electric power without pedaling. Use the thumb throttle to control speed.
• Mod Bantuan Pedal (PAS): The motor provides assistance as you pedal. Adjust the assist level using the '+' and '-' buttons on the display. Higher levels provide more assistance.
• Mod Basikal Biasa: The electric motor is disengaged, and the tricycle operates like a traditional bicycle, relying solely on pedal power.
• Cruise Control Mode: Activates a constant speed. Refer to the display manual for specific activation instructions.
• 2 Km/h Walking Assist Mode: Provides a low-speed assist, useful when walking alongside the tricycle.

5.3 Operasi Lampu Depan

To turn on the headlight, press and hold the '+' button on the control panel for approximately 3 seconds.

6. Penyelenggaraan

Regular maintenance ensures the longevity and safe operation of your electric tricycle.

• Penjagaan Bateri: Charge the battery regularly, even if not in use, to maintain its health. Avoid fully discharging the battery. Store in a cool, dry place.
• Tekanan Tayar: Check tire pressure before each ride. Maintain recommended PSI levels (usually indicated on the tire sidewall) for optimal performance and safety.
• Brek: Regularly inspect brake pads and cables for wear. Adjust brakes as needed to ensure responsive stopping power.
• Pembersihan: Bersihkan basikal roda tiga dengan iklanamp kain. Elakkan menggunakan pancutan air tekanan tinggi secara langsung pada komponen elektrik.
• Pengikat: Periodically check and tighten all bolts, nuts, and quick releases.
• Pelinciran: Lubricate the chain and other moving parts as necessary to ensure smooth operation.

7. Penyelesaian masalah

Bahagian ini menangani isu biasa yang mungkin anda hadapi.

If you encounter issues not listed here or require further assistance, please contact Vivi customer support.

8. Spesifikasi

9. Waranti dan Sokongan

Vivi stands behind the quality of its products.

• Waranti: Your Vivi Electric Tricycle T01 comes with a one-year warranty covering the motor, battery, and major components.
• Sokongan Teknikal: Lifetime technical support is provided by Vivi to assist you with any questions or issues you may encounter.

For warranty claims or technical assistance, please refer to the contact information provided in your product packaging or visit the official Vivi webtapak.
