LCAOPC 71" Tall Metal Wardrobe Closet Instruction Manual

1. Produk Lebihview

The LCAOPC 71" Tall Metal Wardrobe Closet is designed for versatile storage in various home and office environments. Constructed from durable metal with a powder-coated surface, it offers a robust and easy-to-maintain storage solution. Key features include adjustable shelves, a hanging rod, and two doors with magnetic closures and golden handles.

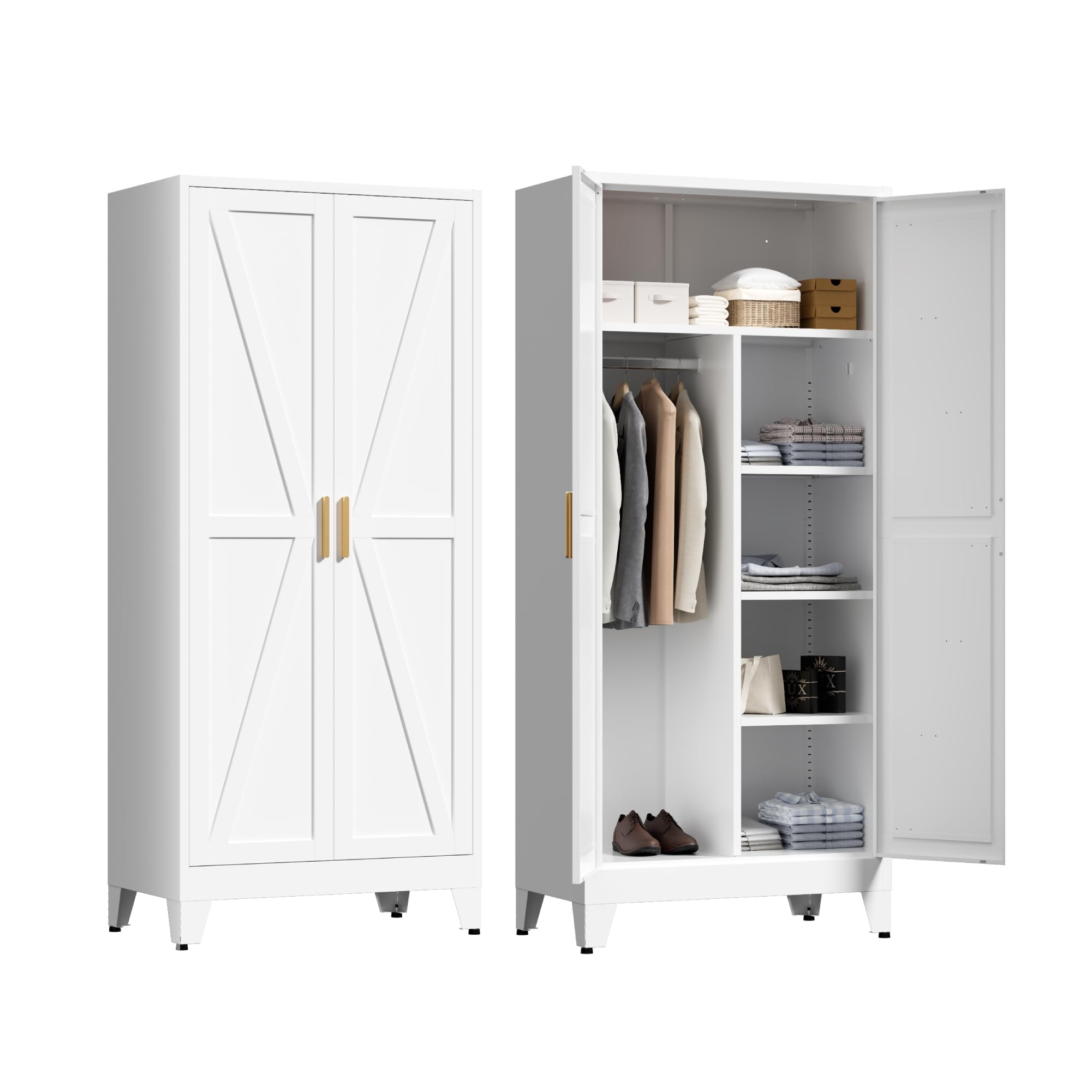

Image 1: Fully assembled LCAOPC 71" Tall Metal Wardrobe Closet in white, showcasing its two doors and golden handles.

2. Maklumat Keselamatan

• Sentiasa ikut arahan pemasangan dengan teliti.
• Use appropriate safety gear during assembly.
• Ensure the anti-tipping device is securely installed at the back of the cabinet to prevent accidental tipping, especially in households with children or pets.
• Do not exceed the maximum load capacity for shelves (120 lbs per shelf) or the hanging rod (66 lbs).
• Jauhkan bahagian kecil daripada kanak-kanak semasa pemasangan.

3. Kandungan Pakej

Before beginning assembly, verify that all parts and hardware are present and undamaged. Refer to the detailed parts list in the included manual for identification.

Image 2: All components and hardware laid out for assembly, including panels, shelves, hanging rod, and various fasteners.

4. Persediaan dan Pemasangan

Assembly requires two people. An electric screwdriver is recommended to expedite the process. Follow the step-by-step instructions provided in the video and accompanying diagrams.

4.1. Video Pemasangan

4.2. Key Assembly Steps

1. Sediakan Komponen: Lay out all metal panels and hardware on a soft, clean surface to prevent scratches. Identify parts A, B, C, D, etc., as per the manual.
2. Pangkalan Berhimpun: Connect the bottom panels using screws (L*3, N) as shown in the video.
3. Lampirkan Panel Sisi: Secure the side panels (C*1, D*1) to the base using screws (N). Ensure the panels are aligned correctly.
4. Pasang Panel Belakang: Attach the back panel (B*1) to the assembled frame using screws (N).
5. Panel Atas Selamat: Place the top panel (H*1) and secure it with screws (N).
6. Pasang Kaki Boleh Laras: Attach the adjustable non-slip feet (G*4) to the bottom of the wardrobe. These can be adjusted to stabilize the unit on uneven floors.
7. Insert Shelf Supports: Place the shelf supports (O*4) into the desired slots along the side panels.
8. Letakkan Rak: Insert the adjustable shelves (F*1) onto the supports. The shelves can be repositioned as needed.
9. Pasang Rod Gantung: Secure the clothes hanging rod (CC*1) into its designated position.
10. Pasang Pintu: Mount the two doors (J*1) to the main frame. Ensure they swing freely and close securely with the magnetic closures (Q*4).
11. Pasang Pemegang: Attach the golden handles (T*3) to the doors using screws (U*4).
12. Assemble Drawer (if applicable): If your model includes a drawer, assemble the drawer components (Y*1, Z*1, X*1) using screws (N) and attach the golden handle (T*3) with screws (UU*2). Install the drawer slides (P*1) into the cabinet and onto the drawer.
13. Pasang Peranti Anti-Tipping: Securely attach the anti-tipping device to the back of the wardrobe and to the wall as per the instructions to prevent tipping.

Image 3: Diagram showing the dimensions of the wardrobe: 71" H x 31.5" W x 17.72" D, with load capacities for shelves (120 lbs each).

5. Arahan Operasi

The LCAOPC metal wardrobe is designed for ease of use and customizable storage.

• Membuka/Menutup Pintu: Gently pull the golden handles to open the doors. Magnetic closures ensure the doors remain securely shut when closed.
• Melaraskan Rak: The shelves are adjustable to accommodate items of various heights. To adjust, remove items from the shelf, lift the shelf, reposition the shelf supports (O*4) to the desired height, and then reinsert the shelf (F*1).
• Using the Hanging Rod: The sturdy aluminum alloy hanging rod (CC*1) is suitable for hanging clothes, coats, and other garments.
• Penggunaan Laci: If your model includes a drawer, pull the golden handle to open and push to close. The drawer slides ensure smooth operation.

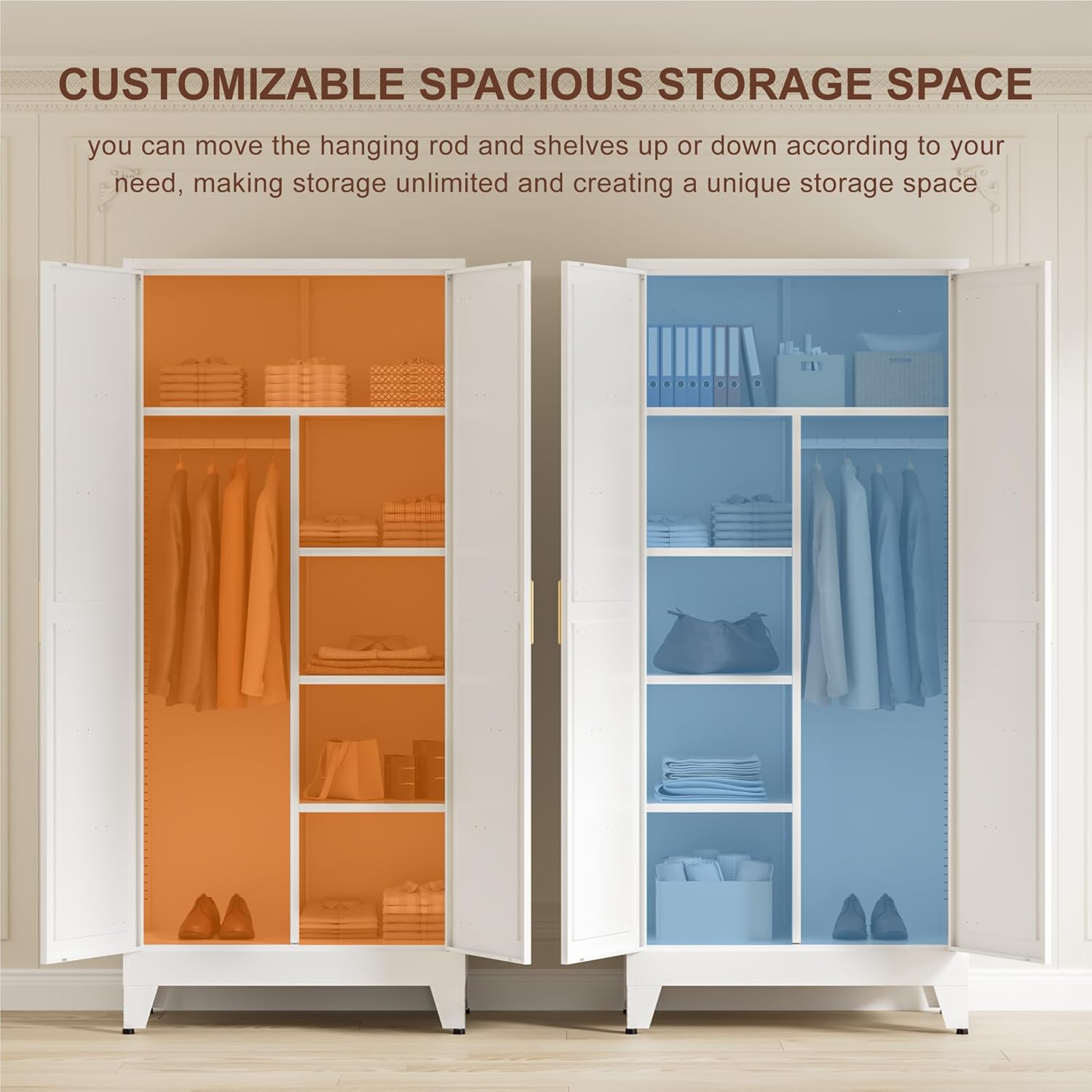

Image 4: Interior of the wardrobe showing a hanging rod on the left and adjustable shelves on the right, filled with various items.

6. Penyelenggaraan

The metal construction with environmental powder coating makes this wardrobe easy to maintain.

• Pembersihan: Lap permukaan dengan lembut, damp kain. Elakkan pembersih yang melelas atau bahan kimia keras yang boleh merosakkan kemasan.
• Scratch and Rust Resistance: The powder-coated surface provides resistance against scratches and rust. However, avoid sharp objects that could chip the coating.
• Kaki boleh laras: Periodically check the adjustable feet to ensure they are tight and the wardrobe remains stable.

7. Penyelesaian masalah

• Pintu tidak ditutup dengan betul: Ensure the wardrobe is level by adjusting the non-slip feet. Check that no items inside are obstructing the doors.
• Bergoyang-goyang: Adjust the non-slip feet on the base to ensure all four feet are making firm contact with the floor and the unit is stable.
• Difficulty with drawer operation: Periksa sama ada slaid laci dipasang dengan betul dan bebas daripada halangan. Pastikan laci tidak terlebih muatan.

8. Spesifikasi

9. Waranti dan Sokongan

This product is sold by LCAOPC Direct and includes a 30-day easy return policy. Extended protection plans are available for purchase:

• Pelan Perlindungan 2 Tahun: $32.99
• Pelan Perlindungan 3 Tahun: $40.99
• Perlindungan Lengkap: $16.99/bulan (meliputi semua pembelian masa lalu dan masa hadapan yang layak)

For customer support, please contact LCAOPC Direct through your purchase platform.
