ROCAM CR1030 Emergency Solar Hand-Crank AM/FM Radio User Manual

1. Pengenalan

Thank you for choosing the ROCAM CR1030 Emergency Solar Hand-Crank AM/FM Radio. This versatile device is designed to provide reliable communication, light, and power in various situations, including outdoor activities and emergencies. Please read this manual thoroughly before use to ensure optimal performance and safety.

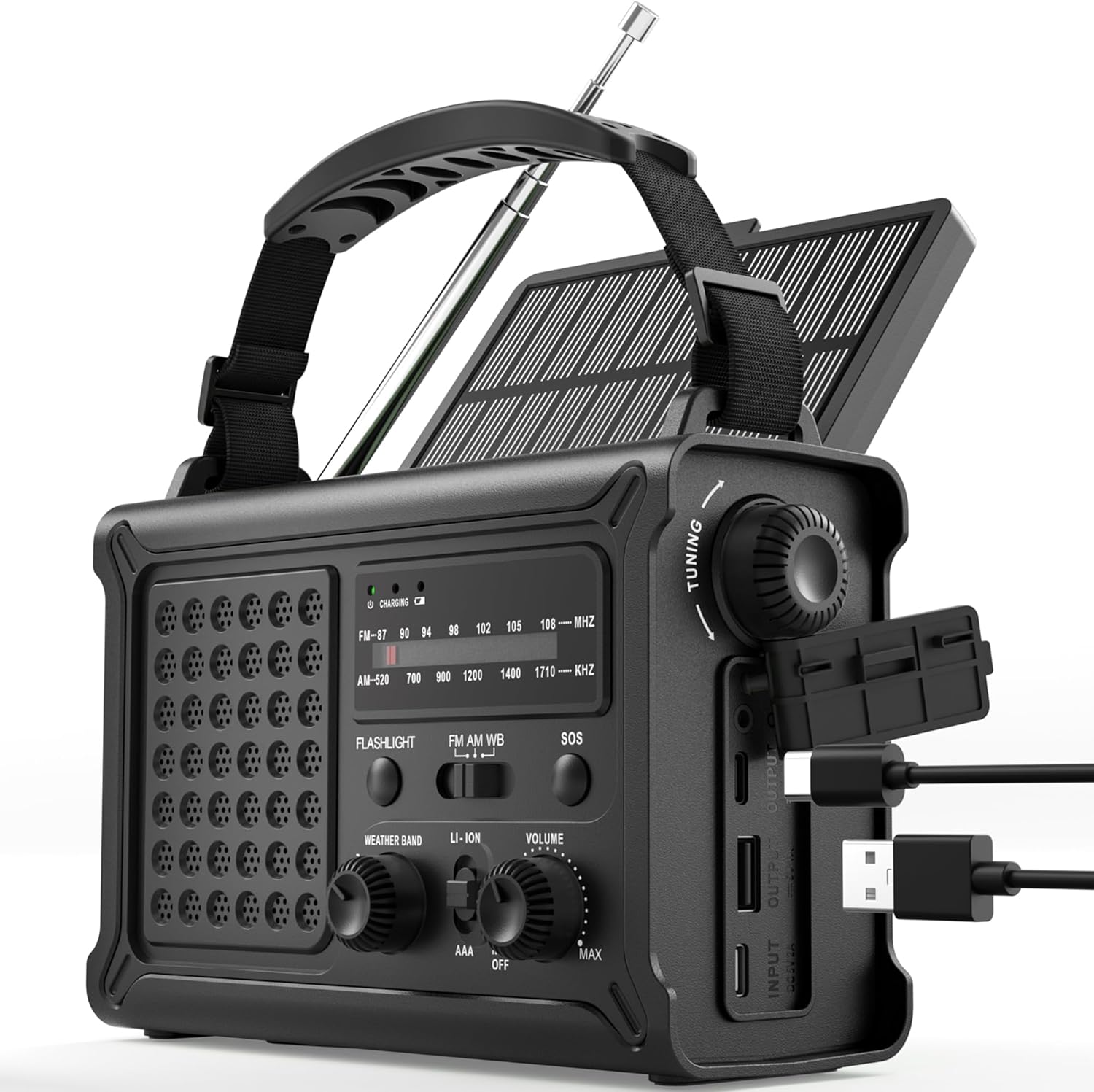

The ROCAM CR1030 Emergency Solar Hand-Crank AM/FM Radio, featuring its robust design and multiple functionalities.

2. Kandungan Pakej

Pastikan semua item ada dalam pakej anda:

• ROCAM CR1030 AM/FM Radio
• Portable Strap
• Kabel Pengecasan Jenis-C
• Manual Pengguna

3. Persediaan dan Penggunaan Awal

3.1 Mengecas Bateri Dalaman

Before first use, fully charge the internal 12000mAh battery using the provided Type-C cable.

1. Connect the Type-C charging cable to the radio's Type-C input port.
2. Sambungkan hujung kabel yang satu lagi ke penyesuai kuasa USB (tidak disertakan) atau port USB komputer.
3. The charging indicator light will illuminate. The radio is fully charged when the indicator turns solid.

The ROCAM CR1030 radio connected to a power source via its USB-C port for charging.

3.2 Installing AAA Batteries (Backup Power)

For additional backup power, you can install 3 AAA batteries (not included).

1. Cari petak bateri di belakang radio.
2. Buka penutup petak.
3. Masukkan 3 bateri AAA, pastikan kekutuban (+/-) betul.
4. Tutup penutup petak bateri dengan selamat.

4. Arahan Operasi

4.1 Menghidupkan/Mematikan dan Kawalan Kelantangan

Putar JILID knob clockwise to turn the radio on and increase volume. Rotate counter-clockwise to decrease volume and turn off.

4.2 Operasi Radio (AM/FM)

1. Panjangkan antena teleskopik untuk penerimaan optimum.
2. Select the desired band (AM or FM) using the BAND suis.
3. Putar MENALA knob to scan for stations. The frequency display will show the current station.
4. Laraskan JILID tombol ke tahap pendengaran pilihan anda.

The ROCAM CR1030 radio with its antenna extended, demonstrating its AM/FM reception capabilities.

4.3 Fungsi Pencahayaan

The radio features two lighting modes:

• Lampu suluh: Tekan ke LAMPU SULUH button to turn on the front LED flashlight. Press again to turn off.
• Membaca Lamp: Angkat panel solar untuk mendedahkan bacaan lamp. Tekan ke CAHAYA button (located under the solar panel) to turn on the 12 LED reading lamp. Press again to turn off.

The ROCAM CR1030 providing illumination with its flashlight and reading lamp in different outdoor settings.

4.4 Penggera SOS

In an emergency, activate the SOS alarm:

• Tekan dan tahan butang SOS button. The radio will emit a loud 120dB siren and a flashing red light.
• Release the button to deactivate the alarm.

The ROCAM CR1030 highlighting its SOS alarm, 12000mAh power bank, and ability to keep users informed during emergencies.

4.5 Pengecasan Peranti Luaran (Power Bank)

The 12000mAh internal battery can charge your mobile devices:

1. Connect your device's charging cable to the radio's USB-A output port or Type-C output port.
2. Radio akan mula mengecas peranti anda.

4.6 Pengecasan Suria

The integrated solar panel provides a supplementary charging method:

• Letakkan radio dengan panel solar menghadap cahaya matahari langsung.
• The solar charging indicator will light up.
• Solar charging is most effective in strong, direct sunlight and is primarily intended for maintaining battery charge or for emergency top-ups.

The ROCAM CR1030 demonstrating its dual power upgrades: a large solar panel and an efficient hand crank for charging.

4.7 Hand-Crank Charging

When no other power source is available, use the hand crank:

1. Unfold the hand crank handle from the back of the radio.
2. Rotate the crank clockwise or counter-clockwise at a steady pace (approximately 130-150 RPM) for 3-5 minutes to generate enough power for basic functions (radio, light).
3. The charging indicator will light up during cranking.

A terperinci view of the high-torque hand crank mechanism on the ROCAM CR1030 radio.

5. Penyelenggaraan

5.1 Pembersihan

Lap radio dengan lembut, damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure all ports are dry before use or charging.

5.2 Penyimpanan

Store the radio in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, ensure the internal battery is charged to at least 50% and recharge every 3-6 months to prolong battery life. Remove AAA batteries if not used for a long time.

5.3 Rintangan Air (IPX6)

The ROCAM CR1030 is IPX6 waterproof, meaning it can withstand powerful water jets. It is not designed for submersion. Ensure all port covers are securely closed to maintain water resistance.

The ROCAM CR1030 is designed for outdoor use, being portable and waterproof (IPX6 rated).

6. Penyelesaian masalah

7. Spesifikasi

The ROCAM CR1030 radio, highlighting its 12000mAh battery capacity.

8. Waranti dan Sokongan

ROCAM products are designed for reliability and performance. For warranty information or technical support, please refer to the contact details provided on the product packaging or the official ROCAM webtapak. Simpan resit pembelian anda sebagai bukti pembelian.

9. Produk Lebihview Video

Tonton video ini untuk cepat selesaiview of the ROCAM CR1030 Emergency Solar Hand-Crank AM/FM Radio's features and functions.
