Image: The HITBOX HBM200AZ 140A 4-in-1 welding machine, showcasing reka bentuk kompak dan kawalan panel hadapannya.
pengenalan
This manual provides essential instructions for the safe and effective operation of your HITBOX HBM200AZ 140A 4-in-1 welding machine. This versatile unit supports MIG (Flux-Cored), MMA (ARC), and Lift TIG welding processes, and is compatible with a Spool Gun (not included). Please read this manual thoroughly before use to ensure proper setup, operation, and maintenance.
Maklumat Keselamatan
AMARAN: Kimpalan boleh berbahaya. Sentiasa patuhi langkah berjaga-jaga keselamatan untuk mencegah kecederaan atau kematian.
- Sentiasa pakai peralatan pelindung diri (PPE) yang sesuai, termasuk topi keledar kimpalan dengan pelindung matahari yang betul, pakaian tahan api, sarung tangan kimpalan dan kasut keselamatan.
- Pastikan pengudaraan yang mencukupi untuk mengelakkan terhidu asap kimpalan.
- Lindungi orang ramai daripada sinaran arka dan logam panas.
- Never weld near flammable materials or in explosive atmospheres.
- Pastikan mesin kimpalan dibumikan dengan betul.
- Putuskan sambungan kuasa sebelum melakukan sebarang penyelenggaraan atau menukar aksesori.
- Jangan sentuh bahagian hidup elektrik.
Kandungan Pakej
Sahkan bahawa semua item yang disenaraikan di bawah disertakan dalam pakej anda:
- 1 × HITBOX HBM200AZ 230V Welding Machine
- 1 × Separated MIG Torch (2.5m)
- 1 × Electrode Holder (1.5m)
- 1 × Earth Clamp (1.5m)
- 1 × Brush
- 1 × MIG Nozzle
- 5 × Contact Tips (3x 0.8mm, 2x 1.0mm)
- 5 × 2.0mm Welding Rods
- 1 × Manual Pengguna
- (Note: Spool Gun and WP17V TIG torch are not included and require separate purchase for full functionality.)
Imej: Selesaiview of the HITBOX HBM200AZ welding machine and its complete set of included accessories, such as the MIG torch, electrode holder, earth clamp, brush, contact tips, and welding rods.

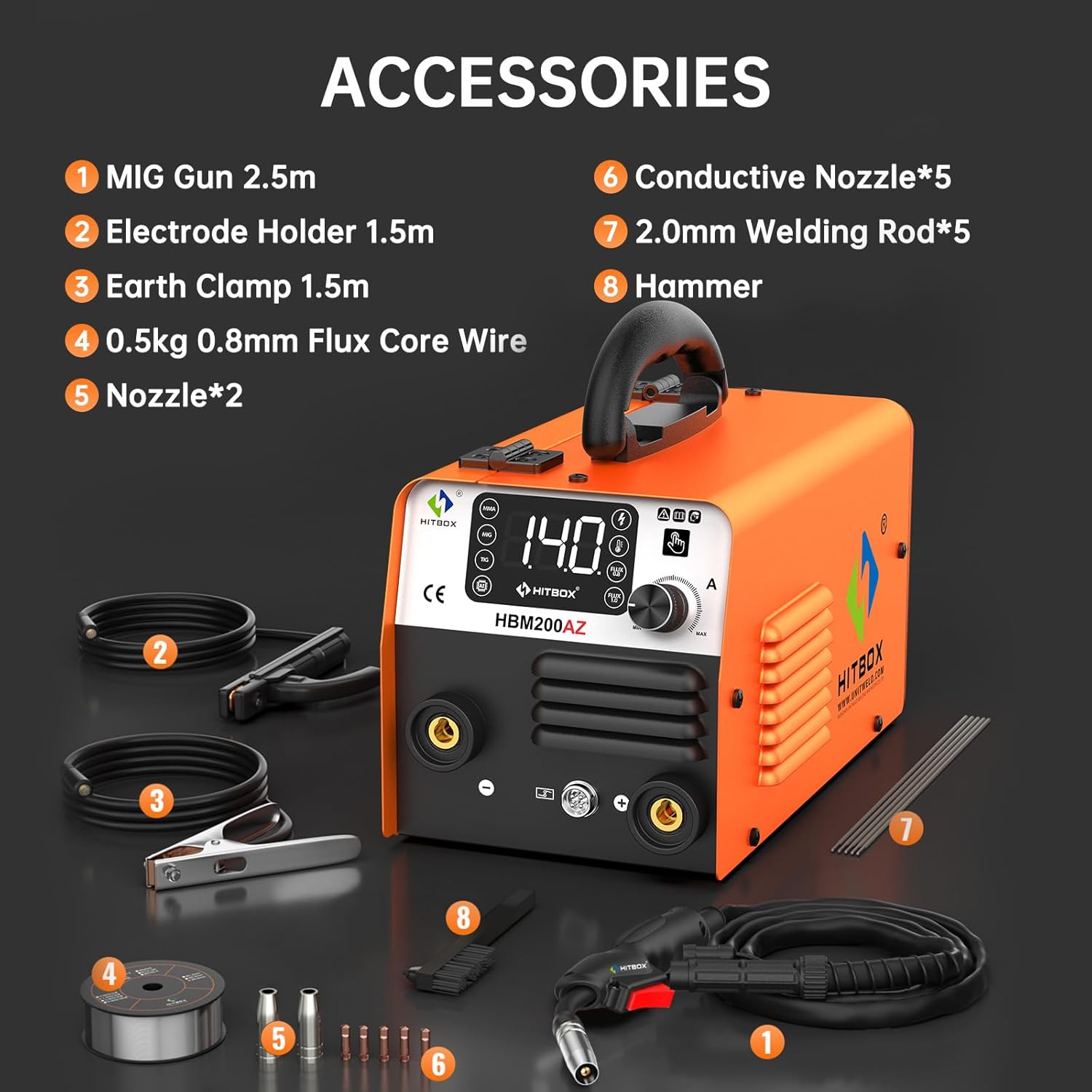

Image: Detailed diagram illustrating the various components included in the package, such as the MIG gun, electrode holder, earth clamp, flux core wire, nozzles, contact tips, welding rods, and hammer.
Ciri-ciri Produk
The HITBOX HBM200AZ welding machine is designed for versatility and ease of use, offering multiple welding processes in a compact form factor.
- Keupayaan Kimpalan 4-dalam-1: Supports Flux-Cored MIG, MMA (Stick), Lift TIG, and is compatible with a Spool Gun for specialized applications.
- Antara Muka Mesra Pengguna: Features an intuitive LED display and single-knob control for easy adjustment of welding parameters. The SYN function automatically adjusts wire feed speed based on selected current and wire diameter.
- Padat dan Mudah Alih: Weighing approximately 3.7 kg (8.1 lbs) and with dimensions of 28.4 × 15 × 15.4 cm, it is highly portable for various work environments.
- Keselamatan dan Ketahanan: Equipped with multiple protection features including overcurrent, overvoltage, undervoltage, and overheating protection. An efficient cooling system and IP21 protection rating enhance reliability and lifespan.
Image: The HITBOX HBM200AZ welding machine highlighting its four primary welding modes: Flux MIG, MMA, Lift TIG, and Spool Gun compatibility.
Image: Visual representation of the four welding processes supported by the HITBOX HBM200AZ: Flux MIG, Stick (MMA), Lift TIG (WP17V torch not included), and Spool Gun compatibility.
Image: Close-up of the HITBOX HBM200AZ's control panel, featuring a digital display showing "140" amps and mode selection buttons for MMA, MIG, and TIG, emphasizing its user-friendly interface.
Image: Illustration of the synergic control feature for MIG welding, showing how to select wire size and adjust current, with automatic matching of wire feeding speed.
Image: The compact size and light weight (3.5kg) of the HITBOX HBM200AZ, shown next to a shoebox for scale, highlighting its portability.
Image: The HITBOX HBM200AZ welding machine placed in a car trunk, illustrating its compact design and ease of transport.
Imej: Satu dalaman view of the HITBOX HBM200AZ, highlighting its high integration MCU and premium fan for safety and durability, including icons for overvoltage, overcurrent, overheating, and overload protection, plus IP21 rating.
Image: The HITBOX HBM200AZ welding machine displayed with icons representing its reliable and durable protection features: overvoltage, overcurrent, overheating, overload protection, and IP21 rating.
Image: A comparison highlighting the waterproof power switch of the HITBOX HBM200AZ, which prevents water and dust ingress, extends lifespan, and ensures stable operation in high temperatures, contrasted with a non-waterproof switch.
Persediaan
- Membongkar dan Pemeriksaan: Tanggalkan mesin kimpalan dan semua aksesori daripada pembungkusan dengan berhati-hati. Periksa sebarang kerosakan semasa pengangkutan.
- Sambungan Kuasa: Connect the machine to a suitable 230V power supply. Ensure the power switch is in the OFF position before plugging in.
- Tanah Clamp Sambungan: Pasang bumi clamp Pastikan sentuhan elektrik yang baik.
- MIG Torch / Electrode Holder Connection:
- For MIG welding, connect the MIG torch to the appropriate connector on the front panel.
- For MMA welding, connect the electrode holder to the positive (+) terminal and the earth clamp ke terminal negatif (-).
- For Lift TIG welding, connect the TIG torch (not included) to the negative (-) terminal and the earth clamp ke terminal positif (+).
- Wire Installation (MIG/Flux-Cored):
- Buka petak suapan wayar.
- Letakkan gelendong wayar pada gelendong, pastikan ia berputar dengan bebas.
- Feed the wire through the guide tube and into the drive roller mechanism.
- Close the drive roller tension arm and adjust tension as needed (not too tight, not too loose).
- Remove the nozzle and contact tip from the MIG torch.
- Press the torch trigger to feed the wire through the torch liner until it emerges from the torch head.
- Pasang semula hujung sesentuh dan muncung.
Image: Illustration of the smooth wire feeding mechanism, showing the wire spool, drive rollers, and the path of the flux core wire into the MIG gun. It also indicates the shell switch for MIG/Spool Gun mode and screw adjustment.
Image: Diagram demonstrating the correct installation of flux core wire (0.8mm and 1.0mm) onto the spool holder within the welding machine.
Imej: Meletup view of the HITBOX MIG torch head, showing the nozzle, electrode (contact tip), and their assembly. Instructions for removing and installing these parts during wire feeding are also provided.
Arahan Operasi
The HITBOX HBM200AZ offers multiple welding modes. Select the appropriate mode and adjust parameters according to the material thickness and welding process.
1. Flux-Cored MIG Welding (No Gas)
- Ensure the flux-cored wire is correctly installed.
- Hidupkan mesin.
- Press the "MIG" button on the control panel.
- Select the wire diameter (0.8mm or 1.0mm) using the dedicated buttons.
- Adjust the welding current (30-140A) using the main control knob. The machine's SYN function will automatically set the wire feed speed.
- Mulakan kimpalan, kekalkan panjang arka dan kelajuan perjalanan yang konsisten.
2. Kimpalan MMA (Batang)
- Sambungkan pemegang elektrod ke terminal positif (+) dan penutup bumiamp ke terminal negatif (-).
- Insert a suitable electrode (e.g., 2.0mm) into the electrode holder.
- Hidupkan mesin.
- Press the "MMA" button on the control panel.
- Adjust the welding current (30-140A) using the main control knob according to the electrode type and material thickness.
- Strike the arc by lightly tapping or scratching the electrode against the workpiece.
3. Angkat Kimpalan TIG
Note: A WP17V TIG torch and shielding gas (99.9% Argon) are required and not included with this machine.
- Connect the TIG torch to the negative (-) terminal and the earth clamp ke terminal positif (+).
- Ensure a tungsten electrode is correctly installed in the TIG torch.
- Connect the argon gas cylinder to the TIG torch (if applicable for your torch setup).
- Hidupkan mesin.
- Press the "TIG" button on the control panel.
- Adjust the welding current (30-140A) using the main control knob.
- To initiate the arc, gently touch the tungsten electrode to the workpiece and then lift it slightly (Lift TIG).
Welding Parameter Guide
Refer to the table below for recommended welding parameters based on material thickness and welding mode. These are general guidelines and may require fine-tuning based on specific conditions and operator skill.
Image: A detailed chart providing recommended current settings (Amps) for Flux Core MIG, MMA, and Lift TIG welding modes across various material thicknesses (0.6mm to 4.0mm) and wire/electrode diameters.
Imej: Bekasample of a consistent weld bead, demonstrating the quality welding performance achievable with the machine.
Imej: Visual examples of various materials that can be welded with the HITBOX HBM200AZ, including mild steel, cast iron, square pipe, stainless steel, sheet metal, and metal cages.
Penyelenggaraan
Penyelenggaraan tetap memastikan jangka hayat dan prestasi optimum mesin kimpalan anda.
- Pembersihan: Periodically clean the machine's exterior with a dry, soft cloth. Use compressed air to blow out dust from the cooling vents. Ensure the machine is unplugged before cleaning.
- Pemeriksaan Kabel dan Sambungan: Regularly inspect all cables, connections, and the torch for wear, damage, or loose connections. Replace damaged parts immediately.
- Mekanisme Suapan Kawat: Clean the drive rollers and wire guide regularly to prevent blockages and ensure smooth wire feeding. Check for proper tension.
- Petua Hubungan dan Nozel: Replace worn contact tips and clogged nozzles as needed to maintain arc stability and weld quality.
- Storan: Store the welding machine in a clean, dry environment, away from dust and moisture, when not in use.
Menyelesaikan masalah
Bahagian ini menangani isu biasa yang mungkin anda hadapi. Untuk masalah yang tidak disenaraikan di sini, hubungi sokongan pelanggan.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Tiada kuasa pada mesin | Kord kuasa tertanggal, pemutus litar terpelantik, suis kuasa rosak. | Periksa sambungan kord kuasa, tetapkan semula pemutus litar, pastikan suis kuasa HIDUP. |
| Tiada lengkungan / Lengkungan lemah | Poor ground connection, incorrect current setting, worn contact tip/electrode, wrong welding mode. | Pastikan tanah clamp is secure, adjust current, replace contact tip/electrode, select correct welding mode. |
| Wire not feeding (MIG) | Wire tangled, drive rollers too loose/tight, clogged liner, worn contact tip. | Check wire spool, adjust drive roller tension, clean/replace liner, replace contact tip. |
| Mesin menjadi terlalu panas dan mati | Exceeded duty cycle, blocked ventilation, high ambient temperature. | Allow machine to cool down, ensure clear ventilation, operate in a cooler environment. |
| Kualiti kimpalan yang lemah (keliangan, percikan) | Incorrect parameters, dirty workpiece, improper technique, worn consumables. | Laraskan arus/volumtage, clean workpiece, refine welding technique, replace contact tip/nozzle. |
Spesifikasi
| Ciri | Perincian |
|---|---|
| Model | HBM200AZ |
| Input Voltage | 230 Volt |
| Julat Arus Kimpalan | 30-140A |
| Proses Kimpalan | MIG (Flux-Cored), MMA (ARC), Lift TIG, Spool Gun Compatible |
| Dimensi (L×W×H) | 28.4 × 15 × 15.4 cm (11.22 × 5.91 × 6.1 inci) |
| Berat badan | 3.7 kg (8.1 lbs) |
| Kelas Perlindungan | IP21 |
| Jenis Kuasa | DC |
| Rujukan Pengeluar | H1032037 |
Waranti dan Sokongan
For warranty information, technical assistance, or customer service inquiries, please contact HITBOX customer support. Refer to the product packaging or the official HITBOX webtapak untuk butiran hubungan terkini.
