HITBOX ARC200S Inverter Welder User Manual

1. Pengenalan

Thank you for choosing the HITBOX ARC200S Inverter Welder. This compact and versatile 2-in-1 machine is designed for both MMA (Stick) and Lift TIG welding, suitable for beginners and DIY enthusiasts, as well as light professional use. It features an intelligent LED display, adjustable Hot Start and Arc Force, Anti-Stick, and VRD functions for enhanced control and safety. Please read this manual thoroughly before operation to ensure safe and efficient use of your welding machine.

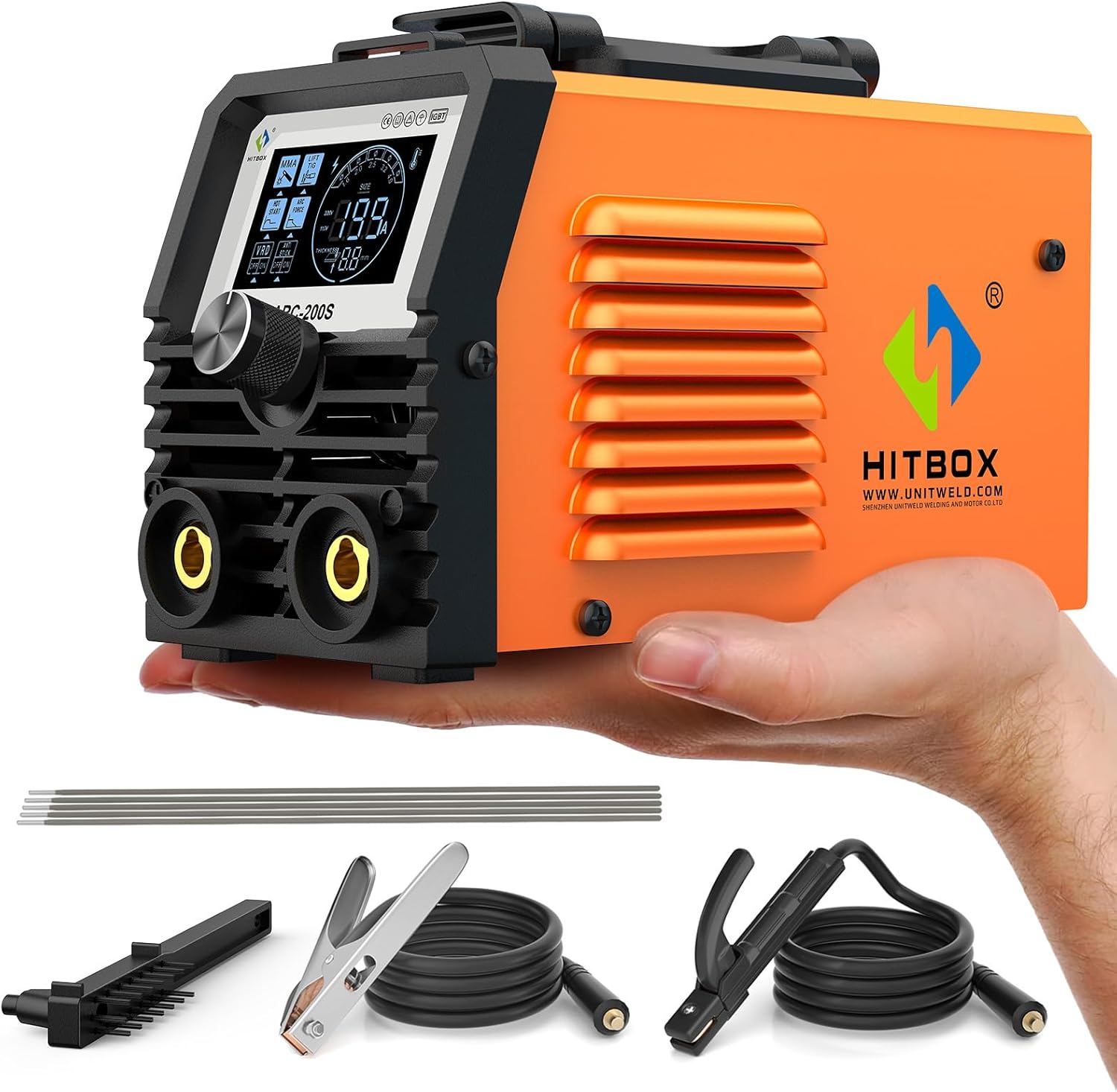

Image 1.1: The HITBOX ARC200S Inverter Welder shown with included accessories: electrodes, ground clamp, pemegang elektrod dan berus dawai.

2. Maklumat Keselamatan

AMARAN: Welding can be dangerous. Always follow safety precautions to prevent injury or death.

• Sentiasa pakai peralatan pelindung diri (PPE) yang sesuai, termasuk topi keledar kimpalan dengan pelindung matahari yang betul, pakaian tahan api, sarung tangan kimpalan dan kasut keselamatan.
• Pastikan pengudaraan yang mencukupi untuk mengelakkan terhidu asap kimpalan.
• Lindungi orang ramai daripada sinaran arka dan logam panas.
• Jangan mengimpal berhampiran bahan mudah terbakar.
• Pastikan mesin kimpalan dibumikan dengan betul.
• Putuskan sambungan kuasa sebelum melakukan sebarang penyelenggaraan atau menukar aksesori.
• Jangan sekali-kali menyentuh bahagian elektrik hidup.
• Jauhkan kanak-kanak dan kakitangan yang tidak dibenarkan dari kawasan kimpalan.

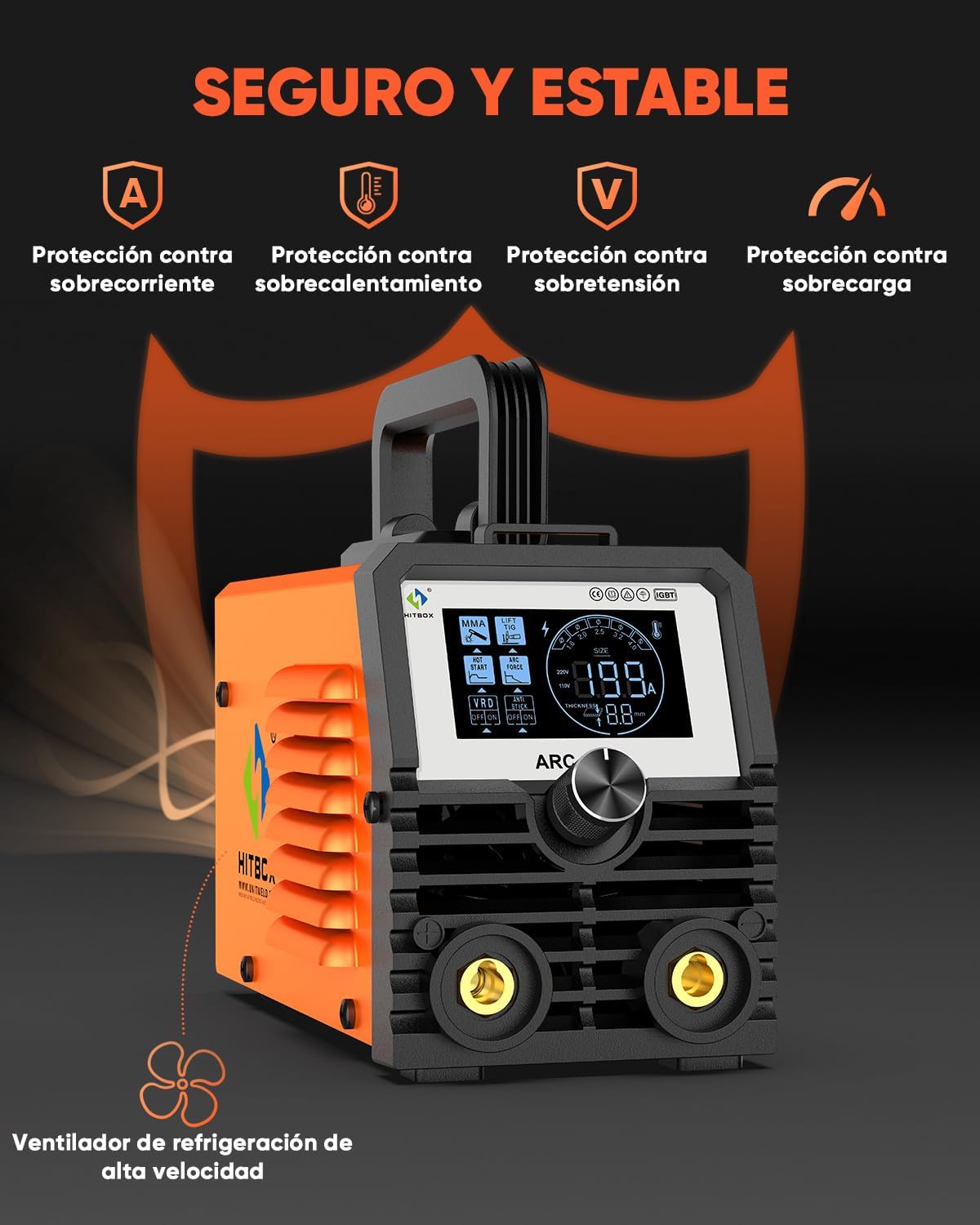

Image 2.1: The HITBOX ARC200S welder highlighting its safety features including protection against overcurrent, overheating, overvoltage, and overload, along with a high-speed cooling fan.

3. Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej:

• 1 x HITBOX ARC200S Inverter Welder
• 5 x E6013 Electrodes (2.0 mm)
• 1 x 300A Ground Clamp dengan Kabel 1.5 m
• 1 x 200A Electrode Holder with 1.5 m Cable
• 1 x Wire Brush
• 1 x Manual Pengguna

Image 3.1: All components included in the HITBOX ARC200S package, laid out for inspection.

4. Spesifikasi Produk

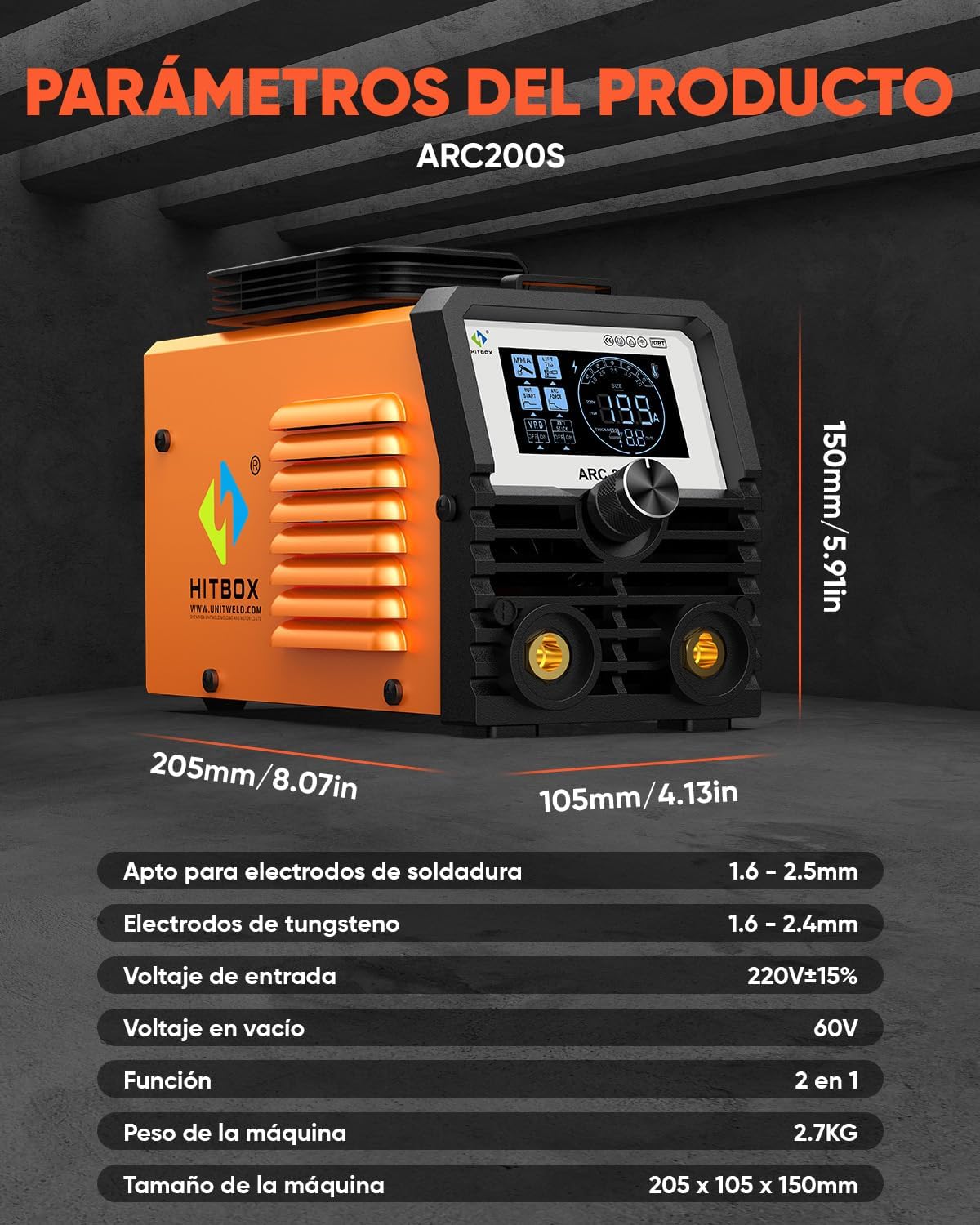

Image 4.1: Detailed product dimensions and key specifications of the HITBOX ARC200S.

5. Persediaan

5.1 Panel Hadapan Atasview

Image 5.1: Diagram illustrating the front panel components of the ARC200S, including the digital LED display, parameter/mode adjustment knob, positive output terminal, and negative output terminal.

1. Paparan LED Digital: Shows welding parameters and settings.
2. Parameter / Mode Adjustment Knob: Used to select welding mode and adjust current.
3. Terminal Output Positif: Connects to the electrode holder for MMA welding or TIG torch for Lift TIG.
4. Terminal Output Negatif: Connects to the ground clamp.

5.2 Panel Belakangview

Image 5.2: Diagram illustrating the rear panel components of the ARC200S, including the power switch, power cable, and cooling fan.

5. Suis kuasa: HIDUP/MATI mesin.
6. Kabel kuasa: Connects the machine to the main power supply.
7. Kipas Penyejuk: Provides necessary cooling during operation.

5.3 Connecting for MMA (Stick) Welding

1. Ensure the welder is turned OFF and unplugged.
2. Connect the electrode holder cable to the positif (+) terminal keluaran.
3. Sambungkan tanah clamp kabel ke negatif (-) terminal keluaran.
4. Pasangkan tanah cl dengan selamatamp ke benda kerja atau meja kimpalan.
5. Insert an appropriate electrode into the electrode holder.

Image 5.3: Connection diagram for MMA welding, showing the electrode holder connected to the positive terminal and the ground clamp ke terminal negatif.

5.4 Connecting for Lift TIG Welding (TIG Torch not included)

1. Ensure the welder is turned OFF and unplugged.
2. Connect the TIG torch cable to the negatif (-) terminal keluaran.
3. Sambungkan tanah clamp kabel ke positif (+) terminal keluaran.
4. Pasangkan tanah cl dengan selamatamp ke benda kerja atau meja kimpalan.
5. Pastikan elektrod tungsten yang sesuai dipasang pada obor TIG.
6. Connect the gas hose from the TIG torch to a shielding gas cylinder (e.g., Argon) with a regulator.

Image 5.4: Connection diagram for Lift TIG welding, showing the TIG torch connected to the negative terminal and the ground clamp to the positive terminal. Note: TIG torch and gas cylinder are sold separately.

6. Arahan Operasi

6.1 Kuasa Hidup dan Pemilihan Mod

1. Plug the power cable into a suitable 230V power outlet.
2. Turn on the power switch located on the rear panel.
3. The LED display will illuminate. Use the adjustment knob to select between MMA (Stick) and Lift TIG modes.

Image 6.1: The professional-grade HD LED display of the ARC200S, clearly showing welding parameters and selected modes (MMA, Lift TIG, Hot Start, Arc Force, VRD, Anti-Stick).

6.2 Melaraskan Parameter Kimpalan

The ARC200S features fully adjustable welding functions for optimal control:

• Pelarasan Semasa: Rotate the adjustment knob to set the desired welding current (Amperage). The display will show the selected value.
• Permulaan panas: This function provides an initial boost of current to make arc ignition easier, especially with difficult-to-start electrodes. It is adjustable for fine-tuning.
• Pasukan Arka: Helps prevent the electrode from sticking to the workpiece by increasing current when the arc length becomes too short. This is also adjustable.
• Anti-stick: Automatically reduces the current if the electrode sticks, allowing it to be easily removed without damaging the electrode holder.
• VRD (Jilidtage Peranti Pengurangan): Mengurangkan vol litar terbukatage to a safe level when the machine is idle, enhancing safety. It has an ON/OFF switch.

Refer to the display (Image 6.1) to monitor and adjust these settings.

6.3 Proses Kimpalan (Umum)

1. Prepare your workpiece by cleaning it thoroughly to remove rust, paint, or grease.
2. Ensure proper ventilation and wear all required PPE.
3. Position yourself comfortably and safely.
4. For MMA Welding: Strike the arc by lightly touching the electrode to the workpiece and quickly lifting it slightly to establish the arc. Maintain a consistent arc length and travel speed.
5. For Lift TIG Welding: Gently touch the tungsten electrode to the workpiece, then lift it slightly to initiate the arc. Maintain a short arc length and feed filler rod manually if required.
6. After welding, turn off the machine and allow the workpiece to cool before handling.

Image 6.2: An operator performing MMA (stick) welding with the HITBOX ARC200S, demonstrating the 2-in-1 functionality.

Image 6.3: An operator performing Lift TIG welding with the HITBOX ARC200S, demonstrating the 2-in-1 functionality. Note that the TIG torch is not included with the machine.

7. Penyelenggaraan

• Pembersihan: Regularly clean the machine's exterior with a dry cloth. Use compressed air to blow out dust from inside the machine through the vents, ensuring the power is disconnected.
• Pemeriksaan Kabel: Periodically inspect all cables (power, electrode holder, ground clamp) for cuts, fraying, or damaged insulation. Replace damaged cables immediately.
• Sambungan Terminal: Ensure all terminal connections are tight and free from corrosion.
• Storan: Store the welder in a dry, clean environment, away from excessive dust and moisture.

8. Penyelesaian masalah

9. Waranti dan Sokongan

The HITBOX ARC200S Inverter Welder comes with professional technical support for up to 2 years. For any technical assistance, warranty claims, or inquiries, please contact HITBOX customer service.

Please refer to the contact information provided in your purchase documentation or visit the official HITBOX webtapak untuk butiran sokongan.
