1. Pengenalan
Thank you for choosing the Babyletto Crosby 3-in-1 Convertible Crib. This manual provides essential information for the safe assembly, operation, and maintenance of your crib. The Crosby crib is designed to blend classic aesthetics with modern functionality, featuring a curved silhouette and whimsical ball feet. Crafted from sustainable materials, it converts from a crib to a toddler bed and a daybed, adapting to your child's growth. Please read all instructions carefully before assembly and use.

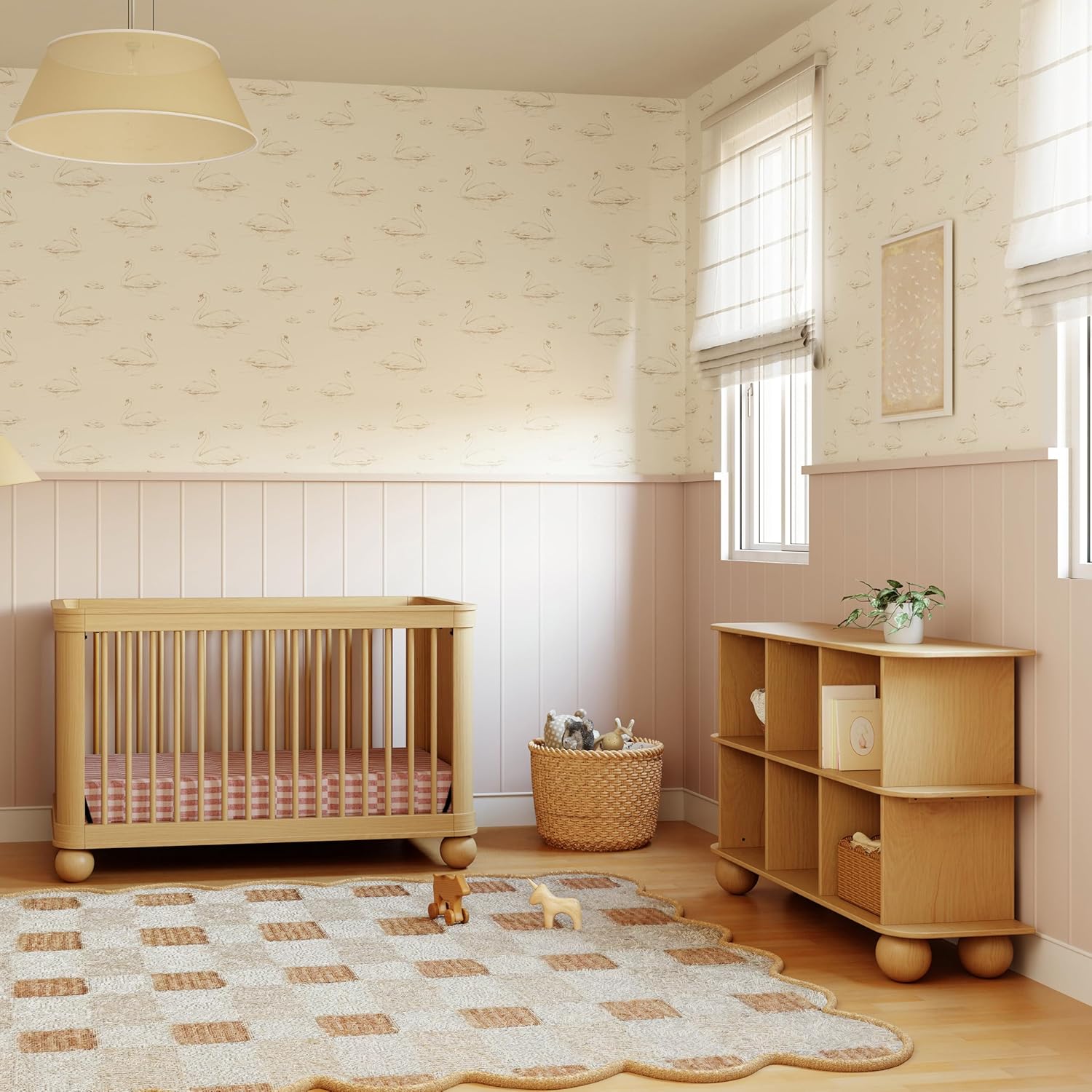

Image 1.1: The Babyletto Crosby 3-in-1 Convertible Crib in a nursery setting.
2. Maklumat Keselamatan Penting
AMARAN: Kegagalan untuk mengikuti amaran ini dan arahan pemasangan dapat mengakibatkan kecederaan serius atau kematian.
- Read all instructions before using the crib. Keep this manual for future reference.
- Do not use this crib if any parts are missing, damaged, or broken. Contact Babyletto for replacement parts and instructional literature if needed. Do not substitute parts.
- The crib is designed for a child who cannot climb out and is less than 35 inches (89 cm) tall.
- To prevent falls, when the child is able to pull to a standing position, set the mattress to the lowest position.
- Check the crib regularly for loose hardware, worn parts, or sharp edges. Tighten all fasteners securely.
- Jangan letakkan katil bayi berhampiran tingkap di mana tali daripada bidai atau langsir boleh mencekik kanak-kanak.
- Do not place items with a string or strap around a child's neck, such as pacifier clips or necklaces.
- Jangan gantung tali di atas katil bayi atau pasangkan tali pada mainan.
- Never use plastic shipping bags or other plastic film as mattress covers. They can cause suffocation.
- Bayi boleh lemas di atas cadar yang lembut. Jangan sekali-kali menambah bantal, selimut atau alas tambahan.
- Always place infants on their backs to sleep.
- This crib is GREENGUARD Gold Certified, meaning it has been tested for over 10,000 chemical emissions and VOCs, contributing to cleaner indoor air.
- The product meets or exceeds ASTM International and U.S. CPSC safety standards.
Image 2.1: Safety and environmental certifications for the Babyletto Crosby Crib.
3. Persediaan dan Pemasangan
3.1 Pembukaan dan Pengenalpastian Bahagian
Carefully remove all components from the packaging. Lay them out on a soft, clean surface to prevent scratches. Verify that all parts listed below are present. If any parts are missing or damaged, do not proceed with assembly. Contact customer support immediately.
3.2 Arahan Perhimpunan
Follow the step-by-step instructions provided in the separate assembly guide included with your product. Ensure all bolts are tightened securely, but do not overtighten. Periodically check all fasteners to ensure they remain tight.
Image 3.1: The assembled Babyletto Crosby Crib within a nursery environment.
4. Arahan Operasi
4.1 Adjustable Mattress Positions
The Babyletto Crosby Crib features 4 adjustable mattress positions to accommodate your child's growth. Adjust the mattress height as your baby develops to ensure safety and ease of use.
- Kedudukan Tertinggi: Untuk bayi baru lahir dan bayi yang tidak boleh meneran dengan tangan dan lutut.
- Kedudukan Sederhana Tinggi: For infants who are beginning to roll over.
- Kedudukan Sederhana-Rendah: Untuk bayi yang boleh duduk tanpa bantuan.
- Kedudukan Terendah: For toddlers who can pull themselves to a standing position. This position helps prevent climbing out.

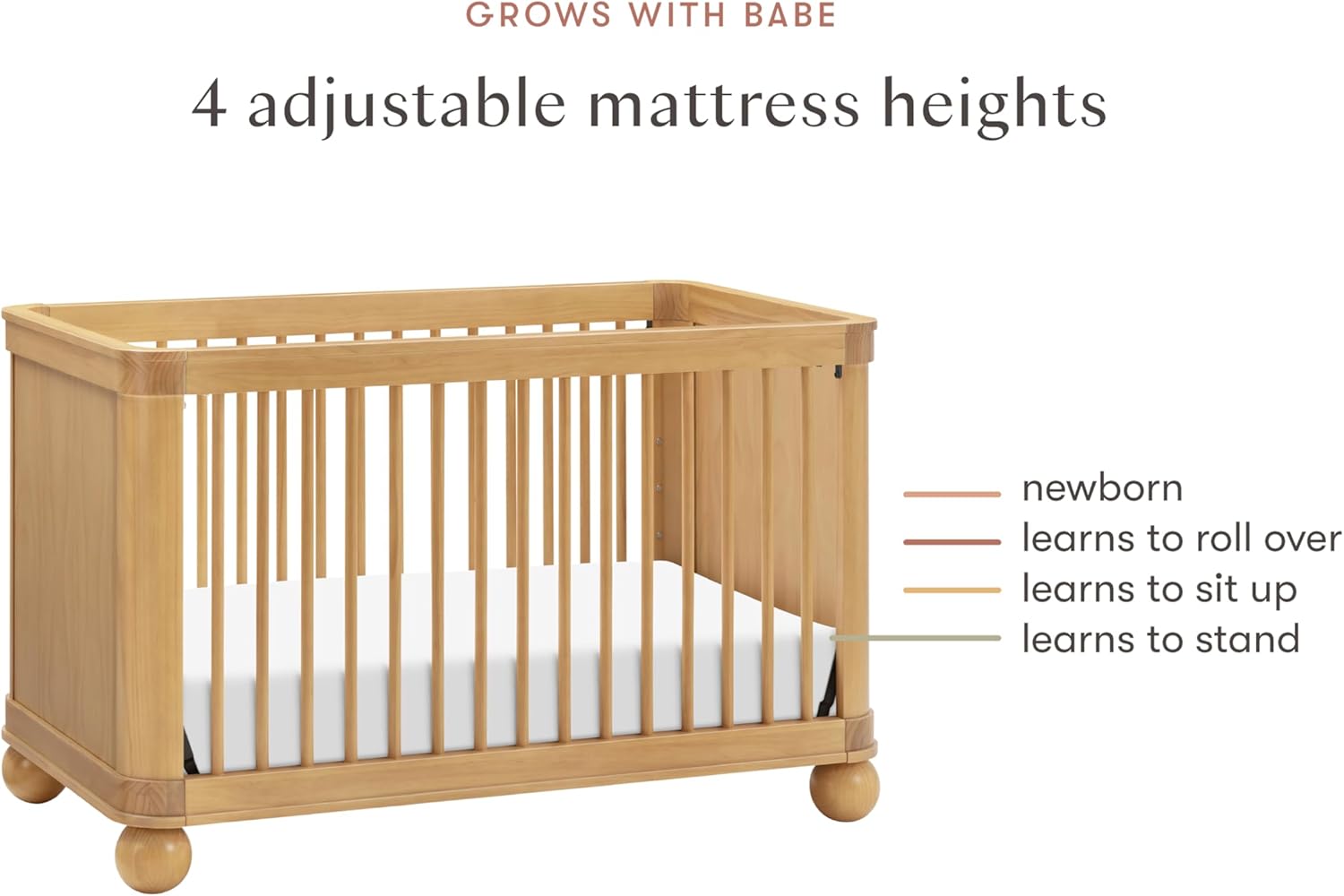

Image 4.1: Visual guide to the four adjustable mattress height settings.
4.2 3-in-1 Convertibility
The Crosby crib is designed to convert into a toddler bed and a daybed, extending its usability as your child grows.
- katil bayi: Standard configuration for infants.
- Toddler Bed: Converts by removing one side rail and adding a toddler bed conversion kit (Model #M23799, sold separately). Recommended for children between 18 months and 3 years of age.
- Daybed: Converts from the toddler bed by removing the toddler rail when your child feels ready for an open bed.
Image 4.2: The crib's transformation into a toddler bed and daybed.
5. Penyelenggaraan
5.1 Arahan Pembersihan
To clean your Babyletto Crosby Crib, wipe surfaces with a damp cloth. Avoid using abrasive cleaners, harsh chemicals, or strong detergents, as these can damage the finish.
5.2 Pemeriksaan Berkala
Periodically inspect the crib for any signs of wear, damage, or loose hardware. Ensure all bolts and screws are tight. Do not use the crib if any part is broken or missing.
6. Penyelesaian masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Buaian berasa goyah atau tidak stabil. | Perkakasan longgar. | Check and tighten all bolts and screws. Do not overtighten. |
| Difficulty adjusting mattress height. | Mekanisme terhalang atau tidak sejajar. | Ensure the mattress support is properly aligned with the adjustment holes. Clear any obstructions. |
| Scratches or dents appearing easily. | Wood material characteristics. | While the crib is made from durable New Zealand pine wood, wood can dent or scratch with impact. Handle with care. For minor scratches, touch-up pens may be available from the manufacturer. |
7. Spesifikasi
- Nombor Model: M31801HY
- Jenama: Babyletto
- warna: Sayang
- Bahan: New Zealand pine wood & TSCA compliant MDF
- Dimensi Produk: 55.25 x 30.75 x 34.5 inci (Panjang x Lebar x Tinggi)
- Berat Barang: 75.4 paun
- Ciri Khas: Adjustable Height (4 mattress positions)
- Kebolehtukaran: 3-in-1 (Crib, Toddler Bed, Daybed)
- Pensijilan: GREENGUARD Gold Certified, meets or exceeds ASTM International and U.S. CPSC safety standards.
- UPC: 048517881217
Image 7.1: Key dimensions of the Babyletto Crosby Crib.
8. Waranti dan Sokongan
Babyletto products are designed with quality and safety in mind. For specific warranty details, please refer to the warranty card included with your purchase or visit the official Babyletto webtapak.
For customer support, replacement parts, or any inquiries regarding your Babyletto Crosby Crib, please contact Babyletto customer service. Contact information can typically be found on the manufacturer's webtapak atau pada pembungkusan produk.
Sokongan dalam talian: Visit the official Babyletto webtapak untuk Soalan Lazim, pendaftaran produk dan borang hubungan.
