1. Produk Lebihview
The UPERFECT 24.5" Portable Monitor (Model MT03) is designed to enhance your visual experience, whether for work, gaming, or entertainment. Featuring a 24.5-inch IPS matte screen with 1080P Full HD resolution and 100% sRGB color gamut, it offers a broad and vivid display. With a 240Hz refresh rate, FreeSync technology, and a 0.1ms response time, it delivers smooth and tear-free visuals, particularly beneficial for fast-paced gaming. Its portable design includes a built-in 180° adjustable stand and VESA compatibility, providing flexible placement options. Connectivity is simplified with two USB Type-C ports and one Mini HDMI port, ensuring wide compatibility with various devices.

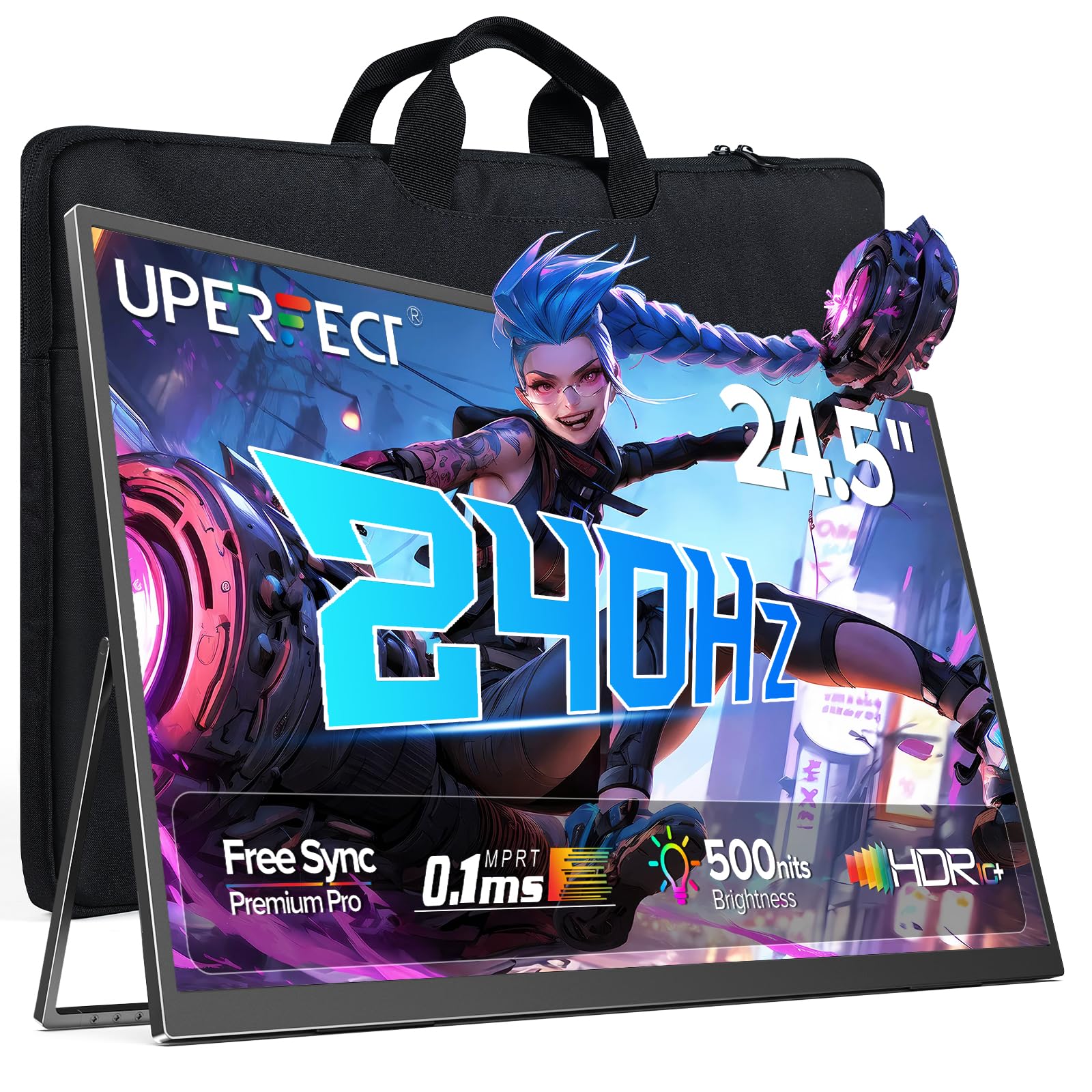

Figure 1: UPERFECT 24.5" Portable Monitor (Model MT03)
2. Kandungan Pakej
Please verify that all items are present in the package before proceeding with setup.
- UPERFECT 24.5" Portable Monitor (Model MT03)
- USB Type-C to Type-C Cable (for power and video signal)
- Kabel Mini HDMI ke HDMI (untuk isyarat video)
- Penyesuai Kuasa
- Beg Simpanan
- Manual Pengguna (dokumen ini)
Video 1: Unboxing and initial setup of the UPERFECT Portable Monitor, showing included accessories.
3. Arahan Persediaan
3.1. Persediaan Fizikal
- Buka bungkusan Monitor: Tanggalkan monitor dan semua aksesori daripada pembungkusan dengan berhati-hati.
- Laraskan Pendirian: The monitor features a built-in 180° adjustable stand. Gently pull out the stand from the back of the monitor and adjust it to your desired viewsudut ing.
Figure 2: Adjusting the built-in 180° kickstand for optimal viewing.
- Pemasangan VESA (Pilihan): For alternative mounting solutions, the monitor supports VESA standard wall mounting (75x75 mm, M4x5 mm screws). Ensure the stand is folded back before mounting.
Figure 3: UPERFECT monitor mounted on a VESA-compatible arm.
3.2. Menyambung ke Peranti
The monitor offers versatile connectivity options. Always ensure the monitor is powered via the provided adapter for optimal performance, especially when connecting to devices that do not supply sufficient power.
Gambar 4: Lebihview daripada port input/output monitor.
- Sambungan USB Jenis-C: Use the included USB Type-C to Type-C cable to connect to compatible laptops, smartphones, or game consoles (e.g., Nintendo Switch). This single cable can transmit both power and video signal if your device supports it. If your device does not provide enough power, connect the monitor to the power adapter.
- Sambungan Mini HDMI: Use the included Mini HDMI to HDMI cable to connect to devices such as PCs, Xbox, PlayStation 4/5, or other HDMI-enabled devices. An additional USB Type-C cable connected to the power adapter will be required for power.
- Output Audio: Connect headphones or external speakers to the 3.5mm audio jack for private listening or enhanced sound.
Gambar 5: Cthamples of widely compatible devices and their connection methods.
4. Mengendalikan Monitor
4.1. Kawalan Asas
The monitor's controls are typically located on the side or back panel.
- Butang Kuasa: Press and hold to turn the monitor On or Off. A short press may activate/deactivate the OSD menu or confirm selections.
- Butang Menu/Sahkan: Accesses the On-Screen Display (OSD) menu. Also used to confirm selections within the menu.
- Jilid +/-: Melaraskan kelantangan output audio.
- Kecerahan +/-: Melaraskan kecerahan skrin.
- Return/Signal Source: Used to go back in the OSD menu or to switch between input sources (USB-C 1, USB-C 2, Mini HDMI).
4.2. Menu Paparan Pada Skrin (OSD).
Menu OSD membolehkan anda menyesuaikan pelbagai tetapan paparan.
- Tekan ke Menu/Sahkan butang untuk membuka menu OSD.
- Gunakan Jilid +/- or Kecerahan +/- butang untuk menavigasi melalui pilihan menu.
- Tekan ke Menu/Sahkan butang untuk memilih pilihan atau memasuki submenu.
- Gunakan butang navigasi untuk melaraskan tetapan.
- Tekan ke Pulangan/Sumber Isyarat butang untuk keluar dari submenu atau menu OSD utama.
Key OSD Settings:
- Tetapan Gambar: Laraskan kecerahan, kontras, ketajaman dan suhu warna.
- Tetapan Warna: Fine-tune color balance, gamma, and saturation.
- Sumber Input: Manually select between USB-C 1, USB-C 2, and Mini HDMI inputs.
- Tetapan Audio: Laraskan kelantangan dan redam.
- Tetapan Sistem: Bahasa, tamat masa OSD, ditetapkan semula kepada lalai kilang.
- FreeSync: Enable or disable FreeSync for adaptive synchronization with compatible graphics cards.
Figure 6: FreeSync technology ensures a seamless gaming experience by eliminating screen tearing and stuttering.
5. Penyelenggaraan
5.1. Membersihkan Monitor
- Sentiasa matikan dan cabut plag monitor sebelum membersihkan.
- Gunakan kain lembut yang tidak berbulu dampdisalut dengan air atau pembersih skrin yang tidak melelas.
- Jangan sembur pembersih terus ke skrin.
- Elakkan menggunakan alkohol, ammonia atau pembersih yang kasar, kerana ini boleh merosakkan permukaan skrin.
5.2. Penyimpanan dan Pengendalian
- When not in use, store the monitor in its provided storage bag to protect it from dust and scratches.
- Elakkan meletakkan objek berat pada monitor.
- Jangan dedahkan monitor kepada suhu atau kelembapan yang melampau.
- Handle the monitor by its edges to avoid touching the screen directly.
Figure 7: The monitor is designed for easy portability and comes with a storage bag for protection.
6. Penyelesaian masalah
If you encounter issues with your UPERFECT portable monitor, refer to the following common problems and solutions.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Tiada paparan/Tiada isyarat |
|
|
| Skrin berkelip atau imej tidak stabil |
|
|
| Tiada bunyi |
|
|
| Monitor tidak dihidupkan |
|
|
7. Spesifikasi
Detailed technical specifications for the UPERFECT 24.5" Portable Monitor (Model MT03).
| Ciri | Perincian |
|---|---|
| Nombor Model | MT03 |
| Saiz Skrin | 24.5 Inci |
| Jenis Panel | IPS |
| Resolusi | 1920 x 1080 Piksel (FHD 1080p) |
| Kadar Segar Semula | 240Hz |
| Masa Tindak Balas | 0.1ms |
| Nisbah Kontras | 2000:1 |
| Warna Gamut | 100% sRGB |
| Permukaan Skrin | Matte |
| Nisbah Aspek | 16:9 |
| Ketersambungan | 2 x USB Type-C, 1 x Mini HDMI, 1 x 3.5mm Audio Jack |
| Dimensi Produk | 21.65 x 11.81 x 0.31 inci |
| Berat Barang | 5.4 paun |
| Keserasian VESA | 75x75 mm |
8. Waranti dan Sokongan
UPERFECT is committed to providing quality products and customer satisfaction.
- Waranti Lanjutan: Information regarding extended warranty options and screen break replacement can be found on the warranty card included with your product.
- Points Program: Participate in the UPERFECT Points Program to earn rewards. Details are available on the warranty card or UPERFECT's official webtapak.
- Earth-Care Plan: UPERFECT supports environmental sustainability through its Earth-Care Plan, encouraging reduction, reuse, and recycling.
- Sokongan Pelanggan: For any inquiries, technical assistance, or warranty claims, please refer to the contact information provided on your warranty card or visit the official UPERFECT website for 24/7 support.
