Manual Pengguna Subwoofer Aktif Berkuasa Edifier T5s

1. Pengenalan

Thank you for choosing the Edifier T5s Powered Active Subwoofer. This manual provides essential information for setting up, operating, and maintaining your subwoofer to ensure optimal performance and longevity. The T5s is designed to deliver deep, powerful bass, enhancing your home audio and home theater experience with its 8-inch long-throw woofer and 70W RMS output.

Figure 1.1: Edifier T5s Powered Active Subwoofer, showcasing its sleek black finish and front-firing port.

2. Maklumat Keselamatan

Sila baca dan fahami semua arahan keselamatan sebelum menggunakan produk ini. Simpan manual ini untuk rujukan masa hadapan.

• Sumber Kuasa: Only use the power supply specified for this product. Ensure the voltage sepadan dengan bekalan kuasa tempatan anda.
• Pengudaraan: Do not block any ventilation openings. Maintain adequate space around the subwoofer for proper airflow.
• Air dan Kelembapan: Jangan dedahkan unit kepada hujan, lembapan atau cecair menitis/percikan. Jangan letakkan objek yang diisi dengan cecair, seperti pasu, pada unit.
• haba: Jauhkan unit daripada sumber haba seperti radiator, daftar haba, dapur, atau radas lain (termasuk amppenghidup) yang menghasilkan haba.
• Pembersihan: Unplug the unit from the power outlet before cleaning. Use only a dry cloth.
• Servis: Jangan cuba servis produk ini sendiri. Rujuk semua perkhidmatan kepada pegawai perkhidmatan yang berkelayakan.

3. Ciri-ciri

The Edifier T5s Subwoofer is engineered with advanced features to deliver superior bass performance:

• Deep & Powerful 8-Inch Bass: Experience 35Hz deep bass with the T5s powered subwoofer, which features an 8-inch long-throw woofer and a powerful 70W RMS output (driven by Class-D amplifier). Perfect for home audio and home theater.


Figure 3.1: The T5s delivers deep, clean, room-filling low-end with its 8-inch long-throw woofer and advanced DSP.

• Built-in 70W Class-D Amplebih hidup: High-efficiency power for punchy and consistent bass performance.

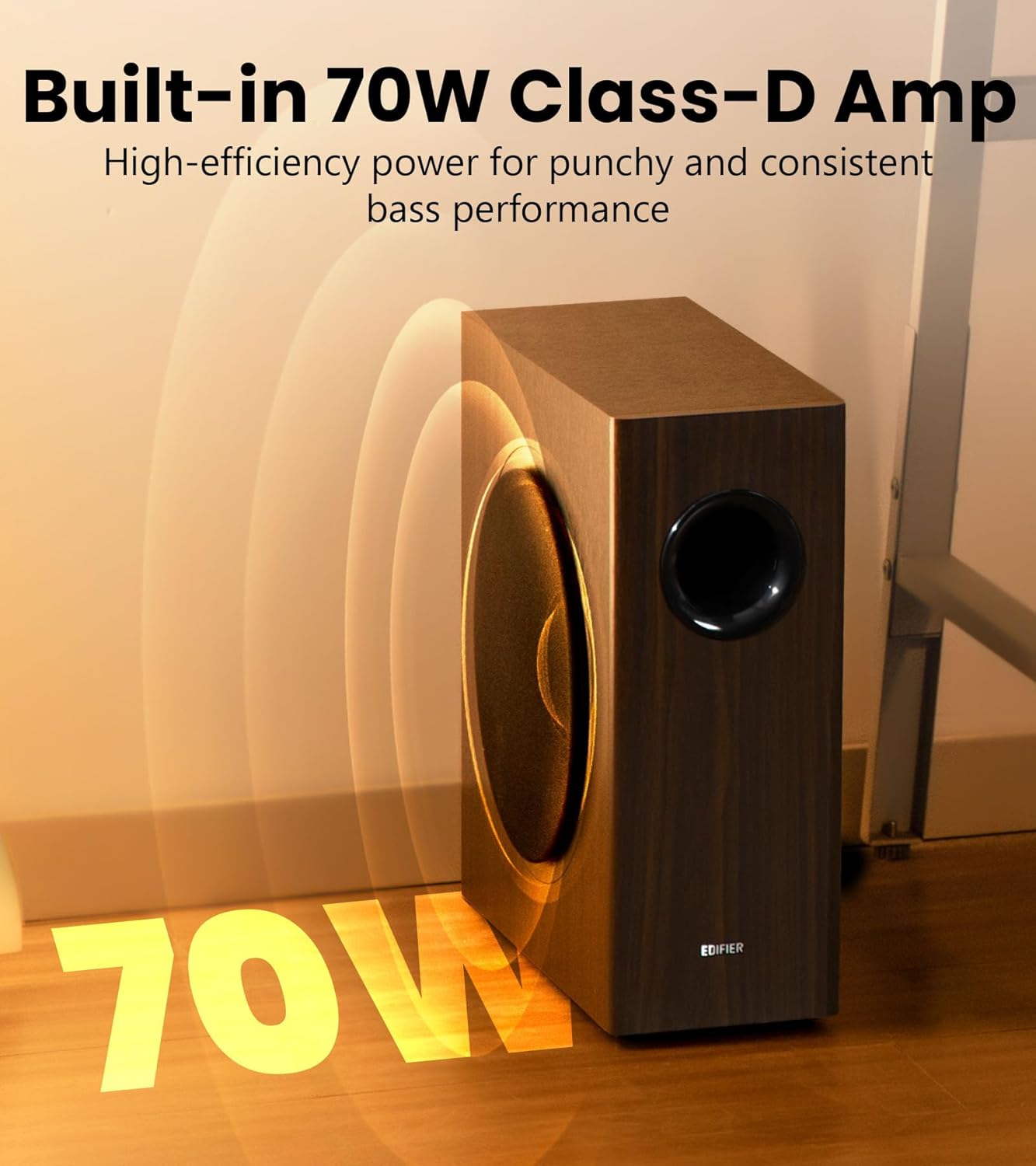

Figure 3.2: The integrated 70W Class-D amplifier ensures robust and efficient power delivery.

• Precision Control, Seamless Integration: Adjust the low-pass filter (30Hz–160Hz) and phase selector (0°/180°) to match any home stereo or active speaker setup.


Figure 3.3: Fine-tune bass and phase for perfectly balanced sound performance using the precision DSP.

• Slim Design, Low Distortion: This space-saving compact subwoofer fits into any spaces. The 18mm MDF cabinet with a front-firing driver and right-firing acoustic port minimizes resonance for clean, tight bass. Its wood grain finish and low-profile grille blend seamlessly with home decor.


Figure 3.4: The 18mm MDF enclosure minimizes resonance for clean, accurate bass.

• Smart & Energy-Efficient: Auto-standby saves power after 15 minutes of inactivity. The built-in amplifier ensures plug-and-play operation – no external receiver needed! Includes 3.5mm-to-RCA and RCA cables for instant setup.


Figure 3.5: The T5s enters 0.5W sleep mode after 15 minutes of inactivity and instantly wakes on audio detection.

• Ketersambungan Serbaguna: The dual RCA inputs/outputs (Signal In/Out) enable easy daisy-chaining with Edifier R-Series speakers (e.g., R1280Ts, R2000DB) and other home audio systems, including desktop speakers, bookshelf systems, or home theater receivers.


Figure 3.6: The compact dimensions (15.7 in D x 6.7 in W x 15.8 in H) allow for discreet placement.

4. Apa yang ada di dalam Kotak

Upon opening your Edifier T5s package, you should find the following items:

• Edifier T5s Subwoofer
• Kabel Kuasa
• Kabel Audio 3.5mm ke RCA
• RCA to RCA Audio Cable
• Panduan Mula Pantas

5. Persediaan

5.1 Penempatan Fizikal

For optimal bass performance, consider placing the subwoofer in a corner of the room or along a wall. Experiment with different positions to find the best sound balance for your listening environment. Ensure there is adequate space for ventilation.

5.2 Sambungan

The Edifier T5s offers versatile connectivity options to integrate with various audio systems.

Method 1: If Your Speaker System Has a Sub-Out Port

This method is ideal for speaker systems equipped with a dedicated subwoofer output.

1. Connect the RCA cable from your speaker system's 'Sub-Out' or 'LFE Out' port to the 'Signal In' (RCA) ports on the Edifier T5s subwoofer.
2. Ensure the power cable is securely connected to the subwoofer and a power outlet.

Figure 5.1: Connection diagram for speaker systems with a dedicated subwoofer output.

Method 2: If Your Speaker System Does Not Have a Sub-Out Port

This method allows you to integrate the T5s with speaker systems that lack a dedicated subwoofer output, such as many desktop or bookshelf speakers.

1. Connect the audio source (e.g., TV, PC, CD player) to the 'Signal In' (RCA) ports on the Edifier T5s subwoofer using the provided RCA cables.
2. Connect your main speaker system's input to the 'Signal Out' (RCA) ports on the Edifier T5s subwoofer. This allows the subwoofer to pass the full-range audio signal to your main speakers after processing the low frequencies.
3. Ensure the power cable is securely connected to the subwoofer and a power outlet.

Figure 5.2: Connection diagram for speaker systems without a dedicated subwoofer output.

6. Beroperasi

6.1 Kawalan

The Edifier T5s features controls on the rear panel for fine-tuning its performance to your listening preferences and room acoustics:

• Kawalan Kelantangan: Melaraskan tahap output keseluruhan subwoofer. Mulakan dengan tetapan rendah dan tingkatkan secara beransur-ansur sehingga bes sebati dengan pembesar suara utama anda.
• Low-Pass Filter (Crossover Frequency): This knob allows you to set the upper frequency limit for the subwoofer, typically ranging from 30Hz to 160Hz. Frequencies above this setting will be rolled off. Adjust this to match the low-frequency capabilities of your main speakers. A common starting point is around 80Hz-100Hz.
• Phase Selector (0°/180°): This switch helps to ensure that the subwoofer's sound waves are in sync with your main speakers. If the bass sounds weak or hollow, try flipping this switch to the opposite setting. Listen for the setting that provides the most impactful and cohesive bass.

6.2 Auto-Standby Function

The T5s is equipped with an energy-efficient auto-standby feature. If no audio signal is detected for approximately 15 minutes, the subwoofer will automatically enter a low-power sleep mode (0.5W). It will instantly wake up and resume operation as soon as an audio signal is detected.

7. Penyelenggaraan

Proper maintenance will help ensure the longevity and performance of your Edifier T5s Subwoofer.

• Pembersihan: Use a soft, dry cloth to clean the surface of the subwoofer. Do not use liquid cleaners, aerosols, or abrasive chemicals, as they may damage the finish.
• habuk: Regularly dust the unit, especially around the port and connections, to prevent dust buildup.
• Persekitaran: Elakkan meletakkan subwufer dalam cahaya matahari langsung, berhampiran sumber haba, atau di kawasan yang mempunyai kelembapan tinggi atau suhu melampau.
• Pengendalian: Handle the subwoofer with care. Avoid dropping or subjecting it to strong impacts.

8. Penyelesaian masalah

If you encounter any issues with your Edifier T5s Subwoofer, please refer to the following common problems and solutions:

• Tiada Bunyi:
  • Ensure the power cable is securely connected and the power outlet is active.
  • Check all audio cables are correctly connected to both the subwoofer and your audio source/main speakers.
  • Verify the volume control on the subwoofer is not set to minimum.
  • Periksa tahap kelantangan sumber audio anda.
• Weak or Distorted Bass:
  • Adjust the volume control on the subwoofer.
  • Experiment with the Phase Selector (0°/180°) to find the optimal setting for your room and main speakers.
  • Adjust the Low-Pass Filter (Crossover Frequency) to ensure it blends well with your main speakers.
  • Check for proper placement; sometimes moving the subwoofer a small distance can significantly improve bass response.
  • Pastikan sumber audio memberikan isyarat yang bersih.
• Subwoofer Not Entering/Exiting Standby:
  • The auto-standby feature requires a certain level of audio signal to detect activity. Ensure your audio source is playing at a sufficient volume.
  • If the subwoofer does not wake up, try turning it off and on again using the power switch.
• Bunyi berdengung atau berdengung:
  • Pastikan semua kabel disambungkan dengan selamat.
  • Cuba pasangkan subwoofer ke soket elektrik yang berbeza.
  • Check if the noise persists when the audio cables are disconnected from the subwoofer. If it stops, the noise might be coming from the audio source or cables.

If the problem persists after trying these solutions, please contact Edifier customer support for assistance.

9. Spesifikasi

10. Waranti dan Sokongan

10.1 Maklumat Waranti

The Edifier T5s Powered Active Subwoofer comes with a Limited Warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, or visit the official Edifier webtapak untuk maklumat waranti terperinci yang berkenaan dengan wilayah anda.

10.2 Sokongan Pelanggan

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Edifier customer support. You can find contact information on the official Edifier webtapak atau melalui peruncit tempat anda membeli produk tersebut.
