FOHERE Nugget Ice Maker

pengenalan

Thank you for choosing the FOHERE Nugget Ice Maker. This countertop appliance is designed to produce soft, chewable nugget ice, perfect for various beverages and uses. With a daily production capacity of up to 55 lbs and a rapid ice-making cycle, it's an ideal addition to your home, kitchen, or office. This manual provides essential information for the safe and efficient operation, maintenance, and care of your ice maker.

Image: The FOHERE Nugget Ice Maker, showcasing its sleek silver design, along with an ice scoop, ice basket, and a refreshing iced beverage.

Apa yang ada dalam Kotak

• Nugget Ice Maker Unit
• Skop Ais
• Bakul Ais
• Operation Guide (this manual)
• Panduan Penyelenggaraan

Ciri-ciri Utama

• Efficient Ice Production: Produces up to 55 lbs of fresh nugget ice per day. The upgraded compressor and brushless dual-fan cooling system ensure efficient operation. Your first batch of ice can be ready in as little as 10 minutes.


  Image: Visual comparison highlighting the FOHERE ice maker's superior daily ice output of 55 lbs compared to other models.

• Soft Chewable Nugget Ice: Designed to produce soft, crunchy, and tooth-friendly nugget ice, which retains drink flavor and cools beverages rapidly. Ideal for cocktails, iced tea, coffee, and juice.


  Image: A visual representation of the soft, chewable nugget ice, emphasizing its benefits for sensitive teeth and beverage cooling.
• Pembersihan Diri Automatik: Features a one-touch self-cleaning function with options for a 5-minute quick clean or a 30-minute deep clean. A leak-proof design with a drainpipe allows for easy water drainage.


  Image: A detailed diagram illustrating the self-cleaning function, including steps for adding water, initiating cleaning, and draining the unit.

• Operasi senyap: Incorporates cellular noise reduction design and EVA technology soundproofing, resulting in 40% less noise compared to similar ice machines.


  Image: The ice maker operating quietly in an office environment, with a graphic illustrating its low noise level compared to other appliances.

• Reka Bentuk Padat dan Menjimatkan Ruang: The FOHERE IM02 is designed to be compact, making it easy to integrate into various spaces such as kitchens, pantry rooms, yards, or RVs.


  Image: A size comparison demonstrating the compact footprint of the FOHERE ice maker, highlighting its suitability for various countertop spaces.


  Imej: Tayangan kolajcasing the versatility of the ice maker, pictured in a kitchen, office, at a party, and during a campdalam perjalanan.

• Upgraded Cooling System: Features a fast and efficient compressor, low noise and quieter fan, and high-density insulation for improved energy efficiency.


  Imej: Satu dalaman view diagram highlighting the upgraded cooling system, including the compressor and fan, emphasizing efficiency.

Arahan Persediaan

1. Membongkar: Carefully remove the ice maker from its packaging. Retain all packaging materials for future storage or transport.
2. penempatan: Place the ice maker on a flat, stable, and level surface away from direct sunlight and heat sources. Ensure adequate ventilation around the unit.
3. Penetapan Awal: After transport, allow the ice maker to stand upright for at least 24 hours before plugging it in. This allows the refrigerant fluids to settle properly, ensuring optimal performance and preventing damage to the compressor.
4. Menambah Air: Open the top lid and fill the water reservoir with clean, potable water up to the "MAX" fill line. Do not overfill.

   Video: A comprehensive demonstration of the FOHERE Nugget Ice Maker, including setup, operation, and features. This video shows how to add water and begin the ice-making process.

5. Sambungan Kuasa: Pasangkan pembuat ais ke soket elektrik yang dibumikan.

Arahan Operasi

1. Hidupkan kuasa: Press the "ON/OFF" button to start the ice-making process. The indicator light will illuminate.
2. Pengeluaran Ais: The machine will begin producing ice. The first batch of nugget ice typically takes about 6-10 minutes.

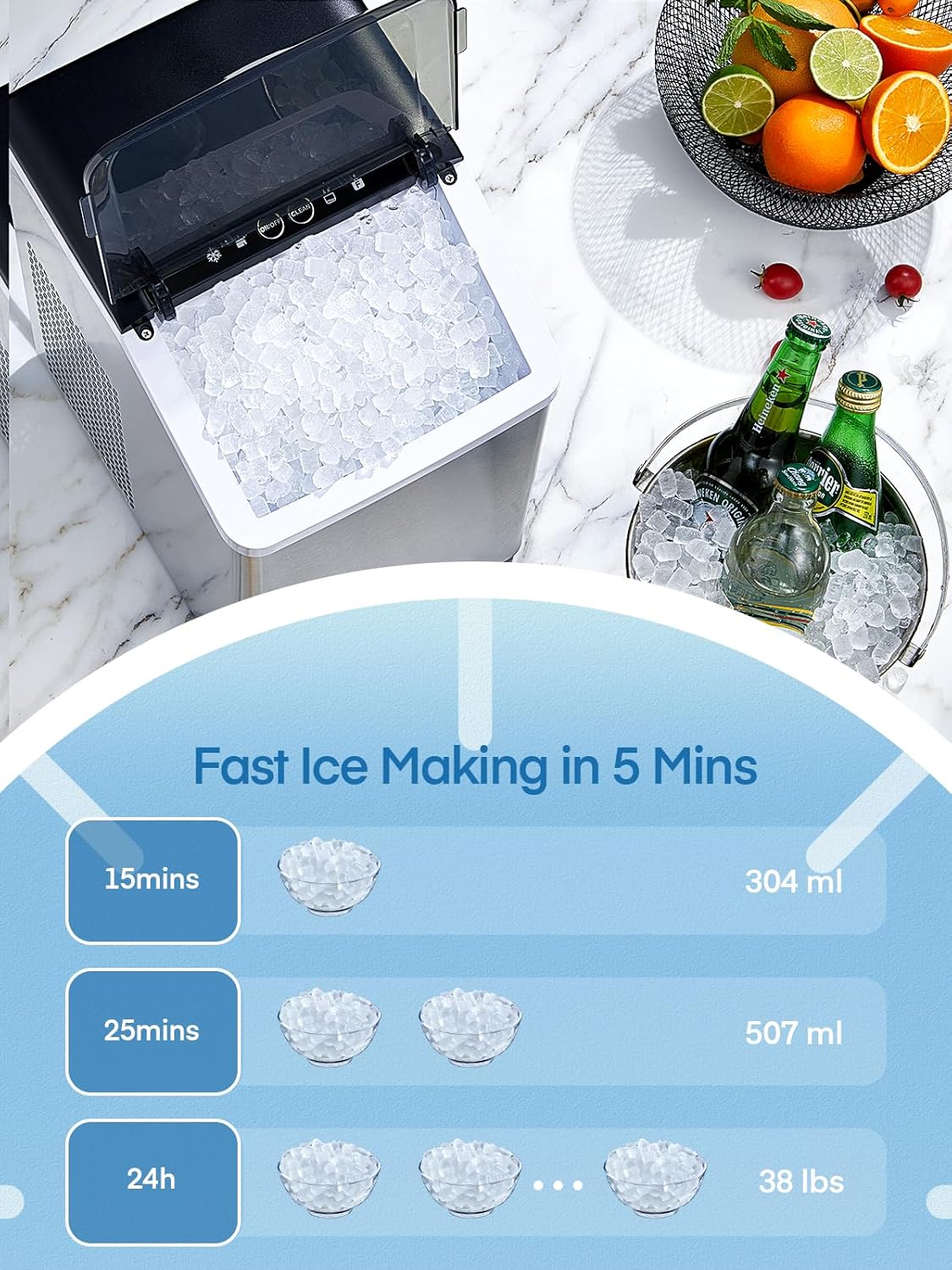

   Image: A visual demonstration of the rapid ice production, showing ice forming quickly within the machine.

   Video: A short clip demonstrating the FOHERE ice maker actively producing nugget ice, showing the ice filling the basket.

   Video: This video highlights the chewable texture of the ice produced by the FOHERE Nugget Ice Maker, demonstrating its soft and crunchy quality.

3. Penunjuk Penuh Ais: The "Ice Full" indicator light will illuminate when the ice basket is full, and the machine will automatically pause ice production. Once ice is removed, production will resume.
4. Tambah Penunjuk Air: If the "Add Water" indicator light illuminates, the water reservoir is low. Refill the reservoir to continue ice production.
5. Menyimpan Ais: The ice maker is not a refrigerator and does not keep ice frozen indefinitely. It is recommended to transfer the produced ice to a freezer for long-term storage.

Penyelenggaraan

Regular cleaning is crucial for maintaining the performance and longevity of your FOHERE Nugget Ice Maker, especially if using hard water.

1. Fungsi Pembersihan Diri:
   • Quick Clean (5 mins): Press the "CLEAN" button for 1 second.
   • Deep Clean (30 mins): Press and hold the "CLEAN" button for about 3 seconds.
   This function circulates water through the system to help remove mineral buildup. For best results, use a descaling solution or a mixture of water and vinegar during the deep clean cycle.
2. Air Penyaliran: After cleaning or when storing the unit, ensure all water is drained from the reservoir. Locate the drain plug at the bottom of the unit and remove it to empty the water.

   Video: This video demonstrates the self-cleaning function and how to properly drain the ice maker after use or cleaning.
3. Pembersihan Luaran: Lap bahagian luar unit dengan lembut, damp kain. Jangan gunakan pembersih atau pelarut yang melelas.
4. Kekerapan: It is recommended to clean your ice maker every two weeks or more frequently, depending on water hardness and usage.

Menyelesaikan masalah

Spesifikasi

Waranti dan Sokongan

For detailed warranty information, please refer to the warranty card included with your product. If you encounter any issues or require technical assistance, please contact FOHERE customer support.

You can find contact information on the official FOHERE website or through your purchase platform. Please have your model number (1002) and ASIN (B0CSKBZPX7) ready when contacting support.
