1. Pengenalan
Terima kasih kerana membeliasing the BESTISAN Wave Base Soundbar. This soundbar is designed to enhance your audio experience for televisions, home theater systems, gaming consoles, and projectors. It features multiple connectivity options including Bluetooth, HDMI-ARC, Optical, AUX, and USB, providing versatile audio playback. This manual provides detailed instructions for proper setup, operation, and maintenance of your soundbar.
2. Kandungan Pakej
Sila semak bungkusan dengan teliti untuk memastikan semua item ada dan dalam keadaan baik.
- BESTISAN Wave Base Soundbar
- Alat Kawalan Jauh
- Penyesuai Kuasa
- Kabel Optik
- 3.5mm to 3.5mm Audio Cable (AUX Cable)
- Manual Pengguna (Panduan Permulaan Pantas)
Figure 2.1: Soundbar and Included Accessories
3. Produk Lebihview
3.1 Soundbar Controls
The soundbar features intuitive controls located on the side panel for easy access.
- Butang Kuasa: Press to turn the soundbar On or Off.
- Perlahankan suara (-): Kurangkan tahap kelantangan.
- Kelantangan Naik (+): Tingkatkan tahap kelantangan.
- Input/Mode Button: Press to cycle through input sources (Bluetooth, AUX, Optical, HDMI-ARC, USB).
3.2 Sambungan Panel Belakang
The rear panel provides various ports for connecting to your audio sources.
- DC DALAM: Sambungkan penyesuai kuasa di sini.
- SUB KELUAR: Output for an external subwoofer (if applicable).
- AUX DI: 3.5mm audio input for connecting devices with an AUX cable.
- USB: Untuk main balik pemacu USB.
- OPTIKAL: Optical audio input for digital audio connection.
- HDMI (ARC): HDMI Audio Return Channel input for connecting to compatible TVs.
Rajah 3.1: Sambungan Panel Belakang

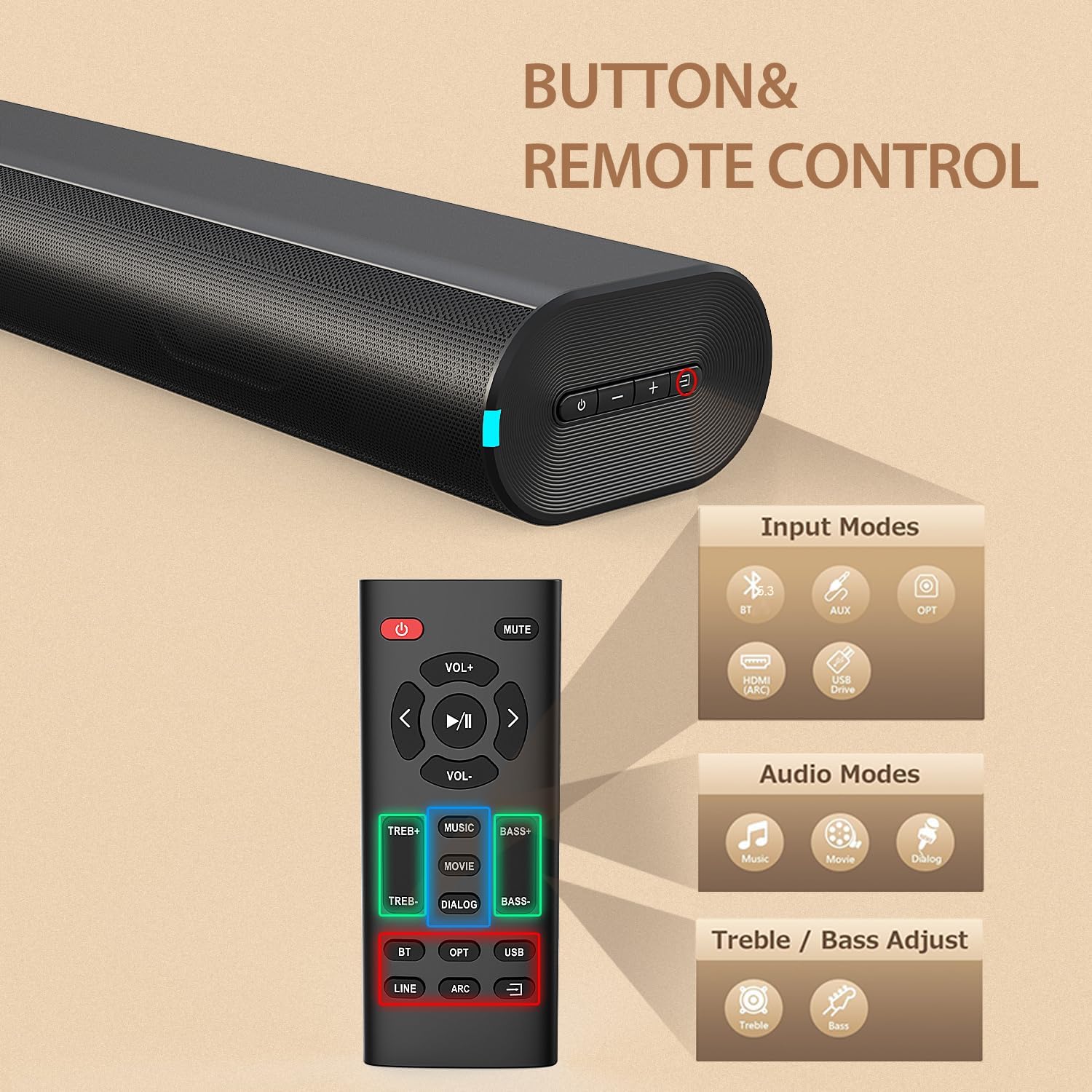

3.3 Fungsi Kawalan Jauh
The included remote control provides full functionality for your soundbar.
- Butang Kuasa: Menghidupkan/Mematikan bar bunyi.
- Butang Bisukan: Membisukan atau menyahredamkan bunyi.
- Kelantangan Naik/Turun: Melaraskan kelantangan induk.
- Play/Pause/Next/Previous: Media playback controls (for Bluetooth/USB modes).
- Input Mode Buttons (BT, AUX, OPT, HDMI ARC, USB): Pilih sumber input secara langsung.
- Sound Mode Buttons (MUSIC, MOVIE, DIALOG): Select preset equalizer modes.
- TREB+/TREB-: Laraskan tahap treble.
- BES+/BES-: Laraskan tahap bass.
Figure 3.2: Soundbar Controls and Remote Control
4. Persediaan
4.1 Sambungan Kuasa
- Sambungkan penyesuai kuasa ke port DC IN di bahagian belakang bar bunyi.
- Plug the other end of the power adapter into a wall outlet (AC 110V).
- The soundbar will enter standby mode, indicated by an LED light.
4.2 Menyambung ke TV atau Peranti Anda
Choose one of the following connection methods based on your device's available ports:
Sambungan HDMI ARC
- Connect one end of an HDMI cable (not included) to the HDMI (ARC) port on the soundbar.
- Connect the other end to the HDMI ARC port on your television.
- Ensure your TV's HDMI ARC function is enabled in its settings.
- Select HDMI ARC input on the soundbar using the remote or the soundbar's input button.
Sambungan Optik
- Connect the included optical cable to the OPTICAL port on the soundbar.
- Connect the other end to the Optical Digital Audio Out port on your television or device.
- Select OPTICAL input on the soundbar using the remote or the soundbar's input button.
Sambungan AUX
- Connect the included 3.5mm audio cable to the AUX IN port on the soundbar.
- Connect the other end to the 3.5mm headphone jack or audio output on your device.
- Select AUX input on the soundbar using the remote or the soundbar's input button.
Berpasangan Bluetooth
- Hidupkan bar bunyi.
- Press the 'BT' button on the remote or the input button on the soundbar until the Bluetooth indicator light flashes.
- Pada peranti mudah alih anda, dayakan Bluetooth dan cari peranti yang tersedia.
- Select "BESTISAN SE12-01" from the list.
- Once paired, the Bluetooth indicator light will stop flashing and remain solid.
Main Balik USB
- Insert a USB drive (FAT32 format) containing audio files ke dalam port USB pada bar bunyi.
- Press the 'USB' button on the remote or cycle through inputs on the soundbar until USB mode is selected.
- Bar bunyi akan mula memainkan audio secara automatik files daripada pemacu USB.
5. Arahan Operasi
5.1 Hidupkan/Mati Kuasa
Tekan butang Kuasa pada bar bunyi atau alat kawalan jauh untuk menghidupkan atau mematikan unit.
5.2 Pemilihan Input
Press the Input/Mode button on the soundbar or the corresponding input button (BT, AUX, OPT, HDMI ARC, USB) on the remote control to switch between audio sources.
5.3 Pelarasan Kelantangan
Use the Volume Up (+) or Volume Down (-) buttons on the soundbar or remote control to adjust the audio volume.
5.4 Sound Modes (EQ)
The soundbar offers three preset equalizer modes to optimize audio for different content types. Press the corresponding button on the remote control to select:
- Mod MUZIK: Ideal for listening to music, providing balanced audio.
- Mod FILEM: Meningkatkan kesan bunyi sinematik dan dialog untuk filem.
- DIALOG Mode (News Mode): Optimizes vocal clarity, suitable for news, podcasts, or TV shows with heavy dialogue.
Figure 5.1: Sound Modes
5.5 Treble and Bass Adjustment
Use the TREB+/TREB- and BASS+/BASS- buttons on the remote control to fine-tune the treble and bass levels according to your preference.
6. Penyelenggaraan
Untuk memastikan jangka hayat dan prestasi optimum bar bunyi anda, ikut garis panduan penyelenggaraan ini:
- Pembersihan: Use a soft, dry cloth to wipe the surface of the soundbar. Do not use liquid cleaners, abrasive cleaners, or sprays, as they may damage the finish or internal components.
- penempatan: Place the soundbar on a stable, flat surface. Avoid placing it in direct sunlight, near heat sources, or in areas with high humidity or dust.
- Pengudaraan: Ensure adequate ventilation around the soundbar to prevent overheating. Do not block any ventilation openings.
- Kord Kuasa: Periksa kord kuasa secara kerap untuk sebarang kerosakan. Jika rosak, hentikan penggunaan dan hubungi sokongan pelanggan.
7. Penyelesaian masalah
Jika anda menghadapi masalah dengan bar bunyi anda, rujuk jadual berikut untuk masalah dan penyelesaian biasa.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Tiada kuasa | Kord kuasa tidak disambungkan; Salur keluar kuasa tidak aktif | Ensure power cord is securely connected to the soundbar and a working power outlet. |
| Tiada bunyi | Input yang dipilih salah; Kelantangan terlalu rendah; Kabel tidak disambungkan dengan betul | Select the correct input source. Increase volume. Check all audio cables are securely connected. Ensure TV audio output is set correctly. |
| Penggandingan Bluetooth gagal | Bar bunyi tidak dalam mod berpasangan; Peranti terlalu jauh; Gangguan | Ensure soundbar is in Bluetooth pairing mode (flashing LED). Move device closer to soundbar. Turn off other Bluetooth devices. |
| Herotan bunyi | Kelantangan terlalu tinggi; Kualiti sumber audio teruk | Reduce volume. Try a different audio source or cable. |
| Alat kawalan jauh tidak berfungsi | Bateri berkurangan; Halangan antara alat kawalan jauh dan bar bunyi | Replace remote control batteries. Ensure no obstructions are blocking the remote's signal to the soundbar. |
8. Spesifikasi
Technical specifications for the BESTISAN Wave Base Soundbar (Model SE12-01).
| Ciri | Perincian |
|---|---|
| Nombor Model | SE12-01 |
| Jenama | BYL |
| Jenis Pembesar Suara | Bar bunyi |
| Teknologi Ketersambungan | Bluetooth, HDMI (ARC), Optik, AUX, USB |
| Versi Bluetooth | V5.3 |
| Julat Bluetooth | Sehingga 30 kaki (10 meter) |
| Mod Keluaran Audio | Stereo (Saluran 2.0) |
| Kuasa Output Maksimum Pembesar Suara | 60 Watt |
| Respons Kekerapan | 20 KHz (Upper limit, typical for soundbars) |
| Nisbah Isyarat-ke-Bunyi | 80 dB |
| Input Voltage | 110 Volt |
| Dimensi Produk (D x W x H) | 3.74" x 21.85" x 2.36" |
| Berat Barang | 2.64 paun |
| bahan | Akrilonitril Butadiene Styrene (ABS), Logam |
| Jenis Pemasangan | Pemasangan Atas Meja |
| Kaedah Kawalan | Butang Tekan, Jauh |
9. Waranti dan Sokongan
9.1 Waranti Produk
This BESTISAN Wave Base Soundbar is covered by a Limited Manufacturer Warranty. Please refer to the warranty card included in your package or contact the manufacturer for specific terms and conditions regarding warranty coverage.
9.2 Sokongan Pelanggan
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact BESTISAN customer support. Contact information can typically be found on the manufacturer's official webtapak atau pada pembungkusan produk anda.
