AINAVI 13.5-inch Android Headrest Monitor User Manual

pengenalan

This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your AINAVI 13.5-inch Android Headrest Monitor. Please read this manual thoroughly before using the product to ensure proper function and safety.

Kandungan Pakej

Sahkan bahawa semua item yang disenaraikan di bawah disertakan dalam pakej anda:

• Headrest Monitor Screen (2 PCS)
• Universal Mounting Bracket (2 PCS)
• 12V Cigarette Lighter Cable (1 PC) + 12V DC Adapter
• HDMI Cable (2 PCS)
• Manual Produk

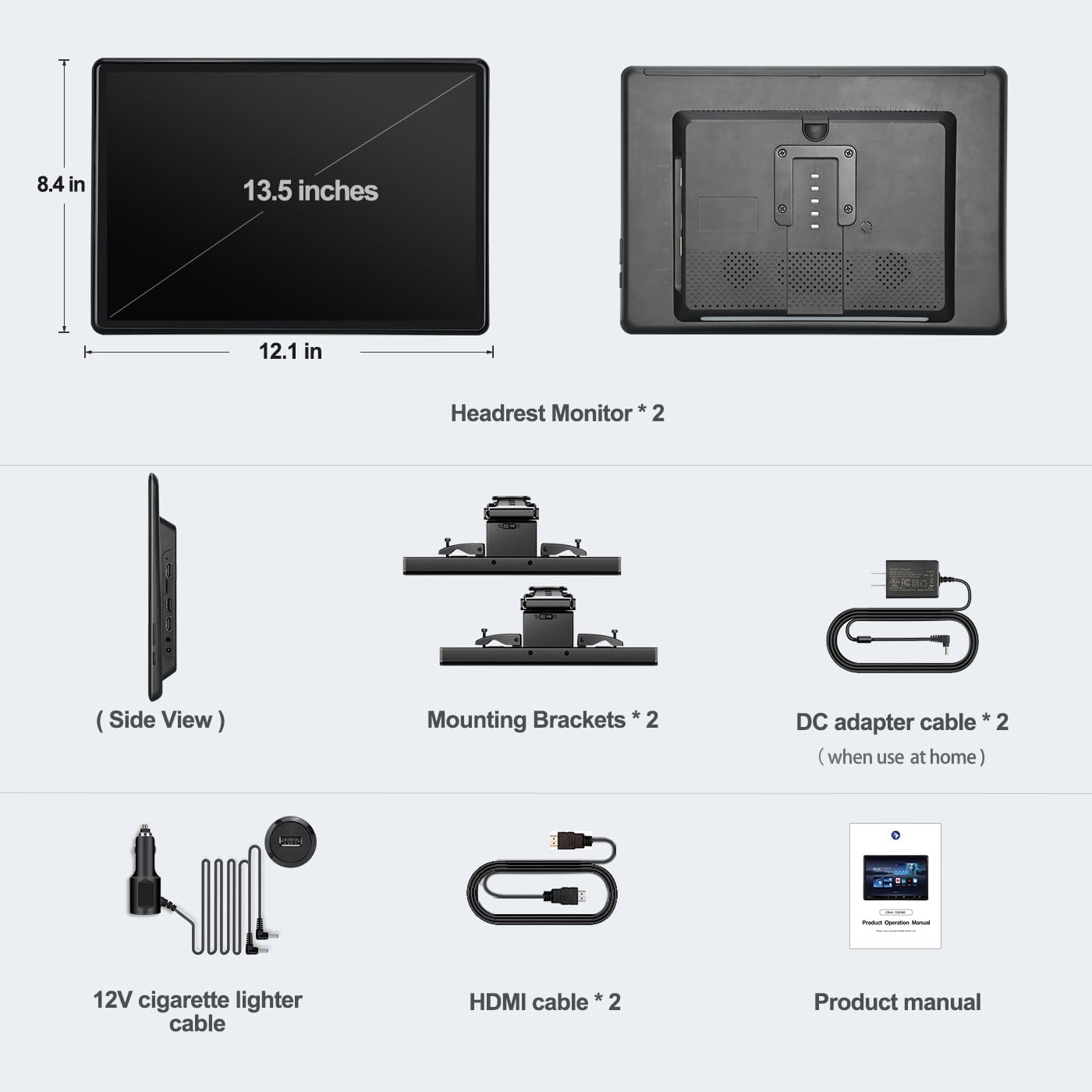

Figure 1: Package Contents. This image displays all components included with the AINAVI 13.5-inch Android Headrest Monitor system.

Persediaan

Pemasangan

The AINAVI Headrest Monitor features a universal mounting bracket designed for easy installation, compatible with most car headrests (supports round steel poles only). Installation can typically be completed within 3 minutes.

1. Attach the universal mounting bracket to the headrest poles. Ensure it is securely fastened.
2. Slide the headrest monitor onto the bracket until it clicks into place.
3. Adjust the monitor's position and angle for optimal viewing. The bracket allows for vertical adjustment and supports metal posts with 130-200mm distance adjustment.

Figure 2: Headrest Bracket Installation. This image shows the steps to attach the universal mounting bracket to the headrest poles.

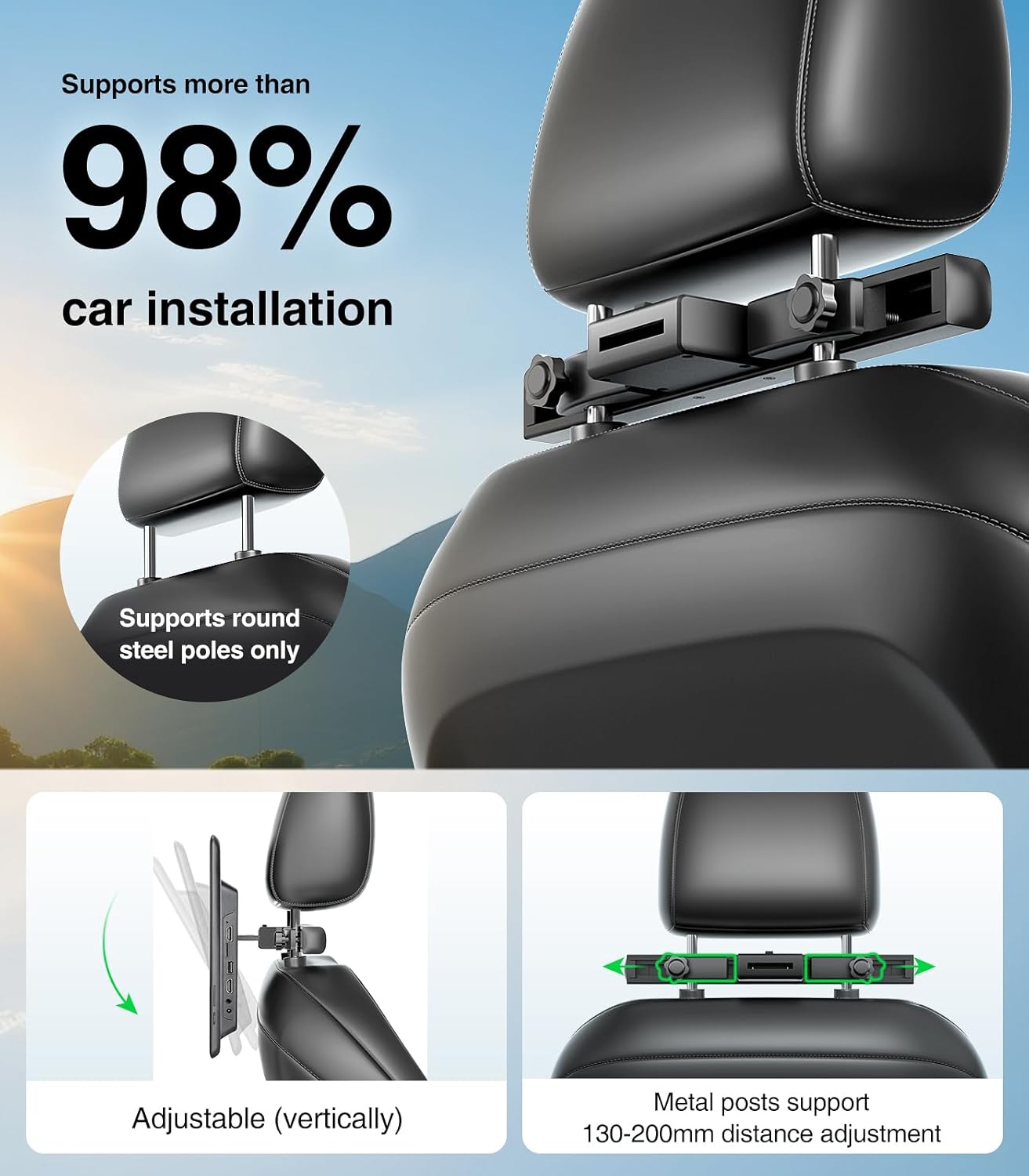

Figure 3: Universal Mounting Bracket. This image highlights the adjustable features of the mounting bracket, compatible with most car headrests.

Bekalan Kuasa

The headrest monitor supports three power supply modes:

• Penyesuai DC: Untuk kegunaan rumah.
• Car Charger (12V): For in-car use, connecting to the vehicle's cigarette lighter socket.
• Kuasa USB: Can also be powered via USB.

Panduan Pemasangan Video

For a visual guide on the installation process and initial setup, please refer to the video below.

Video 1: AINAVI Headrest Monitor Installation. This video demonstrates how to install the 13.5-inch car headrest monitor and connect its power supply.

Arahan Operasi

Hidupkan/Mati Kuasa

Press and hold the power button located on the side of the monitor for approximately two seconds to turn the device on or off.

Android 13.0 System and Apps

The monitor runs on Android 13.0, providing access to a wide range of applications. You can install apps from the Google Play Store or via APK files. Popular streaming services like Netflix, Disney+, Prime Video, HBO, TikTok, and YouTube are supported when connected to WiFi.

Figure 4: Android Interface and App Support. This image displays the user interface with pre-installed and downloadable applications for entertainment.

Main Balik Media

The monitor supports 4K HD video playback and is equipped with an SD card port and USB port. It is compatible with various media formats including MP4, MPG, AVI, MKV, MOV, 3GP, MP3, MAV, FLAC, AAC, OGG, and OGA. You can play content directly from USB flash drives or SD cards.

Figure 5: High-Resolution Display. This image emphasizes the monitor's 13.5-inch IPS touchscreen with 1920x1280 HD resolution for clear media playback.

Pencerminan Skrin

The device supports iOS AirPlay and Android Miracast for phone screen mirroring. Connect your phone to the same WiFi network as the monitor to mirror your phone's screen. The MyCar Link app can turn your phone into a smart remote control for the car video player.

Figure 6: Screen Mirroring Functionality. This image illustrates how to use iOS AirPlay and Android Miracast to mirror phone content to the monitor.

Paparan Segerak

With both HDMI input and HDMI output ports, you can connect two screens using an HDMI cable to play the same movie simultaneously. The HDMI input also allows connection to external devices such as computers, TV boxes, Xbox, PS4, and PS5.

Figure 7: Synchronized Display and Connectivity. This image demonstrates the ability to synchronize content across two monitors and connect various external devices.

Mod Output Audio

The monitor offers multiple audio output options:

• Pembesar Suara Terbina dalam: For direct audio playback.
• Pemancar FM: Transmit audio to your car's speakers via FM radio.
• Bluetooth Headsets: Connect one Bluetooth headset per screen for private listening.
• Wired Headsets: Use the 3.5mm audio output jack for wired headphones.

Figure 8: Connectivity Ports. This image provides a close-up view of the available ports for media input and audio output.

Ciri-ciri Produk Berakhirview

Explore the key features and functionalities of your AINAVI Headrest Monitor through this video.

Video 2: AINAVI 13.5-inch Android Car TV Features. This video showcases the various functions and capabilities of the Android headrest monitor, including app usage, screen mirroring, and connectivity options.

Penyelenggaraan

To ensure the longevity and optimal performance of your AINAVI Headrest Monitor, follow these maintenance guidelines:

• Pembersihan: Gunakan kain lembut dan kering untuk membersihkan skrin dan bahagian luar. Elakkan pembersih atau pelarut yang melelas.
• Suhu: Jangan dedahkan peranti kepada suhu yang melampau (panas atau sejuk) untuk tempoh yang lama.
• Storan: When not in use for long periods, store the monitor in a cool, dry place.
• Kemas Kini Perisian: The device supports OTA (Over-The-Air) updates. Regularly check for and install available software updates to improve performance and security.

Menyelesaikan masalah

If you encounter any issues with your AINAVI Headrest Monitor, please refer to the following common troubleshooting steps:

• Tiada Kuasa: Ensure the power cable is securely connected to both the monitor and the power source (car charger or DC adapter). Check the vehicle's cigarette lighter fuse if using the car charger.
• Tiada Paparan: If the screen remains black after powering on, try restarting the device. Ensure the brightness settings are not set to minimum.
• Skrin sentuh Tidak Responsif: Restart the device. If the issue persists, perform a factory reset (refer to the System settings).
• Tiada Bunyi: Check the volume levels on the monitor and any connected audio devices (Bluetooth headphones, car stereo). Ensure the correct audio output mode is selected in settings.
• Isu Kesambungan WiFi: Verify that your WiFi network is active and within range. Re-enter the WiFi password if necessary. Try restarting your router or phone hotspot.
• Screen Mirroring Failure: Ensure both the phone and monitor are connected to the same WiFi network. Check that the screen mirroring function is enabled on both devices.
• Apps Not Working: Ensure the device has a stable internet connection. Clear the app's cache or reinstall the app from the Google Play Store.

Jika langkah ini tidak menyelesaikan isu, sila hubungi sokongan pelanggan.

Spesifikasi

Waranti

The AINAVI 13.5-inch Android Headrest Monitor comes with a 12-month warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or improper installation.

Sokongan

For further assistance, technical support, or warranty inquiries, please contact AINAVI customer service through the following channels:

• Sokongan dalam talian: Visit the official AINAVI webtapak untuk Soalan Lazim dan sumber sokongan.
• Sokongan E-mel: Rujuk kepada pembungkusan produk anda atau pegawai rasmi webtapak untuk alamat e-mel sokongan pelanggan.
• Sokongan Peruncit: Hubungi peruncit tempat anda membeli produk tersebut.
