COOLGEEK Upright Vinyl Turntable User Manual

1. Produk Lebihview

The COOLGEEK Upright Vinyl Turntable (Model VS-01) offers a unique vertical design, allowing for an unobstructed view of your vinyl records while playing. This innovative design also helps minimize dust accumulation on the record surface, contributing to a purer audio experience.

Equipped with a built-in 5W hybrid mid/tweeter driver and a powerful 30W heavy bass unit, the VS-01 delivers rich, immersive sound across all frequencies. The integrated subwoofer enhances low-frequency sound waves, creating a robust bass effect. An in-built HIFI amplifier with RIAA curve equalization ensures balanced playback frequencies, providing a high-fidelity audio experience.

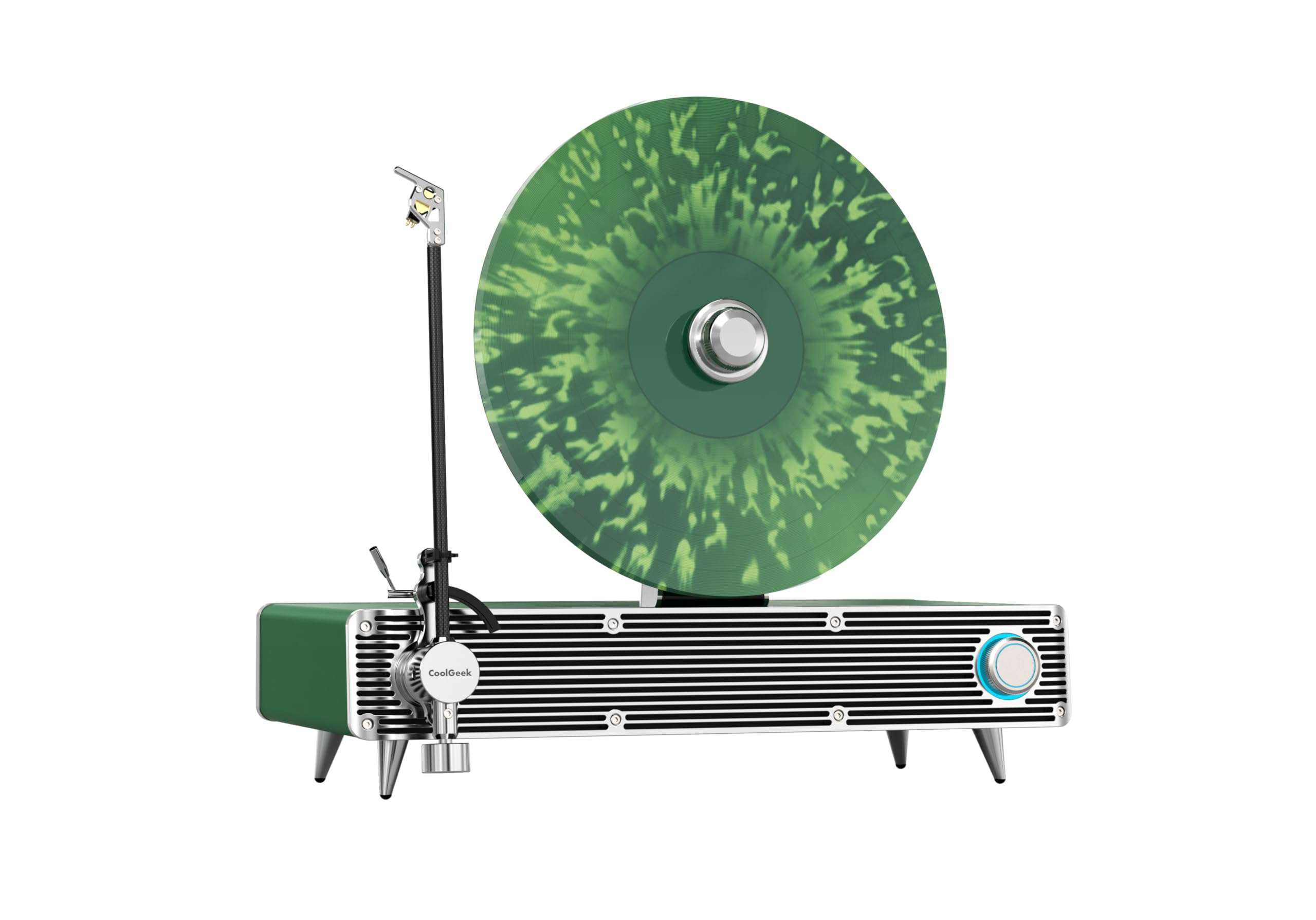

Image 1.1: The COOLGEEK Upright Vinyl Turntable, featuring its distinctive vertical record playback design. The turntable is green with silver accents, and a green vinyl record is mounted vertically on the platter.

Ciri-ciri Utama:

• Vertical Record Playback: Unique upright design for visual appeal and reduced dust accumulation.
• Audio yang berkualiti tinggi: Features a 5W hybrid mid/tweeter driver and a 30W heavy bass unit for comprehensive sound.
• Bass Dipertingkatkan: Bottom subwoofer with precisely calculated inverted tube structure for shocking heavy bass.
• Integrated HIFI Amplebih hidup: Includes RIAA curve equalization for balanced frequency playback.
• Kesambungan Bluetooth: Seamlessly stream audio from compatible devices.
• AT-3600L Stylus Head: Equipped with a quality stylus for accurate tracking and sound reproduction.

2. Panduan Persediaan

Follow these steps to set up your COOLGEEK Upright Vinyl Turntable:

1. Membongkar: Keluarkan semua komponen dari pembungkusan dengan berhati-hati. Pastikan semua item yang disenaraikan di bahagian "Apa yang Ada di Dalam Kotak" ada.
2. penempatan: Place the turntable on a stable, level surface away from direct sunlight, heat sources, and excessive vibration. Ensure adequate ventilation around the unit.
3. Sambungan Kuasa: Connect the power adapter to the DC input port on the back of the turntable, then plug the adapter into a wall outlet.
4. Stylus Protection Removal: Gently remove the clear plastic stylus protector from the AT-3600L stylus head. Be careful not to bend the stylus.
5. Penempatan Rekod: The turntable is designed for vertical record playback. Carefully align your vinyl record with the central spindle and the support mechanism, ensuring it sits securely and upright on the platter.
6. Tonearm Preparation: Release the tonearm lock. The tonearm is designed to move freely.

3. Operasi

3.1 Memainkan Rekod Vinil

1. Hidupkan kuasa: Turn the power/volume knob clockwise to power on the unit. The indicator light will illuminate.
2. Pilih Mod: Ensure the turntable is in Phono mode (if a mode selector is present).
3. Rekod Tempat: Carefully place your vinyl record onto the vertical platter, ensuring it is centered and stable.
4. Mulakan Putaran Pinggan: The platter should begin to rotate automatically once a record is detected or the tonearm is moved.
5. Tonearm Kedudukan: Gently lift the tonearm using the cueing lever (if available) or by hand. Carefully position the stylus over the desired starting groove of the record.
6. Tonearm Bawah: Slowly lower the tonearm onto the record. The music will begin to play.
7. Laraskan Kelantangan: Use the volume knob to adjust the audio output to your desired level.
8. Tamat Main Semula: At the end of the record, the tonearm may automatically lift and return to its rest, or you may need to manually lift it and return it to the tonearm rest. Secure the tonearm with the lock.

3.2 Operasi Bluetooth

The COOLGEEK Upright Vinyl Turntable can also function as a Bluetooth speaker, allowing you to stream music wirelessly from your compatible devices.

1. Hidupkan kuasa: Putar tombol kuasa/kelantangan mengikut arah jam untuk menghidupkan unit.
2. Pilih Mod Bluetooth: Switch the turntable to Bluetooth mode. An audible prompt or indicator light will confirm Bluetooth pairing mode is active.
3. Dayakan Bluetooth pada Peranti: Pada telefon pintar, tablet atau peranti lain yang didayakan Bluetooth anda, pergi ke tetapan Bluetooth dan pastikan Bluetooth diaktifkan.
4. Berpasangan: Cari untuk available devices. You should see "COOLGEEK VS-01" or a similar name appear in the list. Select it to pair.
5. Pengesahan Sambungan: Once successfully paired, an audible confirmation will sound from the turntable.
6. Main Muzik: You can now play music from your device, and the audio will be streamed through the turntable's speakers.
7. Laraskan Kelantangan: Control the volume using both your device's volume controls and the turntable's volume knob.

4. Penyelenggaraan

Proper maintenance ensures the longevity and optimal performance of your turntable.

• Membersihkan Stylus: The stylus (needle) is delicate. Use a soft brush designed for stylus cleaning, brushing gently from back to front. Clean the stylus regularly to prevent dust buildup, which can affect sound quality and damage records.
• Membersihkan Meja Putar: Wipe the surface of the turntable with a soft, dry, lint-free cloth. For stubborn marks, slightly dampen kain dengan air. Elakkan menggunakan bahan kimia yang keras atau pembersih yang kasar.
• Penjagaan Rekod: Always handle records by their edges. Store them vertically in their sleeves to prevent warping and dust accumulation. Clean records with a dedicated record brush before each play.
• Penutup habuk: While this vertical design minimizes dust, consider a custom dust cover if available or keep the area clean to protect the exposed components.
• Penggantian Stilus: The AT-3600L stylus has a finite lifespan (typically 300-500 hours of play). If you notice a degradation in sound quality or skipping, it may be time to replace the stylus. Consult the manufacturer for compatible replacement styli.

5. Penyelesaian masalah

Jika anda menghadapi masalah dengan meja putar anda, rujuk masalah dan penyelesaian biasa berikut:

6. Spesifikasi

7. Waranti & Sokongan

COOLGEEK products are manufactured to the highest quality standards. For specific warranty details regarding your Upright Vinyl Turntable (Model VS-01), please refer to the warranty card included with your product or visit the official COOLGEEK webtapak.

For technical support, troubleshooting assistance, or inquiries about replacement parts (such as the AT-3600L stylus), please contact COOLGEEK customer service. You can often find support contact information on the brand's official store page or through the retailer where you purchased the product.

Sokongan dalam talian: Lawati COOLGEEK Store on Amazon for more information and potential contact options.

Please have your product model (VS-01) and ASIN (B0F9B1ZZ2H) ready when contacting support.
