pengenalan
Thank you for choosing the Forte F14UFESSS 28-inch Freestanding All Refrigerator. This versatile appliance is designed to provide flexible food storage solutions, functioning as either a refrigerator or a freezer. With its 13.5 cubic feet capacity, No Frost technology, and Multi-Air Flow system, it ensures optimal food preservation and convenience.
Key features include a convertible design, spacious interior with adjustable glass shelves, advanced cooling, LED lighting, and a reversible door for flexible installation. This manual provides essential information for safe operation, installation, maintenance, and troubleshooting.
Maklumat Keselamatan Penting
Sila baca semua arahan dengan teliti sebelum menggunakan perkakas untuk memastikan operasi selamat dan mengelakkan kecederaan atau kerosakan.
- Pastikan perkakas dibumikan dengan betul.
- Jangan simpan bahan letupan seperti tin aerosol dengan bahan dorong mudah terbakar di dalam perkakas ini.
- Pastikan bukaan pengudaraan bersih daripada halangan.
- Jangan gunakan peranti mekanikal atau cara lain untuk mempercepatkan proses penyahbekuan, selain daripada yang disyorkan oleh pengilang.
- Jangan rosakkan litar penyejuk.
- Jangan gunakan peralatan elektrik di dalam petak penyimpanan makanan perkakas, melainkan ia daripada jenis yang disyorkan oleh pengilang.
- Cabut plag perkakas sebelum membersihkan atau melakukan sebarang penyelenggaraan.
- Awasi kanak-kanak untuk memastikan mereka tidak bermain dengan perkakas.
Produk Selesaiview
Depan view of the Forte F14UFESSS refrigerator, showcasing its sleek stainless steel finish and integrated handle.
bersudut view of the Forte F14UFESSS, highlighting its full-height profile and compact footprint.

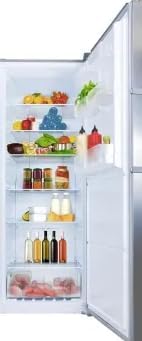

Dalaman view of the Forte F14UFESSS, showing the adjustable glass shelves, door storage, and LED lighting.
Persediaan dan Pemasangan
Membongkar
- Keluarkan semua bahan pembungkusan, termasuk buih dan pita pelekat.
- Periksa perkakas untuk sebarang kerosakan penghantaran. Laporkan sebarang kerosakan kepada peruncit anda dengan segera.
- Jauhkan bahan pembungkus daripada kanak-kanak.
Penempatan
- Place the appliance on a firm, level floor capable of supporting its weight.
- Allow at least 4 inches (10 cm) of space at the back and sides for proper ventilation.
- Avoid placing the appliance in direct sunlight or near heat sources (e.g., stove, heater).
- Pastikan suhu ambien berada dalam julat yang disyorkan untuk prestasi optimum.
Pemasangan Pintu Boleh Balik
The door of the Forte F14UFESSS is reversible, allowing it to open from either the left or right side. Refer to the detailed diagrams in the separate installation guide for step-by-step instructions on how to reverse the door swing. This process typically involves moving hinges and plugs from one side to the other.
Sambungan Kuasa
- Connect the appliance to a dedicated, grounded 120V, 60Hz AC outlet.
- Jangan gunakan kord sambungan atau palam penyesuai.
- Allow the appliance to stand upright for at least 2-4 hours before plugging it in to allow refrigerants to settle.
Arahan Operasi
Permulaan Awal
After connecting to power, the appliance will begin cooling. It is recommended to let the unit run for several hours empty to reach its stable operating temperature before loading food.
Converting Between Refrigerator and Freezer Modes
The Forte F14UFESSS features a unique convertible design. To switch between refrigerator and freezer modes, locate the control panel, typically inside the unit or on the top front. Follow the instructions on the panel to select the desired mode (refrigerator or freezer). The appliance will adjust its temperature range accordingly. Allow several hours for the temperature to stabilize after changing modes.
Kawalan Suhu
Adjust the temperature using the electronic controls. For refrigerator mode, typical temperatures range from 34°F to 46°F (1°C to 8°C). For freezer mode, typical temperatures range from -8°F to 5°F (-22°C to -15°C). Refer to the control panel for specific temperature settings and indicators.
Melaraskan Rak
The adjustable glass shelves allow for flexible storage. To adjust, carefully lift the shelf and pull it out. Reinsert into the desired shelf supports. Ensure shelves are securely seated before placing items on them.
Multi-Air Flow System
This appliance is equipped with a Multi-Air Flow System, which ensures consistent temperature distribution throughout the interior. This helps to maintain optimal freshness for your food items by circulating cold air evenly.
Penyelenggaraan dan Pembersihan
Membersihkan Bahagian Dalaman
- Cabut plag perkakas sebelum membersihkan.
- Wash the interior surfaces, shelves, and drawers with a mild detergent and warm water solution.
- Bilas dengan teliti dan keringkan dengan kain lembut.
- Jangan gunakan pembersih yang kasar, pad penggosok atau bahan kimia yang keras.
Membersih Bahagian Luar
- Lap bahagian luar keluli tahan karat dengan bersih, damp kain dan pembersih yang lembut dan tidak melelas.
- For best results on stainless steel, wipe in the direction of the grain.
- Dry thoroughly to prevent water spots.
Tiada Teknologi Frost
The Forte F14UFESSS features No Frost technology, which automatically prevents ice buildup in the freezer compartment. This eliminates the need for manual defrosting, saving you time and effort.
Kuasa Outage
Sekiranya berlaku kuasa outage, keep the appliance door closed to maintain the internal temperature for as long as possible. Avoid opening the door unnecessarily. If the outage is prolonged, consider transferring perishable items to another cold storage unit.
Panduan Penyelesaian Masalah
Sebelum menghubungi perkhidmatan pelanggan, sila semak isu dan penyelesaian biasa berikut:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Peralatan tidak beroperasi | Tidak dipasang; pemutus litar tersandung; kuasa outage. | Pastikan palam dipasang dengan kukuh; tetapkan semula pemutus litar; periksa kuasa isi rumah. |
| Suhu tidak cukup sejuk | Door not closed properly; excessive door openings; temperature setting too high; unit overloaded. | Check door seal; reduce door openings; adjust temperature setting lower; do not overload. |
| Bunyi yang luar biasa | Appliance not level; items rattling inside; normal operating sounds (compressor, refrigerant flow). | Ratakan perkakas; susun semula item; bunyi-bunyi ini adalah perkara biasa. |
| Air di lantai/dalam | Drain tube blocked; high humidity. | Clear drain tube; this is normal in high humidity. |
Spesifikasi Produk
| Ciri | Spesifikasi |
|---|---|
| Nombor Model | F14UFESSS |
| Kapasiti | 13.5 Kaki Kubik |
| Dimensi (D x W x H) | 24"D x 28"W x 72"H |
| Berat Barang | 170 paun |
| Jenis Pemasangan | Freestanding |
| warna | Keluli Tahan Karat |
| Sistem Pencairan | Tiada Teknologi Frost |
| Ciri Khas | LED Lighting, Convertible To Freezer, Reversible Door, Energy Star Certified |
| Voltage | 120 Volt |
| rak | 4 Rak Kaca Boleh Laras |
| Crispers/Laci | 2 |
| Pensijilan | Energy Star, Culus |
Waranti dan Sokongan Pelanggan
This Forte appliance comes with a limited warranty covering defects in materials and workmanship. Please refer to the warranty card included with your purchase for specific terms, conditions, and duration of coverage.
For technical assistance, troubleshooting beyond this guide, or to inquire about warranty service, please contact Forte customer support. Keep your purchase receipt and model number readily available when contacting support.
Hubungan Sokongan Pelanggan:
Sila layari laman rasmi pengeluar website or your retailer's support page for the most current contact information.
