1. Pengenalan

Welcome to the Fender Player II Modified Stratocaster HSS Floyd Rose. This instrument combines classic Fender design with modern features for enhanced playability and tonal versatility. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your new guitar.

Figure 1: The Fender Player II Modified Stratocaster HSS Floyd Rose in 3-Color Sunburst.

2. Ciri-ciri Utama

The Player II Modified Stratocaster HSS Floyd Rose is engineered for performance and adaptability:

• Modern "C" Neck with Rolled Edges: Designed for comfortable and fast playability across the entire fretboard.
• Modified Humbucker & Noiseless Strat Pickups: Provides a wide range of tones, from high-output humbucker sounds to classic, noise-free single-coil chime.
• Coil-Split Tone Control: A push/pull switch on the second tone knob allows for splitting the bridge humbucker, offering additional single-coil tonal options.
• Floyd Rose Special Tremolo System: Enables expressive pitch modulation, including dive bombs and subtle vibrato, with enhanced tuning stability.
• Alder Body: Offers a balanced tone with excellent resonance and sustain.

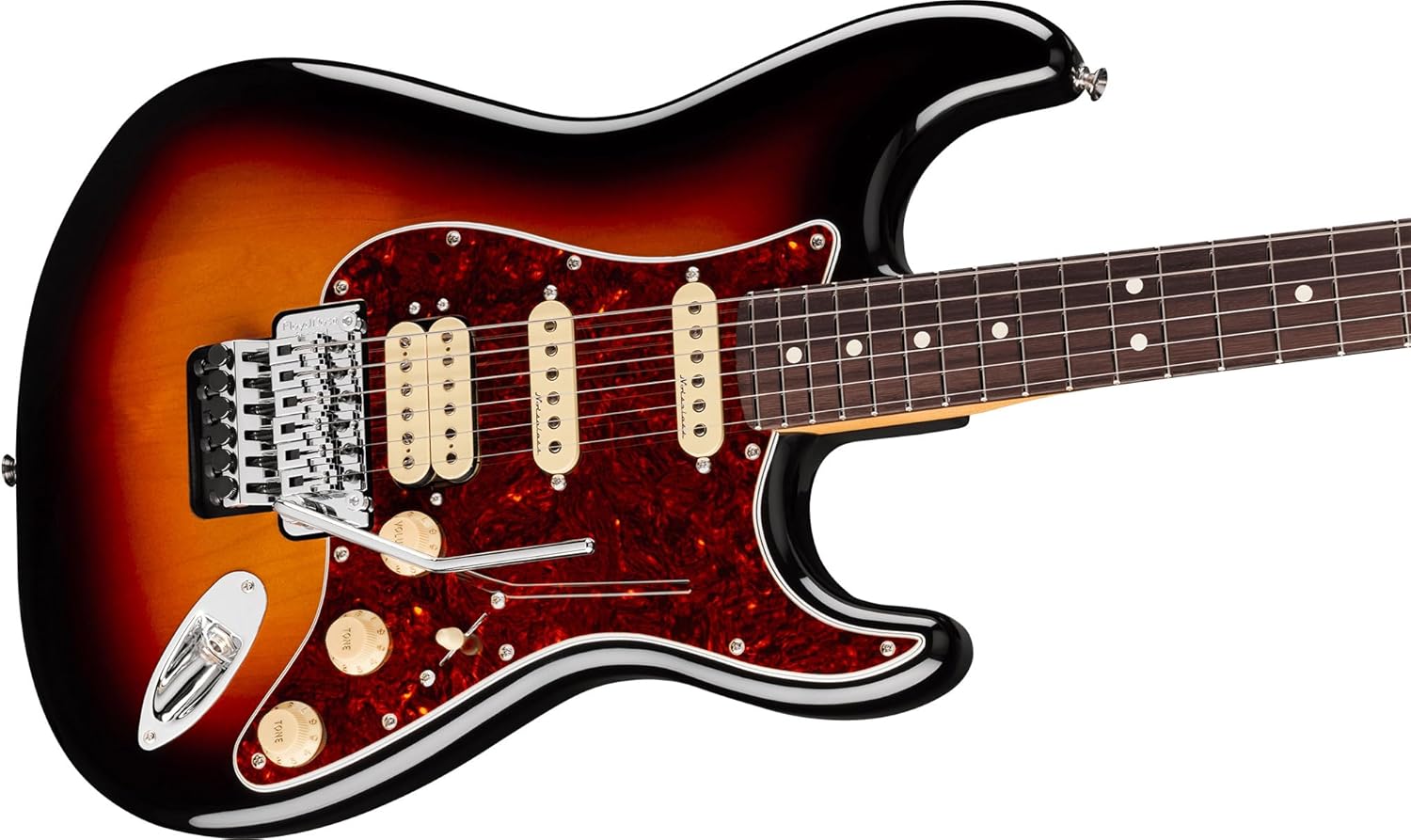

Rajah 2: Terperinci view of the guitar's body, pickups, and Floyd Rose tremolo system.

3. Persediaan

3.1 Pemeriksaan Awal

Upon unboxing, inspect your guitar for any visible damage. Ensure all components are present and securely attached.

3.2 Penalaan

The Floyd Rose Special tremolo system requires specific tuning procedures. Ensure the locking nut clamps are loosened before tuning. Tune each string to its desired pitch using the tuning machines on the headstock. Once tuned, tighten the locking nut clamps. Fine-tuning can then be done using the fine tuners on the Floyd Rose bridge.

Figure 3: The guitar's headstock, showing the tuning machines and Floyd Rose locking nut.

3.3 Rentetan

When changing strings on a Floyd Rose system, it is recommended to change one string at a time to maintain bridge balance. Loosen the locking nut, then loosen the string at the tuning machine. Cut the ball end off the new string and insert the plain end into the saddle's string lock screw. Tighten the screw, then thread the string through the tuning machine and tune. Repeat for all strings, then tighten the locking nut and fine-tune.

4. Beroperasi

4.1 Kawalan Ke Atasview

• Tombol Kelantangan: Mengawal jumlah output keseluruhan gitar.
• Tone 1 Knob: Controls the tone for the neck and middle pickups.
• Tone 2 Knob: Controls the tone for the bridge humbucker. This knob also features a push/pull function to split the humbucker into a single-coil.
• Suis Pemilih Pengambilan 5 Hala: Selects different pickup configurations:
1. Position 1 (Bridge): Bridge Humbucker (or single-coil if split)
2. Position 2 (Bridge & Middle): Bridge Humbucker (or single-coil if split) and Middle Single-Coil
3. Position 3 (Middle): Middle Single-Coil
4. Position 4 (Middle & Neck): Middle Single-Coil and Neck Single-Coil
5. Position 5 (Neck): Neck Single-Coil

4.2 Using the Floyd Rose Tremolo

The Floyd Rose Special tremolo allows for significant pitch changes. Gently depress or pull up on the tremolo arm to achieve vibrato effects. Due to its double-locking design, proper setup is crucial for maintaining tuning stability during aggressive use.

5. Penyelenggaraan

Regular maintenance ensures the longevity and optimal performance of your guitar:

• Pembersihan: Wipe down the guitar body, neck, and strings with a soft, lint-free cloth after each use. Use guitar-specific cleaning products for deeper cleaning and polishing.
• Perubahan Rentetan: Change strings regularly, especially if they show signs of wear, corrosion, or loss of tone. Refer to section 3.3 for Floyd Rose stringing.
• Penjagaan Fretboard: Periodically clean and condition the rosewood fretboard to prevent drying and cracking. Use a dedicated fretboard conditioner.
• Floyd Rose Maintenance: Keep the tremolo system clean and lubricated. Inspect the knife edges and pivot posts for wear. Consult a qualified technician for complex adjustments or repairs.
• Storan: Store your guitar in a gig bag or hard case to protect it from dust, humidity changes, and physical damage.

Figure 4: A gig bag provides essential protection for your instrument.

6. Penyelesaian masalah

Berikut adalah penyelesaian kepada isu-isu biasa:

7. Spesifikasi

8. Waranti & Sokongan

Your Fender Player II Modified Stratocaster HSS Floyd Rose is covered by Fender's limited warranty. For detailed warranty information, product registration, or technical support, please visit the official Fender website or contact Fender customer service. Keep your proof of purchase for warranty claims.

For additional resources and tips, you may find the following video helpful, which discusses features of the Fender Player II series:
