HITBOX TIG200PRO 6-in-1 Digital Welder

1. Pengenalan

Thank you for choosing the HITBOX TIG200PRO 6-in-1 Digital Welder. This professional welding machine is designed for versatility and precision, supporting MMA, DC HF TIG, Pulsed TIG, TIG Clean, and Spot Welding functions. It is ideal for welding thin and highly thermally conductive metals without burn-through. This manual provides essential information for safe operation, setup, maintenance, and troubleshooting to ensure optimal performance and longevity of your welder.

2. Maklumat Keselamatan

AMARAN: Kimpalan boleh berbahaya. Sentiasa patuhi langkah berjaga-jaga keselamatan untuk mencegah kecederaan atau kematian.

• Kejutan elektrik: Can kill. Do not touch live electrical parts. Wear dry welding gloves and protective clothing. Ensure the workpiece is properly grounded.
• Asap dan Gas: Boleh membahayakan kesihatan anda. Jauhkan kepala anda daripada asap. Gunakan pengudaraan atau ekzos untuk mengeluarkan asap dari zon pernafasan.
• Sinar Arka: Boleh melecurkan mata dan kulit. Pakai topi keledar kimpalan dengan penapis pelindung yang betul dan pakaian pelindung.
• Kebakaran dan Letupan: Percikan api kimpalan boleh menyebabkan kebakaran atau letupan. Jauhkan bahan mudah terbakar dari kawasan kimpalan. Sediakan alat pemadam api berdekatan.
• Terbakar: Logam panas boleh menyebabkan melecur teruk. Jangan sentuh bahagian panas dengan tangan kosong.
• bunyi bising: Excessive noise can damage hearing. Wear ear protection.
• Bahagian bergerak: Keep clear of moving parts to avoid injury.

3. Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej anda:

• HITBOX TIG200PRO Welder (200A)
• TIG-26 Torch (4m)
• Tanah Clamp (300)
• Electrode Holder (200A)
• WT20 Tungsten Electrode
• Argon Gas Tube
• Selang Clamps
• Berus wayar
• tukul
• Auto-darkening Cold Welding Helmet
• Pedal Kaki
• TIG Consumables (collets, collet bodies, ceramic nozzles)

Image: All accessories included with the HITBOX TIG200PRO welder, laid out for inspection.

4. Persediaan

4.1 Sambungan Kuasa

• Ensure the welder is connected to a 230V power supply.
• Verify that the power outlet and circuit breaker can handle the required amppemadam.

4.2 Gas Connection (for TIG welding)

• Connect the argon gas tube to the gas inlet on the rear panel of the welder.
• Connect the other end of the gas tube to your argon gas cylinder via a pressure regulator.
• Pastikan semua sambungan selamat untuk mengelakkan kebocoran gas.

4.3 Sambungan Kabel Kimpalan

The connection polarity depends on the welding mode:

• Mod TIG: Connect the TIG torch to the negative (-) terminal and the ground clamp ke terminal positif (+).
• Mod MMA: Sambungkan pemegang elektrod ke terminal positif (+) dan penutup pembumianamp ke terminal negatif (-).

Image: Diagrams illustrating the correct connection setup for TIG and MMA welding modes, including gas cylinder for TIG.

4.4 Foot Pedal Connection

• Connect the 8-pin foot pedal cable to the dedicated foot pedal interface on the welder's front panel.
• The foot pedal allows for remote and precise amperage control during welding.

Image: The HITBOX TIG200PRO welder shown with its optional 8-pin foot pedal and an auto-darkening welding helmet, demonstrating remote control capability.

4.5 Topi Keledar Kimpalan

• Always wear the provided auto-darkening welding helmet to protect your eyes and face from arc rays and sparks.

5. Arahan Operasi

5.1 Panel Kawalan Selesaiview

The TIG200PRO features a high-definition LED screen for clear display of all welding parameters. The intuitive panel allows for easy adjustment.

Image: Close-up of the HITBOX TIG200PRO's high-definition LED display, showing various customizable welding parameters and digital controls.

5.2 Mod Kimpalan

The HITBOX TIG200PRO offers 6 functions:

• MMA (Manual Metal Arc) Welding: For general-purpose stick welding.
• DC HF TIG Welding: High-frequency start TIG for precise welding of various metals (not aluminum).
• Pulsed TIG Welding: Offers precise digital control over parameters like base current, peak current, frequency, and duty cycle, reducing heat input and distortion.
• TIG Clean: A specialized function for cleaning the weld area (torch not included for this specific function).
• Kimpalan Titik: High-precision spot welding for ultra-thin materials (down to 0.1 mm).
• Cold TIG: A mode for welding with minimal heat input.

Image: Visual representation of the six welding functions available on the HITBOX TIG200PRO: Weld Clean, Cold TIG, DC HF TIG, Pulsed TIG, Precision Spot TIG, and MMA welding.

5.3 Pelarasan Parameter

The digital control allows precise adjustment of various parameters:

• semasa: 1-200 A
• Pre-gas: 0-10 seconds (ensures oxidation-free start)
• Post-gas: 1-10 seconds (protects weld pool as it cools)
• Spot Welding Time: 0.01-9 saat
• Spot Welding Interval: 1-900 ms
• Pulsed TIG Frequency: 0.1-500 Hz
• Pulsed TIG Duty Cycle: 10%-90%
• Base Current (Pulsed TIG): 10-180A
• Peak Current (Pulsed TIG): 10-200A
• Mulakan Ramp (Pulsed TIG): 0-10s
• Tamat Ramp (Pulsed TIG): 0-10s
• End Current (Pulsed TIG): 10-200A

Imej: Cthamples of weld beads produced using TIG DC and Pulsed TIG modes, showcasing the precision achievable with the HITBOX TIG200PRO.

Image: Diagram illustrating the pre-gas and post-gas functions in TIG welding, which prevent oxidation and ensure clean welds.

5.4 2T/4T Mode Selection

The welder supports both 2T (Two-Touch) and 4T (Four-Touch) modes for continuous and spot welding applications.

• Mod 2T: Press and hold the torch button to start welding; release to stop. Suitable for short welds.
• Mod 4T: Press and release to start welding; press and release again to stop. Ideal for longer welds, reducing hand fatigue.

Image: Graphs illustrating the current profiles for 2T and 4T TIG welding modes, showing how current changes with button presses for different welding durations.

5.5 Keserasian Bahan

The TIG200PRO is suitable for welding steel, stainless steel, copper, brass, and similar metals. It is not suitable for aluminum, which requires an AC/DC welding machine.

Image: A collage showing various metal types compatible with the HITBOX TIG200PRO welder, including copper, mild steel, cast iron, square tube, stainless steel, and sheet metal. Aluminum is explicitly noted as not supported.

5.6 Welding Thickness

Image: Visual comparison illustrating the minimum and maximum welding thicknesses for TIG (0.1mm to 4mm) and MMA (2mm to 10mm) processes.

6. Penyelenggaraan

6.1 Pembersihan

• Regularly clean the welder's exterior with a dry, soft cloth.
• Ensure ventilation openings are free from dust and debris to maintain proper airflow.

6.2 Pemeriksaan

• Periodically inspect all cables, connections, and the torch for damage or wear. Replace any damaged components immediately.
• Check the gas tube for leaks and ensure secure connections.

6.3 Smart Fan Operation

• The intelligent fan activates only when necessary, reducing noise and power consumption. This is normal operation.

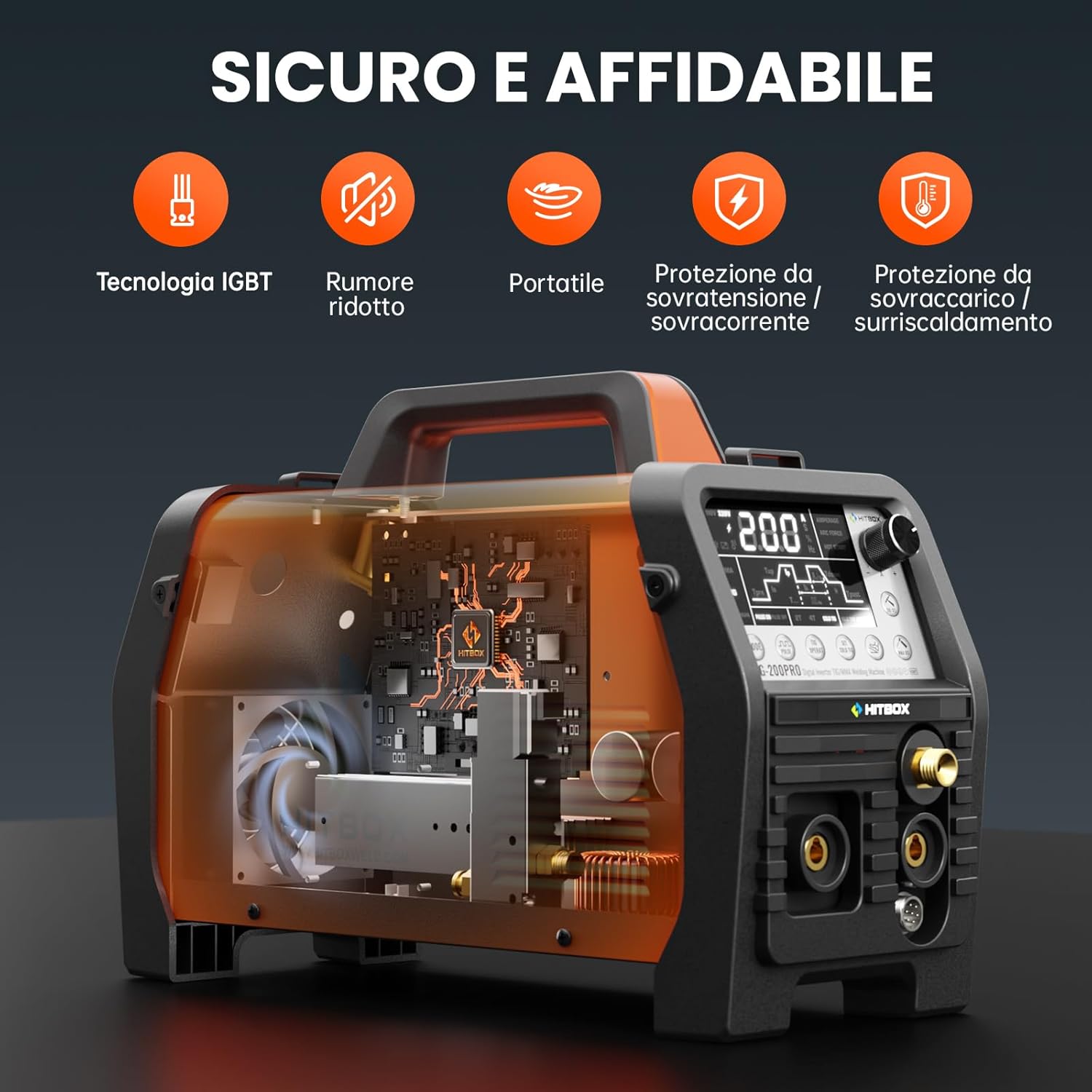

Imej: Satu dalaman view of the HITBOX TIG200PRO welder, showcasing its robust design and safety features such as IGBT technology, efficient cooling fan, and various protection circuits.

7. Penyelesaian masalah

If you encounter issues with your HITBOX TIG200PRO welder, refer to the following common problems and solutions:

• Tiada Kuasa: Check power cable connection, main power switch, and circuit breaker.
• Tiada Lengkungan: Ensure proper grounding, correct electrode/tungsten setup, and sufficient welding current. Check for loose connections.
• Kualiti Kimpalan yang Buruk: Adjust welding current, gas flow (for TIG), travel speed, and arc length. Ensure workpiece is clean.
• Perlindungan Terlalu Panas: If the welder stops and an overheat indicator lights up, allow the machine to cool down. Ensure proper ventilation and do not exceed the duty cycle.
• Gas Flow Issues (TIG): Check argon cylinder pressure, regulator settings, and gas tube connections for leaks or blockages.

For persistent issues or problems not listed here, please contact HITBOX customer support.

8. Spesifikasi

8.1 Spesifikasi Umum

8.2 TIG Welding Specifications

Image: Table detailing recommended current, tungsten electrode diameter, gas flow rate, nozzle diameter, and filler wire diameter for TIG welding.

8.3 Stick (MMA) Welding Specifications

Image: Table outlining recommended current for Stick welding based on electrode diameter and workpiece thickness.

9. Waranti dan Sokongan

For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official HITBOX website. If you require technical assistance or have questions regarding the operation or maintenance of your TIG200PRO welder, please contact HITBOX customer service directly.
