Micool DY20PLUS Bluetooth Headset V5.4 User Manual

pengenalan

Thank you for choosing the Micool DY20PLUS Bluetooth Headset V5.4. This manual provides comprehensive instructions to help you set up, operate, and maintain your new headset. Please read this manual carefully before use to ensure optimal performance and longevity of your device.

Kandungan Pakej

• Micool DY20PLUS Bluetooth Headset
• Kabel Pengecas USB-C
• Manual Pengguna
• Multiple Sized Ear Tips (L, M, S)

Produk Selesaiview

Familiarize yourself with the components of your Micool DY20PLUS Bluetooth Headset.

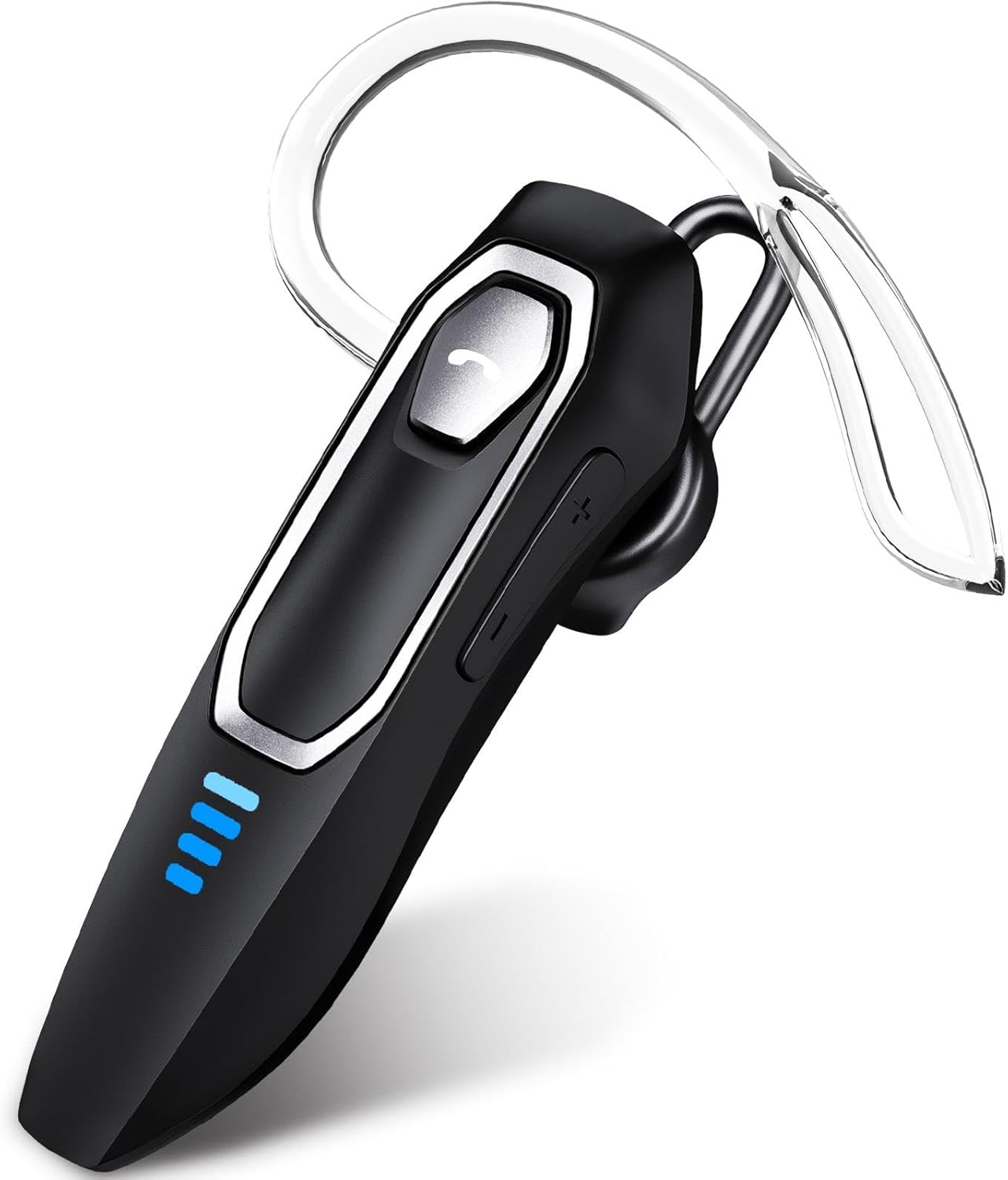

Image 1: Micool DY20PLUS Bluetooth Headset. This image displays the main headset unit, highlighting the call button, volume controls, and LED power indicators.

Image 2: Headset Controls Diagram. This diagram illustrates the Multi-Function Button (MFB) for power, play/pause, and Bluetooth pairing, along with volume controls and mute function.

Mengecas Alat Dengar

Before first use, fully charge the headset.

1. Sambungkan kabel pengecas USB-C yang disediakan ke port pengecasan pada set kepala.
2. Sambungkan hujung kabel yang satu lagi ke sumber kuasa USB (cth., komputer, penyesuai dinding).
3. The LED indicators will show charging status. A full charge typically takes 1.5-2 hours.
4. Once fully charged, the LED indicators will change or turn off (refer to LED Power Display section for details).

The headset offers up to 36 hours of talk time and 45 hours of music playback on a single charge.

Persediaan

Hidupkan/Mati Kuasa

• Hidupkan kuasa: Press and hold the Multi-Function Button (MFB) for approximately 3 seconds until the LED indicator flashes.
• Matikan: Press and hold the MFB for approximately 3 seconds until the LED indicator turns off.

Berpasangan Bluetooth

1. Pastikan alat dengar dimatikan.
2. Press and hold the MFB for approximately 3 seconds until the LED indicator flashes red and blue alternately, indicating pairing mode.
3. Pada peranti anda (telefon pintar, tablet, komputer), dayakan Bluetooth dan cari peranti yang tersedia.
4. Select "DY20PLUS" from the list of found devices.
5. Setelah disambungkan, penunjuk LED pada set kepala akan berkelip biru perlahan-lahan.

Sambungan berbilang titik: The DY20PLUS headset can connect to two devices simultaneously. After pairing with the first device, disable Bluetooth on that device. Then, put the headset back into pairing mode and connect to the second device. Re-enable Bluetooth on the first device, and the headset should automatically connect to both.

Image 3: Multi-Point Connection and LED Display. This image illustrates the headset's ability to connect to two devices simultaneously and the LED power display.

Arahan Operasi

Pengurusan Panggilan

• Jawab/Tamatkan Panggilan: Tekan MFB sekali.
• Tolak Panggilan: Press and hold the MFB for approximately 2 seconds.
• Redam/Nyahredam Mikrofon: During a call, press and hold the volume down button (marked with a microphone icon) for approximately 2 seconds.
• Redial Last Outgoing Call: Triple-tap the MFB.

Main balik Muzik

• Main/Jeda: Tekan MFB sekali.
• Lagu Seterusnya: Press and hold the Volume + button for approximately 2 seconds.
• Trek Sebelumnya: Press and hold the Volume - button for approximately 2 seconds.
• Kelantangan Naik/Turun: Press the Volume + or Volume - button briefly.

Pembantu Suara

• Aktifkan Pembantu Suara (Siri, Pembantu Google, dll.): Double-tap the MFB.

Paparan Kuasa LED

The headset features an LED power display with four levels, each representing 25% of the battery charge.

• To check the remaining power, double-click the Volume + button.

Keselesaan dan Fit

The Micool DY20PLUS is designed for comfortable, all-day wear.

• The ergonomic design ensures a secure fit without causing ear fatigue.
• Interchangeable ear tips (L, M, S) are included to help you find the best fit for your ear canal, optimizing bass and overall sound quality.
• The headset can be worn on either the left or right ear.

Image 4: Ear Tips and Durability. This image shows the included ear tips in different sizes (L, M, S) and highlights the enhanced durability features of the headset.

Penyelenggaraan

• Pembersihan: Gunakan kain lembut dan kering untuk membersihkan set kepala. Jangan gunakan bahan kimia yang keras atau bahan yang melelas.
• Storan: Apabila tidak digunakan, simpan set kepala di tempat yang sejuk dan kering, jauh dari cahaya matahari langsung dan suhu yang melampau.
• Penjagaan Bateri: Untuk memanjangkan hayat bateri, elakkan menyahcas sepenuhnya set kepala dengan kerap. Mengecasnya dengan kerap, walaupun tidak digunakan secara berterusan.
• Tahan Air: The headset is water-resistant, but not waterproof. Avoid submerging it in water or exposing it to heavy rain.

Menyelesaikan masalah

Spesifikasi

Waranti dan Sokongan

For warranty information or technical support, please refer to the documentation included with your purchase or contact Micool customer service through their official channels.
