1. Produk Lebihview
The Olucia Rona Square IP44 Adjustable Veranda Spotlights are designed to provide versatile and durable lighting for both indoor and outdoor environments, particularly verandas and covered outdoor spaces. This kit includes eight adjustable spotlights, a connection hub, a power adapter, and a remote control for convenient operation. The IP44 rating ensures protection against solid objects larger than 1mm and splashes of water from any direction, making them suitable for various applications.
Image 1.1: Complete kit including eight spotlights, remote control, connection hub, and power adapter.
2. Arahan Keselamatan
- Keselamatan Elektrik: Pemasangan hendaklah dilakukan oleh juruelektrik yang berkelayakan atau orang yang kompeten mengikut kod dan peraturan elektrik tempatan.
- Bekalan Kuasa: Pastikan bekalan kuasa voltage sepadan dengan keperluan yang dinyatakan pada label produk.
- Penilaian IP44: The spotlights are rated IP44, meaning they are protected against splashing water. They are suitable for outdoor use in covered areas but should not be submerged in water or exposed to direct high-pressure water jets.
- Pengudaraan: Ensure adequate ventilation around the spotlights to prevent overheating. Do not cover the lights with insulating material unless specifically designed for it.
- Pembersihan: Putuskan kuasa sebelum membersihkan. Gunakan kain yang lembut dan kering. Jangan gunakan pembersih atau pelarut yang kasar.
- kerosakan: Do not operate the product if any part is damaged. Contact customer support for assistance.
3. Kandungan Pakej
Sahkan bahawa semua komponen terdapat dalam pakej:
- 8 x Olucia Rona Square IP44 Adjustable Spotlights (Black)
- 1 x Alat Kawalan Jauh
- 1 x Connection Hub
- 1 x Penyesuai Kuasa dengan Kabel
Image 3.1: Power adapter and connection hub.
Image 3.2: Remote control, showing battery compartment (batteries not included).
4. Persediaan dan Pemasangan
Ikuti langkah ini untuk pemasangan yang betul:
- Pemasangan Pelan: Determine the desired locations for each of the eight spotlights. Ensure sufficient space for recessed installation and access for wiring.
- Sediakan Lubang Pemasangan: Cut appropriate-sized holes in the ceiling or mounting surface for each spotlight. The dimensions of each spotlight are 6 x 6 x 6 cm.
- Connect Spotlights to Hub: Connect each spotlight cable to an available port on the connection hub. Ensure secure connections.
- Connect Hub to Power Adapter: Plug the connection hub into the provided power adapter.
- Lampu Sorot Pemasangan: Insert each spotlight into its prepared hole. The spring clips on the sides of the spotlight will secure it in place. The spotlights are adjustable, allowing you to direct the light as needed.
- Sambungan Kuasa: Palamkan penyesuai kuasa ke salur keluar elektrik yang sesuai.

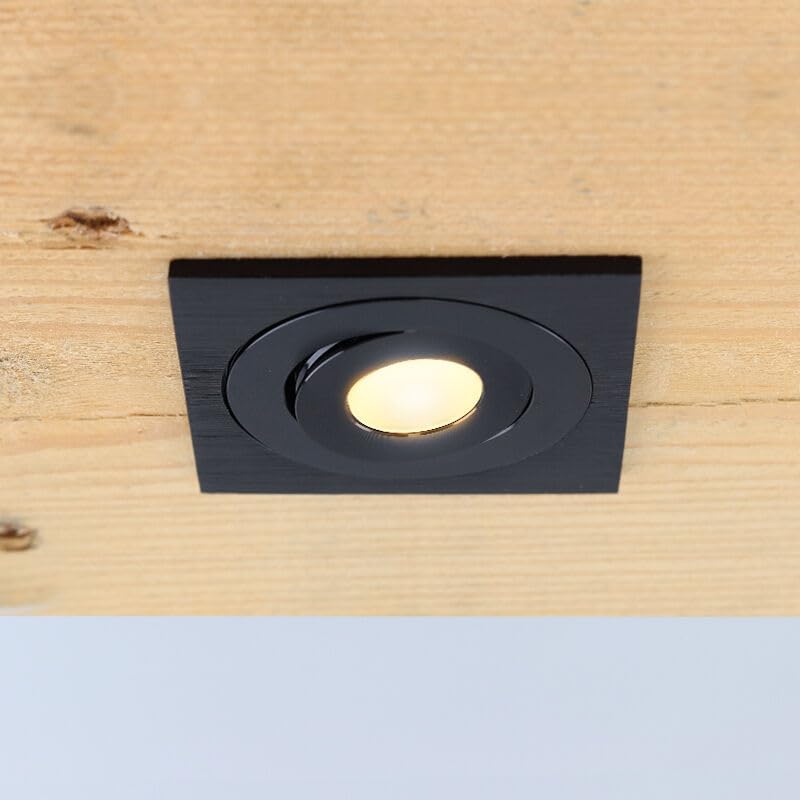

Image 4.1: An Olucia Rona spotlight recessed into a wooden surface.

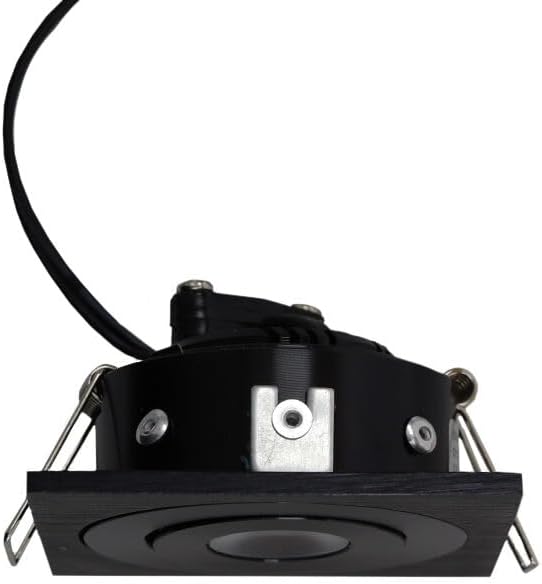

Imej 4.2: Sisi view illustrating the spring clips for secure installation.
5. Arahan Operasi
The Olucia Rona spotlights are operated using the included remote control.
- Hidupkan/Mati Kuasa: Press the 'I' button to turn the lights on, and the 'O' button to turn them off.
- Peredupan: Use the up and down arrow buttons to adjust the brightness level of the spotlights.
- Pemilihan Mod: The remote may include buttons for different lighting modes or color temperatures (e.g., 'moon' icon for warmer/night mode, 'sun' icon for brighter/daylight mode). Refer to the remote's specific icons for functionality.
- Lampu Sorot boleh laras: Each spotlight can be manually adjusted to direct the light beam to your desired area.
Image 5.1: Close-up of an illuminated spotlight, showing its warm light output.
Image 5.2: Close-up of an unilluminated spotlight, showcasing its square design.
6. Penyelenggaraan
- Pembersihan: Regularly clean the spotlights with a soft, dry, or slightly damp cloth to remove dust and dirt. Ensure the power is off before cleaning.
- Pemeriksaan: Periodically inspect the cables and connections for any signs of wear or damage.
- Penggantian Bateri: If the remote control's range or responsiveness decreases, replace the batteries (AAA type, not included).
7. Penyelesaian masalah
- Lampu Tidak Dihidupkan:
- Check if the power adapter is securely plugged into the outlet and the connection hub.
- Ensure the remote control batteries are correctly inserted and not depleted.
- Verify all spotlight connections to the hub are secure.
- Alat Kawalan Jauh Tidak Menjawab:
- Gantikan bateri dalam alat kawalan jauh.
- Ensure there are no obstructions between the remote and the receiver (usually integrated into the connection hub).
- Lampu berkelip-kelip:
- Check for loose connections at the power adapter, hub, or individual spotlights.
- Pastikan bekalan kuasa stabil.
If issues persist, contact Olucia customer support.
8. Spesifikasi
| Ciri | Spesifikasi |
|---|---|
| Jenama | Olucia |
| Nombor Model | SRC80000000C211 |
| Dimensi Produk (L x W x H) | 6 x 6 x 6 cm (per spotlight) |
| Penarafan IP | IP44 |
| Number of Spotlights | 8 |
| warna | Hitam |
| Kaedah Kawalan | Alat Kawalan Jauh |
9. Waranti dan Sokongan
Olucia provides a waranti dua tahun for this product, ensuring peace of mind regarding its quality and performance. For warranty claims, technical support, or any inquiries, please contact Olucia customer service through your retailer or the official Olucia webtapak.
10. Permohonan Cthamples
The Olucia Rona spotlights are ideal for illuminating various outdoor and indoor spaces, including verandas, pergolas, covered patios, and even garages or sheds, providing both functional and ambient lighting.
Imej 10.1: Cthamples of Olucia Rona spotlights installed in various veranda and outdoor settings.
