Arahan Keselamatan Penting
Please read all instructions carefully before operating your Acekool Portable Air Conditioner. Keep this manual for future reference.
- Sentiasa sambungkan unit ke soket kuasa yang dibumikan.
- Jangan kendalikan unit dengan kord atau palam yang rosak.
- Jangan sekat saluran masuk atau alur keluar udara.
- Pastikan pengudaraan yang betul di sekeliling unit.
- Jangan gunakan unit ini berhampiran air atau dalam persekitaran yang terlalu lembap.
- Cabut plag unit sebelum membersihkan atau melakukan sebarang penyelenggaraan.
- Jauhkan kanak-kanak dan haiwan peliharaan dari unit semasa operasi.
- Hanya gunakan aksesori yang disyorkan oleh pengilang.
Produk Selesaiview
The Acekool 14000 BTUs Portable Air Conditioner is a versatile 3-in-1 unit designed to provide cooling, dehumidification, and fan functions for rooms up to 750 square feet. Its compact design and mobility features make it an ideal solution for various living spaces.
Image: The Acekool Portable Air Conditioner unit shown with its remote control. The unit is white with a black top panel and features a sleek, modern design.
Ciri-ciri Utama:
- Fungsi 3-dalam-1: Offers Cooling, Dehumidifying, and Fan modes for comprehensive climate control.
- Penyejukan Kuat: 14,000 BTUs capacity effectively cools areas up to 750 sq. ft.
- Operasi senyap: Operates at a low noise level of below 50 dB, ideal for bedrooms and quiet environments.
- Alat Kawalan Jauh & Paparan LED: Easy control via a handy remote or the intuitive top LED display.
- Mod tidur: Optimizes settings for comfortable and energy-efficient overnight use.
- Pemasa 24 Jam: Allows for scheduled operation, enhancing energy savings.
- Aliran Udara Dipertingkatkan: Features multiple speed settings and an auto-swing function for wide-angle and even air distribution.
- Mobiliti Tinggi: Equipped with four smooth 360° wheels and hidden handles for easy movement between rooms.
- Penapis yang boleh dibasuh: Includes a reusable, washable filter for easy maintenance and improved air quality.

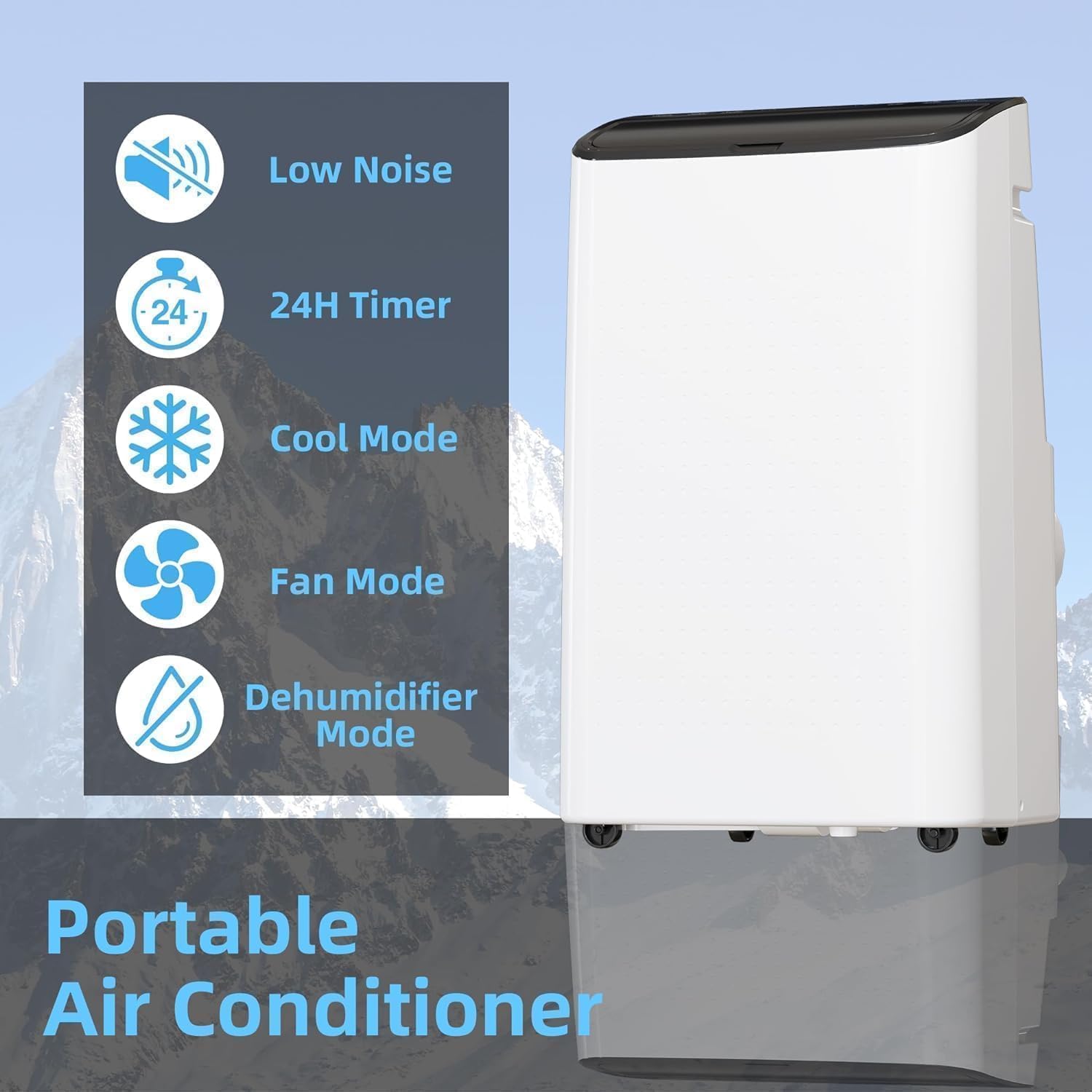

Image: A visual representation of the portable air conditioner highlighting its key modes and features: Low Noise, 24H Timer, Cool Mode, Fan Mode, and Dehumidifier Mode.
Image: Three panels illustrating the 3-in-1 functionality of the air conditioner: Cool mode (snowflake icon), Fan mode (fan icon), and Dry mode (water droplet icon).
Persediaan dan Pemasangan
Proper installation is crucial for the efficient operation of your portable air conditioner. This unit includes a window kit for easy setup.
Package Contents (Typical):
- Unit Penyaman Udara Mudah Alih
- Alat Kawalan Jauh
- Hos Ekzos
- Window Seal Plate Kit (adjustable for 26.5" to 48.5" windows)
- Penyesuai Hos
- Drain Hose (for dehumidifier mode)
- Manual Pengguna
Langkah Pemasangan:
- Kedudukan Unit: Place the air conditioner on a flat, stable surface near a window and a grounded electrical outlet. Ensure there is at least 20 inches of space around the unit for proper airflow.
- Attaching the Exhaust Hose:
- Screw the hose adapter onto one end of the exhaust hose.
- Connect the other end of the exhaust hose to the exhaust outlet on the back of the air conditioner unit.
- Installing the Window Kit:
- Open your window (suitable for double/single-hung or sliding windows).
- Adjust the window seal plate kit to fit the window opening. The kit is adjustable from 26.5 inches to 48.5 inches.
- Secure the window seal plate in the window frame.
- Insert the hose adapter end of the exhaust hose into the opening of the window seal plate, ensuring a tight seal to prevent hot air from re-entering the room.
- Sambungan Kuasa: Palamkan kord kuasa ke soket elektrik 115V/60Hz yang dibumikan.

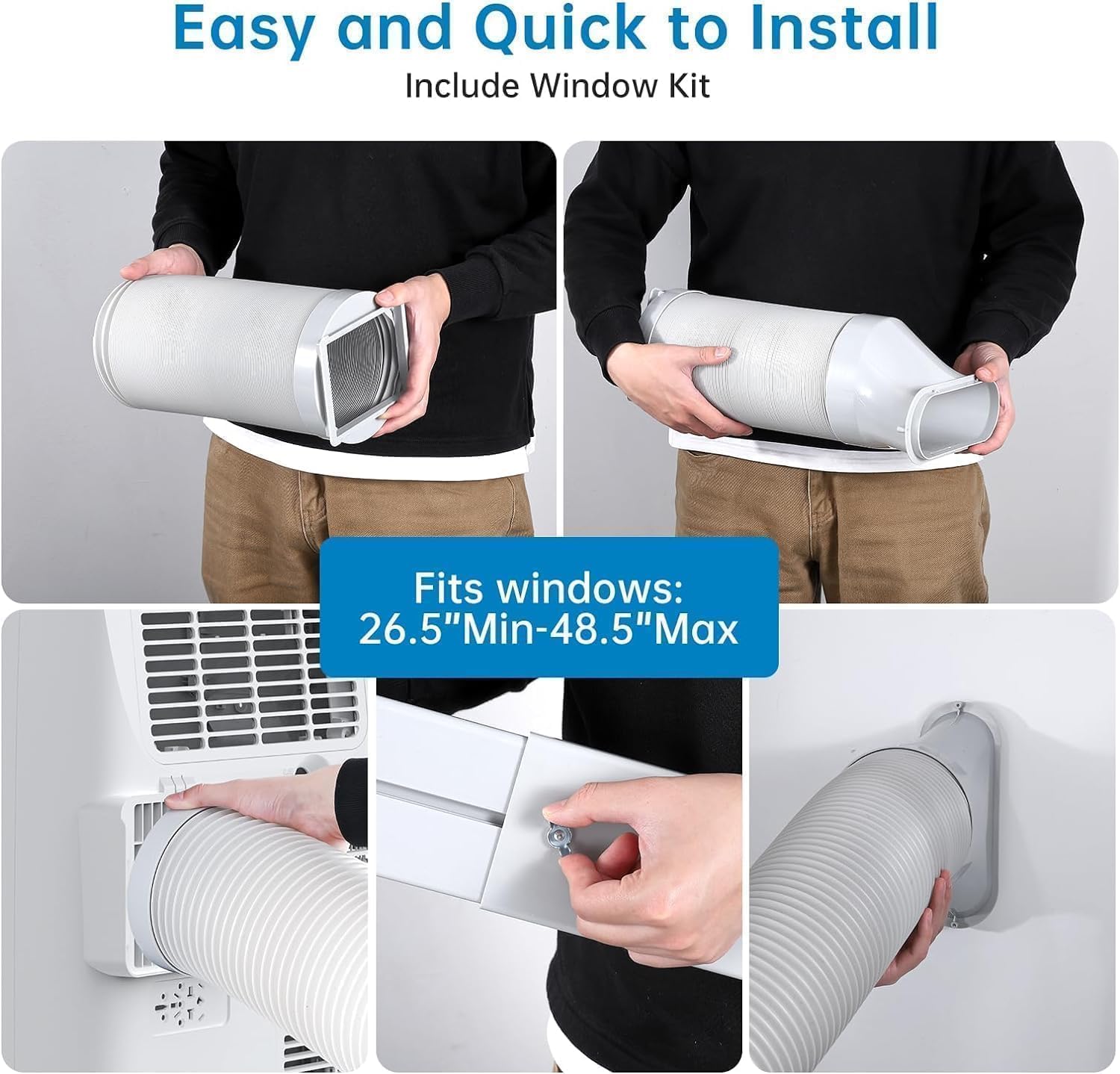

Image: A series of images demonstrating the quick and easy installation process, including attaching the exhaust hose to the unit and securing the window kit.
Image: Diagrams illustrating how the window kit fits both double/single-hung windows and sliding/slash windows, ensuring versatile installation options.
Arahan Operasi
Your Acekool Portable Air Conditioner can be controlled via the top LED display panel or the included remote control.
Image: The air conditioner unit with its LED touch panel clearly visible, alongside a person using the remote control, demonstrating the two control modes.
Panel Kawalan dan Fungsi Jauh:
- Butang Kuasa: HIDUPKAN atau MATI unit.
- Butang Mod: Cycles through Cooling, Fan, and Dehumidifier (Dry) modes.
- Mod Sejuk: Provides powerful cooling. Adjustable temperature range: 61°F to 88°F.
- Mod Kipas: Circulates air without cooling. Multiple fan speeds available.
- Dehumidifier (Dry) Mode: Removes excess moisture from the air. Connect the drain hose for continuous drainage in this mode.
- Butang Naik/Turun Suhu: Adjust the desired temperature in Cool mode.
- Butang Kelajuan: Adjusts fan speed (Low, Medium, High) in Cool and Fan modes.
- Butang Pemasa: Sets the 24-hour ON/OFF timer. Press to set the desired operating duration or delay start.
- Butang Mod Tidur: Activates sleep mode for quiet, energy-efficient operation during the night. The fan speed will automatically adjust to low, and the temperature may gradually increase.
- Butang Ayun: Activates or deactivates the auto-swing function for the air louvers, ensuring wide-angle air distribution.
Petua Operasi:
- For optimal cooling, ensure all windows and doors in the room are closed.
- Bersihkan penapis udara secara berkala untuk mengekalkan kecekapan.
- In Dehumidifier mode, ensure the drain hose is properly connected to a suitable drainage point.
Image: The Acekool Portable Air Conditioner operating in a living room, demonstrating its ability to provide 14000 BTU cooling power for areas up to 750 sq. ft., ensuring comfort for occupants.
Penyelenggaraan
Penyelenggaraan tetap memastikan jangka hayat dan prestasi cekap penghawa dingin anda.
Membersihkan Penapis Udara:
The Acekool Portable Air Conditioner features a washable filter. It is recommended to clean the filter every two weeks, or more frequently depending on usage and air quality.
- Cabut palam unit daripada salur keluar kuasa.
- Cari panel akses penapis udara (biasanya di bahagian belakang atau sisi unit).
- Keluarkan penapis udara dengan berhati-hati.
- Wash the filter under running water (lukewarm) or use a vacuum cleaner to remove dust and debris.
- Allow the filter to air dry completely before reinserting it into the unit. Do not expose to direct sunlight or high heat.
- Reinsert the dry filter and close the access panel.
Image: A composite image highlighting the unit's portability features, including the built-in handles, the easily removable washable filter, and the 4 universal wheels for effortless movement.
Membersihkan Bahagian Luar Unit:
- Lap bahagian luar dengan lembut, damp kain.
- Do not use harsh chemicals, abrasives, or solvents as they may damage the surface.
- Pastikan unit kering sepenuhnya sebelum memasangnya semula.
Storan:
- Before storing, run the unit in Fan mode for a few hours to dry out any internal moisture.
- Drain any accumulated water from the unit's drain port.
- Bersihkan penapis udara.
- Simpan unit di tempat yang sejuk dan kering, sebaik-baiknya ditutup untuk melindungi daripada habuk.
Menyelesaikan masalah
Rujuk bahagian ini untuk isu biasa dan penyelesaiannya. Jika masalah berterusan, hubungi sokongan pelanggan.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Unit tidak dihidupkan. | No power; Power cord unplugged; Circuit breaker tripped; Full water tank (in Dehumidifier mode). | Check power connection; Reset circuit breaker; Empty water tank if full. |
| Unit tidak menyejukkan dengan berkesan. | Windows/doors open; Air filter dirty; Exhaust hose blocked or disconnected; Room size too large; Temperature setting too high. | Close windows/doors; Clean air filter; Check exhaust hose connection; Ensure room size is within 750 sq. ft.; Lower temperature setting. |
| Unit bising. | Unit bukan pada permukaan yang rata; Penapis udara kotor; Halangan dalam kipas. | Letakkan unit di atas permukaan yang rata; Bersihkan penapis udara; Periksa sebarang halangan. |
| Kebocoran air. | Drain plug not properly sealed; Drain hose kinked or blocked (in Dehumidifier mode); Water tank full. | Ensure drain plug is secure; Straighten or clear drain hose; Empty water tank. |
Spesifikasi
| Ciri | Perincian |
|---|---|
| Jenama | Acekool |
| Nama Model | 14k PAC |
| Kapasiti Penyejukan | 14,000 BTU |
| Kawasan Liputan | Sehingga 750 Sq. Ft. |
| Fungsi | Cool, Fan, Dehumidifier (3-in-1) |
| Kapasiti Dehumidifikasi | Sehingga 90 pint sehari |
| Julat Suhu | 61°F - 88°F |
| Tahap Kebisingan | Di bawah 50 dB |
| Ciri Khas | Ayunan 4 Hala |
| warna | putih |
| Pemasa | Boleh Diprogram 24 Jam |
| mobiliti | 4 Universal Wheels, Hidden Handles |
| Jenis Penapis | Boleh dibasuh |
Waranti dan Sokongan Pelanggan
Acekool is committed to providing high-quality products and excellent customer service. For warranty information, technical assistance, or any questions regarding your portable air conditioner, please contact Acekool customer support.
Refer to the official Acekool website or your purchase documentation for the most up-to-date warranty terms and contact details.
Sokongan dalam talian: Lawati Acekool Store on Amazon untuk maklumat produk dan sumber sokongan.
