Nuvita 1180 Lattespresso

1. Pengenalan

The Nuvita 1180 Lattespresso is an instant formula milk maker designed to simplify the preparation of baby bottles. This device automatically heats, doses, mixes, and dispenses powdered milk, ensuring a consistent temperature and lump-free consistency in approximately 10 seconds. It offers customizable temperature settings and is compatible with various powder milk brands.

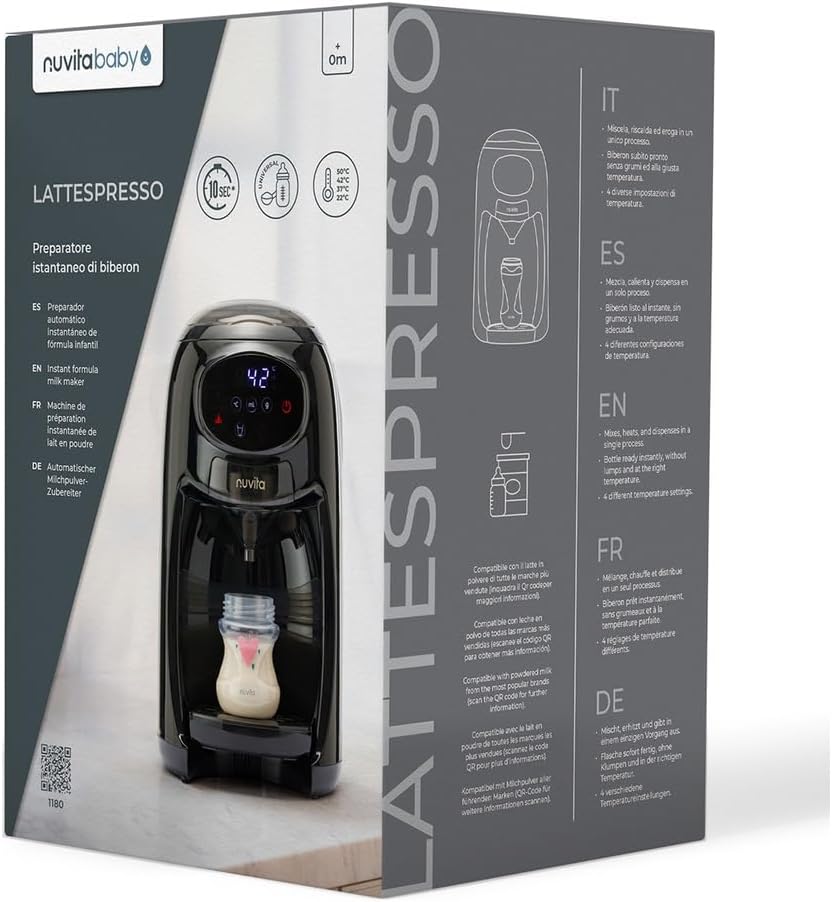

Image 1.1: Nuvita 1180 Lattespresso product in its retail packaging.

Ciri-ciri Utama:

• Automatic and Instant Preparation: Heats, doses, mixes, and dispenses powdered milk in approximately 10 seconds.
• Customizable Temperatures: Offers 4 temperature settings: 22°C, 37°C, 42°C (for milk), and 50°C (for water only).
• Adjustable Bottle Base: Accommodates bottles from 60 ml to 300 ml.
• Powder Milk Compatibility: Features 10 selectable dosing programs for compatibility with major powder milk brands.
• Kapasiti Besar: 1.3 L water tank and 350 g powder milk container, capable of preparing up to 14 bottles (120 ml each) per refill.
• Reka Bentuk Kebersihan: Closed system for powder and removable, dishwasher-safe water tank.
• Keselamatan dan Kecekapan: Automatic shut-off after each cycle.

2. Maklumat Keselamatan Penting

Please read all instructions carefully before using the Nuvita 1180 Lattespresso. Failure to follow these instructions may result in injury or damage to the appliance.

• Sentiasa jauhkan perkakas daripada kanak-kanak.
• Jangan rendam unit utama dalam air atau cecair lain.
• Pastikan perkakas diletakkan pada permukaan yang stabil, rata dan tahan panas.
• Jangan kendalikan perkakas jika kord kuasa atau palam rosak.
• Cabut plag perkakas dari salur keluar kuasa sebelum membersihkan atau apabila tidak digunakan.
• Use only clean, potable water in the water tank.
• Do not use the appliance for purposes other than preparing formula milk.
• Always check the temperature of the prepared milk before feeding to ensure it is safe for the baby.
• Regularly clean all parts that come into contact with milk or water to prevent bacterial growth.

3. Persediaan dan Penggunaan Pertama

3.1 Membongkar

1. Carefully remove the Lattespresso from its packaging.
2. Keluarkan semua bahan pembungkusan, pelekat dan label.
3. Periksa perkakas untuk sebarang tanda kerosakan. Jangan gunakan jika rosak.

3.2 Pembersihan Awal

1. Remove the water tank and powder container. Wash them with warm soapy water, rinse thoroughly, and dry completely. The water tank is dishwasher safe.
2. Lap bahagian luar unit utama dengan iklanamp kain. Jangan rendam unit utama dalam air.
3. Perform a cleaning cycle with water only:
   • Isi tangki air dengan air bersih.
   • Place an empty bottle or container under the dispenser.
   • Select the 50°C temperature setting (water only) and initiate a dispensing cycle.
   • Discard the water after the cycle. Repeat this process once more.

3.3 Filling the Water Tank and Powder Container

Imej 3.1: Sisi view menggambarkan tangki air yang boleh ditanggalkan.

1. Tangki Air: Remove the water tank from the back of the unit. Fill it with clean, potable water up to the MAX line (1.3 L capacity). Reinsert the tank securely.
2. Powder Container: Open the lid of the powder container located on top of the unit. Carefully pour your chosen powdered milk formula into the container (350 g capacity). Ensure the lid is closed tightly after filling to maintain hygiene.

4. Arahan Operasi

4.1 Menghidupkan dan Tetapan Awal

1. Plug the appliance into a suitable power outlet. The display will illuminate.
2. Pilih Suhu: Use the temperature selection buttons to choose the desired milk temperature. Available settings for milk are 22°C, 37°C, and 42°C. A 50°C setting is available for water only (e.g., for cleaning or preparing other beverages).

Image 4.1: Control panel showing temperature selection buttons.
3. Select Dosing Program: The Lattespresso offers 10 selectable dosing programs to match various powder milk brands. Consult your formula's instructions and the Lattespresso manual for the correct program setting. Adjust the program using the dedicated buttons.
4. Adjust Bottle Base: Adjust the height of the bottle base to fit your baby bottle (60 ml to 300 ml). Ensure the bottle is positioned directly under the dispenser.

4.2 Preparing a Bottle

1. Ensure the water tank is filled and the powder container has sufficient formula.
2. Place a clean, empty baby bottle on the adjustable base.
3. Confirm your desired temperature and dosing program are selected on the display.
4. Press the start button to begin the preparation cycle. The appliance will automatically heat the water, dispense the correct amount of powder, and mix them.


Image 4.2: Initiating a preparation cycle with a single button press.

5. The preparation process takes approximately 10 seconds. The appliance will automatically stop once the bottle is ready.
6. Carefully remove the bottle. Always check the milk temperature on your wrist before feeding your baby.

5. Pembersihan dan Penyelenggaraan

Regular cleaning is essential to ensure hygiene and optimal performance of your Lattespresso.

5.1 Pembersihan Harian

• Dispenser and Mixing Funnel: After every 4 bottles, remove the mixing funnel and dispenser. Wash them with warm soapy water, rinse thoroughly, and dry completely. Ensure no powder residue remains.
• Tangki Air: The water tank should be emptied and refilled daily with fresh water. It is removable and dishwasher safe for thorough cleaning.
• Luaran: Wipe the exterior surfaces of the appliance with a clean, damp kain.

5.2 Deep Cleaning / Descaling

Depending on water hardness, descaling may be required periodically to prevent mineral buildup. Refer to the full product manual for detailed descaling instructions. Generally, this involves running a cycle with a descaling solution (e.g., white vinegar diluted with water) followed by several rinse cycles with clean water.

6. Penyelesaian masalah

If you encounter issues with your Nuvita 1180 Lattespresso, please refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Nuvita customer support.

7. Spesifikasi Produk

• Jenama: Nuvita
• Nombor Model: NU-ALSC0026
• warna: Hitam
• Dimensi Produk (L x W x H): 42 x 27 x 29 cm (16.5 x 10.6 x 11.4 inci)
• Berat Barang: 3.86 Kilogram (8.5 lbs)
• Kapasiti Tangki Air: 1300 Mililiter (1.3 Liter)
• Powder Container Capacity: 350 gram
• Bahan: plastik
• Ciri Khas: Automatic preparation, temperature and format adjustment, compatibility with powder milk brands, large capacity, optimal safety.

8. Waranti dan Sokongan

8.1 Maklumat Waranti

The Nuvita 1180 Lattespresso comes with a manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region. Please retain your proof of purchase for warranty claims. For detailed warranty information, refer to the warranty card included with your product or visit the official Nuvita webtapak.

8.2 Sokongan Pelanggan

For technical assistance, troubleshooting not covered in this manual, or spare parts inquiries, please contact Nuvita customer support. Contact details can typically be found on the Nuvita official webtapak atau pada pembungkusan produk.

Sila layari www.nuvita.com for the latest information and support resources.
