Ciays 43-Inch Rectangular Propane Fire Pit User Manual

pengenalan

This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your Ciays 43-Inch Rectangular Propane Fire Pit. Please read this manual thoroughly before assembly or operation to ensure proper use and to prevent personal injury or property damage.

Image: The Ciays 43-inch rectangular propane fire pit with flames, showcasing reka bentuk dan fungsinya.

Maklumat Keselamatan Penting

AMARAN: For outdoor use only. Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.

• Always maintain proper clearance from combustible materials.
• Jangan simpan atau gunakan petrol atau wap dan cecair mudah terbakar lain di sekitar ini atau mana-mana perkakas lain.
• Silinder propana yang tidak disambungkan untuk digunakan tidak boleh disimpan di sekitar ini atau mana-mana perkakas lain.
• Ensure adequate ventilation when operating.
• Keep children and pets away from the fire pit during operation.
• Jangan gunakan lubang api dalam keadaan berangin.
• This appliance is CSA-certified for safety and reliability.

Ciri-ciri Utama

• Powerful 60,000 BTU Heating: Efficient warmth for outdoor use, featuring a durable 304 stainless steel H-burner for consistent heating.
• Extra 3-Inch Table Edge: Menyediakan ample space for drinks, snacks, and other items, enhancing functionality.
• Reka Bentuk Bergaya dan Praktikal: Includes decorative rocks and a premium texture that blends with patio decor.
• 2-in-1 Fire Pit Table: Easily transforms into a standard table with the included protective cover, offering versatility.
• Infinite Flame Adjustment & Adjustable Feet: Stepless adjustment knob for precise flame control and adjustable feet for stability on uneven surfaces.

Image: Visual representation of the fire pit's key features, including its 60,000 BTU output, storage mesh bag, and CSA certification.

Spesifikasi

Image: The fire pit with key dimensions highlighted, showing its overall size.

Kandungan Pakej

Please verify that all parts are present before beginning assembly.

• Ciays 43-Inch Rectangular Propane Fire Pit Table
• Penutup Pelindung
• Decorative Lava Rocks
• 304 Stainless Steel H-Burner (pre-installed)
• Manual Arahan

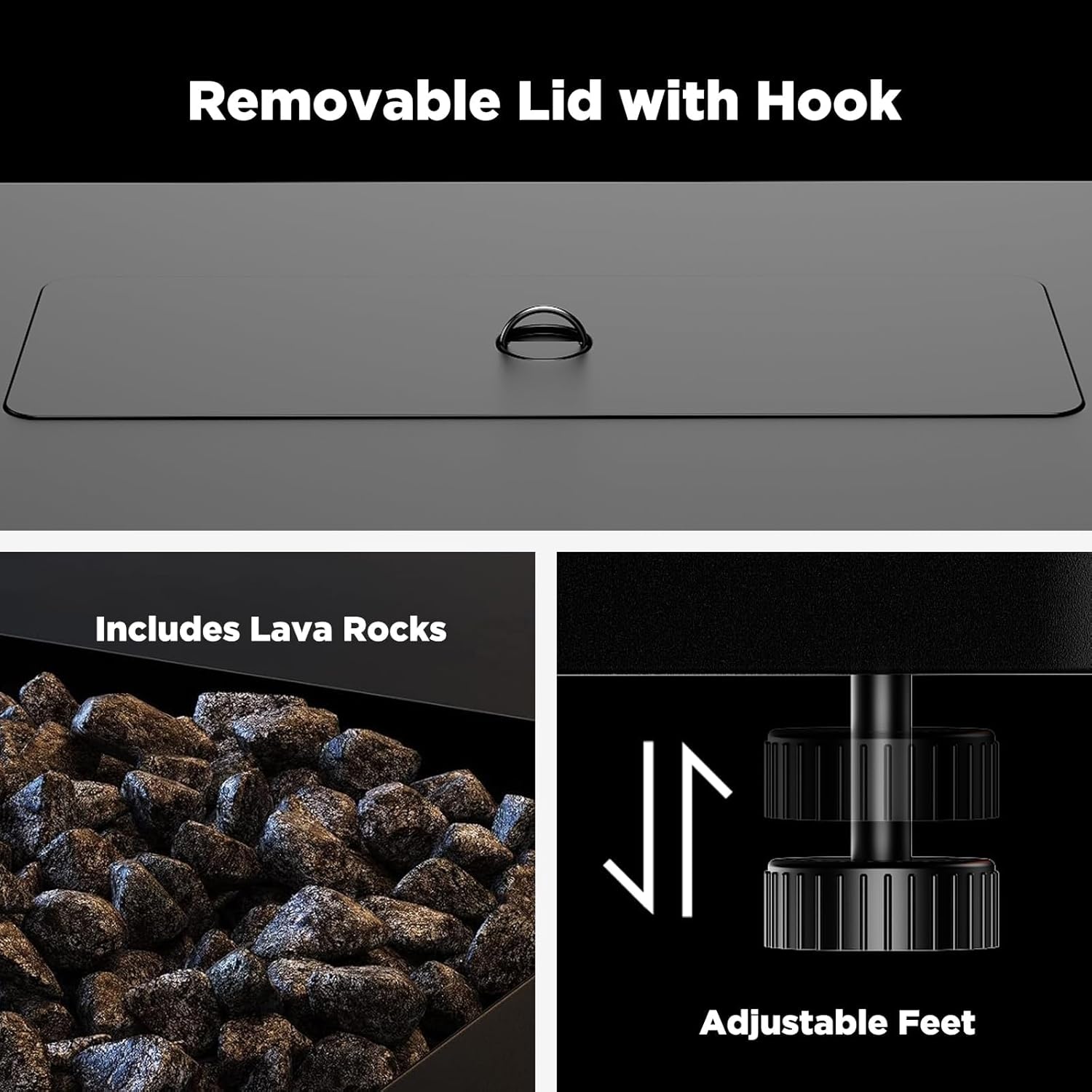

Image: Details of the fire pit's components, including the removable lid, lava rocks, and adjustable feet.

Arahan Persediaan

1. Membongkar: Keluarkan semua komponen daripada pembungkusan dengan berhati-hati. Simpan pembungkusan untuk penyimpanan atau pengangkutan pada masa hadapan jika perlu.
2. penempatan: Position the fire pit on a hard, level, non-combustible surface. Ensure there is adequate clearance from combustible materials (e.g., walls, furniture, trees).
3. Laraskan Kaki: Use the adjustable feet at the base of the fire pit to ensure it is stable and level on uneven patios or lawns.
4. Sambungan Tangki Propana:
   • Open the access door on the side of the fire pit.
   • Place a standard 20 lb propane tank (not included) inside the designated compartment.
   • Connect the regulator hose from the fire pit to the propane tank valve. Hand-tighten securely.
   • Check all connections for leaks using a soapy water solution before first use.
5. Lava Rock Placement: Carefully distribute the decorative lava rocks evenly over the burner assembly. Do not block the igniter or burner ports.

Image: The fire pit in an outdoor setting, demonstrating its use for gatherings and providing warmth.

Arahan Operasi

1. Sebelum Pencahayaan: Ensure the control knob is in the "OFF" position. Open the valve on the propane tank slowly.
2. Menyalakan Lubang Api:
   • Push and turn the control knob counter-clockwise to the "LOW" position.
   • Press and hold the igniter button for 5-10 seconds until the burner ignites.
   • If ignition does not occur within 15 seconds, turn the control knob to "OFF", wait 5 minutes, and repeat the lighting procedure.
3. Melaraskan Nyalaan: Once lit, rotate the control knob between "LOW" and "HIGH" to adjust the flame height to your desired level.
4. Tutup:
   • Turn the control knob clockwise to the "OFF" position.
   • Tutup injap pada tangki propana.
   • Allow the fire pit to cool completely before covering or moving.

Image: The stepless adjustment switch, allowing users to precisely control the flame height.

Penyelenggaraan

• Pembersihan: Lap permukaan luar secara berkala dengan kain lembutamp kain. Jangan gunakan pembersih yang kasar.
• Penyelenggaraan Pembakar: Keep the burner and lava rocks free from debris. Use a soft brush to clean the burner ports if necessary.
• Penutup Pelindung: Use the included protective cover when the fire pit is not in use to shield it from weather elements and dust. This also allows it to function as a regular table.
• Storan: When storing the fire pit for extended periods, disconnect the propane tank and store it in a well-ventilated area outdoors. Cover the fire pit and store it in a cool, dry place.

Menyelesaikan masalah

Waranti dan Sokongan

For warranty information or technical support, please contact Ciays customer service. Refer to your purchase documentation for specific warranty terms and contact details.

You can also visit the official Ciays store for more information: Ciays Store
