1. Pengenalan
Terima kasih kerana membeliasing the Mesqool CR1028R RGB LED Digital Alarm Clock. This manual provides detailed instructions on how to set up, operate, and maintain your new alarm clock. Please read this manual thoroughly before use and keep it for future reference.

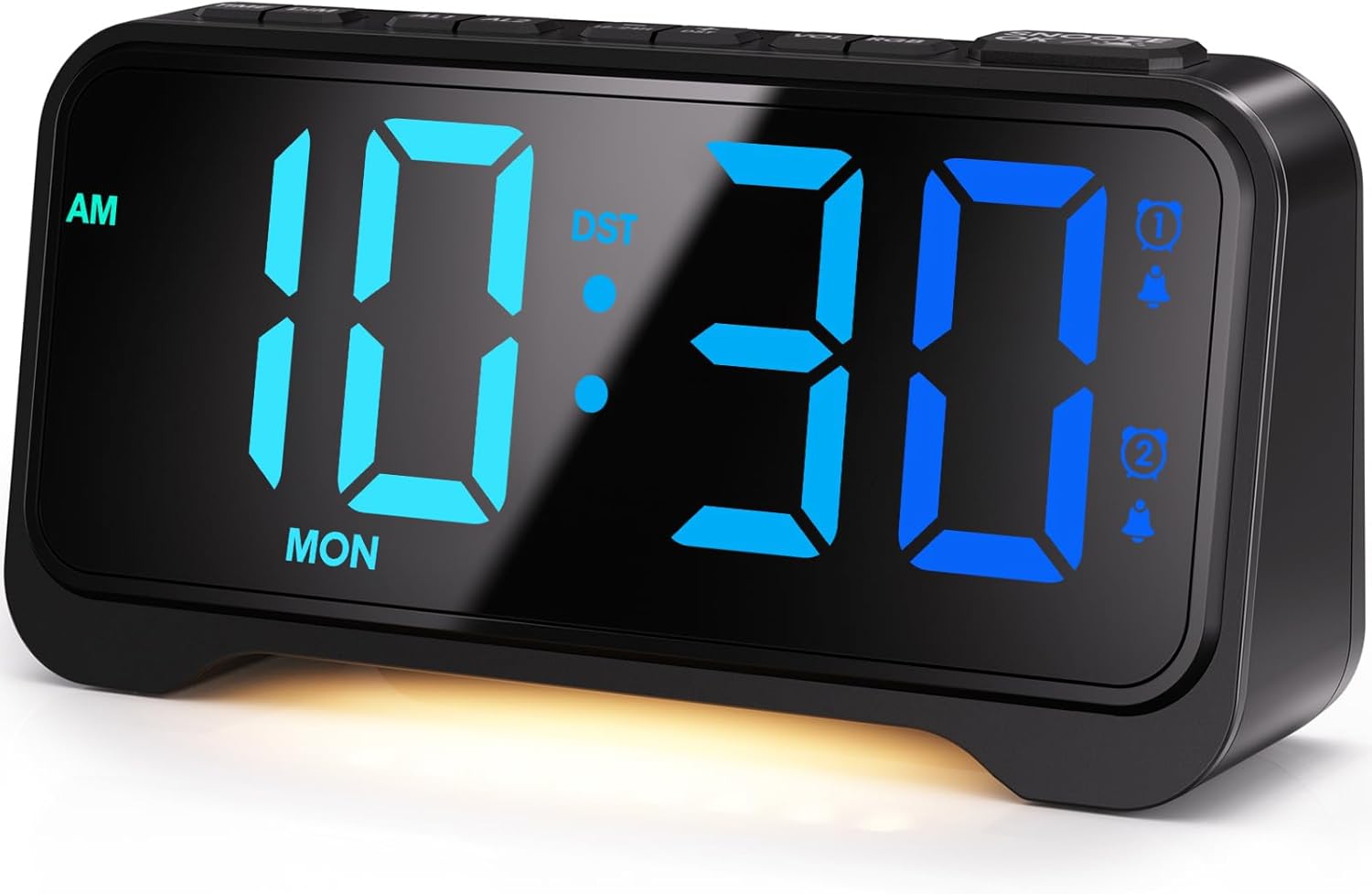

Figure 1: Mesqool CR1028R RGB LED Digital Alarm Clock
2. Produk Lebihview
2.1 Ciri-ciri Utama
- lebar Viewing Angle LED Display: High-quality LED screen with uniform light emission and excellent visibility from various angles.
- 10-Color Display Modes: Choose from 6 high-contrast single colors and 4 dynamic RGB changing colors.
- Dwi Penggera: Set two independent alarms with flexible modes (weekdays, weekends, everyday).
- Enhanced Snooze Function: Up to 9 repetitions at 9-minute intervals.
- Pelarasan Kecerahan 7 Tahap: Laraskan kecerahan skrin untuk optimum viewdalam sebarang keadaan pencahayaan.
- Lampu Malam Ambien: Soft, warm night light at the bottom with 3 adjustable brightness levels.
- Kelantangan Kuat: Alarm volume up to 116dB, with 5 adjustable levels (76-86-96-106-116dB).
- Thoughtful Button Design: Protruding buttons of different sizes for intuitive and easy operation, even in the dark.
- 12/24-Hour Format & DST: Easily switch between time formats and activate Daylight Saving Time.
- Port Pengecasan USB Dwi: Includes Type-A and Type-C ports for charging external devices.
2.2 Kandungan Pakej
- Mesqool CR1028R RGB LED Digital Alarm Clock
- Kabel Kuasa USB
- Penyesuai Kuasa USB
- Manual Pengguna
Rajah 2: Kandungan Pakej dan Dimensi Produk
2.3 Product Diagram (Top & Rear View)
The alarm clock features intuitive button placement on the top for easy access and control. The rear panel houses essential ports and switches.
- Butang Atas: TIME SET, AL1, AL2, VOL, SNOOZE/DIMMER, DST, 12/24H, LIGHT, RGB.
- Panel belakang: USB-A Charging Port, USB-C Charging Port, DC IN (Power Input), Battery Compartment.

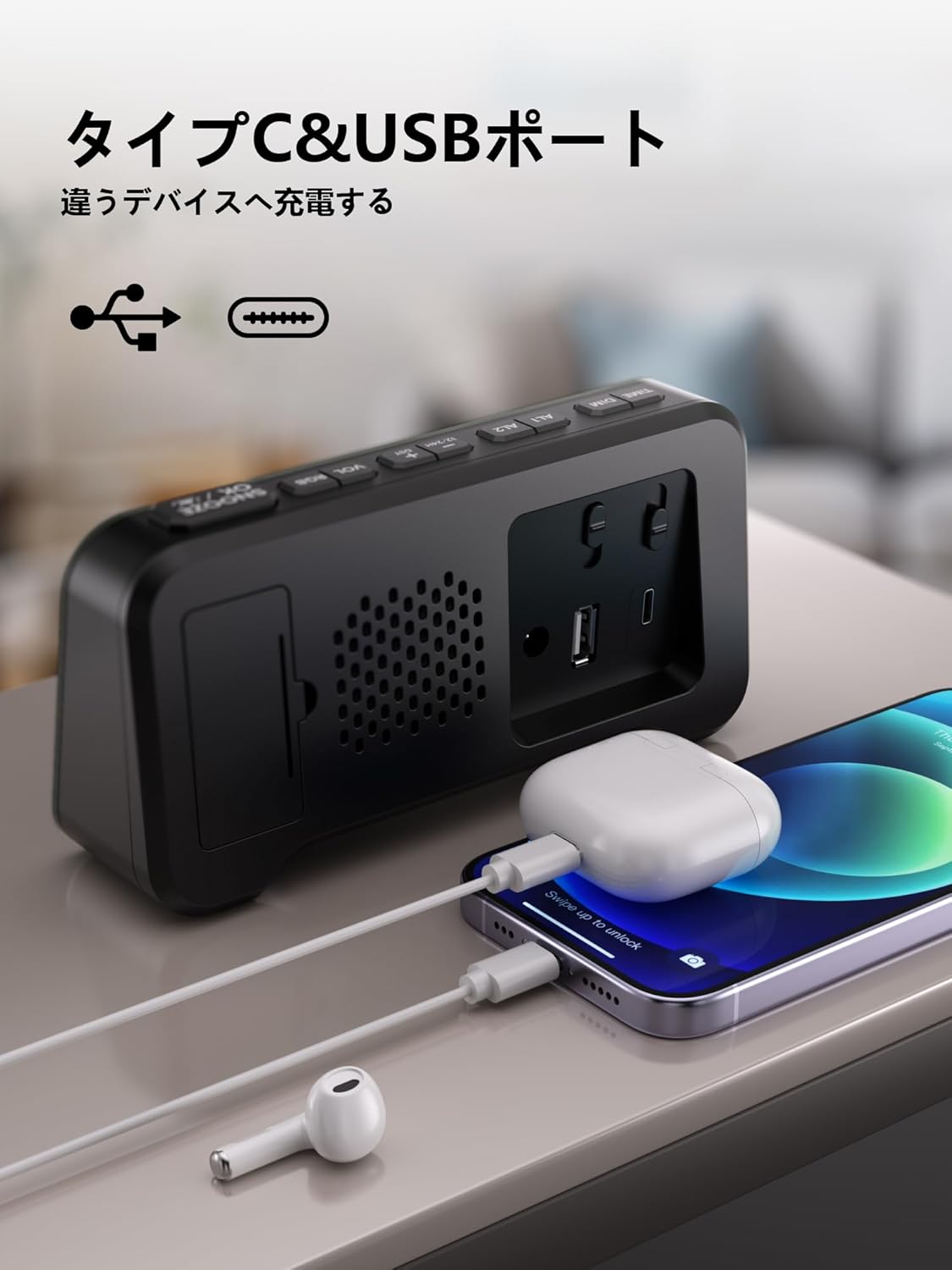

Rajah 3: Belakang View with USB Charging Ports
3. Persediaan
3.1 Sambungan Kuasa
- Connect the provided USB power cable to the DC IN port on the back of the alarm clock.
- Plug the other end of the USB power cable into the USB power adapter.
- Insert the USB power adapter into a standard wall outlet. The display will light up.
3.2 Battery Backup (Not Included)
The alarm clock requires 2 AAA batteries (not included) for backup power. These batteries retain time and alarm settings during a power outage but will not power the display.
- Buka penutup petak bateri di bahagian belakang unit.
- Masukkan 2 bateri AAA baharu, pastikan kekutuban yang betul (+ dan -).
- Tutup penutup petak bateri.
Rajah 4: Sambungan Kuasa dan Sandaran Bateri
4. Arahan Operasi
4.1 Penetapan Masa
- Tekan dan tahan butang MASA DITETAPKAN butang sehingga digit jam berkelip.
- Gunakan VOL+ or vol- butang untuk melaraskan jam.
- Tekan MASA DITETAPKAN again, and the minute digits will flash.
- Gunakan VOL+ or vol- butang untuk melaraskan minit.
- Tekan MASA DITETAPKAN sekali lagi untuk mengesahkan dan keluar dari mod tetapan masa.
4.2 Format 12/24 Jam
Tekan ke 12/24J button to switch between 12-hour (with AM/PM indicator) and 24-hour time formats.
Figure 5: 12/24 Hour Format and DST Display
4.3 Alarm Setting (AL1 / AL2)
This clock features two independent alarms (AL1 and AL2).
- Tekan dan tahan butang AL1 (atau AL2) button until the alarm hour digits flash.
- Gunakan VOL+ or vol- butang untuk melaraskan jam penggera.
- Tekan AL1 (atau AL2) again, and the alarm minute digits will flash.
- Gunakan VOL+ or vol- butang untuk melaraskan minit penggera.
- Tekan AL1 (atau AL2) again to select the alarm mode: 1-5 (Weekdays), 6-7 (Weekends), or 1-7 (Everyday).
- Tekan AL1 (atau AL2) again to confirm and exit alarm setting mode.
Untuk mengaktifkan/menyahaktifkan penggera, tekan sebentar AL1 or AL2 butang. Ikon penggera akan muncul/hilang pada paparan.
Figure 6: Alarm Modes and Volume Adjustment
4.4 Fungsi Tunda
Apabila penggera berbunyi, tekan besar SNOOZE / DIMMER button on top to activate snooze. The alarm will pause for 9 minutes and then sound again. This can be repeated up to 9 times.
Untuk mematikan penggera sepenuhnya, tekan sebarang butang lain (cth., AL1, AL2, MASA DITETAPKAN).
Figure 7: Dual Alarm and Snooze Operation
4.5 Pelarasan Kecerahan Paparan
The display brightness can be adjusted to 7 levels. Short press the SNOOZE / DIMMER button to cycle through the brightness levels (L01 to L07).
Figure 8: 7-Level Display Brightness Adjustment
4.6 RGB Display Color Modes
The clock offers 10 display color modes: 6 static single colors and 4 dynamic RGB changing colors. Short press the RGB button to cycle through the available color modes.
- Warna Statik: White, Green, Ice Blue, Blue, Red, Pink.
- Dynamic RGB Modes: RGB Random, RGB Flow Down, RGB Flow Right, RGB Change.

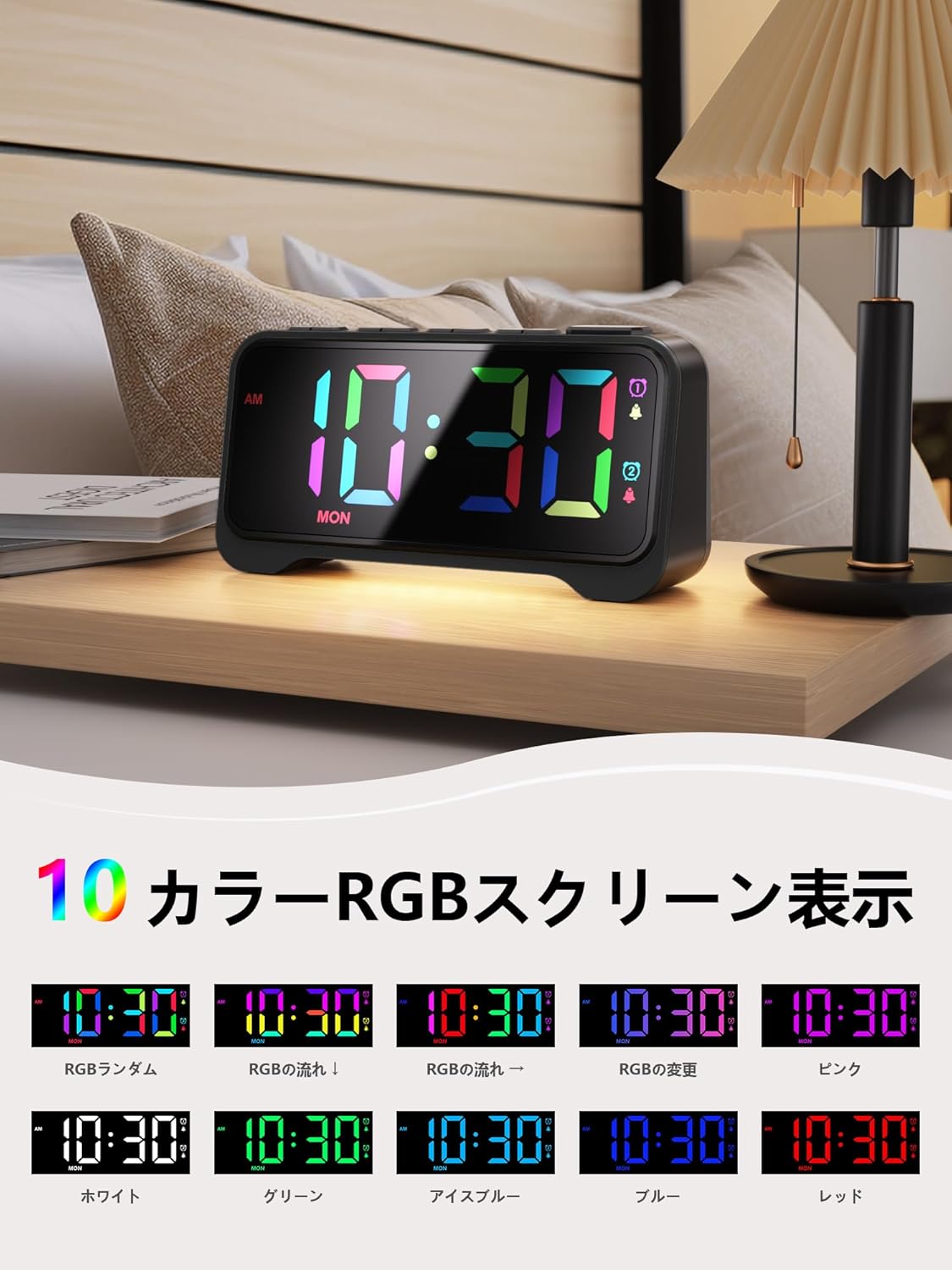

Figure 9: 10 Color RGB Screen Display Options
4.7 Cahaya Malam
The alarm clock features a soft, warm night light at its base. Short press the CAHAYA button to cycle through 3 brightness levels (Low, Medium, Bright) or turn it off.
Figure 10: Warm Night Light with 3 Brightness Levels
4.8 Pelarasan Kelantangan
The alarm volume can be adjusted to 5 levels. Short press the VOL+ or vol- buttons to cycle through the volume levels (76dB, 86dB, 96dB, 106dB, 116dB). Each press will play a sample of the alarm sound at the selected volume.
4.9 Waktu Penjimatan Siang (DST)
Tekan ke DST button to activate or deactivate Daylight Saving Time. When activated, the time will adjust by one hour, and a 'DST' indicator will appear on the display.
4.10 Port Pengecasan USB
The alarm clock is equipped with a USB-A port and a USB-C port on the rear for charging external devices. These ports provide 5V/1A output. Connect your device's charging cable to the appropriate port.
Figure 11: Dual USB Charging Ports in Use
5. Penyelenggaraan
- Bersihkan jam dengan kain lembut dan kering. Jangan gunakan pembersih atau pelarut yang melelas.
- Jauhkan jam daripada cahaya matahari langsung, suhu melampau dan kelembapan tinggi.
- Ensure the ventilation openings on the back are not blocked.
- If not using the clock for an extended period, remove the backup batteries to prevent leakage.
6. Penyelesaian masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Display is off / Clock not working. | Tiada sambungan kuasa atau kuasa keluartage. | Ensure the USB power cable is securely connected to a working power outlet. Check if there's a power outage. |
| Tetapan masa/penggera ditetapkan semula selepas kehilangan kuasa. | Bateri sandaran tidak dipasang atau telah kehabisan kuasa. | Install 2 new AAA batteries in the battery compartment. |
| Penggera tidak berbunyi. | Penggera tidak diaktifkan atau kelantangan terlalu rendah. | Press the AL1/AL2 button to activate the alarm (icon should appear). Adjust the volume using VOL+ button. |
| Paparan terlalu terang/malap. | Tahap kecerahan perlu diselaraskan. | Short press the SNOOZE/DIMMER button to cycle through 7 brightness levels. |
| Lampu malam tidak berfungsi. | Night light is off or at lowest setting. | Short press the LIGHT button to cycle through 3 brightness levels or turn it on. |
7. Spesifikasi
| Ciri | Spesifikasi |
|---|---|
| Jenama | Mesqool |
| Nombor Model | CR1028R |
| warna | Hitam |
| Dimensi Produk | 16.9 cm (Lebar) x 4.4 cm (Tinggi) |
| Dimensi Pakej | 21.6 x 9.4 x 5.7 cm |
| Berat Pakej | 0.3 Kilogram |
| Jenis Paparan | LED digital |
| Sumber Kuasa | Elektrik Bertali |
| Bateri Diperlukan | Yes (2 x AAA for backup, not included) |
| Fungsi Penggera | Dual Alarms with Snooze |
| Ciri Khas | RGB LED Display, Adjustable Brightness (7 levels), Adjustable Volume (5 levels), Night Light (3 levels), 12/24H Format, DST Function, Dual USB Charging Ports (Type-A & Type-C) |
8. Waranti dan Sokongan
Mesqool products are designed and manufactured to the highest quality standards. For any questions, technical support, or warranty claims, please contact Mesqool customer service through your purchase platform or the official Mesqool webtapak. Sila simpan bukti pembelian anda untuk tujuan waranti.
