Manual Pengguna Mesin Karaoke HWWR T22-T

1. Pengenalan

This manual provides detailed instructions for the safe and effective operation of your HWWR Karaoke Machine T22-T. Please read this manual thoroughly before using the product and retain it for future reference. This portable karaoke system is designed to deliver high-quality audio and entertainment for various occasions.

Figure 1: HWWR Karaoke Machine T22-T

2. Kandungan Pakej

Pastikan semua item yang disenaraikan di bawah terdapat dalam pakej anda:

• 1x HWWR Karaoke Speaker
• 2x Mikrofon Tanpa Wayar
• 1x Kabel Pengecas USB-C
• Kabel AUX 1x
• 1x Shoulder Carrying Strap
• 1x Manual Pengguna

Rajah 2: Kandungan Pakej

3. Produk Lebihview

3.1 Ciri-ciri Unit Utama

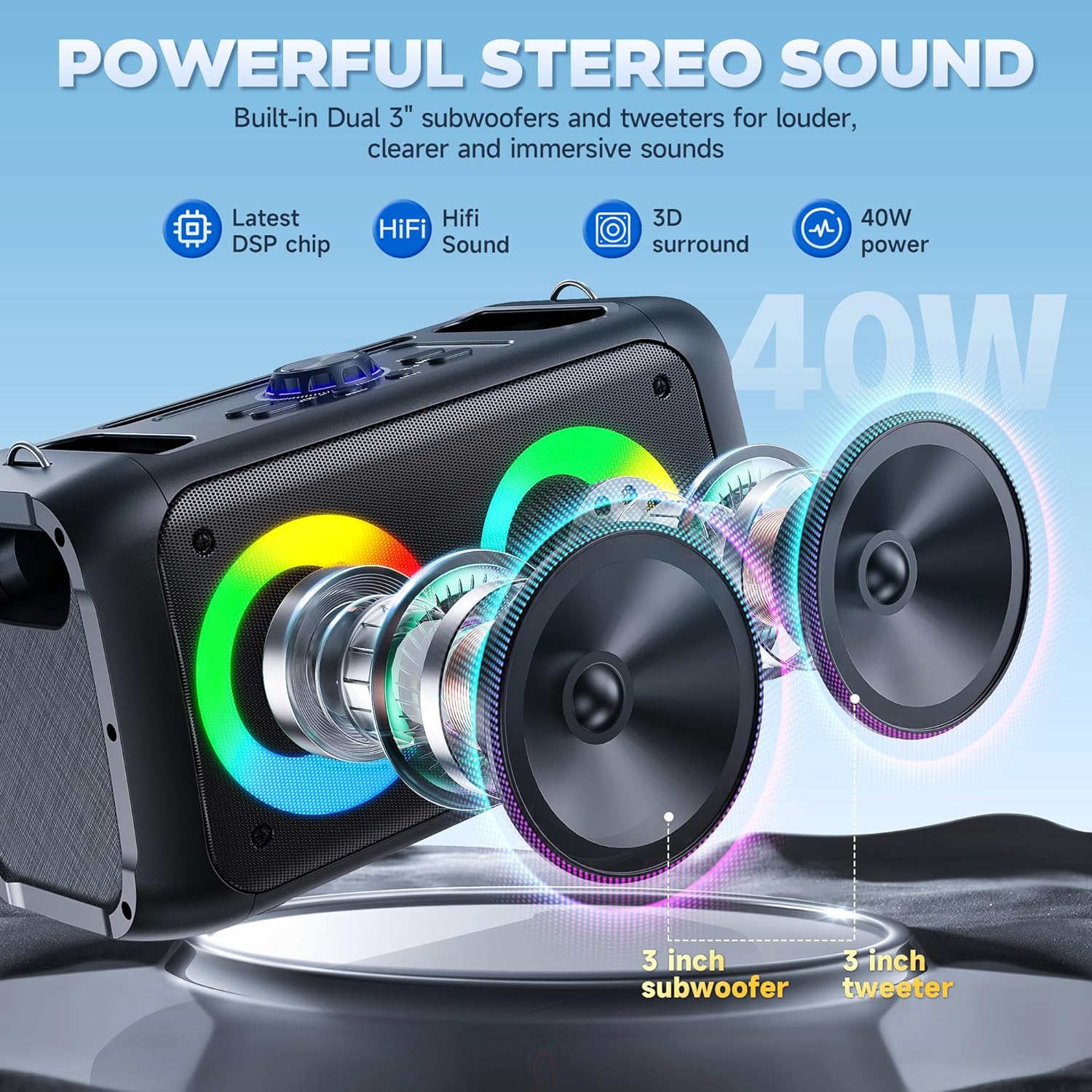

The HWWR Karaoke Machine T22-T is equipped with dual 3-inch subwoofers and dual 3-inch tweeters for powerful 40W HiFi sound (80W peak). It features 12 dynamic LED light modes and multiple connection options.

Figure 3: Powerful Stereo Sound

3.2 Panel Kawalan

The top panel of the speaker provides various controls and ports:

• Microphone/Instrument Input: For connecting wired microphones or instruments.
• Vol Mic: Melaraskan kelantangan mikrofon.
• Gema: Melaraskan kesan gema mikrofon.
• Jumlah Induk: Controls overall speaker volume.
• DC 5V (Type-C): Port pengecasan untuk pembesar suara.
• Port USB: For playing music from USB drives.
• Slot Kad TF: For playing music from TF cards.
• Pelabuhan AUX: Untuk menyambungkan peranti audio luaran melalui kabel AUX.
• Butang LED: Cycles through LED light modes.
• Mode/Loop Button: Switches between input modes (Bluetooth, AUX, TF, USB).
• Butang EQ: Adjusts equalizer settings.
• Butang REC: Rakam audio.
• M TWS Button: Activates TWS (True Wireless Stereo) pairing.
• Play/Pause, Previous/Next Buttons: Kawalan main balik media.

Rajah 4: Panel Kawalan Selesaiview

3.3 Mikrofon Tanpa Wayar

The system includes two wireless microphones with individual power buttons and volume controls. They automatically connect to the speaker when powered on.

Figure 5: Dual Wireless Microphones

4. Persediaan

4.1 Pemasangan Bateri Mikrofon

1. Unscrew the microphone base.
2. Insert two AA batteries into the microphone, ensuring correct polarity.
3. Screw the microphone base back on securely.
4. Repeat for the second microphone.

Figure 6: Microphone Battery Installation

4.2 Speaker Power On

Turn the 'Power/Master' knob on the control panel clockwise to power on the speaker. The LED lights will illuminate, and a voice prompt will indicate 'Bluetooth mode'.

Video 1: Easy Setup for T22-T Karaoke Machine (demonstrates power on and Bluetooth mode)

4.3 Berpasangan Bluetooth

1. Pastikan Bluetooth peranti anda dihidupkan.
2. On your device, search for available Bluetooth devices and select 'T22' (or similar model name).
3. Confirm pairing if prompted. A voice prompt will announce 'Bluetooth connected' upon successful pairing.

The speaker will automatically reconnect to the last paired device when powered on.

4.4 Fungsi TWS (Stereo Wayarles Sejati).

To connect two HWWR T22-T speakers for a stereo experience:

1. Pastikan kedua-dua pembesar suara dihidupkan dan dalam mod Bluetooth.
2. Press the 'M TWS' button on one of the speakers. It will search for another speaker.
3. Once connected, a voice prompt will confirm TWS pairing.

Figure 7: TWS Connection Mode

5. Arahan Operasi

5.1 Pemilihan Mod

Press the 'Mode/Loop' button on the control panel to cycle through available input modes: Bluetooth, AUX, TF Card, and USB. A voice prompt will indicate the current mode.

Video 2: Karaoke Machine with 2 Microphones, Great for Home Party (demonstrates mode switching)

5.2 Penggunaan Mikrofon

Press the power button on each microphone to turn it on. The microphone will automatically connect to the speaker. Adjust microphone volume using the 'Mic Vol' knob and echo effect using the 'Echo' knob on the speaker's control panel or via the remote control.

5.3 Mod Lampu LED

The speaker features 12 dynamic LED light modes. Press the 'LED' button on the control panel or the remote control to cycle through the different lighting effects.

Figure 8: Colorful Disco Lights

Video 3: T22 Karaoke Machine for Adults & Kids (demonstrates LED light modes)

5.4 Penggunaan Alat Kawalan Jauh

The included remote control allows for convenient operation of the karaoke machine from a distance. Functions include:

• Hidupkan/Mati Kuasa
• Volume adjustment for speaker and individual microphones.
• Echo and EQ adjustments.
• Media playback controls (Play/Pause, Previous/Next).
• LED light mode selection.
• Built-in sound effects (e.g., applause, whistle).

Rajah 9: Alat Kawalan Jauh

6. Mengecas

Connect the USB-C charging cable to the DC 5V port on the speaker and to a suitable USB power adapter (not included). The charging indicator light will show red while charging and turn off when fully charged.

The speaker offers 8-10 hours of continuous playback on a full charge, with a charging time of 4-6 hours.

7. Penyelenggaraan

• Jauhkan peranti daripada air dan kelembapan berlebihan.
• Clean the speaker and microphones with a soft, dry cloth. Do not use harsh chemicals.
• Simpan peranti di tempat yang sejuk dan kering apabila tidak digunakan.
• Elakkan daripada menjatuhkan peranti atau terkena impak yang kuat.

8. Penyelesaian masalah

• Tiada Kuasa: Ensure the speaker is charged and the power knob is turned on.
• Tiada Bunyi: Check volume levels on both the speaker and your connected device. Ensure the correct input mode is selected.
• Mikrofon Tidak Berfungsi: Check microphone batteries and ensure they are powered on. Verify microphone volume is not muted.
• Pemutusan sambungan Bluetooth: Ensure the speaker and your device are within the 20-meter transmission range. Re-pair the device if necessary.

9. Spesifikasi

10. Waranti & Sokongan

The HWWR Karaoke Machine T22-T comes with a Waranti 1 tahun. For any product inquiries or support, please contact our Sokongan Pelanggan 7/24. We also offer an US Local After-sales Center for convenient service.
